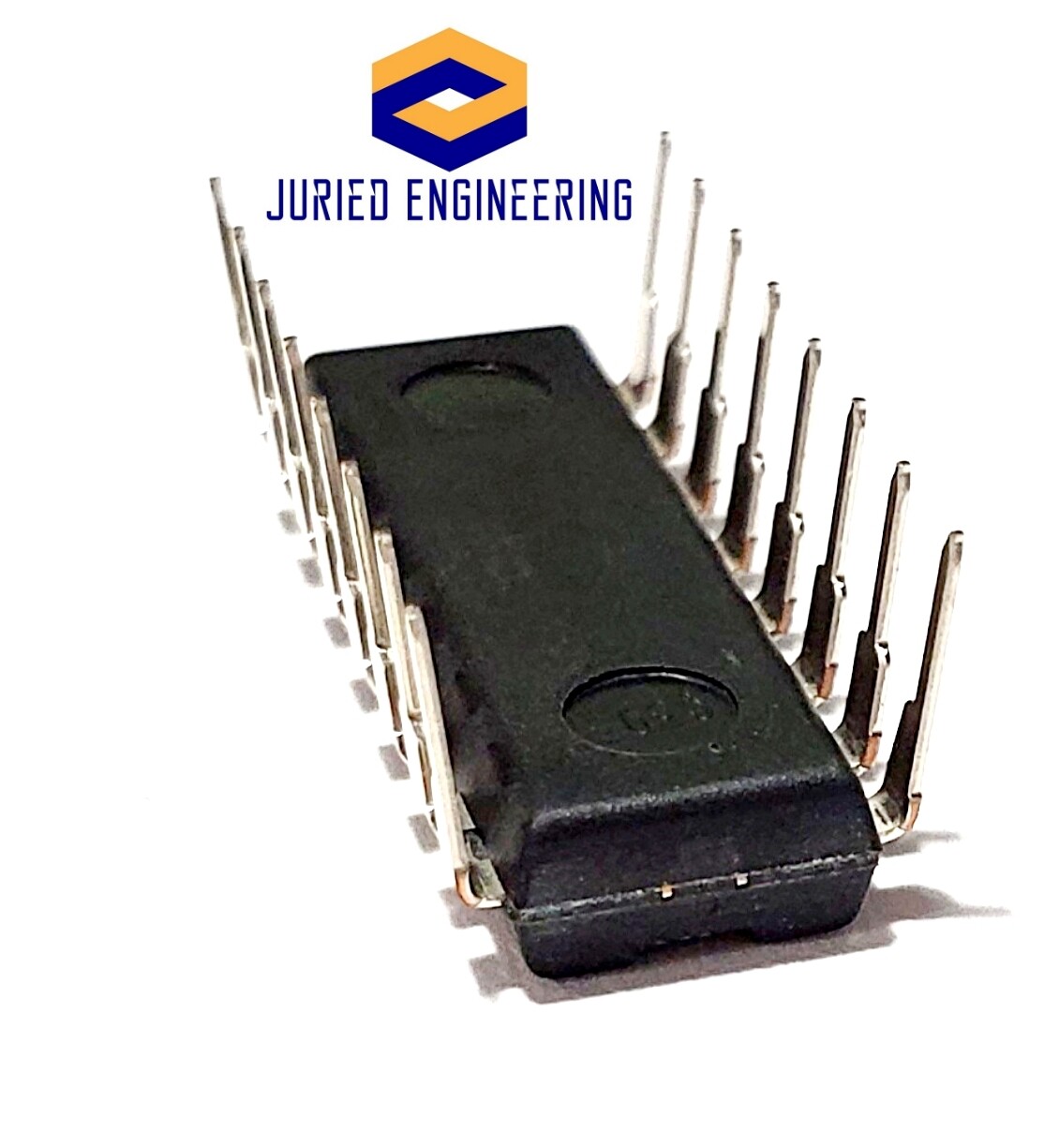

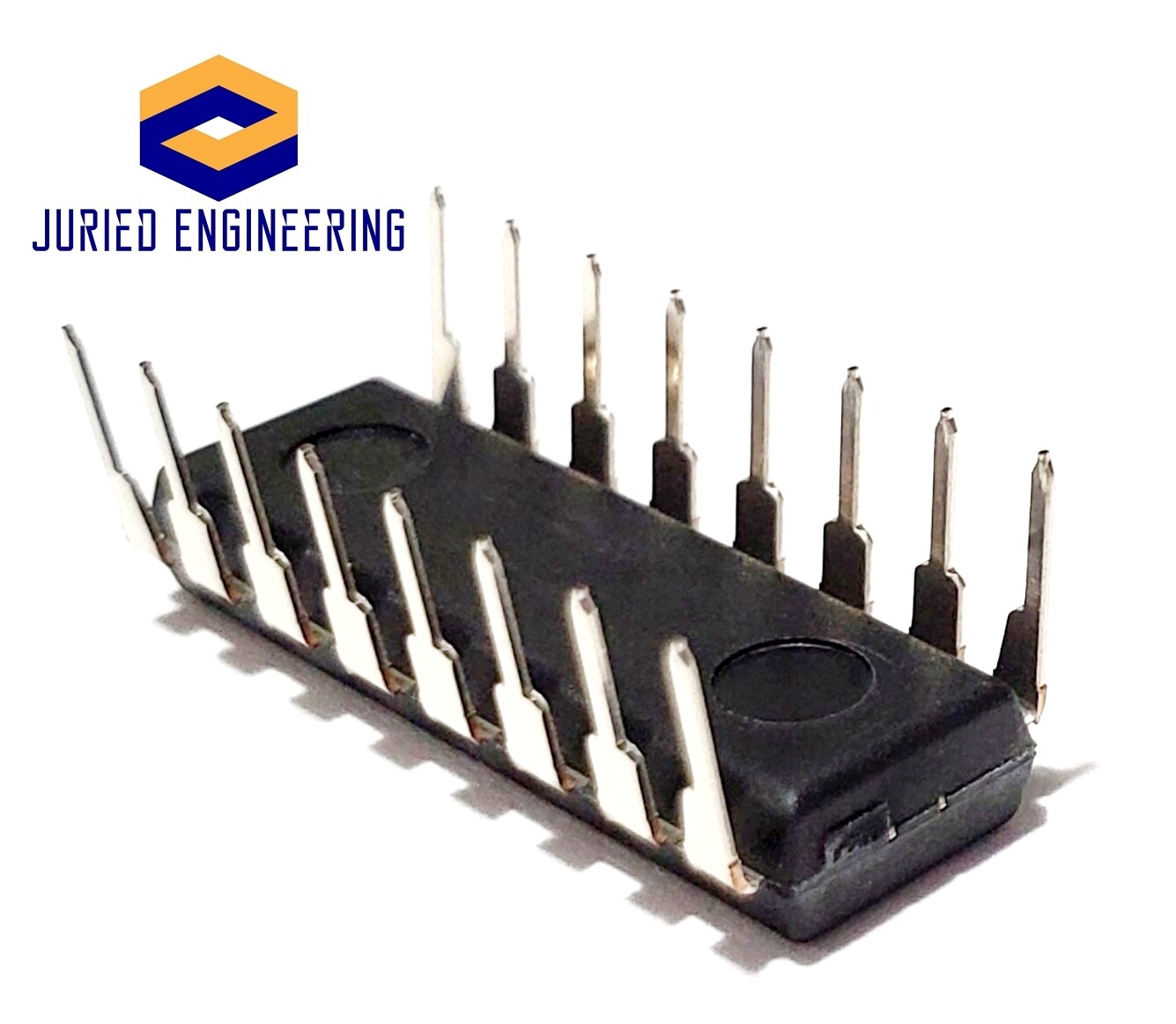

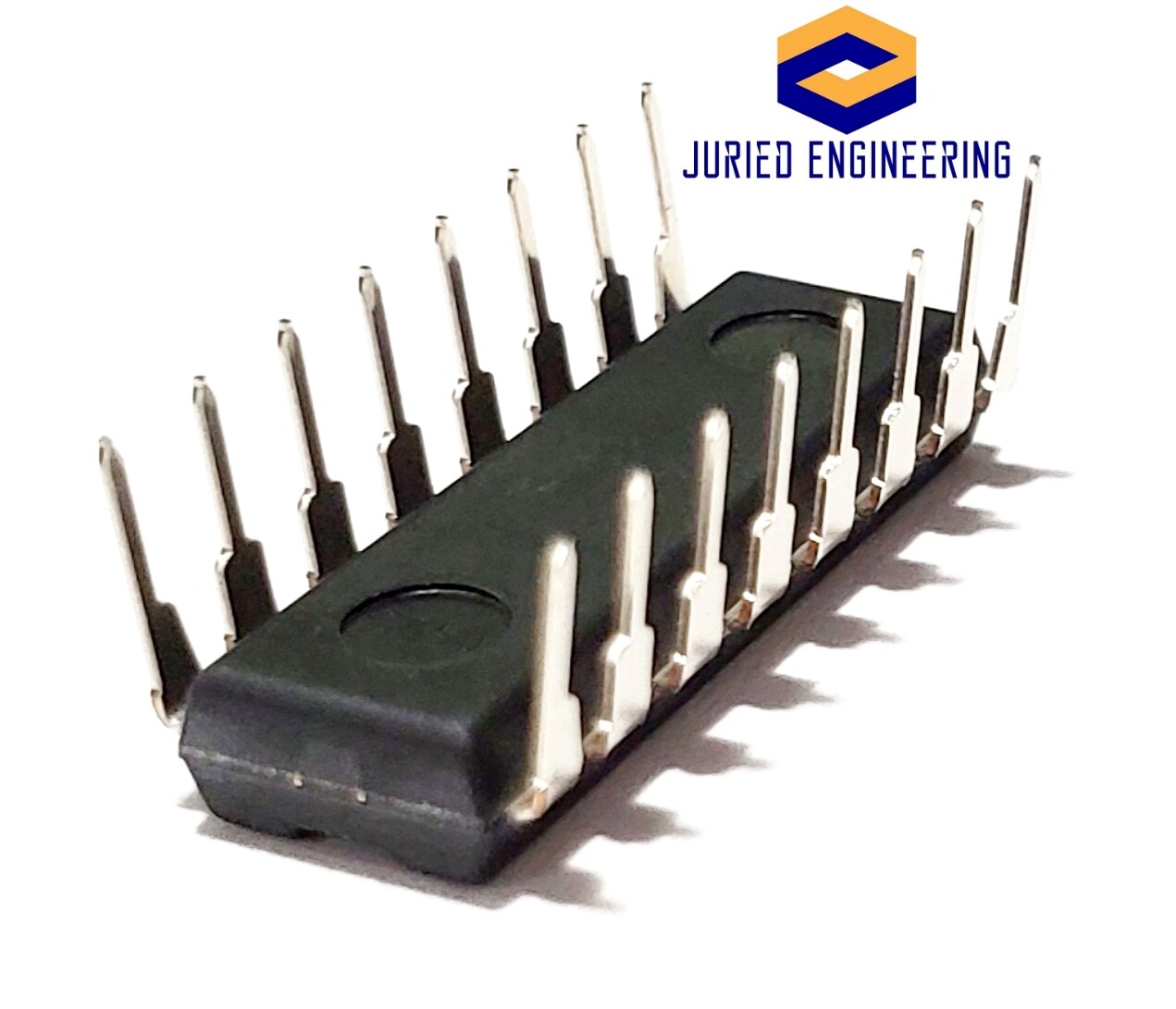

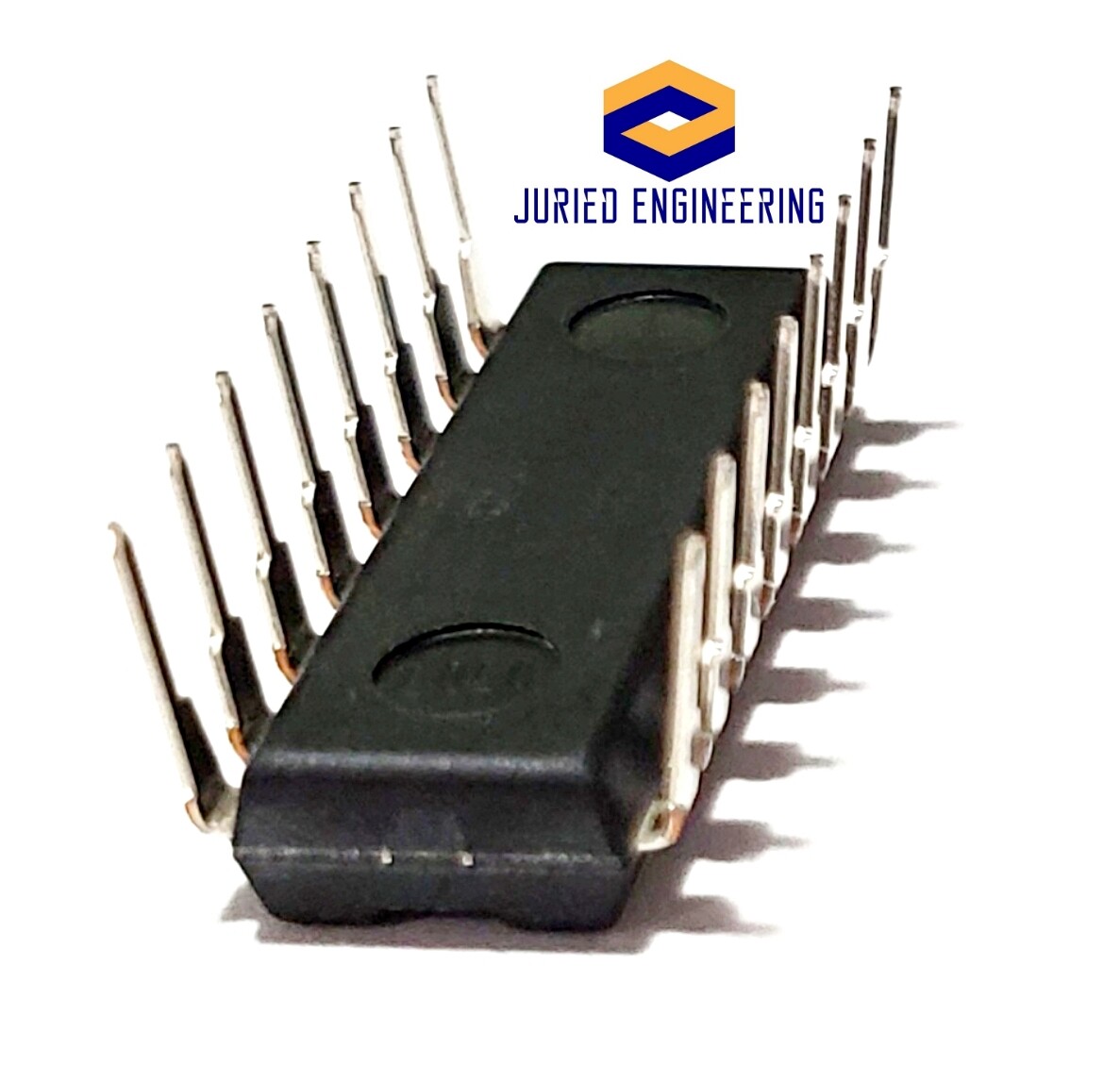

Check the listing for details. 10PCS CD74HC4046AE CD74HC4046 High Speed CMOS Logic Phase-Locked-Loop with VCO. Condition: New. Listed at 12.49 USD. Sign up for our newsletter and receive special offers plus our most current updates. Buy 3, Get 1 at 50% OFF. Buy 4, Get 1 at 70% OFF.Description: The CD74HC4046A are high-speed silicon-gate CMOS devices that are pin compatible with the CD4046B of the "4000B" series. They are specified in compliance with JEDEC standard number 7.The CD74HC4046A are phase-locked-loop circuits that contain a linear voltage-controlled oscillator (VCO) and three different phase comparators (PC1, PC2 and PC3). A signal input and a comparator input are common to each comparator.The signal input can be directly coupled to large voltage signals, or indirectly coupled (with a series capacitor) to small voltage signals. A self-bias input circuit keeps small voltage signals within the linear region of the input amplifiers. With a passive low-pass filter, the 4046A forms a second-order loop PLL. The excellent VCO linearity is achieved by the use of linear op-amp techniques.Included:10 x CD74HC4046AEThis item features:Operating Frequency Range Up to 18MHz (Typ) at VCC = 5VMinimum Center Frequency of 12MHz at VCC = 4.5VChoice of Three Phase Comparators EXCLUSIVE-OREdge-Triggered JK Flip-FlopEdge-Triggered RS Flip-FlopExcellent VCO Frequency LinearityVCO-Inhibit Control for ON/OFF Keying and for Low Standby Power ConsumptionMinimal Frequency DriftOperating Power Supply Voltage Range VCO Section . . . . . . . . . . . . . . . . . . . . . . . . . . 3V to 6VDigital Section . . . . . . . . . . . . . . . . . . . . . . . . 2V to 6VFanout (Over Temperature Range) Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL LoadsBus Driver Outputs . . . . . . . . . . . . . 15 LSTTL LoadsWide Operating Temperature Range . . . -55°C to 125°CBalanced Propagation Delay and Transition TimesSignificant Power Reduction Compared to LSTTL Logic ICsHC Types 2V to 6V OperationHigh Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5VApplications FM Modulation and DemodulationFrequency Synthesis and MultiplicationFrequency DiscriminationTone DecodingData Synchronization and ConditioningVoltage-to-Frequency ConversionMotor-Speed ControlCondition:New and Authentic Component(s) - Texas Instruments CD74HC4046AE High Speed CMOS Logic Phase-Locked-Loop with VCO IC DIP-16.Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.Shipping and general details:Shipping is free in the United States and shipped via USPS First Class.We do our best to offer you great pricing.Orders are packaged in custom-cut (dependent on quantity of chips ordered) anti-static tubes, providing excellent ESD protection.30-Day Return Policy.We are expanding on a daily basis. If you do not see the part, or quantity of the part, you are looking for, please, let us know. We will do our best to accommodate you.
