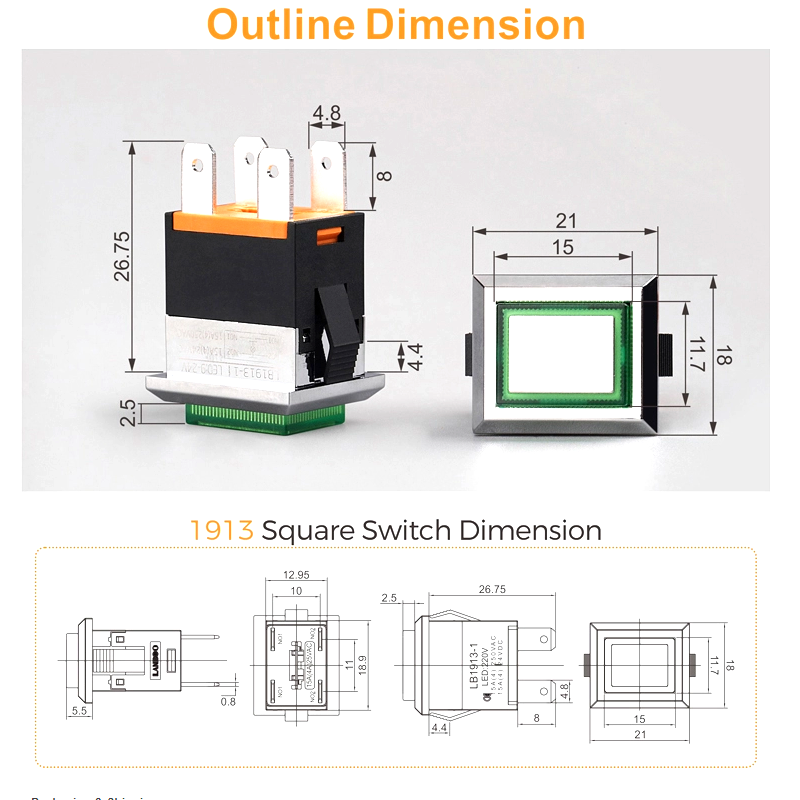

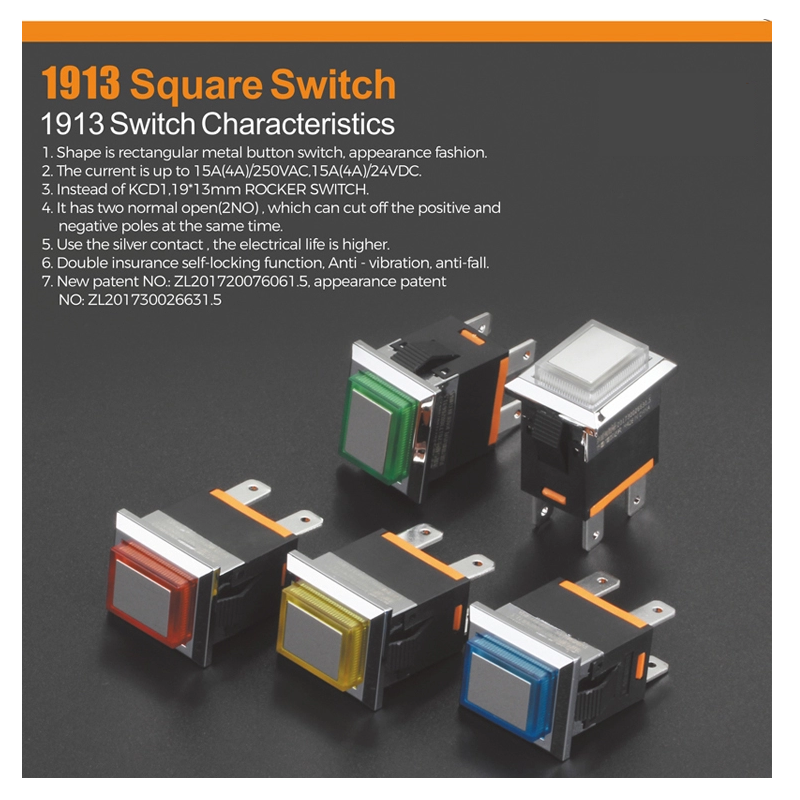

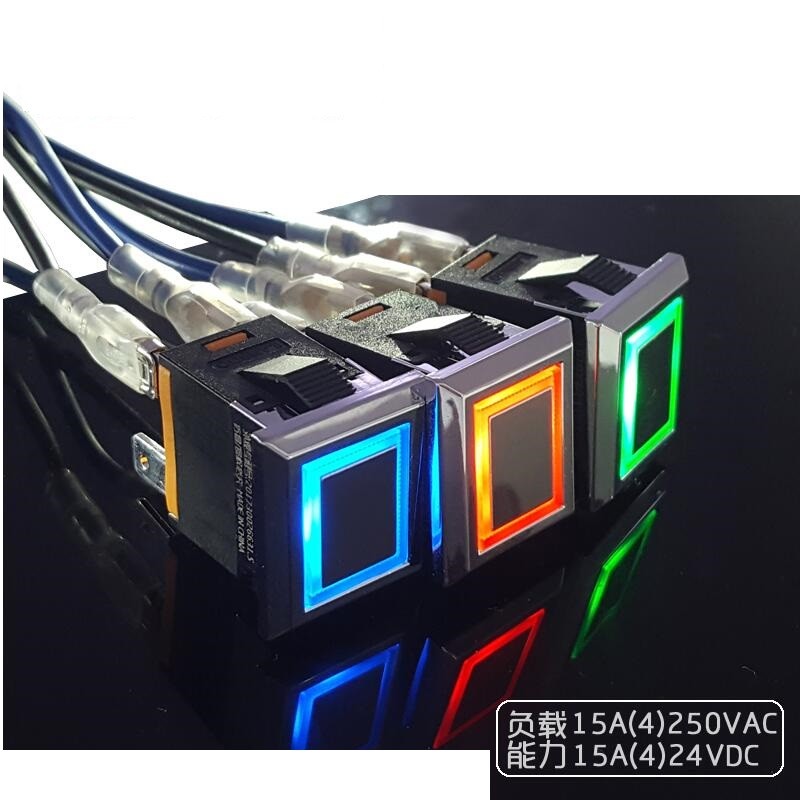

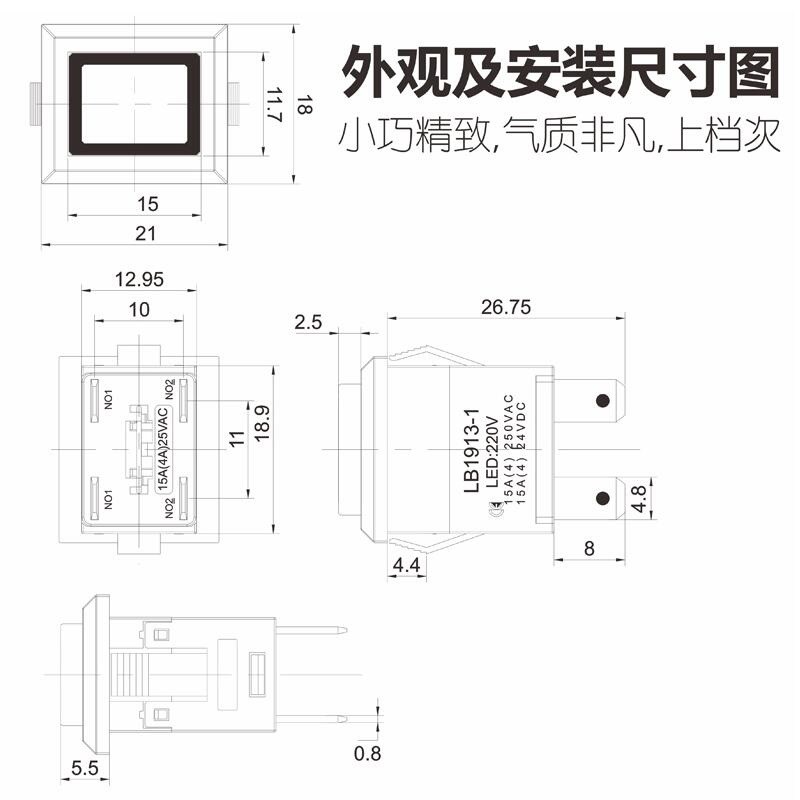

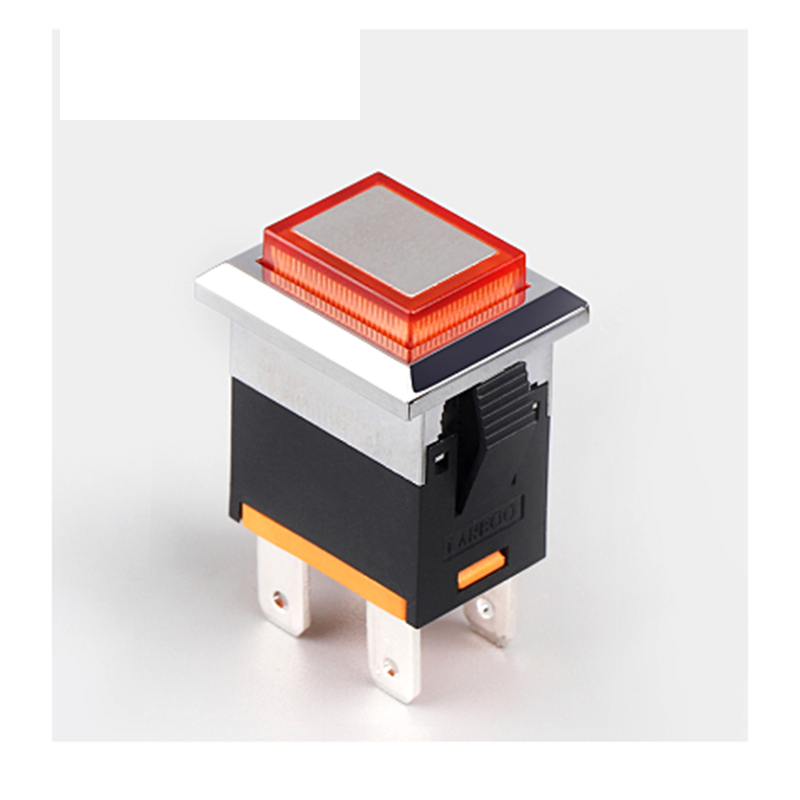

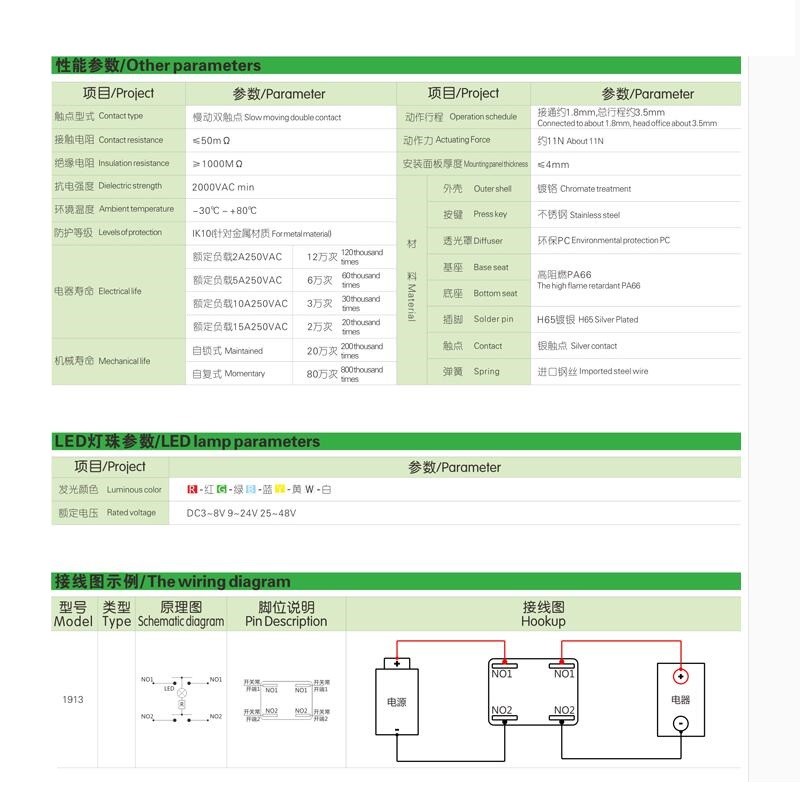

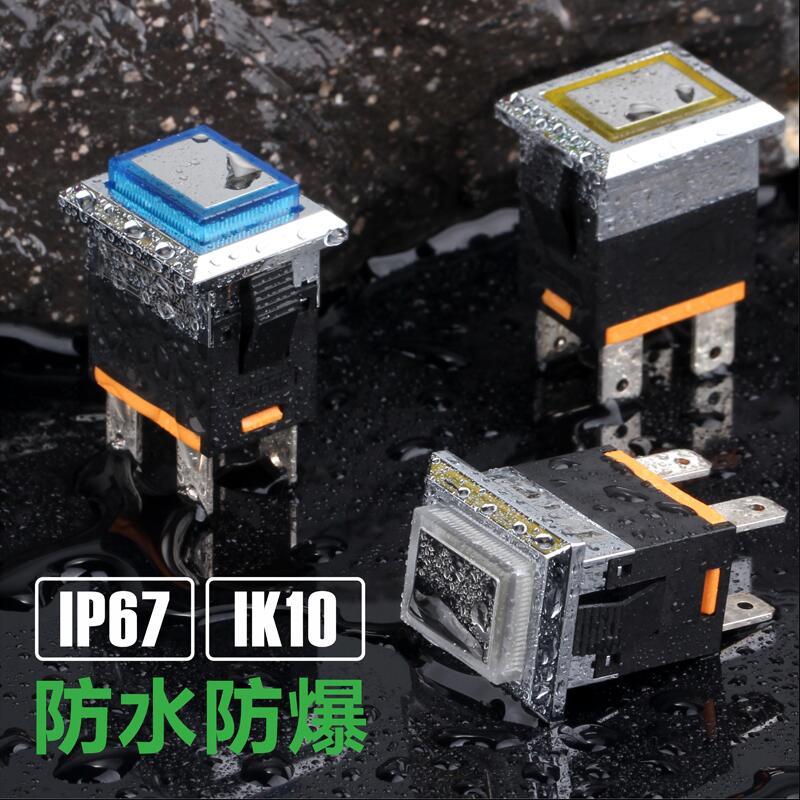

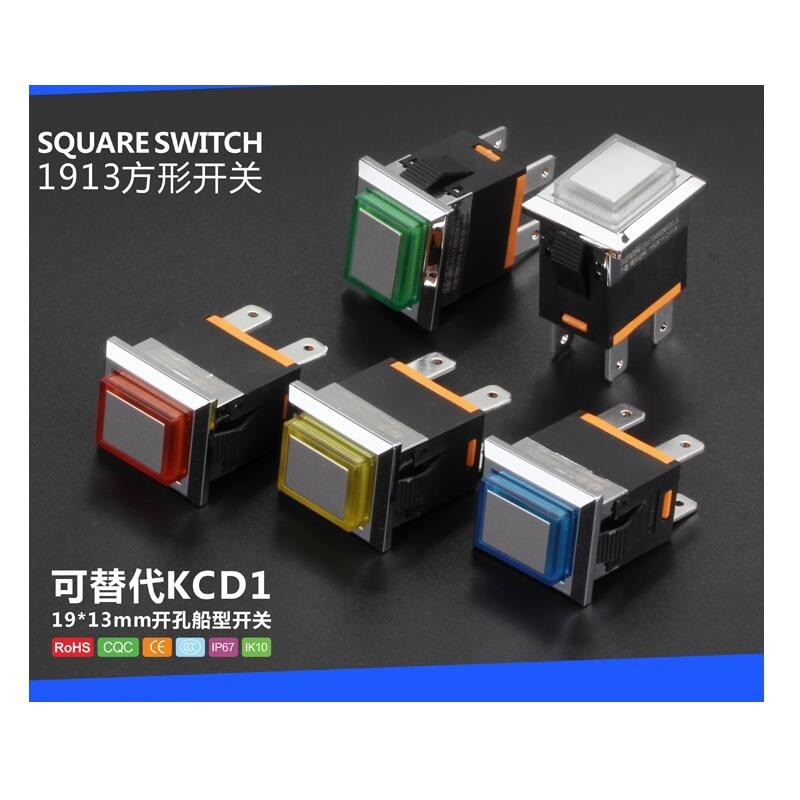

Check the listing for details. 1Pcs 1913 Series 2NO Illuminated Waterproof Pushbutton with 15A High Current. Condition: New. Listed at 8.90 USD. Item specifics Place of Origin:China (Mainland)Brand Name:---------Model Number:1913Protection Level:IP65Max. Current:15AMax. Voltage:250VACDiameter:19*13mmSwitch Combination:2NO-Normal OpenOperation type:Momentary or LatchingEmitting Type:Ring LED/Dot LED/Symbol LEDLamp color:Red Green Yellow Blue White Orange Purple PinkLamp voltage:2V/3V/6V/12V/24V/36V/110V/220V/250VWaterproof,Protection:IP65/IK10Rated Voltage/Current:AC250V/15AShell Metal:Stainless SteelProduct name:square switch Product Description Model Description Model NO. 1913 Mounting diameter 19*13MM Head shape Plat Head Switch Combination 2NO Operation type Momentary/Latch Illuminating type Annular,power symbol,dot Illuminating color red,green,blue,yellow,orange,white,purple,pink Lamp voltage 2V/3V/6V/12V/24V/36V/110V/220V/250V Shell material Stainless steel,aluminum oxide,copper plating The Others ParametersProjectParameterProjectParameter Contact type Slow moving single contact Operation Schedule Connected:1.8mm,Total:3.5mm Contact Resistance ≤50mΩ Actuating Force about 11N Insulation Resistance ≥1000mΩ Mounting panel thickness ≤4mm. customised the others Dielectric Strength 2000VAC min Nut torque 5~14N.m Ambient Temperature -30℃~+80℃ Outshell/Press Key Chromate treatment /Stainless Steel Protection Levels IK10 Diffuser PC Electrical Life Rated:2A250VAC- 120,000 cycles Rated:5A250VAC-60,000 cycles Rated:10A250VAC-30,000 cycles Reated:15A250VAC- 20,000 cycles Base Seat/ Bottom Seat PA66 Mechanical Life Maintained-200,000 times Self-locking-800,000 times Pins Contact H65 Silver Plated Waterproof IP65/67 Spring Improved steel wireSwitch Rated Load Project Parameter Reated Insulation Voltage AC250V Fusing Current 20A Rated VoltageDC12VDC24VAC110VAC250V Rated Current Nonreactive Load18151515 Inductive Load5444 Led Lamp ParametersProjectParameter Led type High Brightness LED lamp,cool Luminous color Red,Green,Blue,Yellow,Orange,White,Purple,Pink Rated Voltage AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V Rated Current ≤20mA Reference Life 40,000hoursPackaging Details Unit Type: piece Package Weight: 0.12kg (0.26lb.) Package Size: 14cm x 10cm x 5cm (5.51in x 3.94in x 1.97in)
