| Package Dimensions LxWxH | 4.37x3.7x0.67 Inches |
|---|---|
| Part Number | Kn3C-101P |

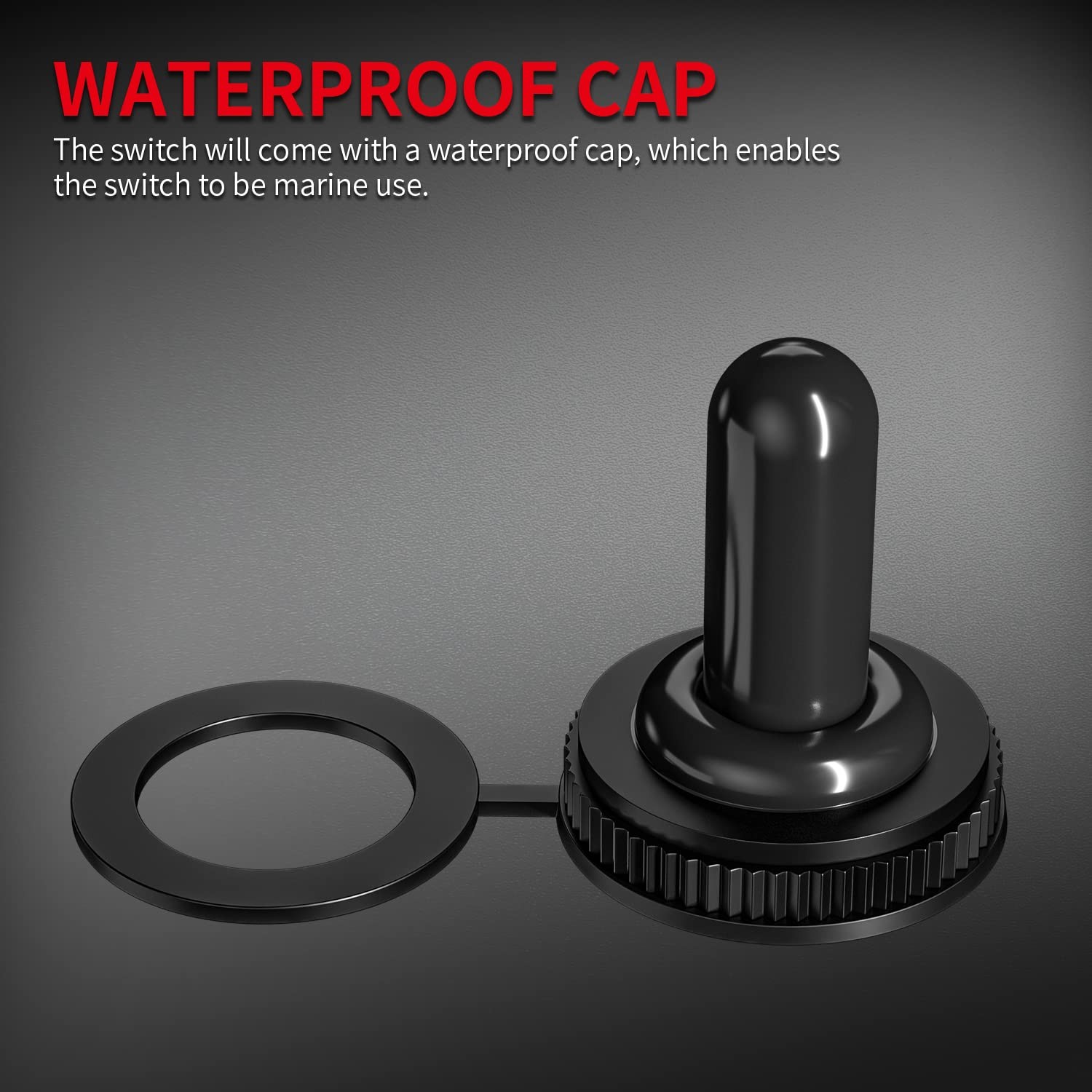

| Size | Spade On/Off With Weatherproof Boot Cap |
| Item Package Quantity | 2 |
| ISBN | 0016071636437 |
| Operating Voltage | 12.0 |
| Maximum Current | 20.0 |
| Contact Material | Silver |
| Contact Resistance | 50.0 |
| Insulation Resistance | 100.0 |
| Specification Met | Ce Tuv |
| Dielectric Strength | 1500 Volts |
| Color | Brown |
| Current Rating | 30.0 |
| Terminal Type | #250 Spade Terminal |
| Switch Type | Toggle Switch |

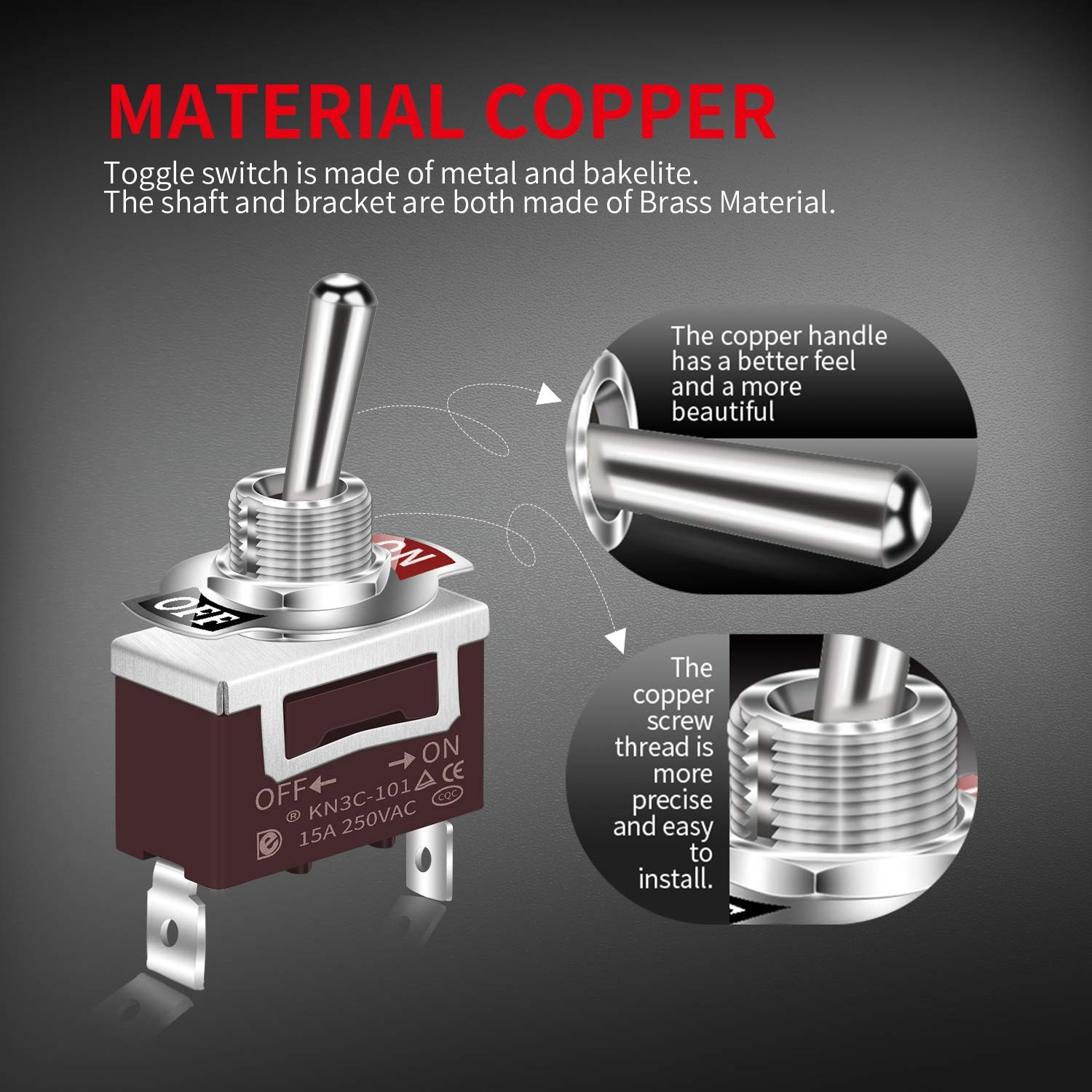

| Material | Brass |
| Mounting Type | Panel Mount |
| Weight | 0.09 Pounds |

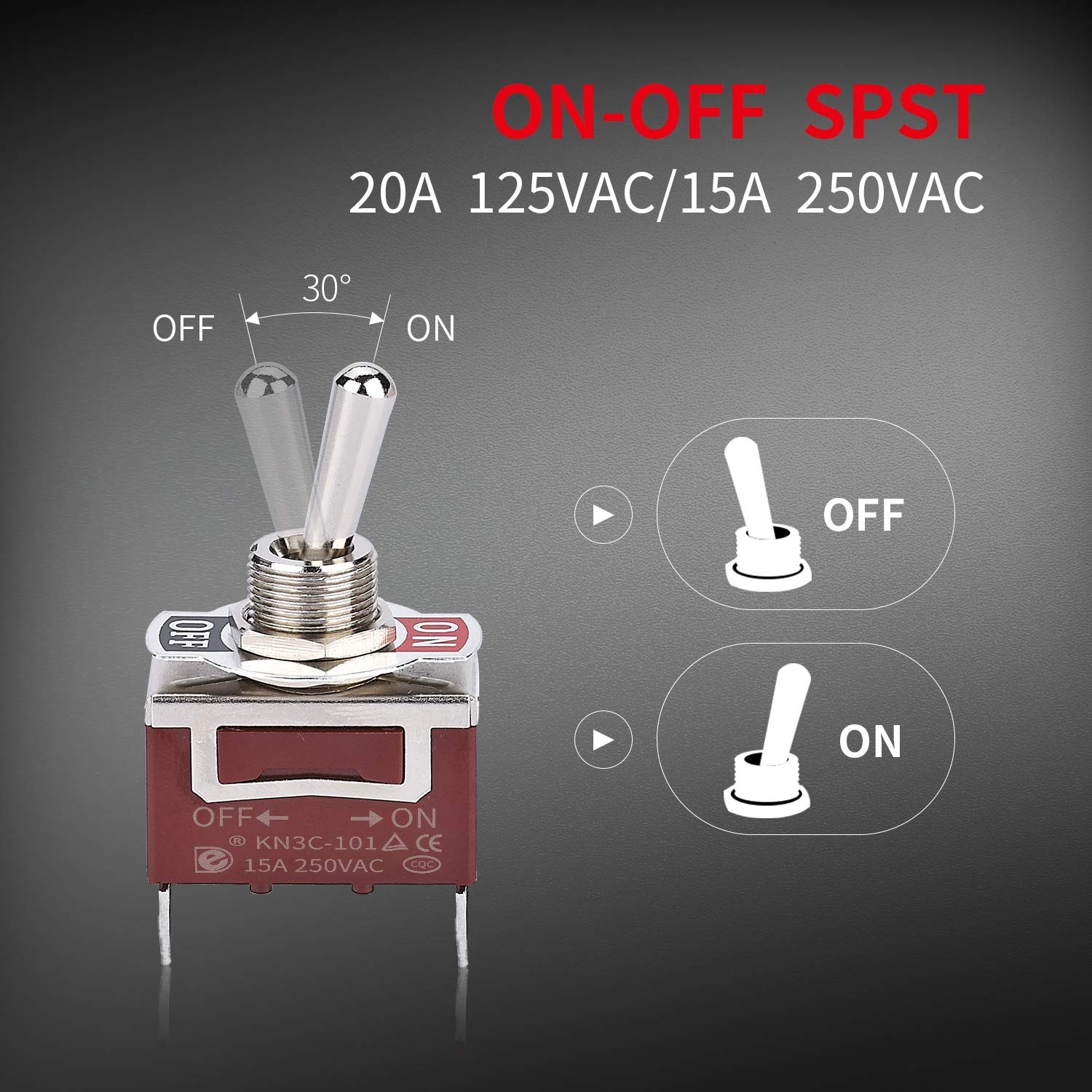

| Operation Mode | On-Off |
| Brand | Daiertek |
| EAN | 0016071636437 |
| Mechanical Life Expectancy | 100000.0 |
| Circuit Type | 1-Way |
| Item Shape | Rectangle |
| Coil Voltage | 12.0 |
| UPC | 016071636437 |

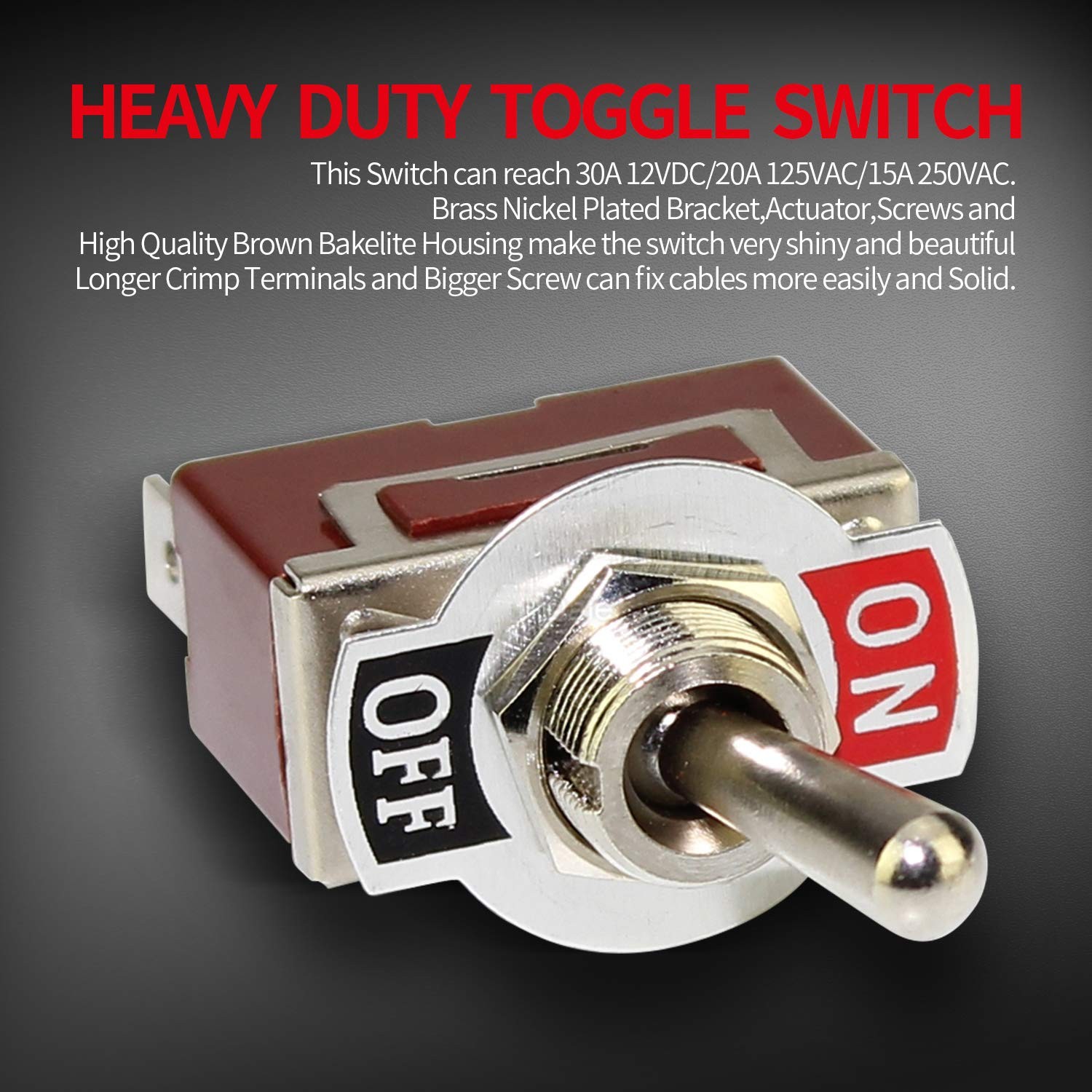

Check the listing for details. 2 Pack Waterproof SPST Toggle Switch 12V DC 30A Heavy Duty Marine Grade. Color: Brown, Condition: New. Listed at 12.06 USD. 12 volt SPST Toggle Switch 12VDC 30A 125VAC 20A Heavy Duty 2 Pin ON OFF Automotive Car Marine Boat Specifications: Package includes: 2pcs x SPST Toggle Switch. Terminal Type: PCB Terminal Contact Resistance:50mΩ max Insulation Resistance:100mΩ min (500VDC) Dielectric strength:1500VAC 1 minute Operating Temperature:-25℃~+85℃ Electrical Life:≥ 10,000 Cycles Mechanical Life:≥ 100,000 Cycles
