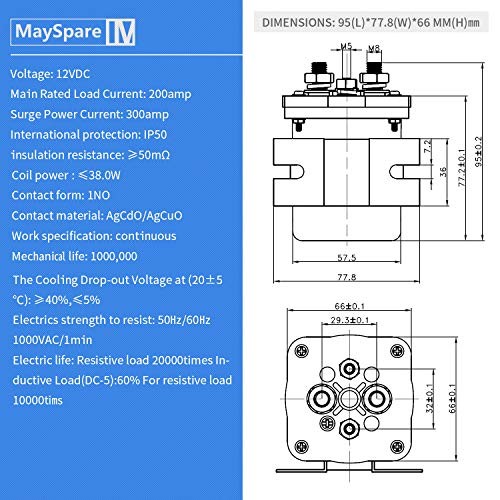

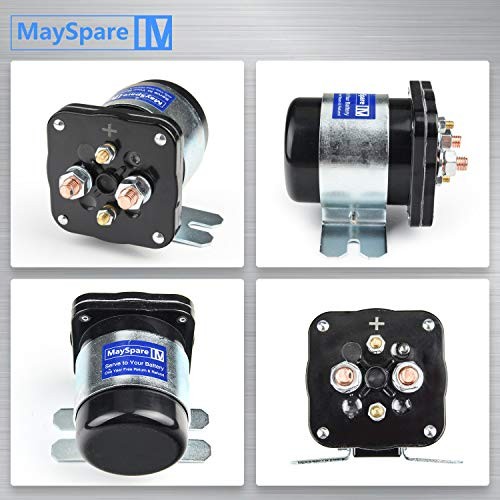

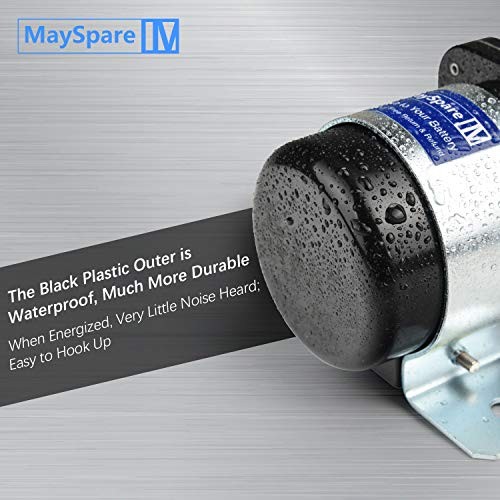

200 Amp Mobile Audio Continuous Relay and Battery Isolator High Current Relay

Name: 200 Amp Mobile Audio Continuous Relay and Battery Isolator High Current Relay
SKU: 389919609822
Price: 56.03 USD
Availability: InStock

$28.02

$56.03 -50%

Condition New

Item ID 389919609822

Connector Type	Screw
Current Rating	200 Amps
Mounting Type	Surface Mount
Operation Mode	Automatic
Coil Voltage	12 Volts
Maximum Switching Current	1 Amps
Maximum Switching Voltage	12 Volts
Minimum Switching Voltage	12 Volts (DC)
Number of Terminals	3
upc	742089521136
Part Number	US- ISOLATOR 300amp
Model	US- ISOLATOR 300amp
Item Length	1
Item Height	1
Item Width	1
UPC	742089521136

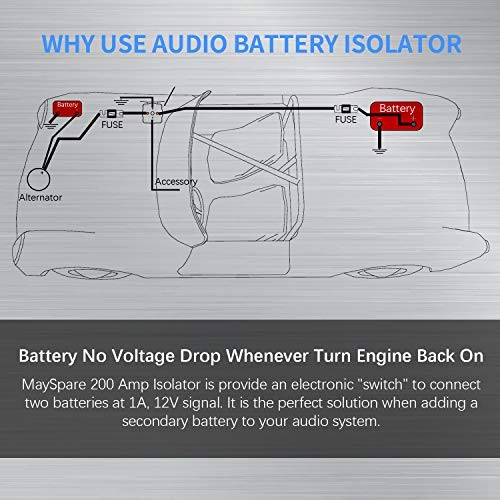

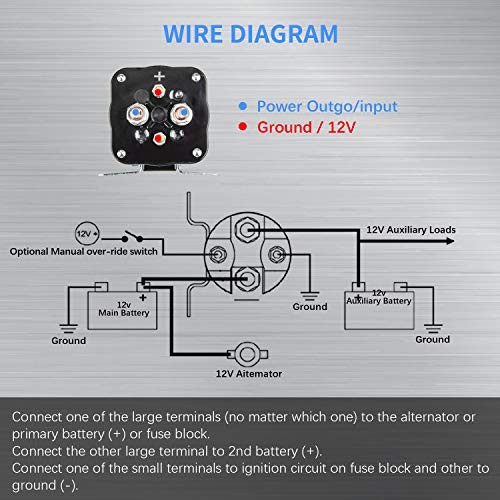

Check the listing for details. 200 Amp Mobile Audio Continuous Relay and Battery Isolator High Current Relay. Condition: New. Listed at 56.03 USD. Function: An isolator is used to combine two batteries when a alternator is charging ( engine running) and isolate them when not charging ( engine off) so you can still start your vehicle. Wrie Diagram : Connect the two small studs one to ground the other to an ignition on source from fuse box, the order on the large/ small studs does not matter.
