| Included Components | Cam Switch With External Box |
|---|---|
| Switch Type | Rotary |
| Actuator Type | Rotary |
| Contact Material | Silver |
| Contact Type | Changeover |
| Item Package Quantity | 1 |
| Specification Met | Ce |
| Connector Type | Screw |
| Brand | Baomain |
| Control Type | 3-Position |
| Control Method | Push Button |
| Lower Temperature Rating | -25.0 |
| Current Rating | 20.0 |
| Compatible With Vehicle Type | Universal |
| Connectivity Protocol | / |

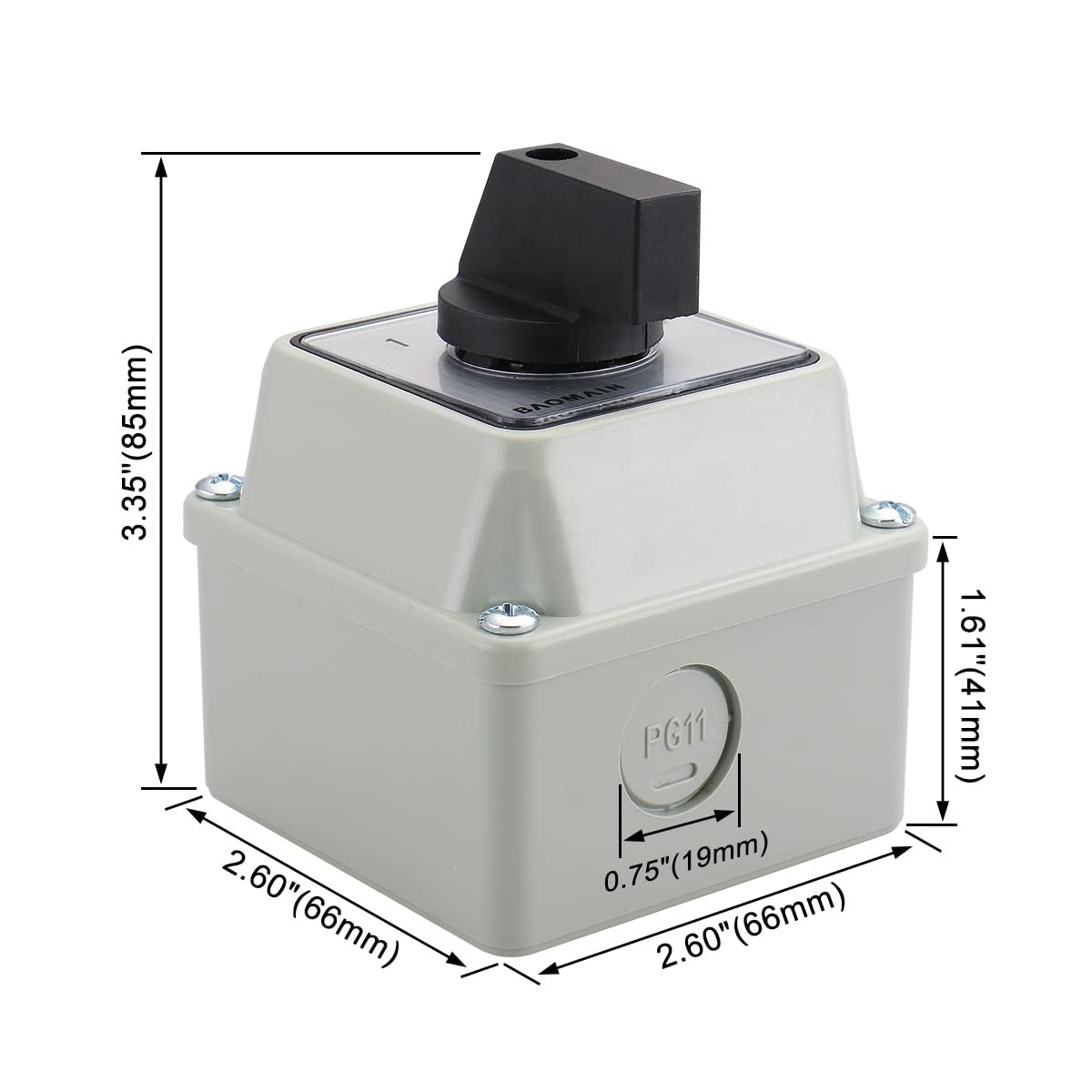

| Size | 2.6"X2.6"X3.35" |
| Circuit Type | 3-Way |
| Part Number | Szw26-20/D202.2D-S |
| Terminal Type | Screw |
| Color | Gray |
| Model Number | Szw26-20/D202.2D-S |
| Operation Mode | On-Off-On |
| International Protection Rating | Ip65 |
| Compatible Devices | Standard Electrical Devices (Excluding Smart Home Devices) |
| Mounting Type | Panel Mount |
| Material | Plastic, Copper, Silver Alloy |
| Operating Voltage | 660.0 |
| Upper Temperature Rating | 70.0 |
| Unit Count | 1.0 |
| Package Dimensions LxWxH | 4.37x3.23x3.15 Inches |
| Weight | 0.44 Pounds |
| Number of Positions | 3 |

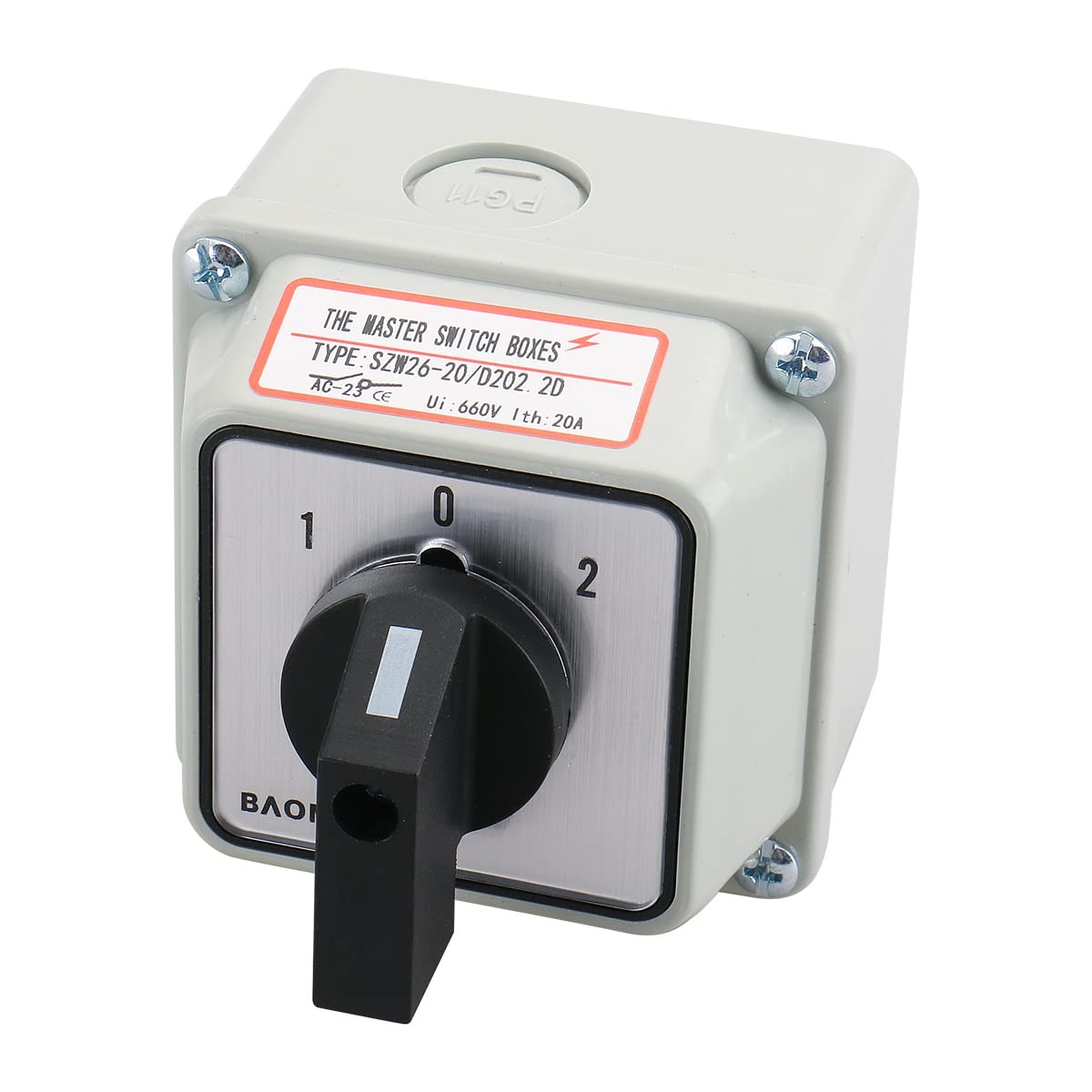

Check the listing for details. 20A 2Phase 3Position Rotary Changeover Switch+Small Box. Color: Gray, Condition: New. Listed at 22.84 USD. Electrical Specifications: Rated for 660V and 20A, suitable for 2-phase electrical systems. Specifically engineered for manual motor reversing and generator transfer systems, ensuring safe and synchronized circuit switching for industrial or DIY projects.
You may also like
$35
Eaton C362NR30‑1 Non‑Fusible Rotary Switch 30A 600V 3‑Pole Base‑Mount Disconnect
$14.95
UNUSED Vintage Oak G-725549 Electronic Rotary Selector Switch (A4)
$9.95

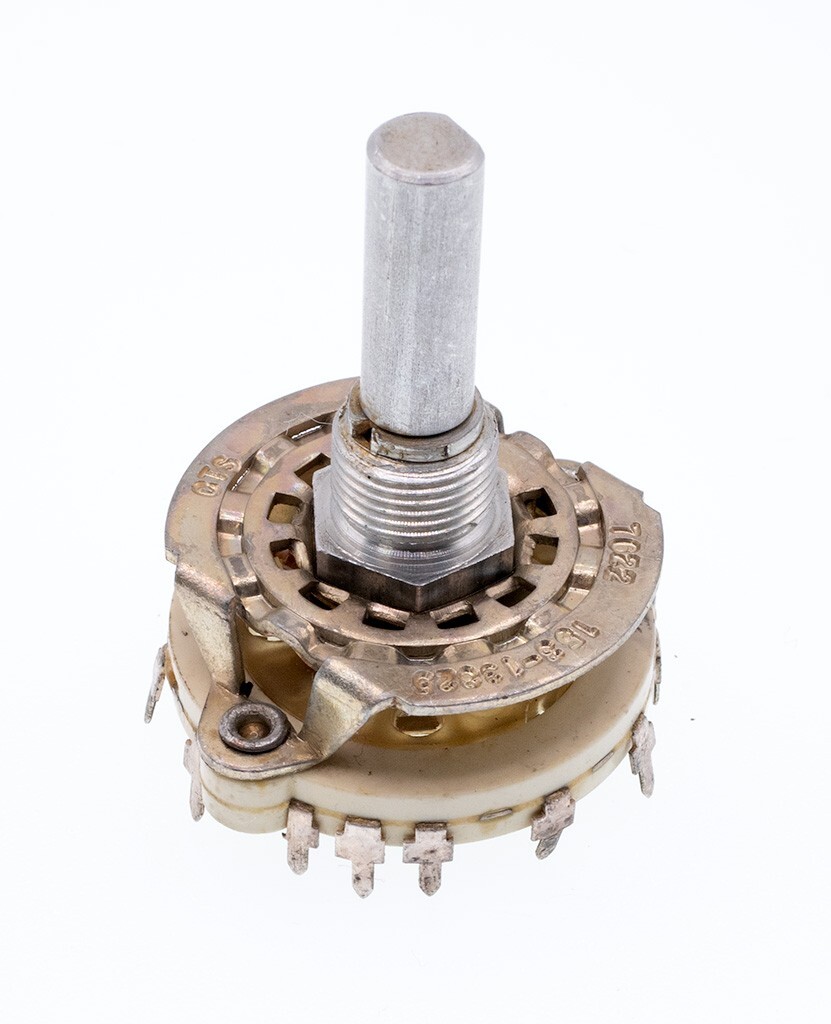

Centralab CTS 153-132825 Rotary Switch, 137, 2 Pole 11 Pos PCB Mount
