| Brand | Taiss |
|---|---|
| Type | Changeover Selector Switch |
| Model | LW26-20-5/3 |
| Features | Heavy Duty, Latching mechanism |

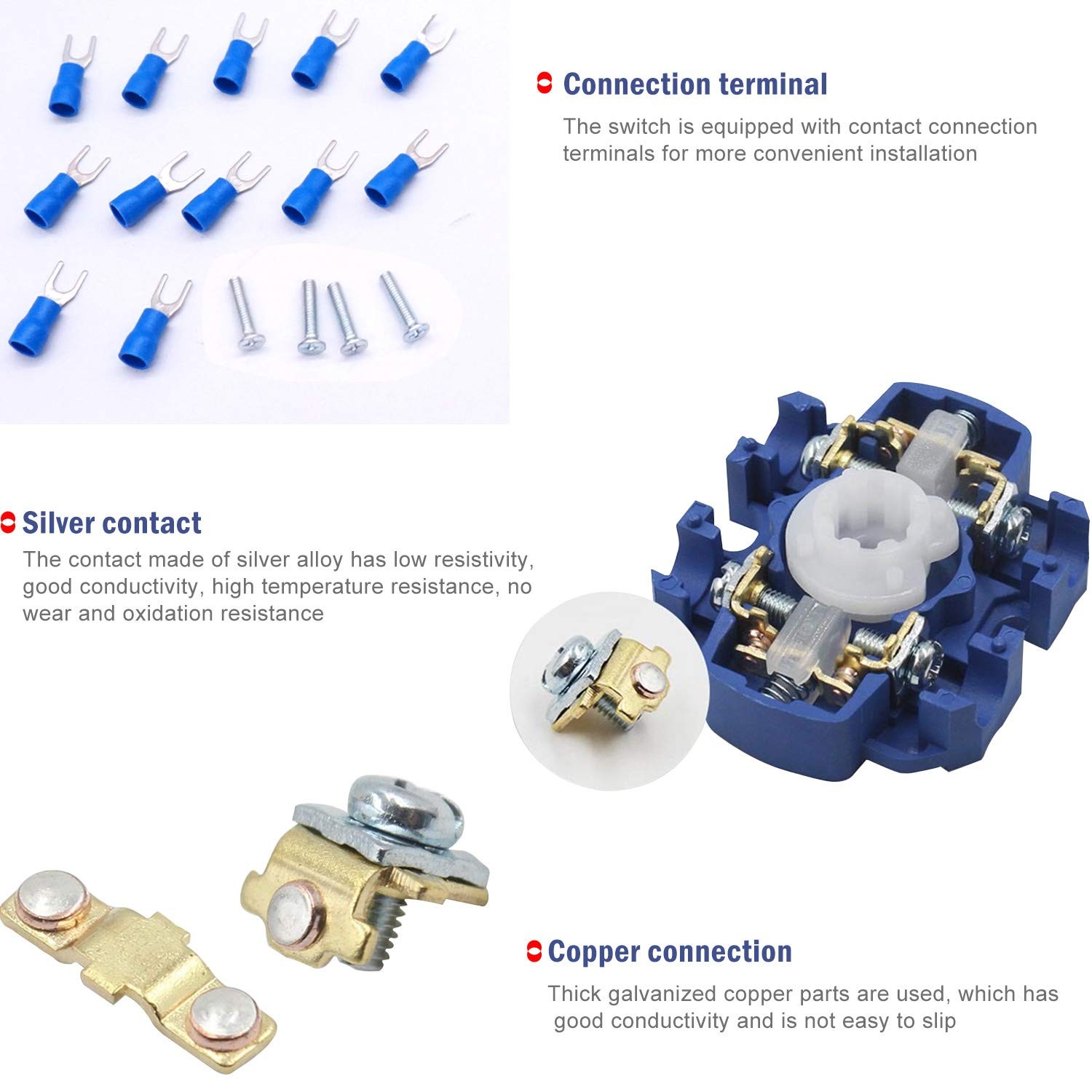

| Material | Flame retardant PC material, copper parts with silver alloy point |

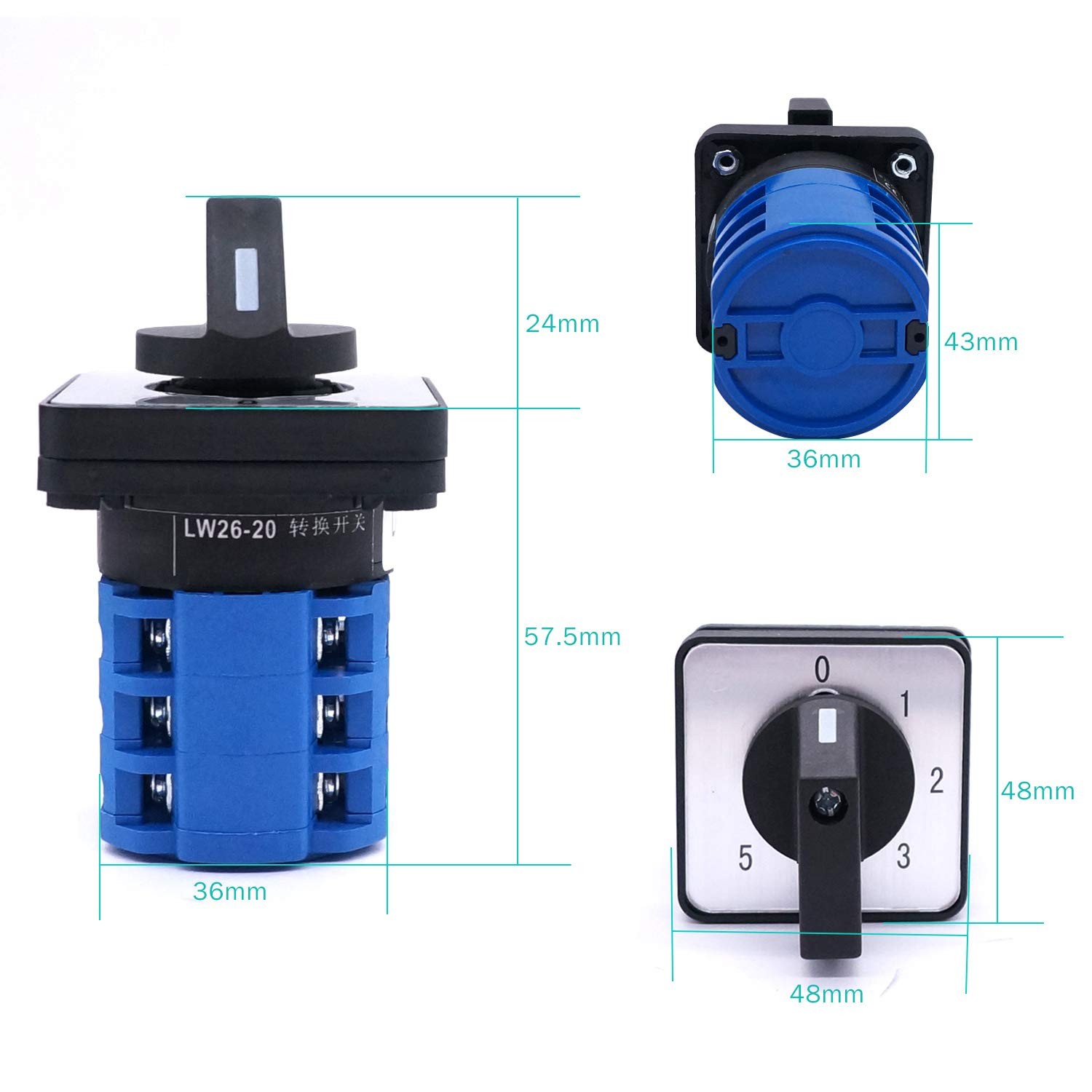

| Item Width | 1.8 in |
| Application | Control Equipment Panels, Electrical Wiring, Electronics |
| Item Height | 3.2 in |
| Item Length | 1.8 in |
| Current Type | AC |
| Switch Style | Rotary |
| Current Rating | 20 A |
| Number in Pack | 1 |
| Maximum Amperage | 20 A |
| Number of Phases | 1 |
| Operation Method | On/Off |

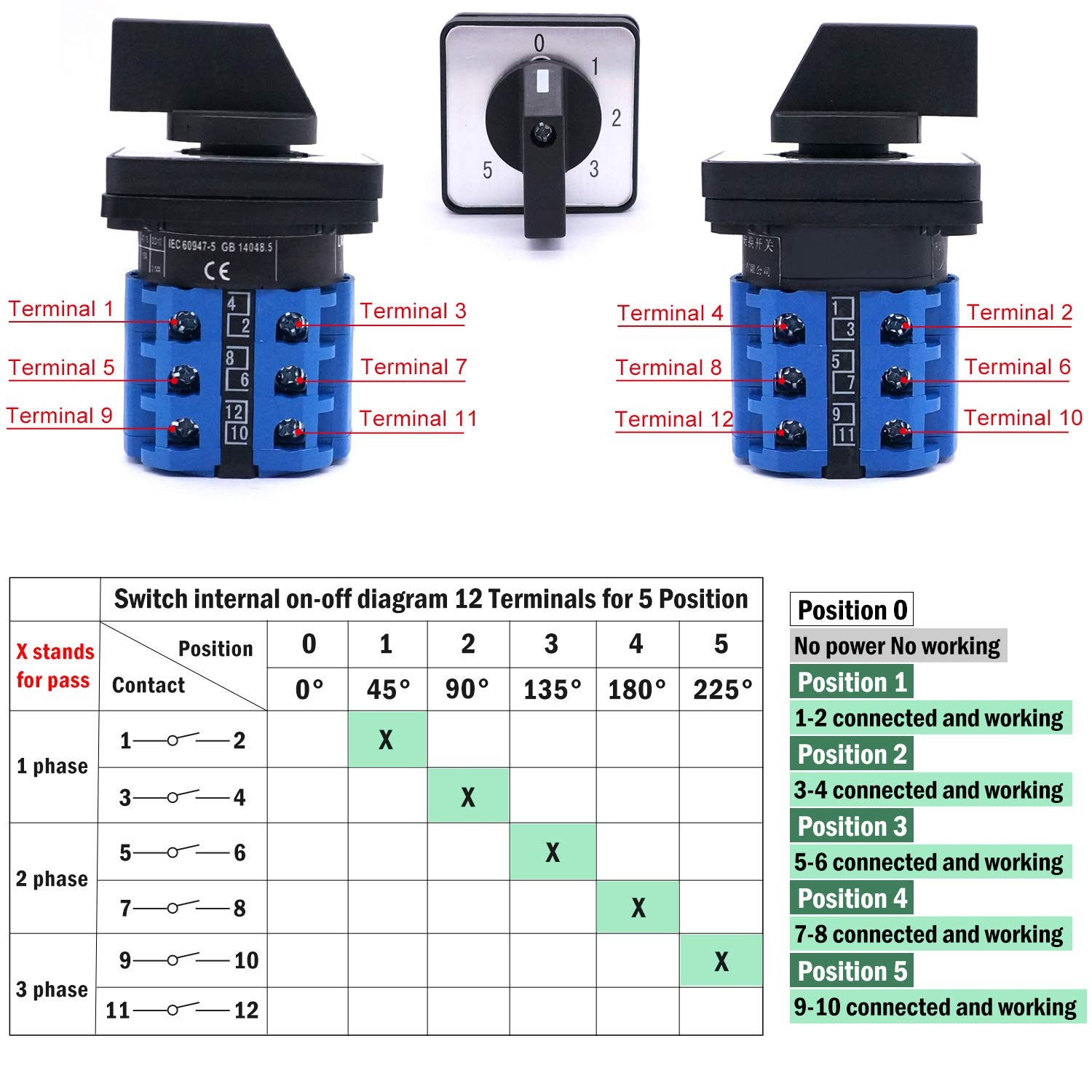

| Termination Type | 12 terminals |
| Number of Circuits | 1 |
| Number of Positions | 5 |
| Fuse Type | Striker |
| Finish | Copper |
| Suitable For | Interior |
| Number of Outlets | 0 |
| Mounting Style | Bolt-On |
| Compatible Wire Gauge (AWG) | 16-20 |
| Contact Configuration | Single Pole Single Throw (SPST) |
| IP Rating | IP00 |
| Operating Temperature | -20 °C (-4 °F) |
| Orientation | Horizontal |
| Protection Properties | Overcurrent Protection |
| Resistance Properties | Corrosion Resistant |
| Room | Any Room |
| Unit Quantity | 1 |
| Unit Type | Unit |

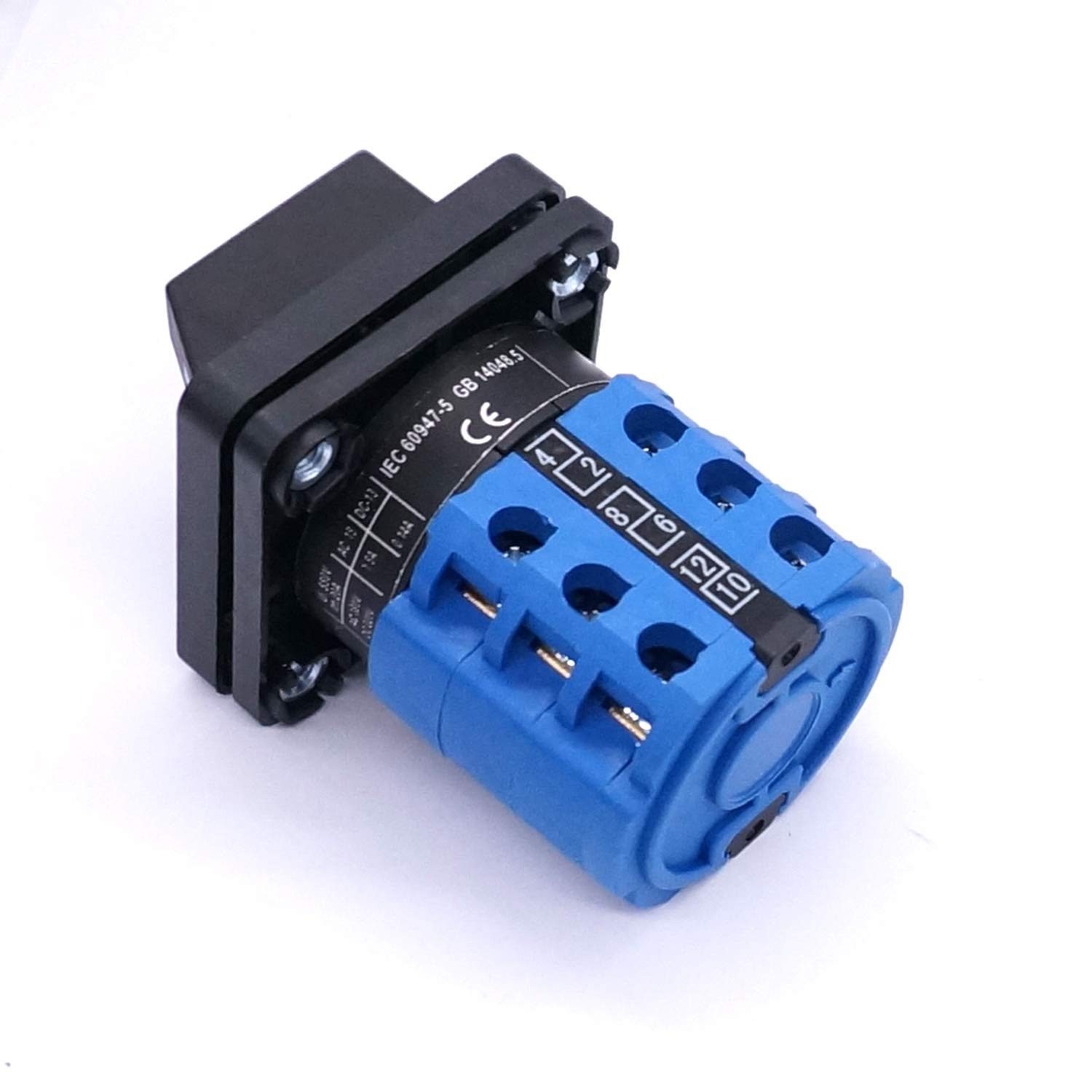

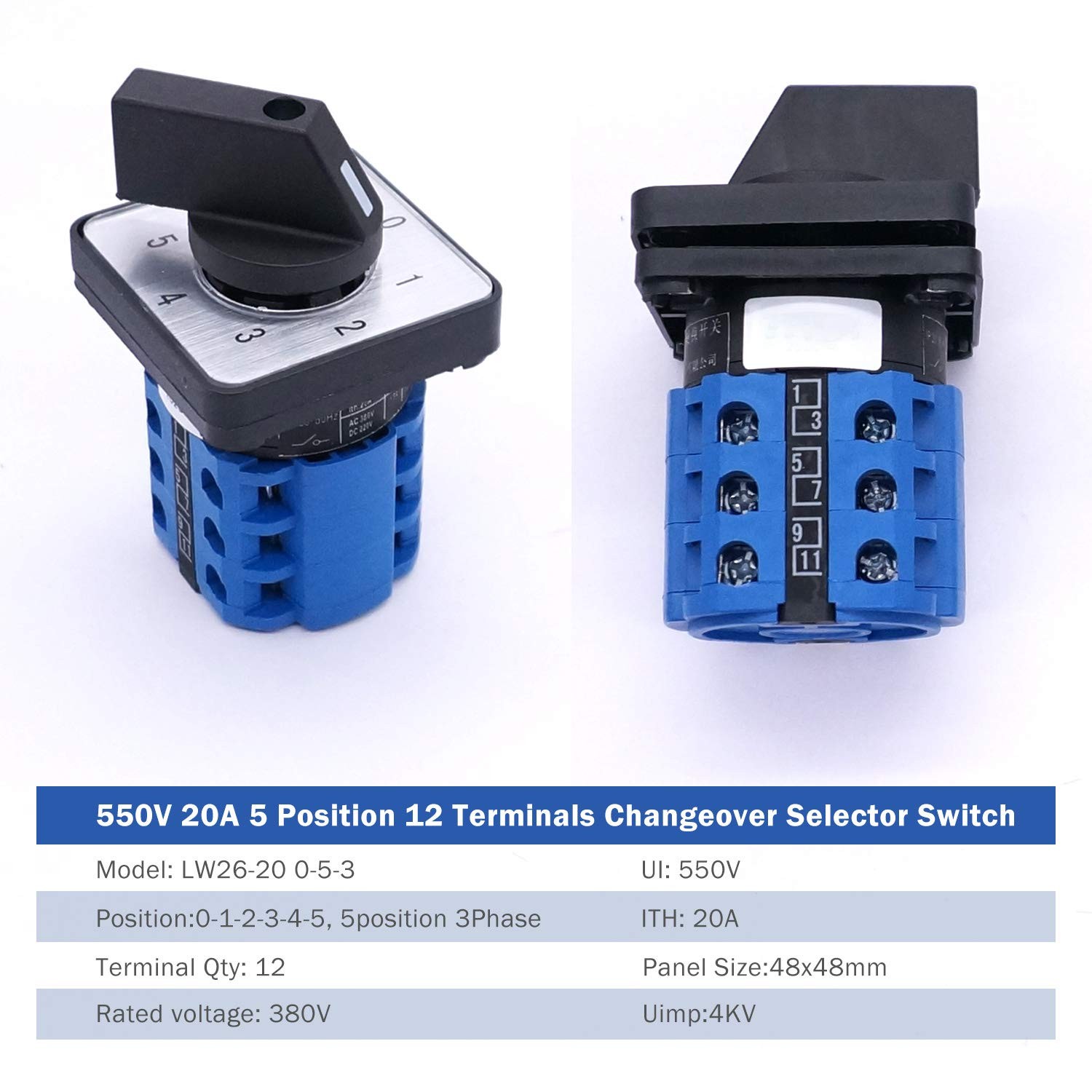

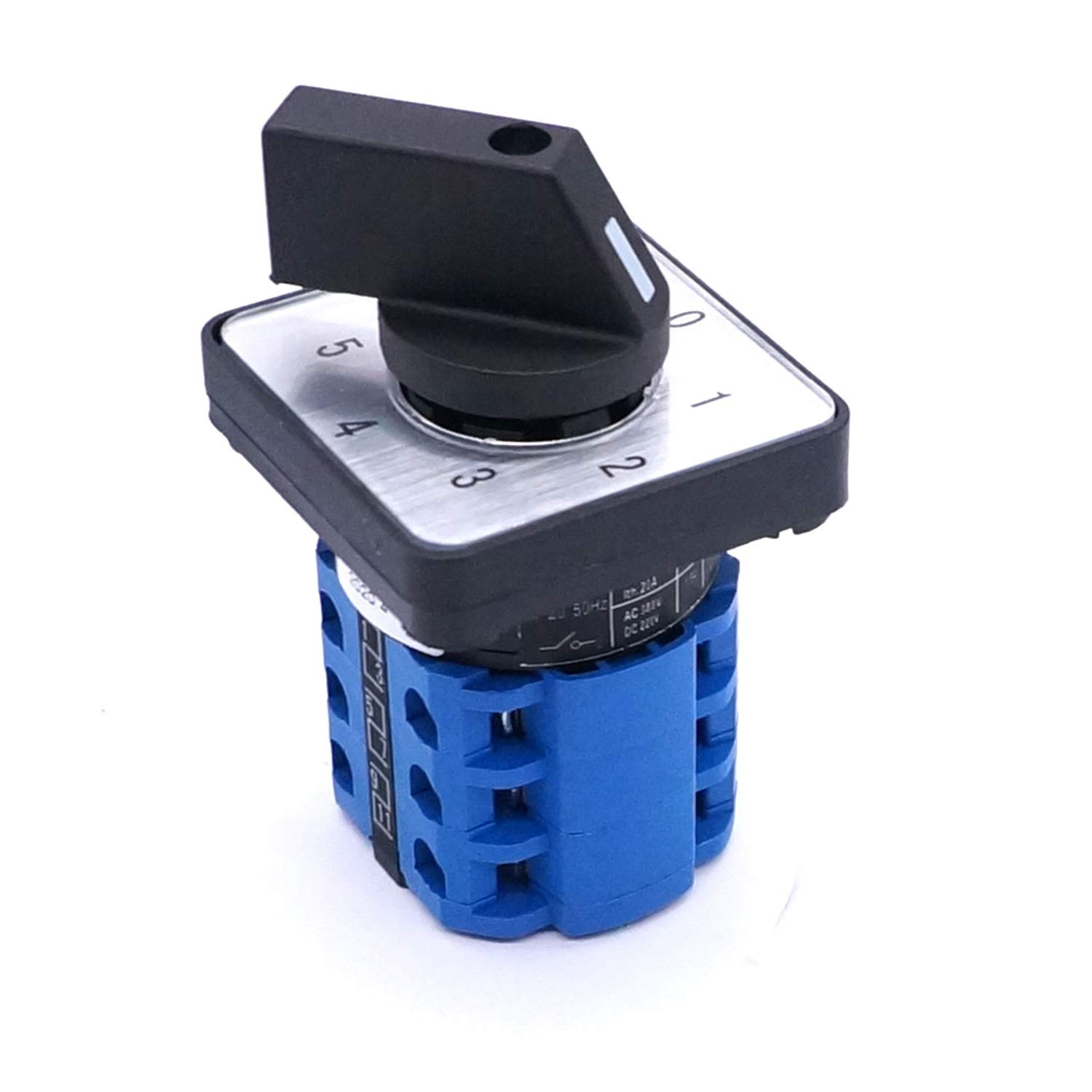

Check the listing for details. 20A 550V 5 Position Universal Latching Rotary Changeover Switch 12 Terminals. Condition: New. Listed at 17.26 USD. Type Changeover Selector Switch. Switch Style Rotary. 5-position rotary design for effortless switching. Item Height 3.2 in. Maximum Amperage 20 A.
You may also like
$18.79
3Pcs Rotary Switch RS26 1P12T Band Switch Band Channel Rotary Selector Switch 1
$23.63
40A 660V 4-Position 3-Phase Rotary Cam Switch, 12 Terminal 0-1-2-3 SZW26-40/0-3.
$79.99
OEM Controls Shelton Conn CDE 0660 Rotary Cam Switch AC-21 32A 660V
$35.99
😏 EATON 16 AMP ROTARY DISCONNECT SWITCH W/ HANDLE 3∅ 600 VAC 10 HP R5A3016U
$99.99
Electro Switch 23203G Rotary Switch 2-Position On/Off 10A 125VAC
$69.5
Schneider - VCDN20 - TeSys Mini-Vario - Emergency Stop Switch Disconnector 20 A
$14.99
Switchcraft Rotary Switch
$100

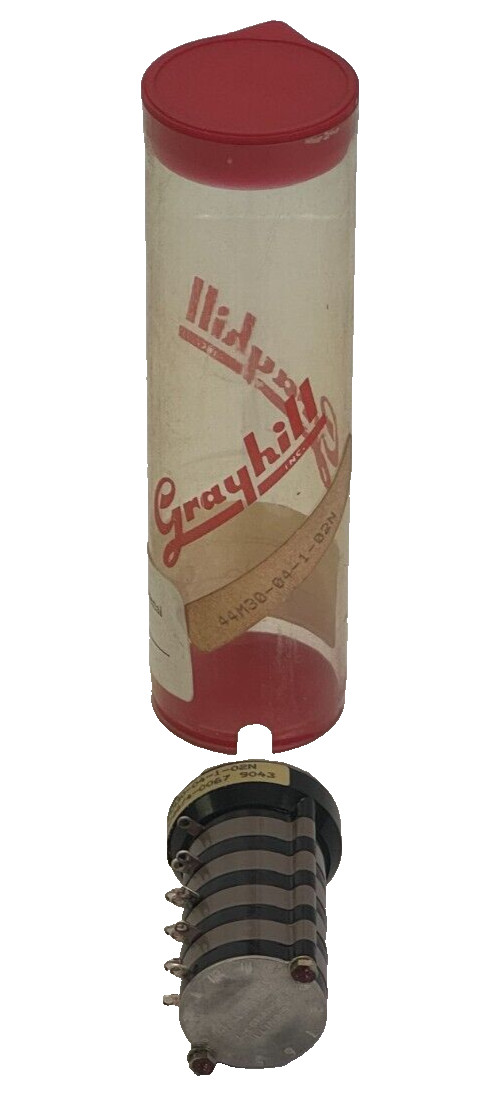

NEW Grayhill 44M30-04-1-02N Rotary Switch
$63.66
Kraus & Naimer KG20B T104/01 E Rotary Safety Switch
$9.95
Unidex 249, 1 Wafer, 5 Position, 1 Pole, Rotary Switch, 1/4" Shaft, 45 Deg SP5T
$6.75
39-1 GRAYHILL SWITCH PUSH SPST-NO 0.5A 115V 2 PCS NOS
$14.95

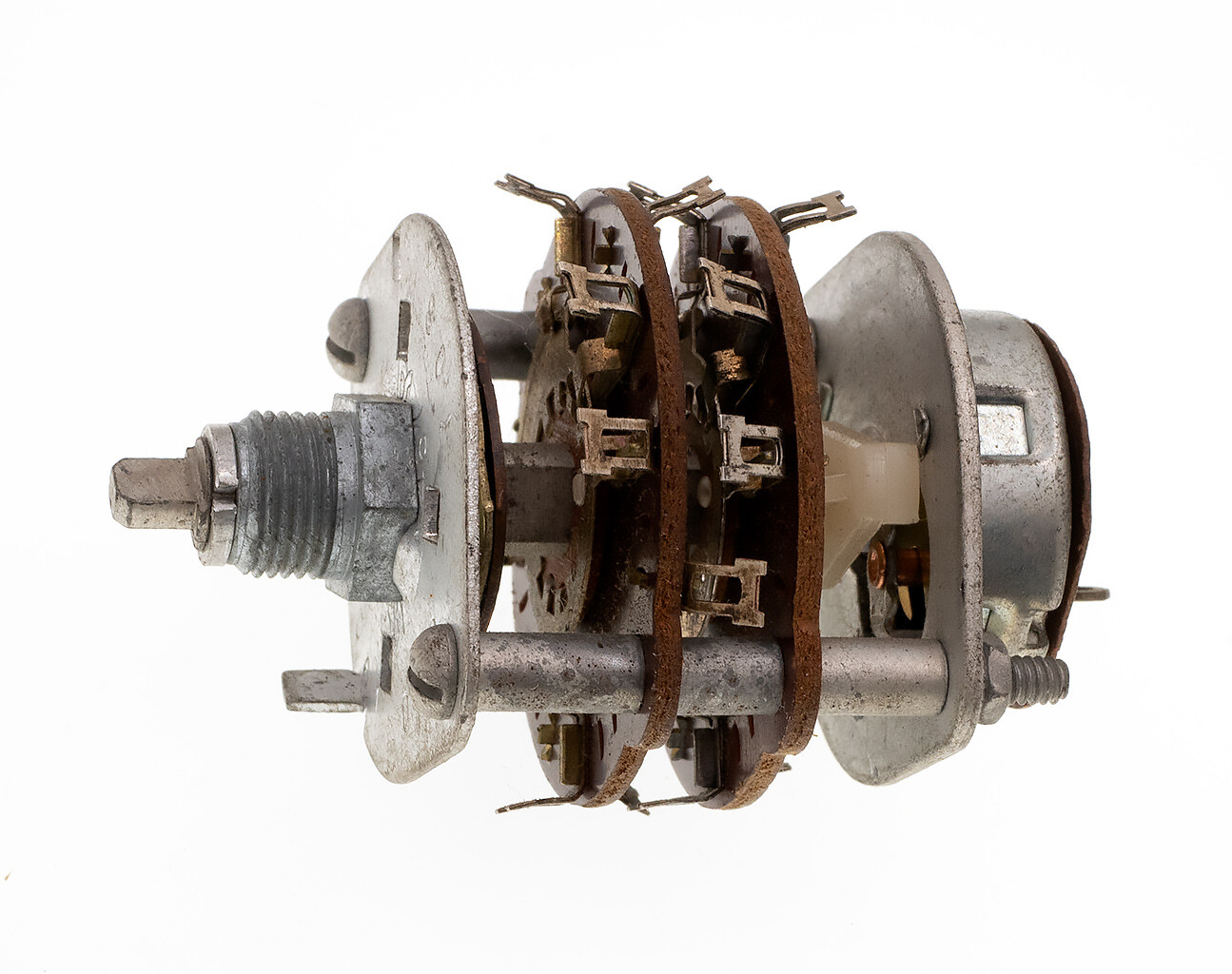

STD Grigsby 467 708-0061-090 2-POS Rotary Switch, NOS
