| Model | KBPC5010 50A 1000V Bridge Rectifier |
|---|---|
| Brand | Unbranded |
| Type | Bridge Rectifier |
| Number of Pins | 4 |
| Mounting Style | Chassis Mount |
| Maximum Operating Temperature | 150 °C (302 °F) |
| Minimum Operating Temperature | -55 C (-67 F) |
| Material | Metal |
| Peak Reverse Repetitive Voltage | 1000 V |
| Peak Surge Current | 400 A |
| Maximum Continuous Current | 50 A |
| Reverse Current | 10 µA |
| Peak Forward Voltage | 1 V |

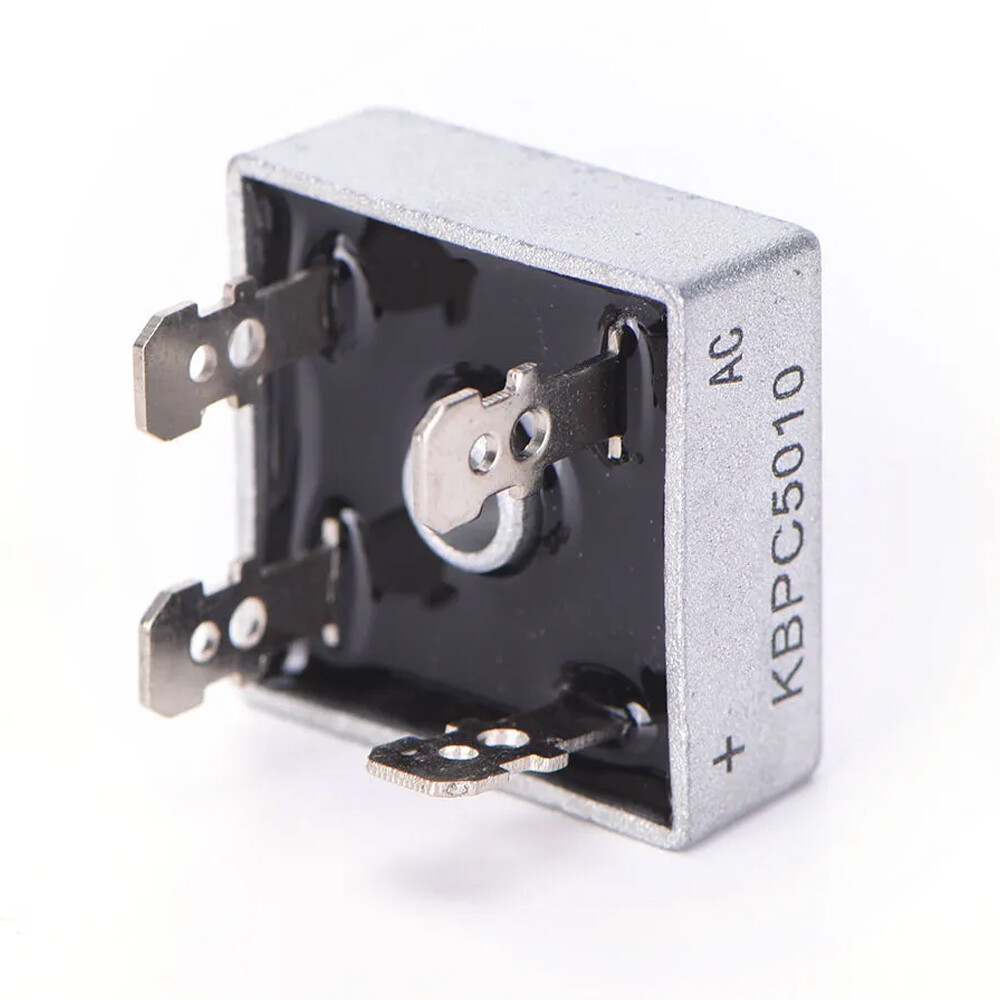

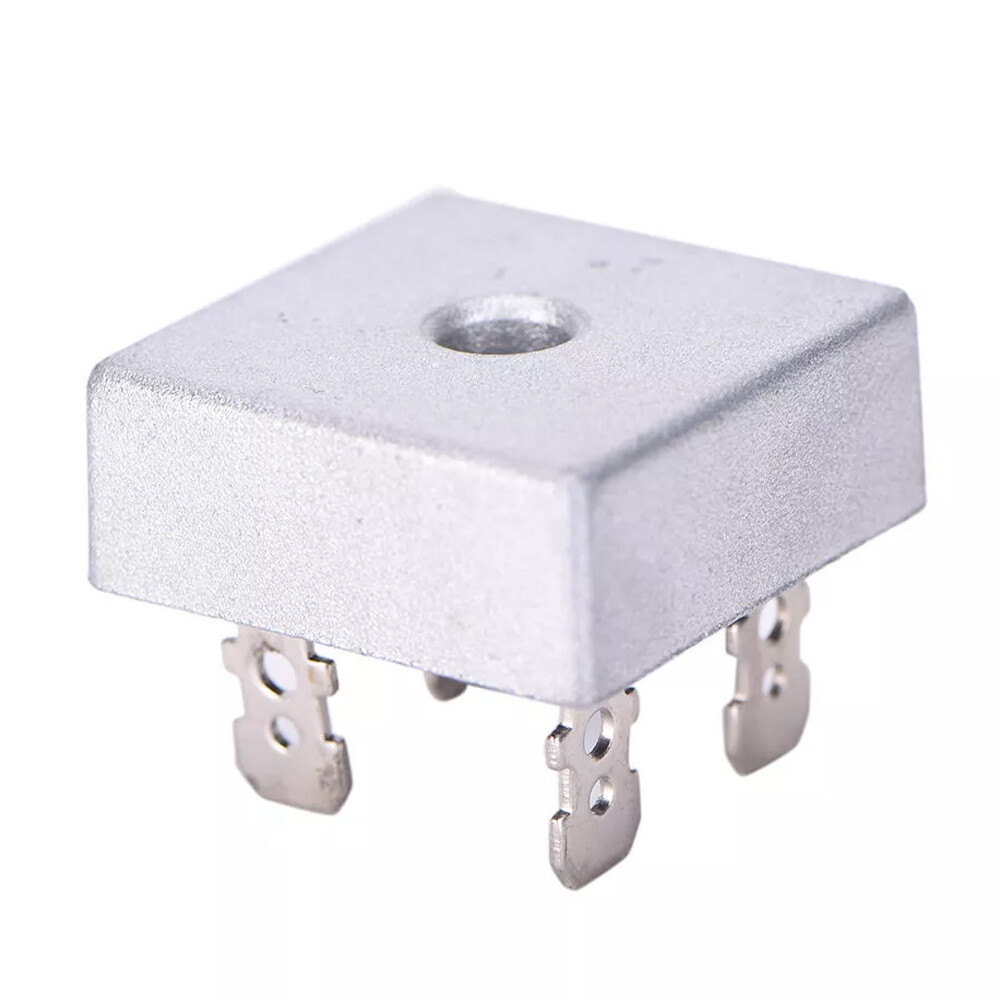

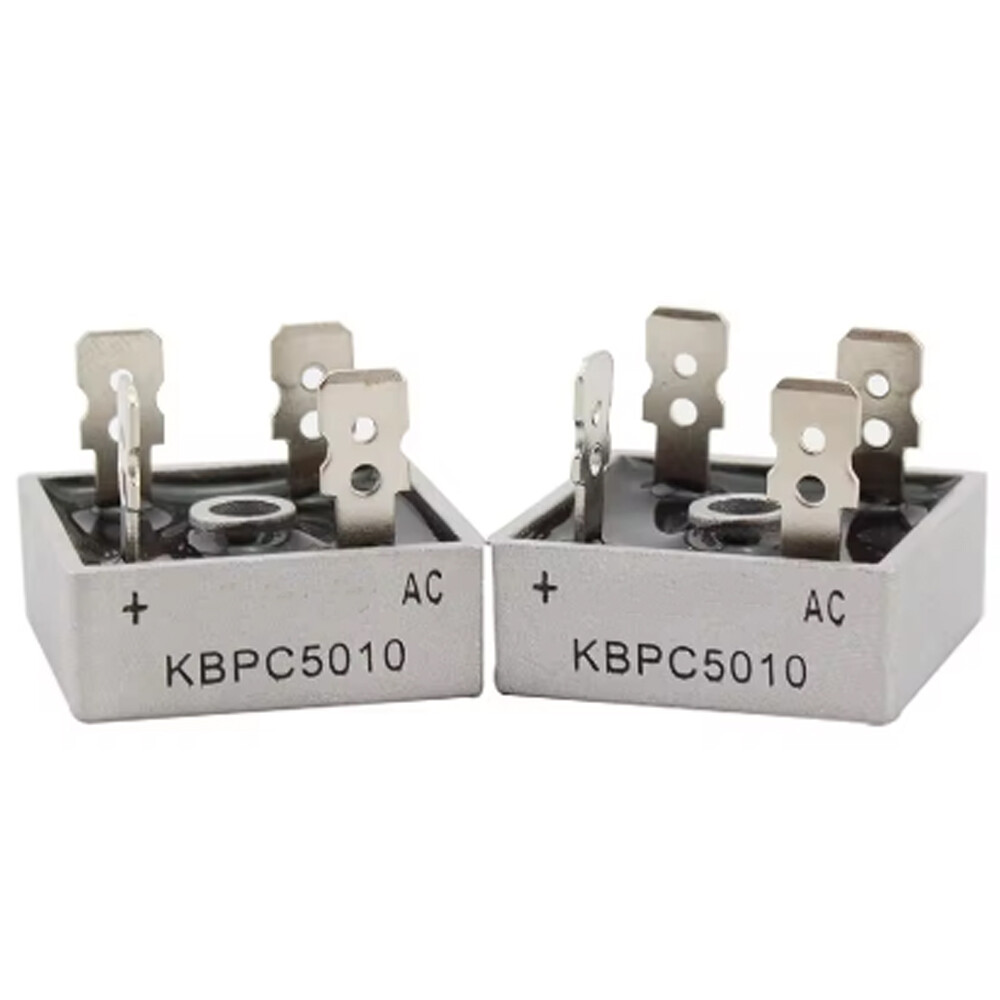

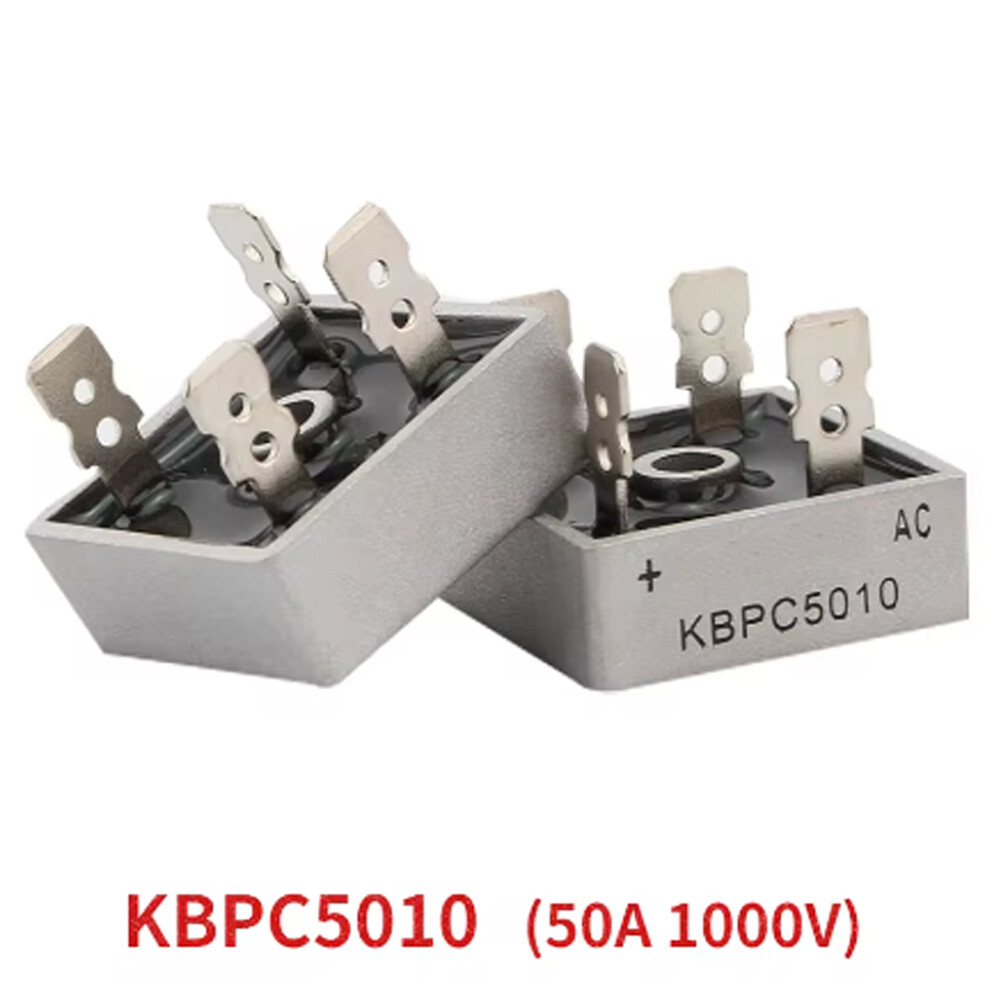

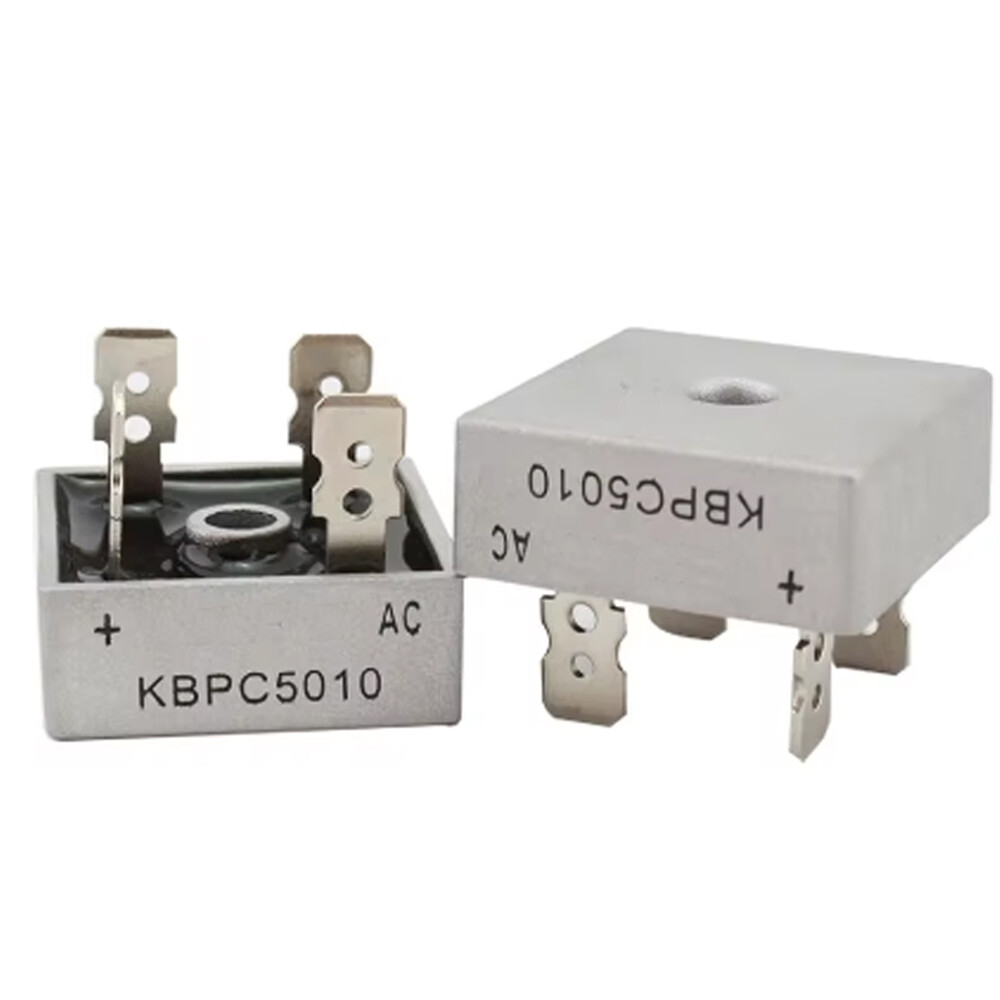

Check the listing for details. 20PCS 1000V 50A Metal Case Single Phase Diode Bridge Rectifier KBPC5010. Condition: New. Listed at 22.69 USD. KBPC5010 Features Maximum average forward rectified output current at TA=40 C (IF(AV)): 50A. Maximum DC reverse current at rated TA=25 C (IR): 10uA.
