| Operation Mode | ON-OFF-ON |
|---|---|
| Current Rating | 40 Amps |
| Operating Voltage | 660 Volts |
| Contact Type | No Nc |
| Connector Type | Screw |
| Switch Type | Rotary |
| Terminal | Screw |
| Circuit Type | 3-way |
| Mounting Type | Surface Mount |
| Actuator Type | Rotary |
| Number of Positions | 3 |
| Control Method | Touch |
| Connectivity Protocol | X-10 |
| Wattage | 26400 watts |
| Control Type | 3 Position ON-OFF-ON |
| Color | Grey |
| Item Dimensions | 4.3 x 4.3 x 5.3 inches |
| Unit Count | 1.0 Count |
| Material Type | Plastic |
| Contact Material | Brass |
| Specification Met | CE |
| Model | SZW26-40/D303.3D |
| Manufacturer | Electric |
| Part Number | SZW26-40/D303.3D |
| Item Weight | 4.8 ounces |
| Material | Plastic |
| Item dimensions L x W x H | 4.3 x 4.3 x 5.3 inches |
| UPC | 313107431425 |

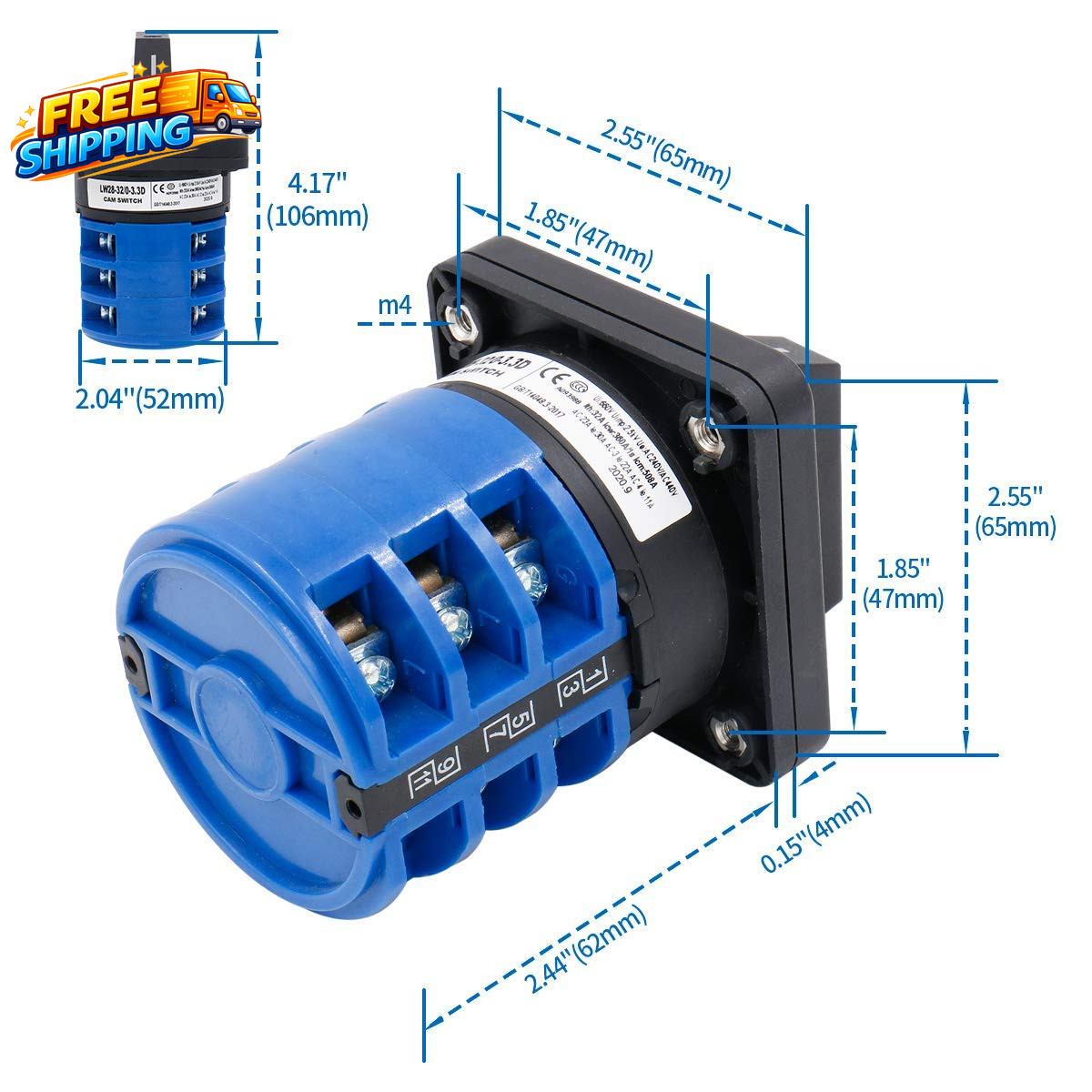

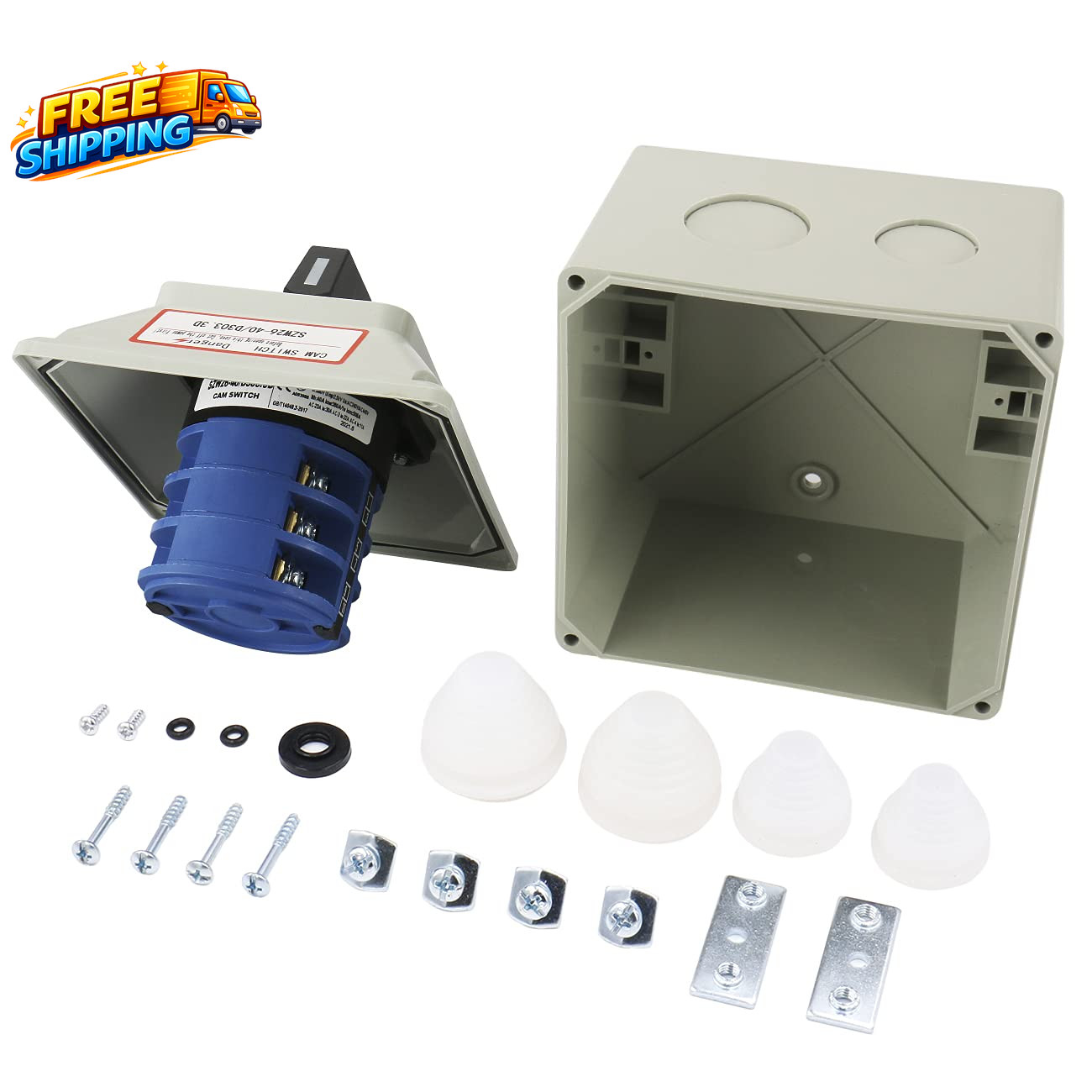

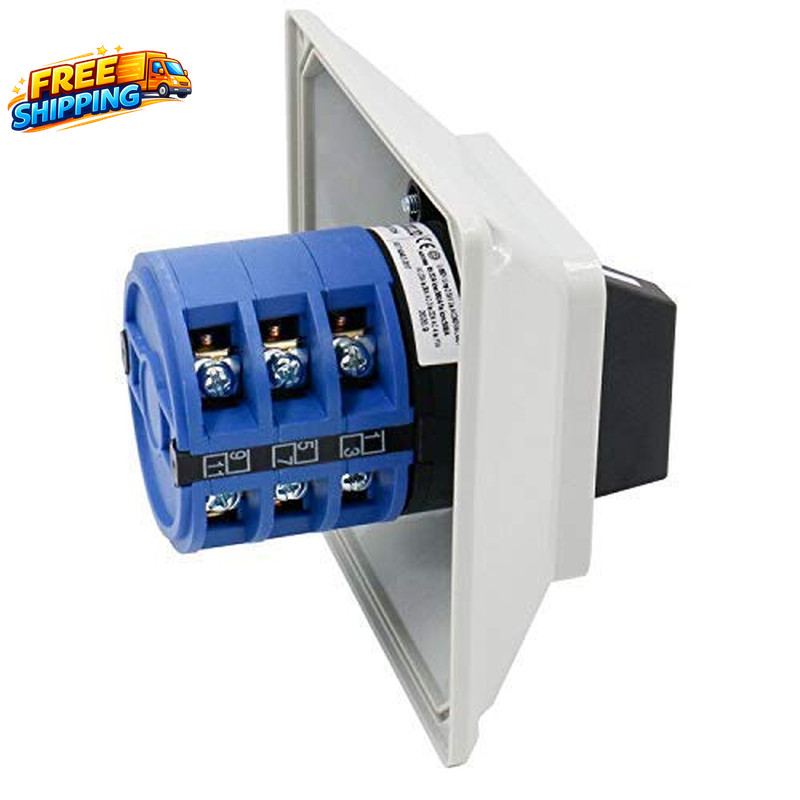

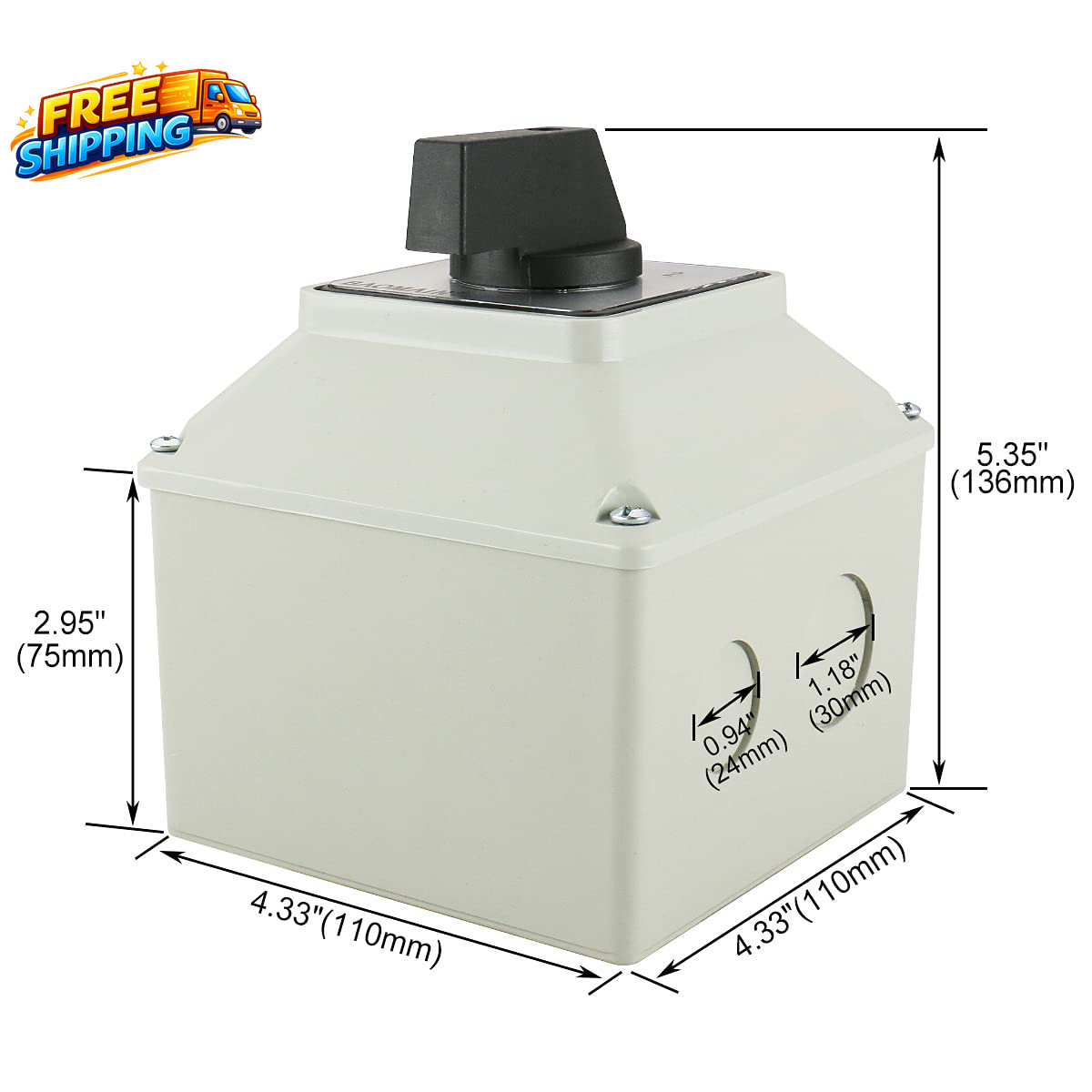

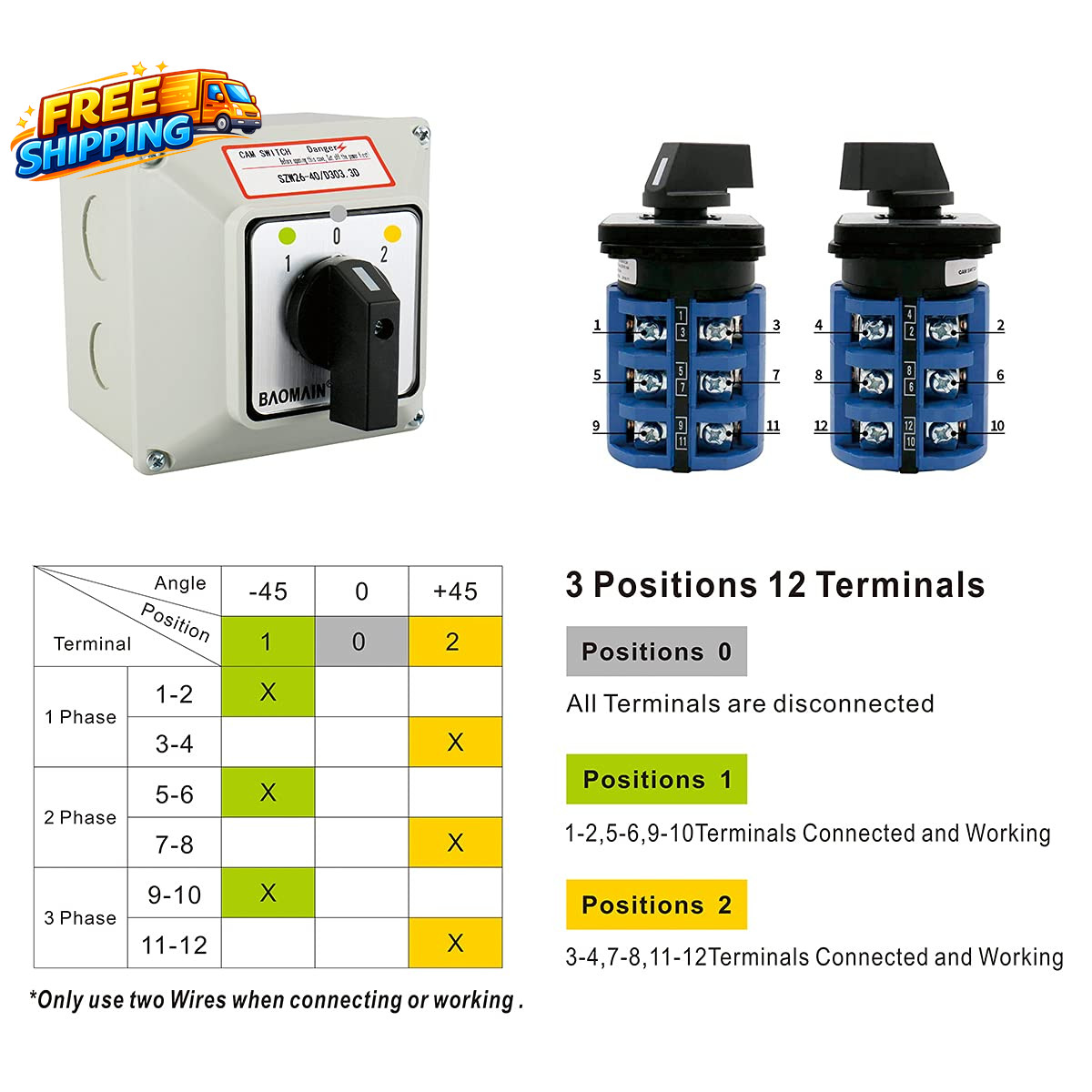

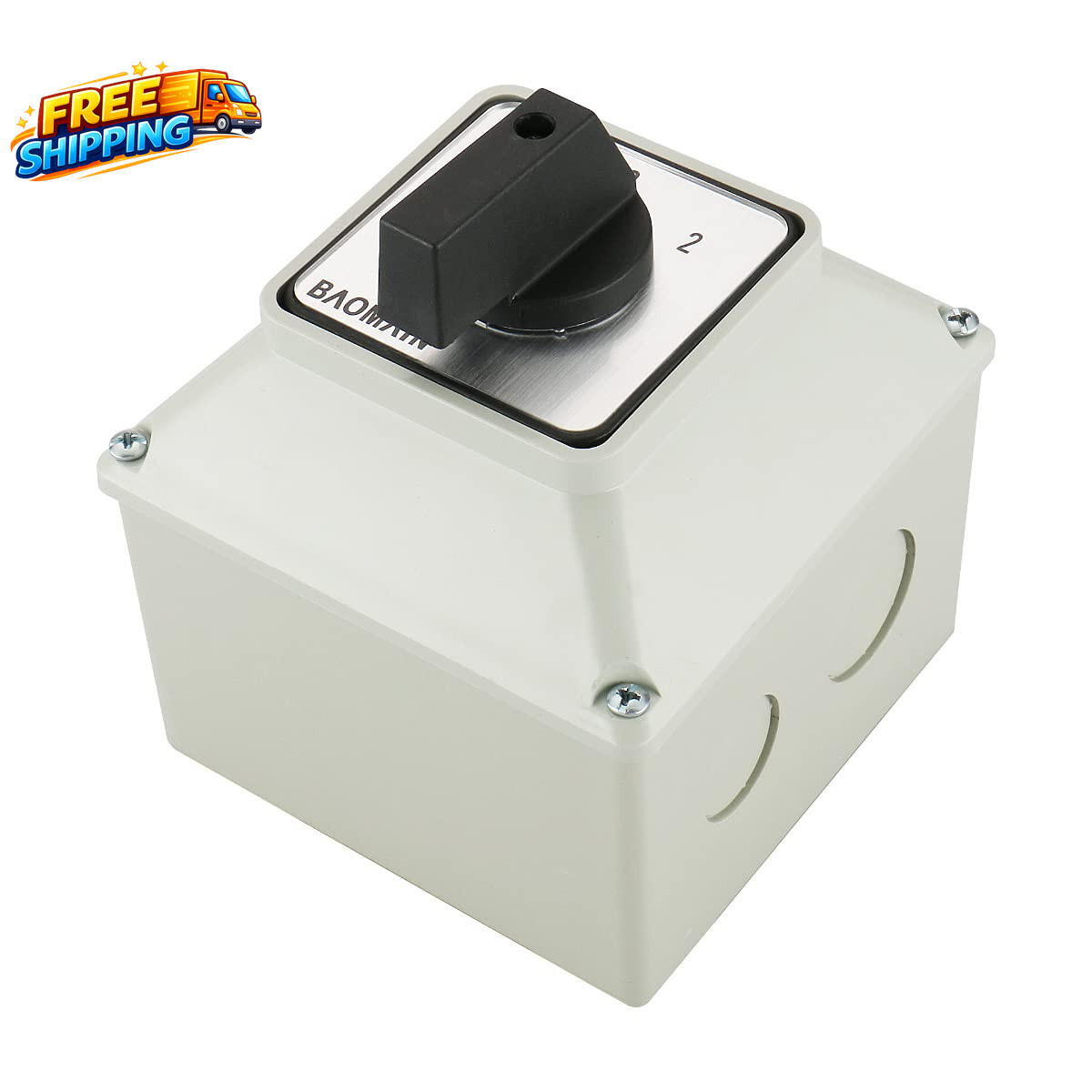

Check the listing for details. 40A 3-Phase 3-Position Cam Rotary Changeover Switch with Enclosure Maintained. Color: Grey, Condition: New. Listed at 29.76 USD. High-Performance Specs - Rated at 40A (Ith) and 660V (Ui), fully compatible with AC 240V/440V systems. This heavy-duty cam switch is built to handle high-current electrical loads with long-lasting stability.
You may also like
$13.86
1Pcs 10mm Dia Panel Mounted Ceramic Rotary Switch 8P5T 8 Pole 5 Throw KCZ-8x5
$6.95
3-Speed 4-Position 10AMP Rotary Switch for Oven Juicer Heater Blower Range Hood
$51.36
Disconnect Switch Isolator Padlock Rotary Cam Cabinet 40A 3/4P 2 Position On-off
$40
Square D 9003-KBH 2T Rotary Cam Panel Switch Operator Handle Head NEW IN BOX
$19.91
one Rotary Ceramic Switch 2P5P : 2 Pole - 5 Position Russian Military Grade
$187
Salzer M225-SE0737 Rotary Cam Switch, New!
$5.35

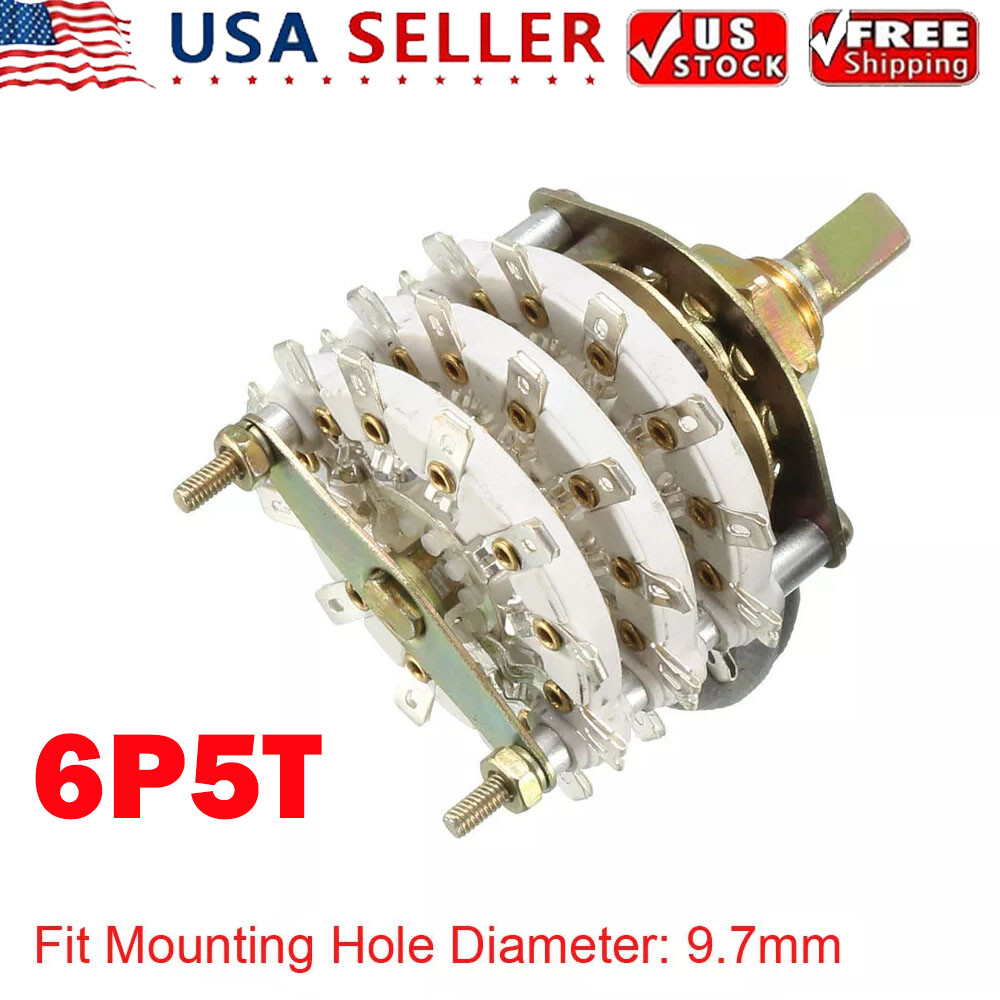

6P5T 6 Pole 5 Throw 3 Deck Band Channel 9.7MM Rotary Switch Selector USA
