| Brand | Unbranded |
|---|---|
| Type | Combiner Box |
| Color | White |
| Material | ABS, PC |
| Circuit Breaker Type | Standard |
| Mounting Type | Wall Mount |
| Operating Temperature | -30~70℃/-22~158℉ |
| Input | 4 Strings |
| Output | 1 String |
| Number Of Poles | 4 |
| Current Rating | 63A |
| Number Of Max. Connection PV Array | 4 |
| Max. Input Current of Single PV Array | 10A |
| Total Input Current of PV Array | 40A |
| Max Input Voltage of Single PV Array | 1000V |
| Max Output Voltage | 600V |
| Protection Grade | IP65 |
| Relative Humidity | 0-95%, No Condensation |
| Cooling Method | Natural Cooling |
| Number of Surge Protection Devices | 2 |
| Surge Protection Device | 40KA, 600V |
| Number of Circuit Breakers | 1 |
| Circuit Breaker | 63A, 550V |

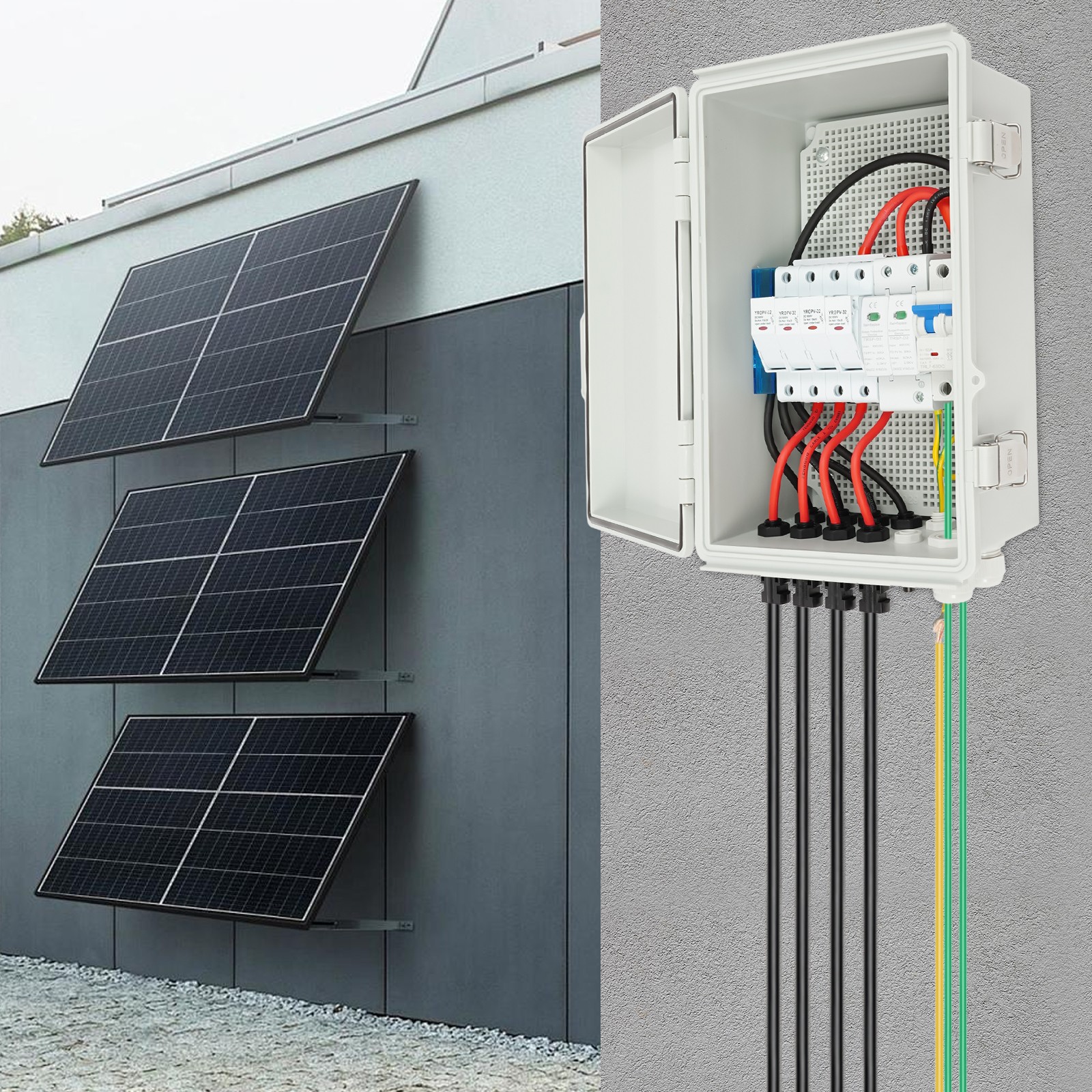

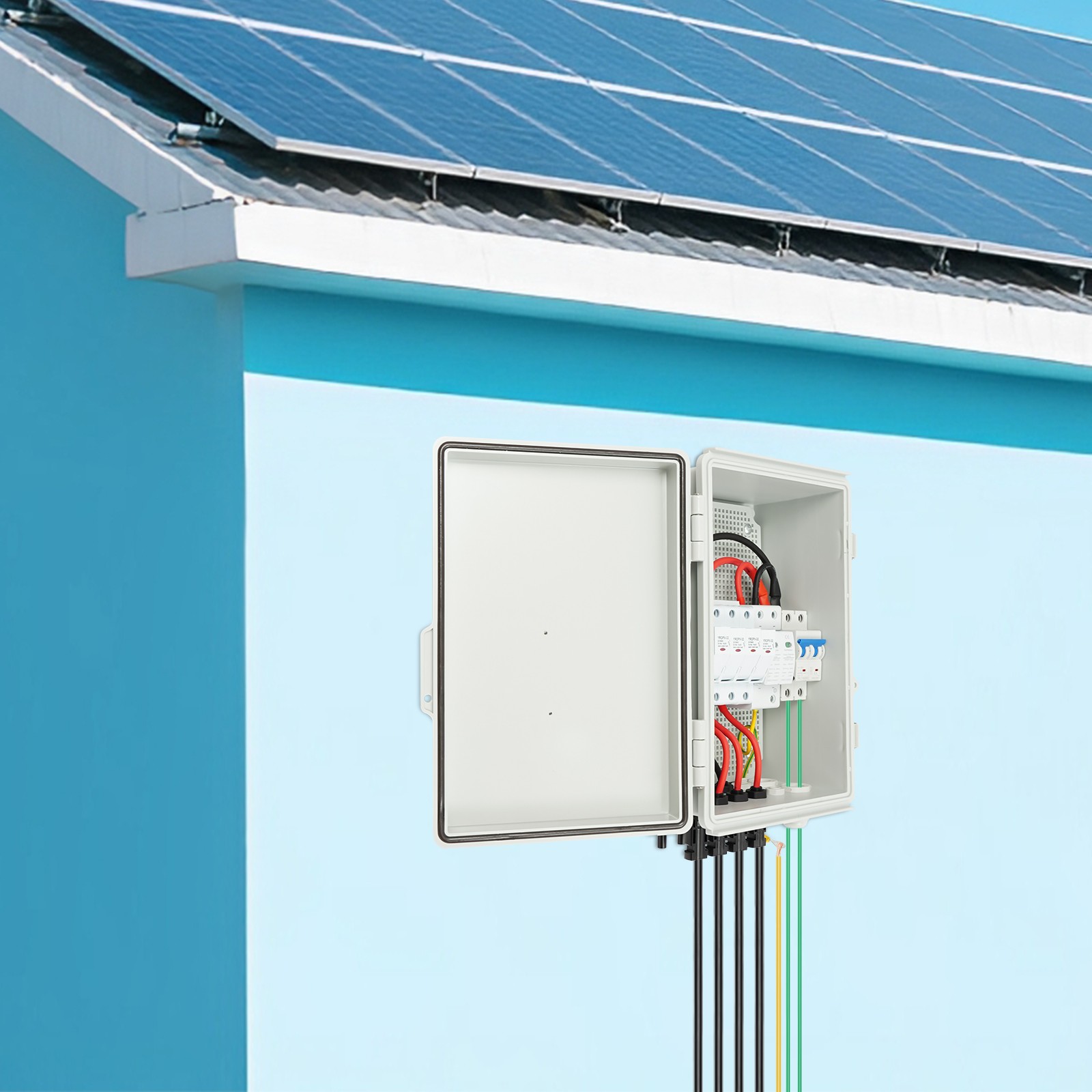

Check the listing for details. 4String Waterproof Solar PV Combiner Box 63A Circuit Breaker Solar Panel System. Color: White, Condition: New. Listed at 62.55 USD.
