| Output flat/vertical bending force | 35ton |
|---|---|
| 7.9"*0.5"(200mm*12mm) | 0.5"(12mm) |
| Flat/vertical bending thickness | 0.24"*0.3"*0.4"*0.5"(6,8,10,12.5mm) |

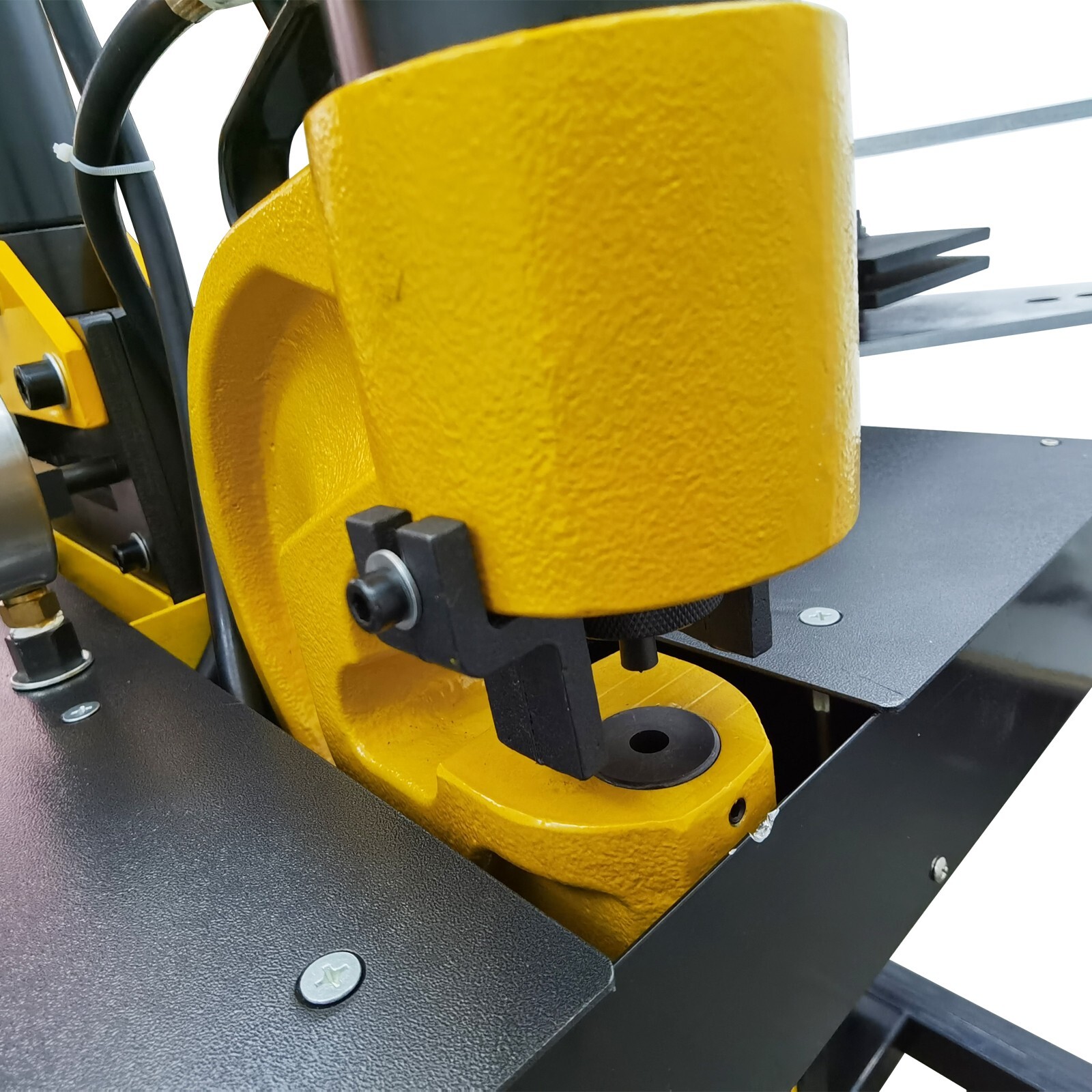

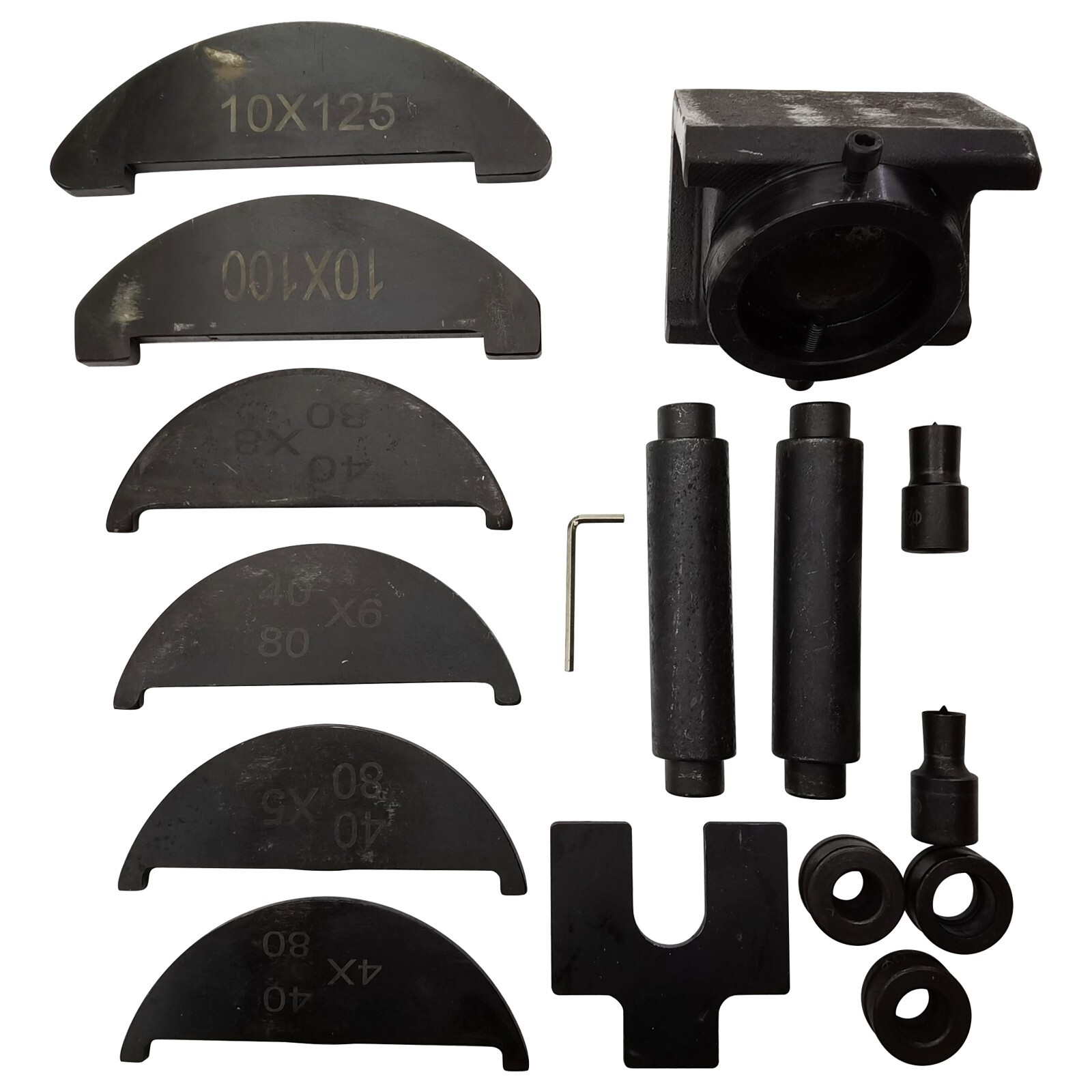

| Punching dies | 3/8", 5/8", 1/2", 3/4" |

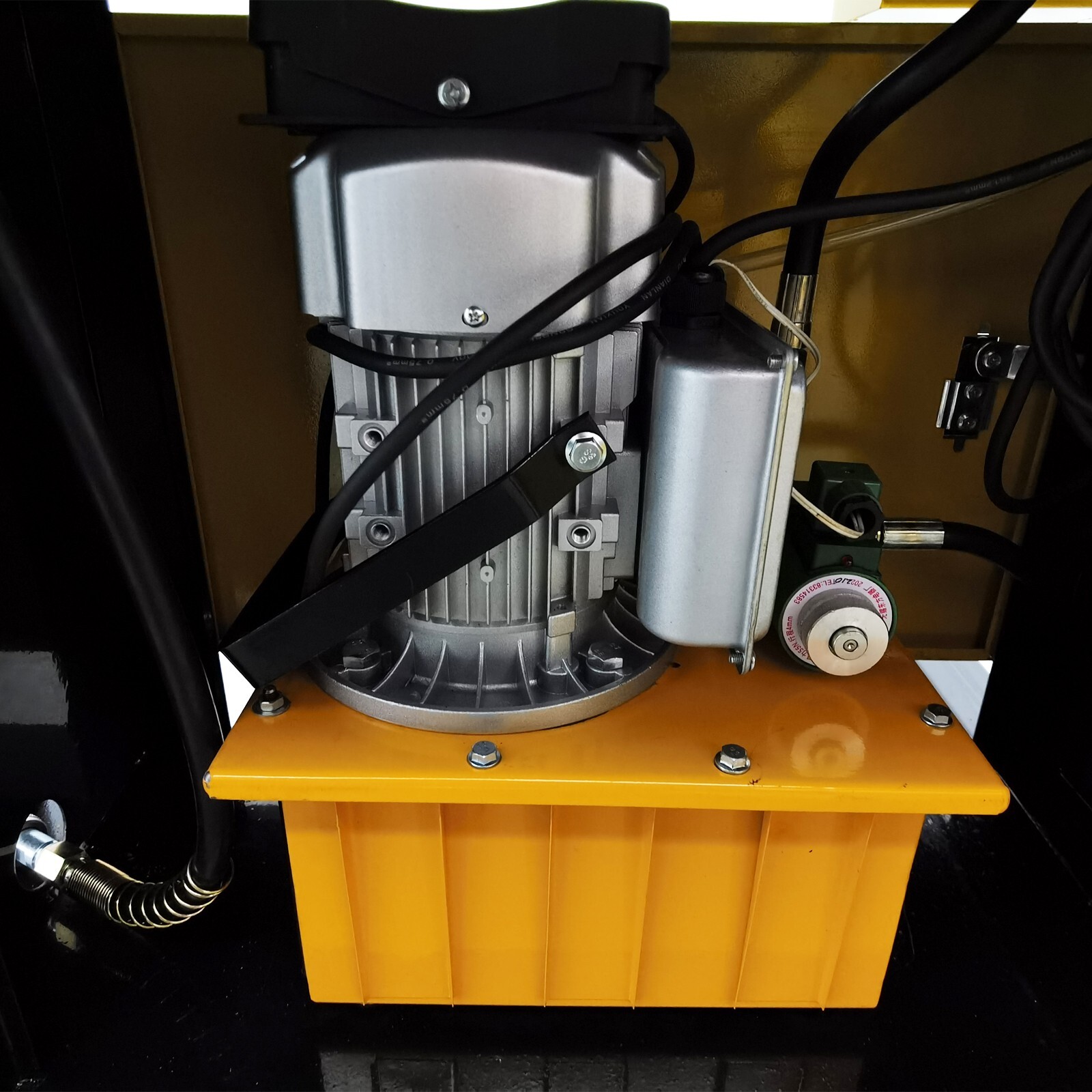

| Tank capacity of hydraulic pump | 2.11gal(8L) |

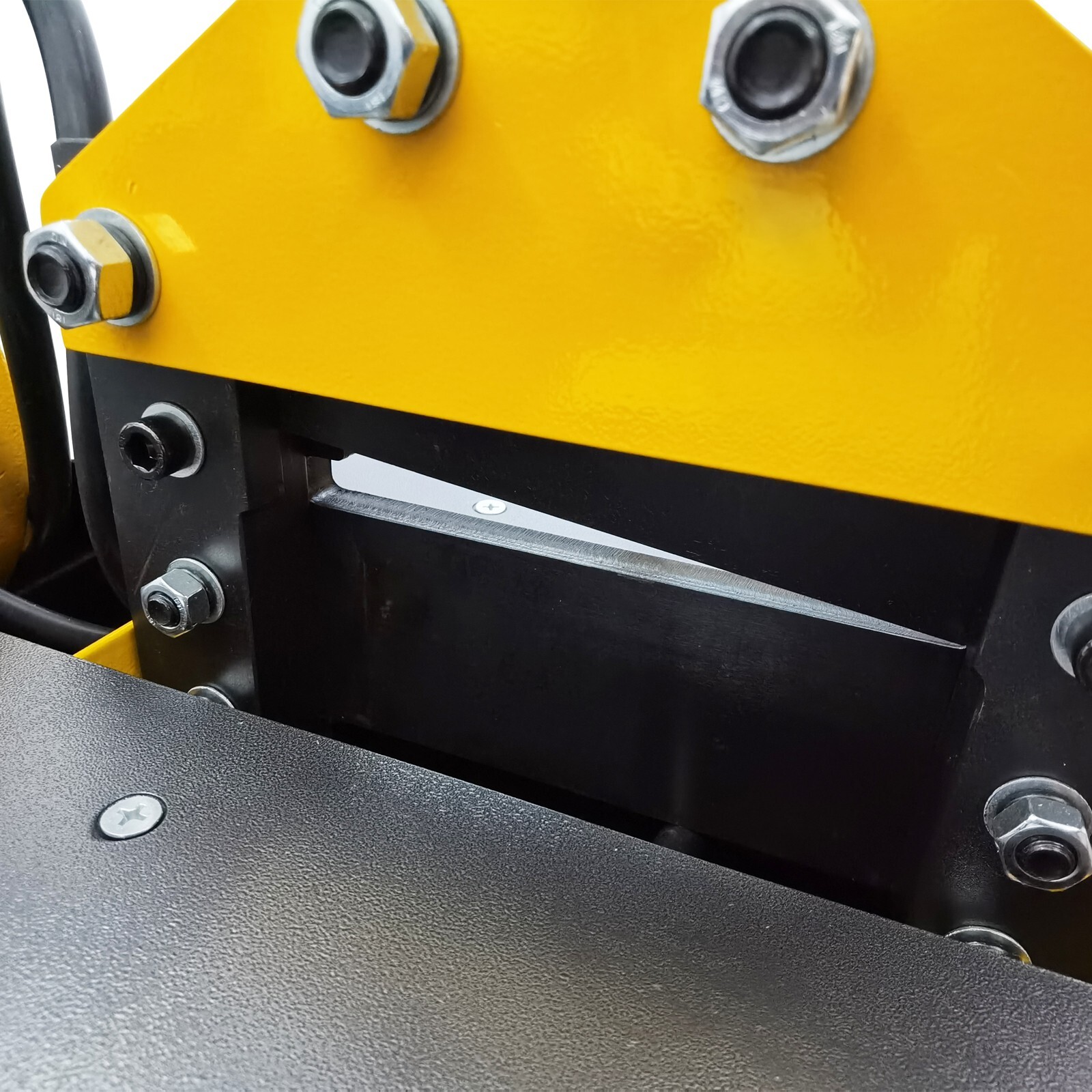

| Cutting max(Width*Thickness) | 7.9"*0.5"(200mm*12mm) |
| MPN | 056649 |

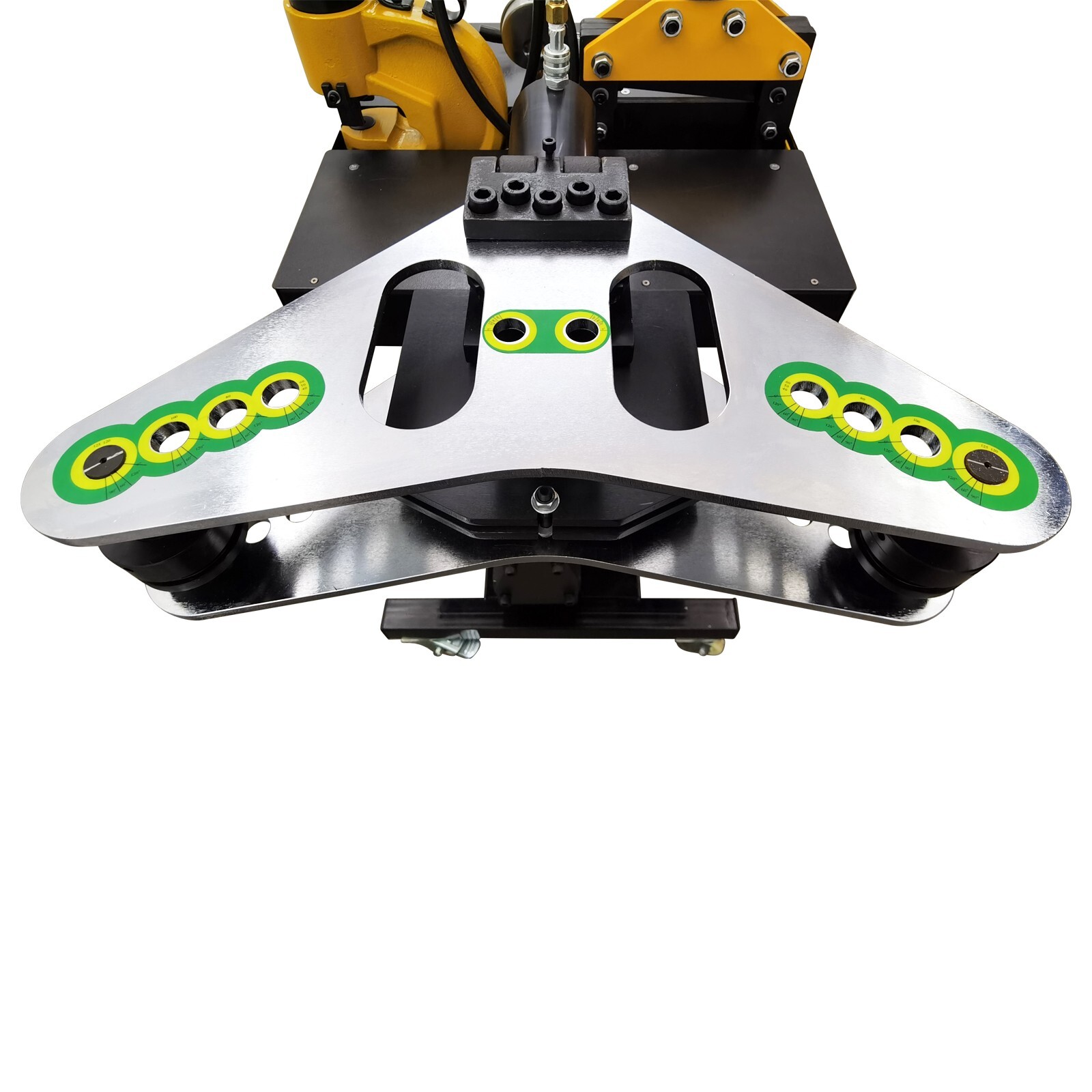

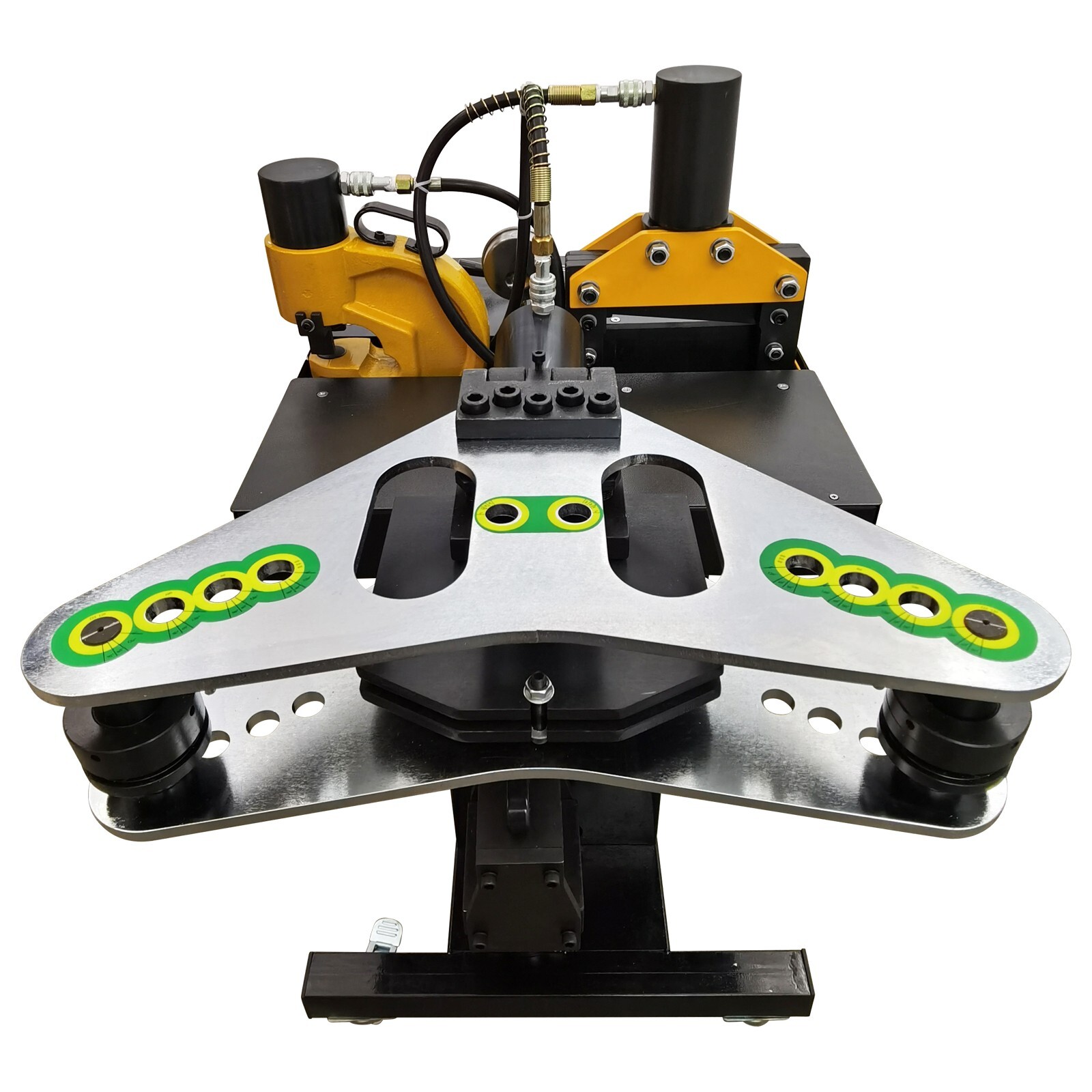

| Flat/vertical bending width | 1.6"*2"*2.4"*3"*4"*5"(40,50,60,80,100,125mm) |
| Output cutting force | 35ton |
| Brand | BANFLUXION |
| Function | Cutter/Hole Puncher/Flat Bending/Vertical Bending/Knurling |

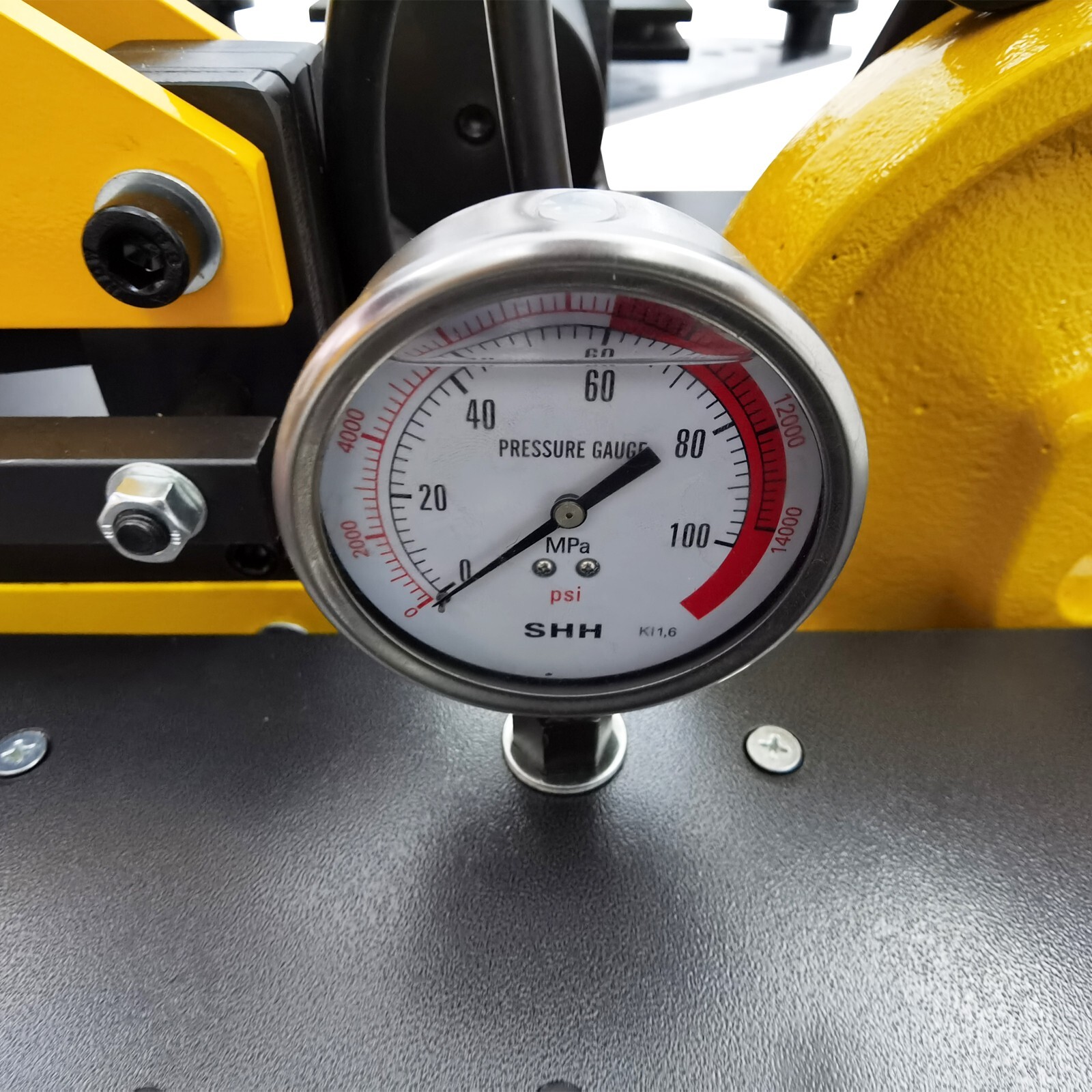

| Hydraulic pump pressure max | 700bar(10152psi) |
| Throat depth of punching | 4.3"(110mm) |
| Voltage | 110V |
| Flow rate of hydraulic pump | 0.7L/min-5L/min |
| Flat/vertical bending busbar angle | 0°-90° |
| Power | 750W |
| Output punching force | 35ton |

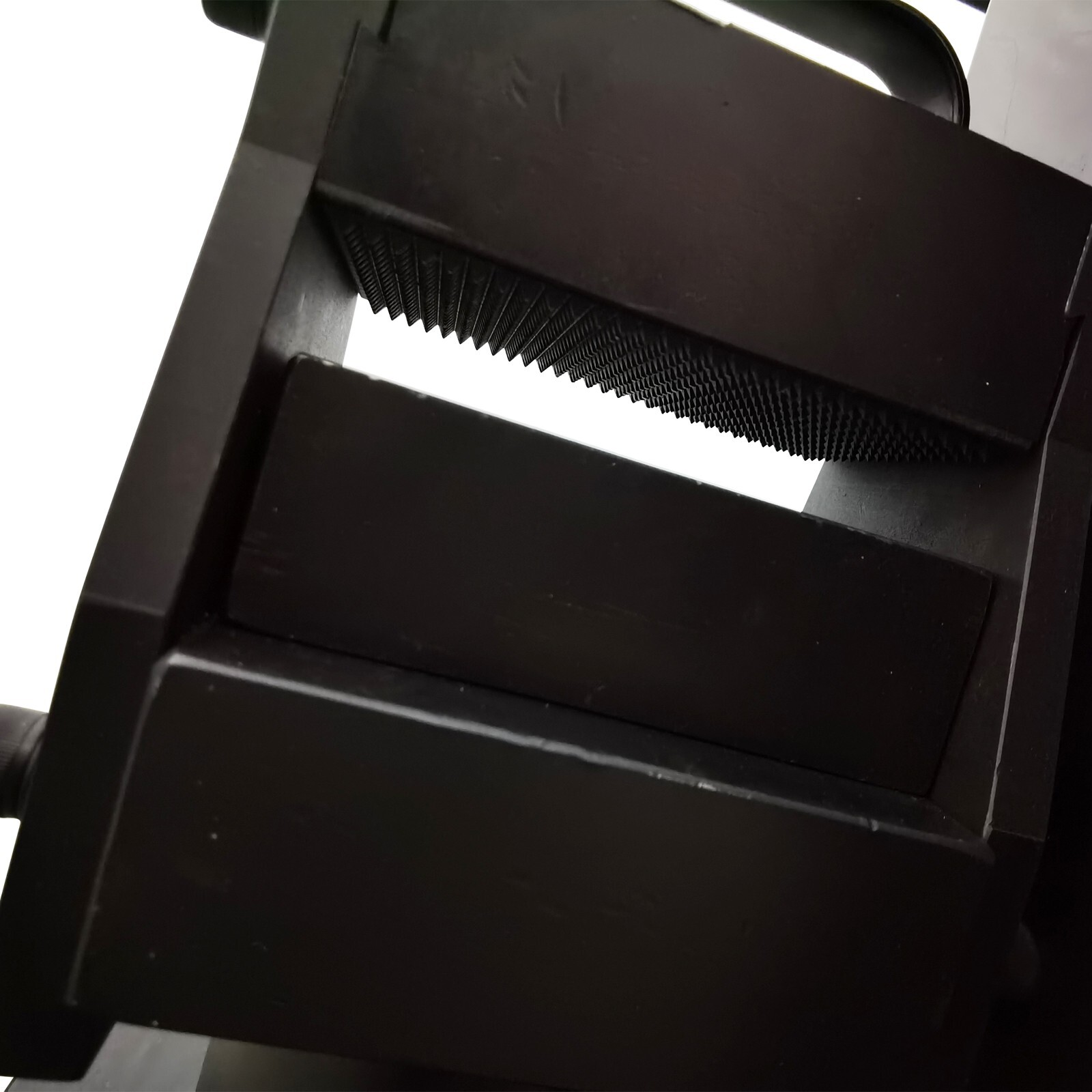

| Output knurling force | 55ton |
| UPC | 198462016780 |

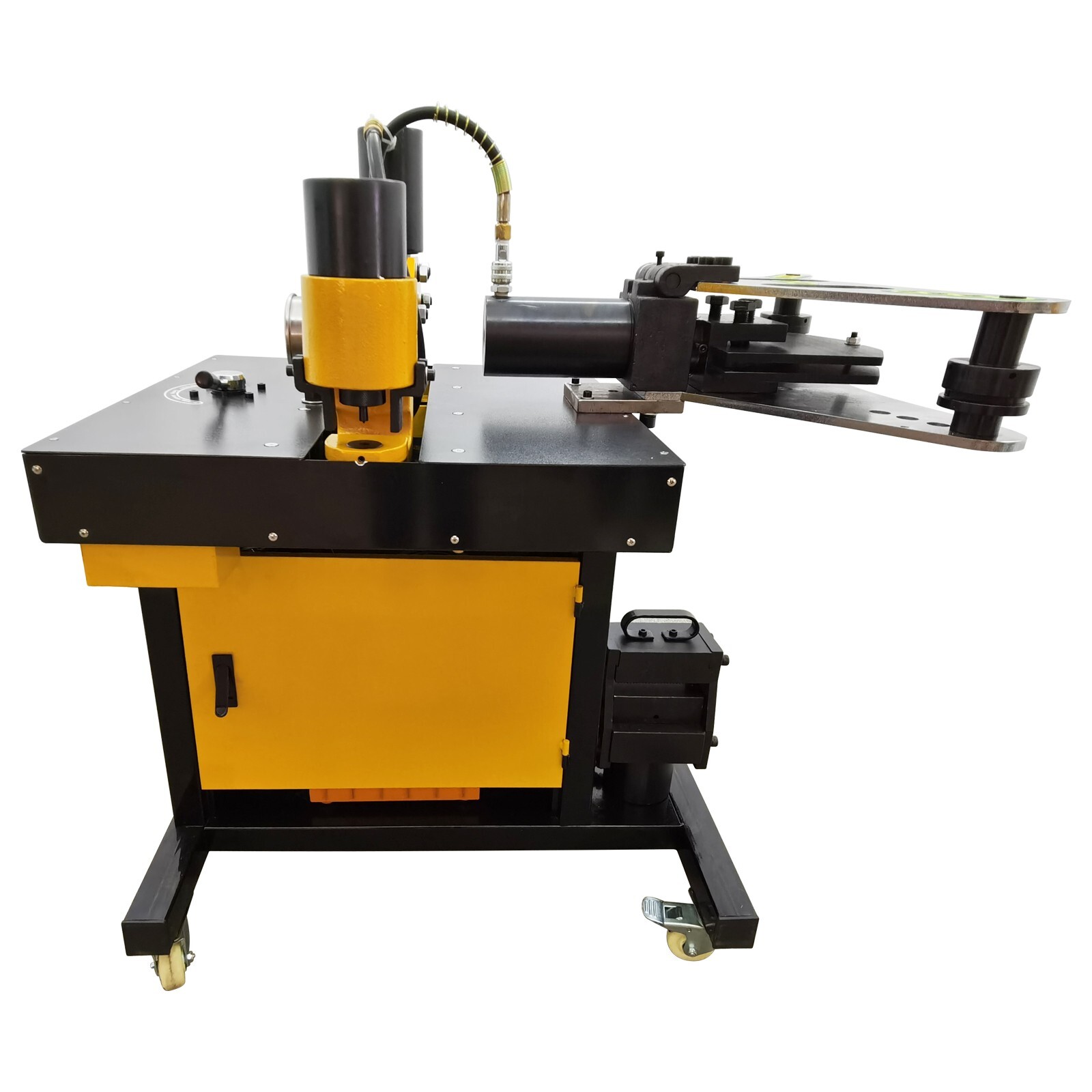

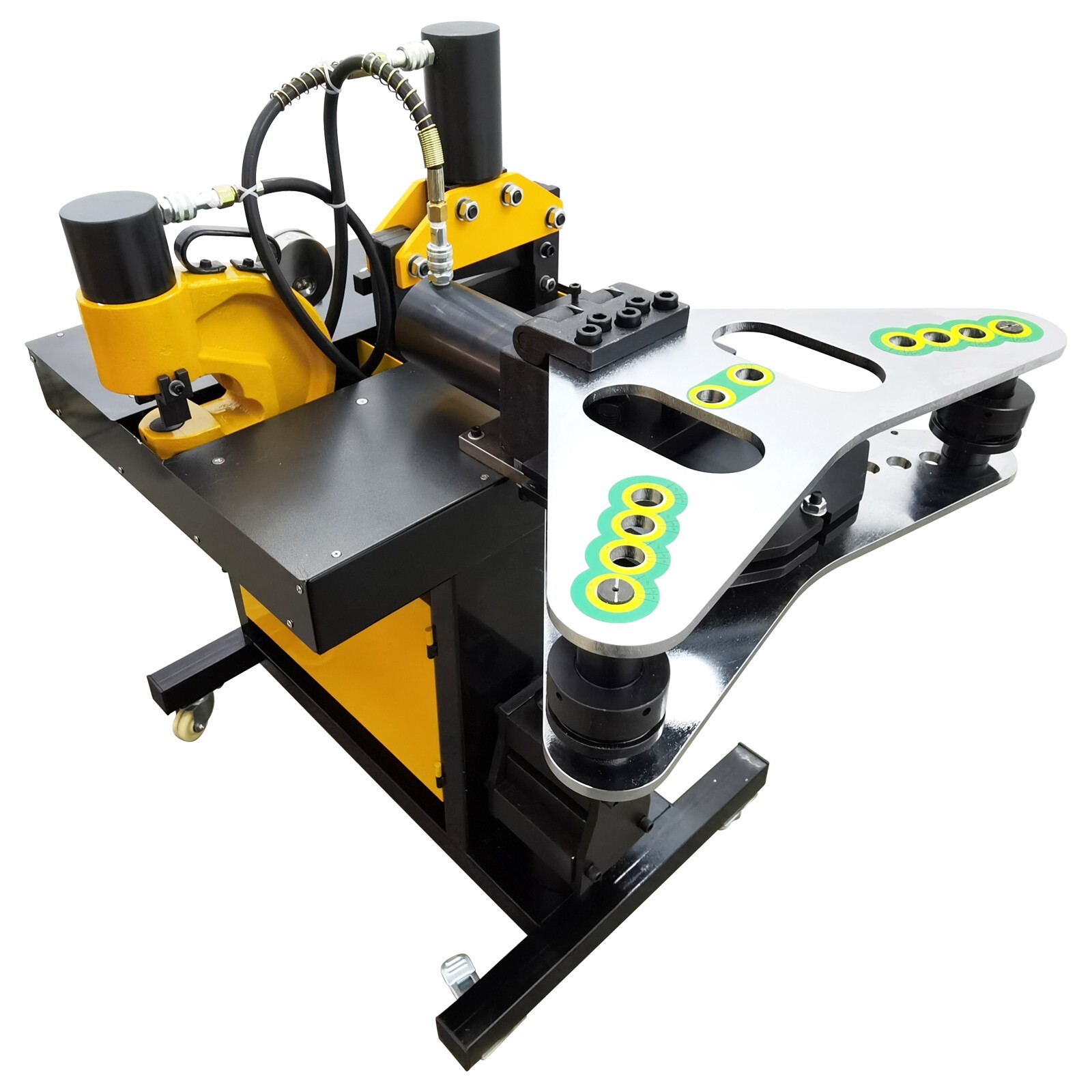

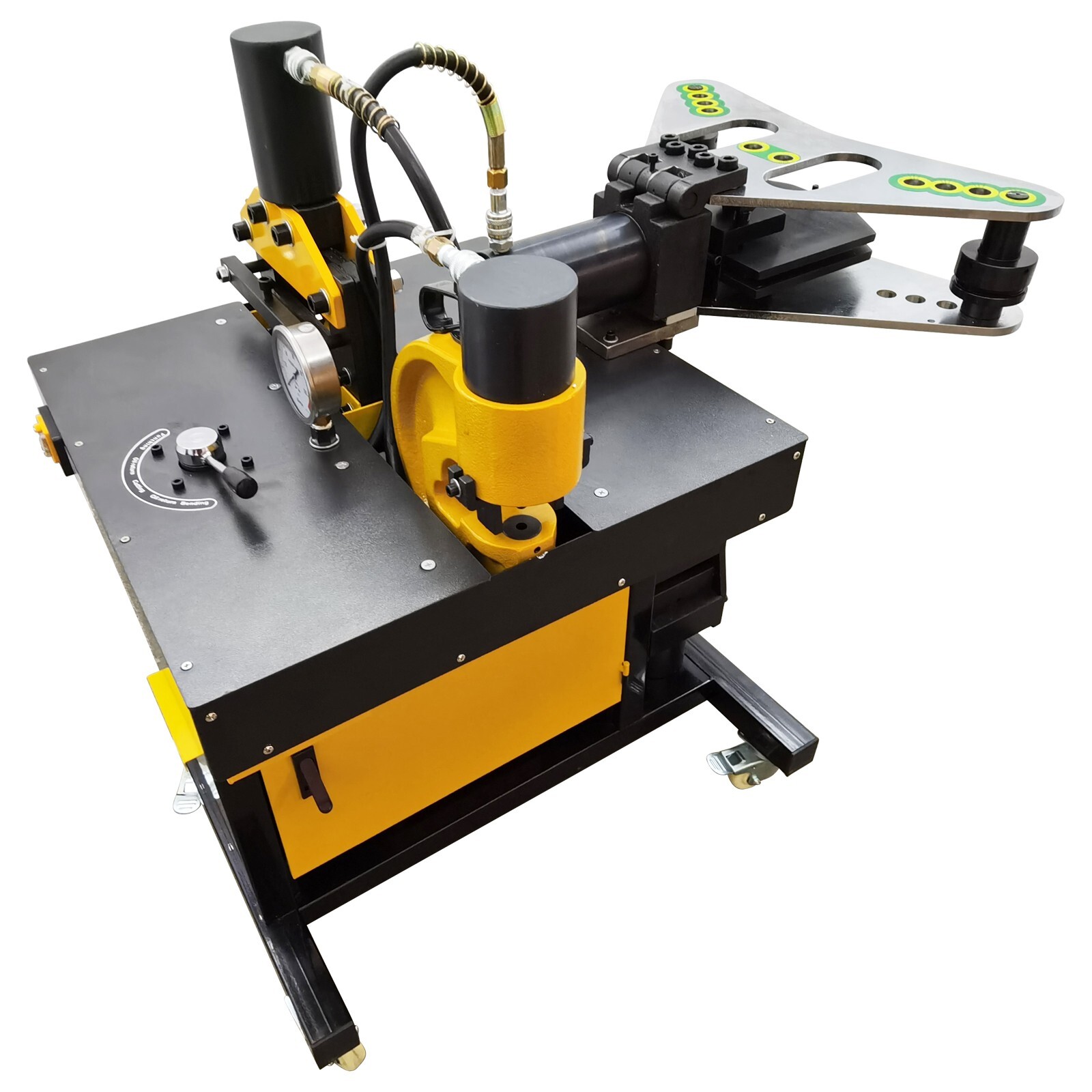

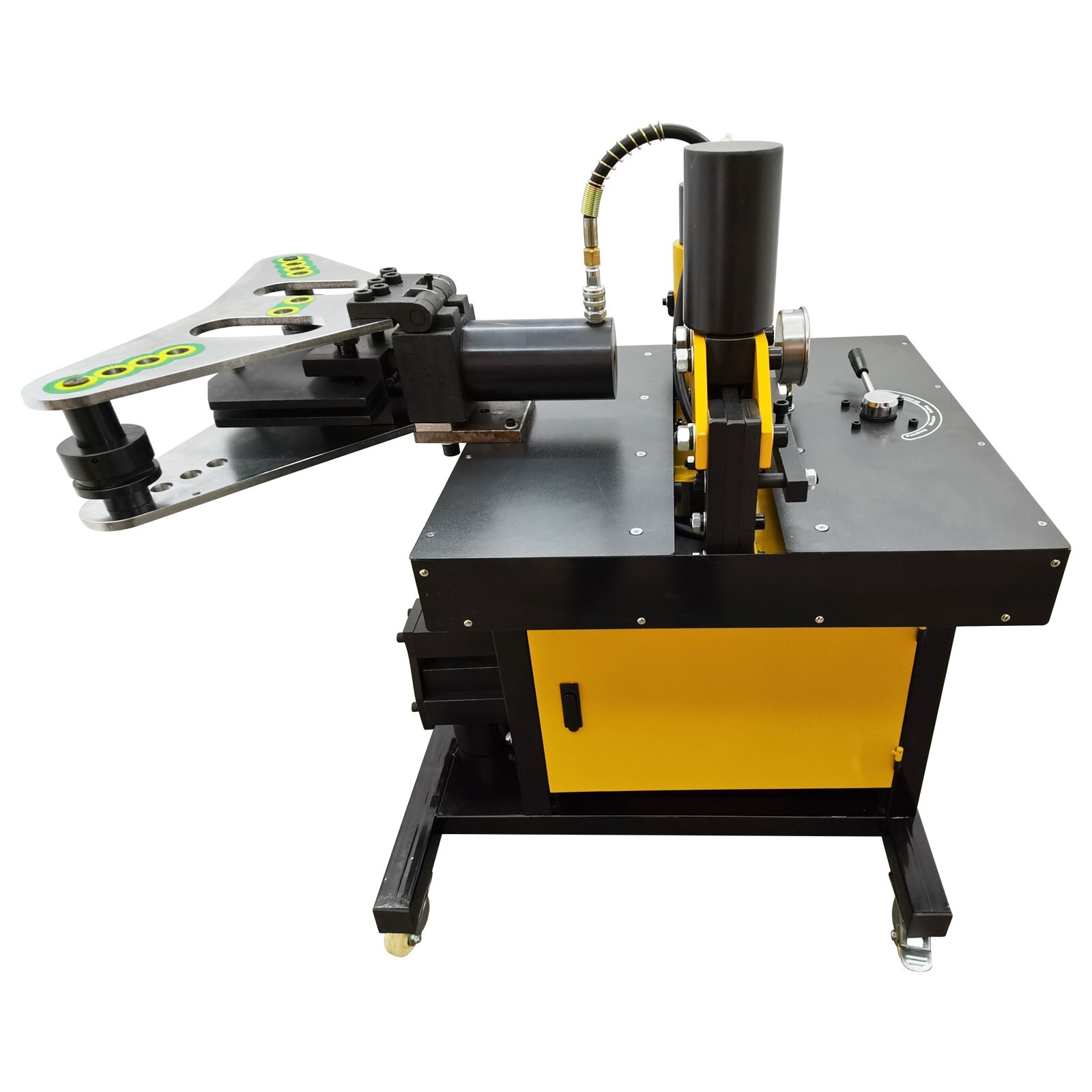

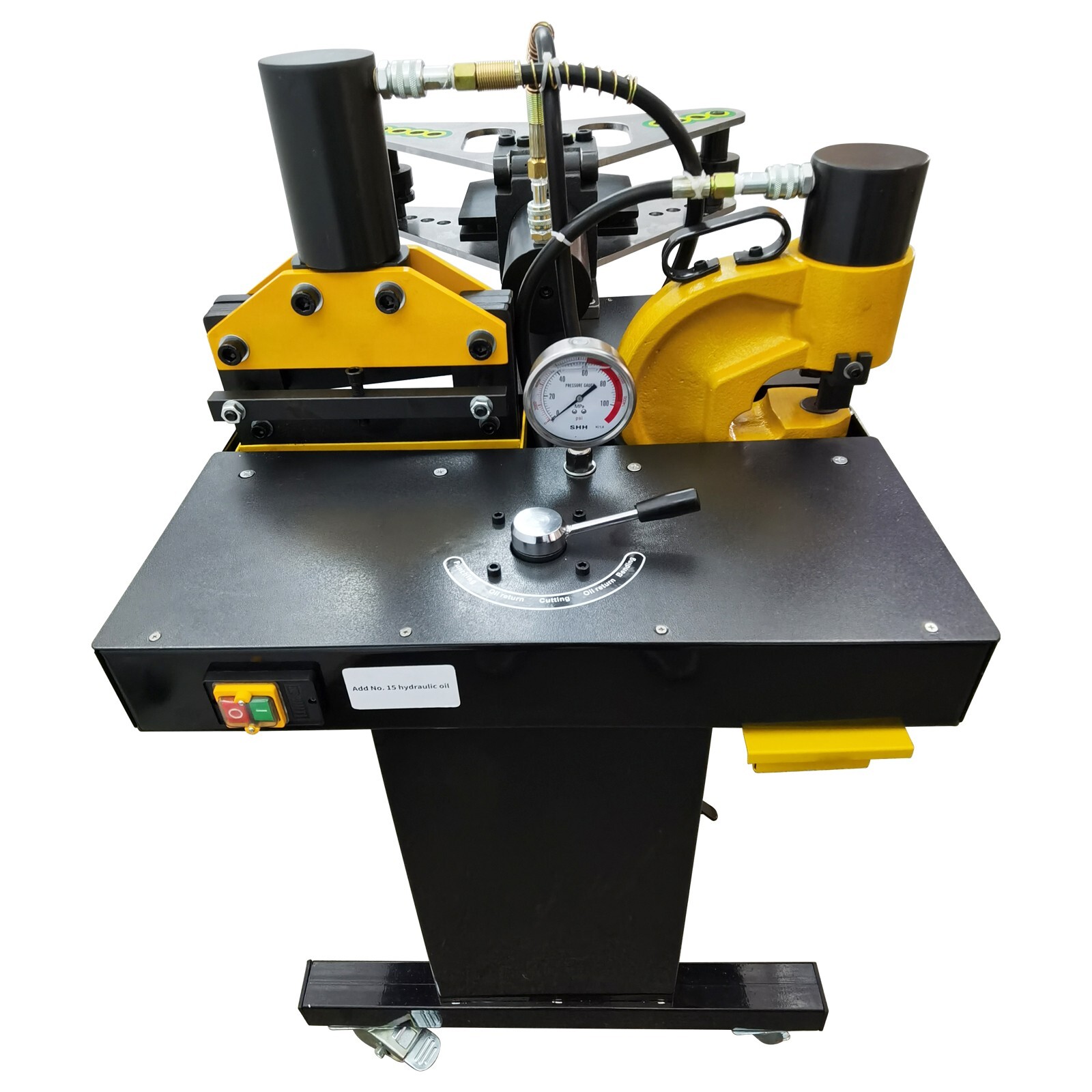

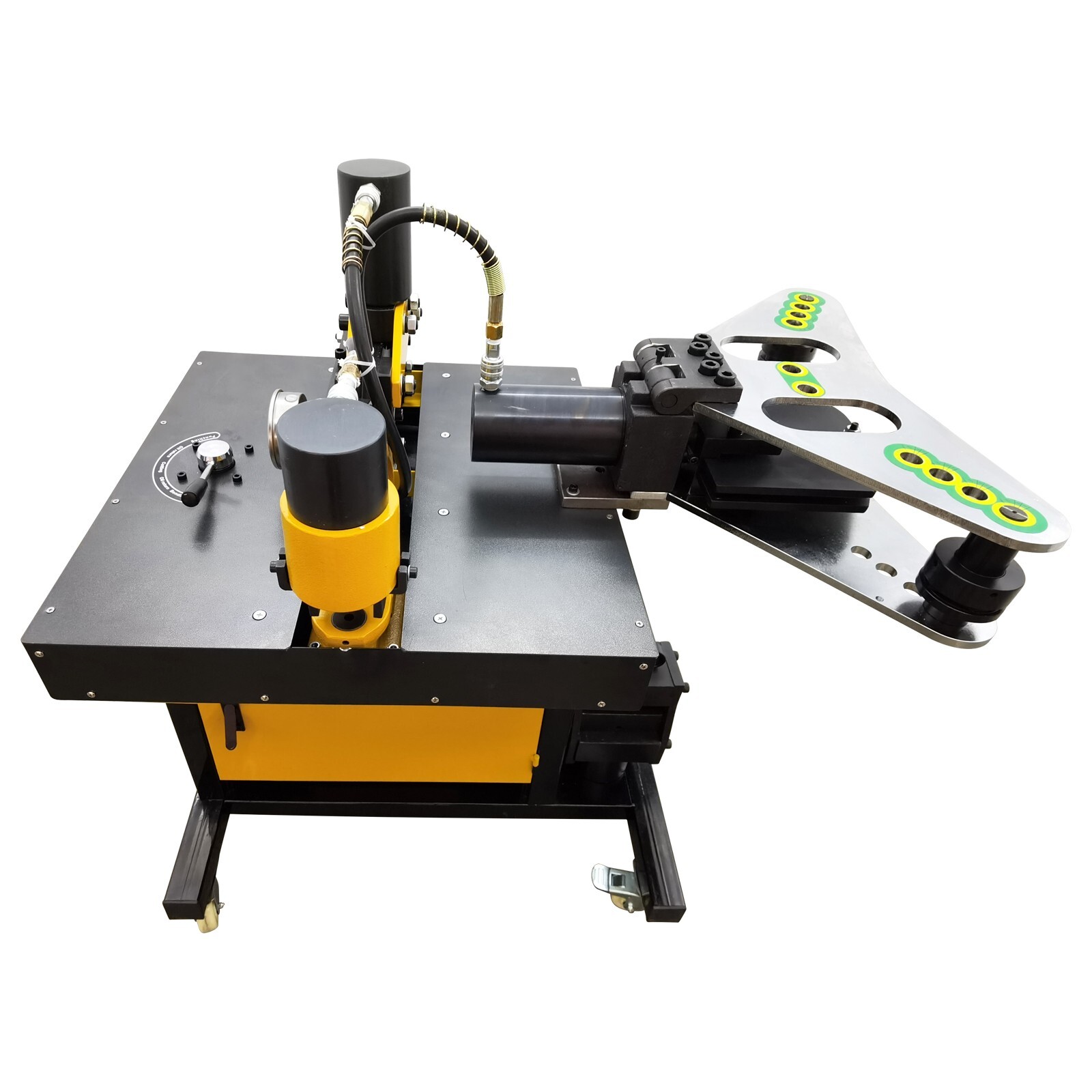

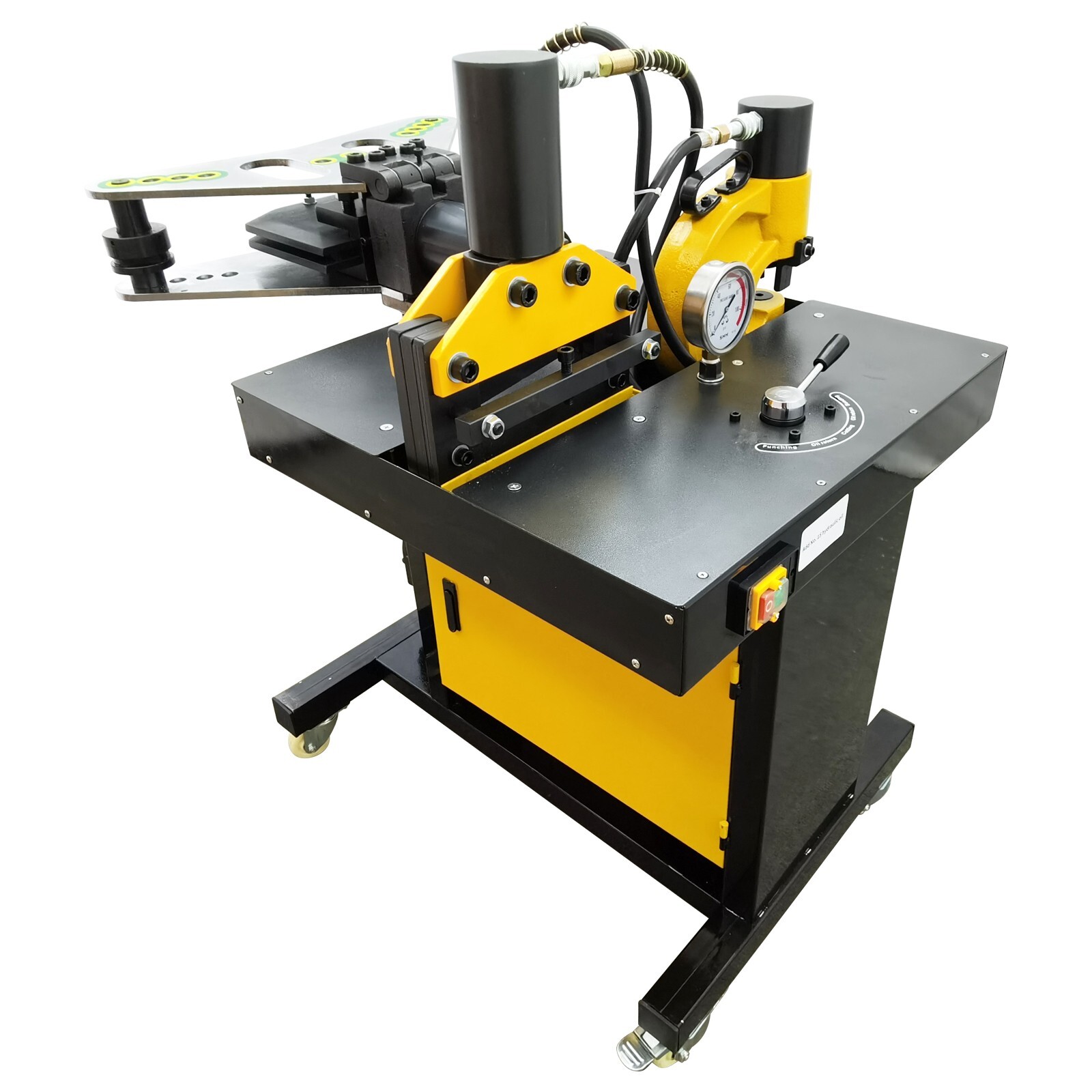

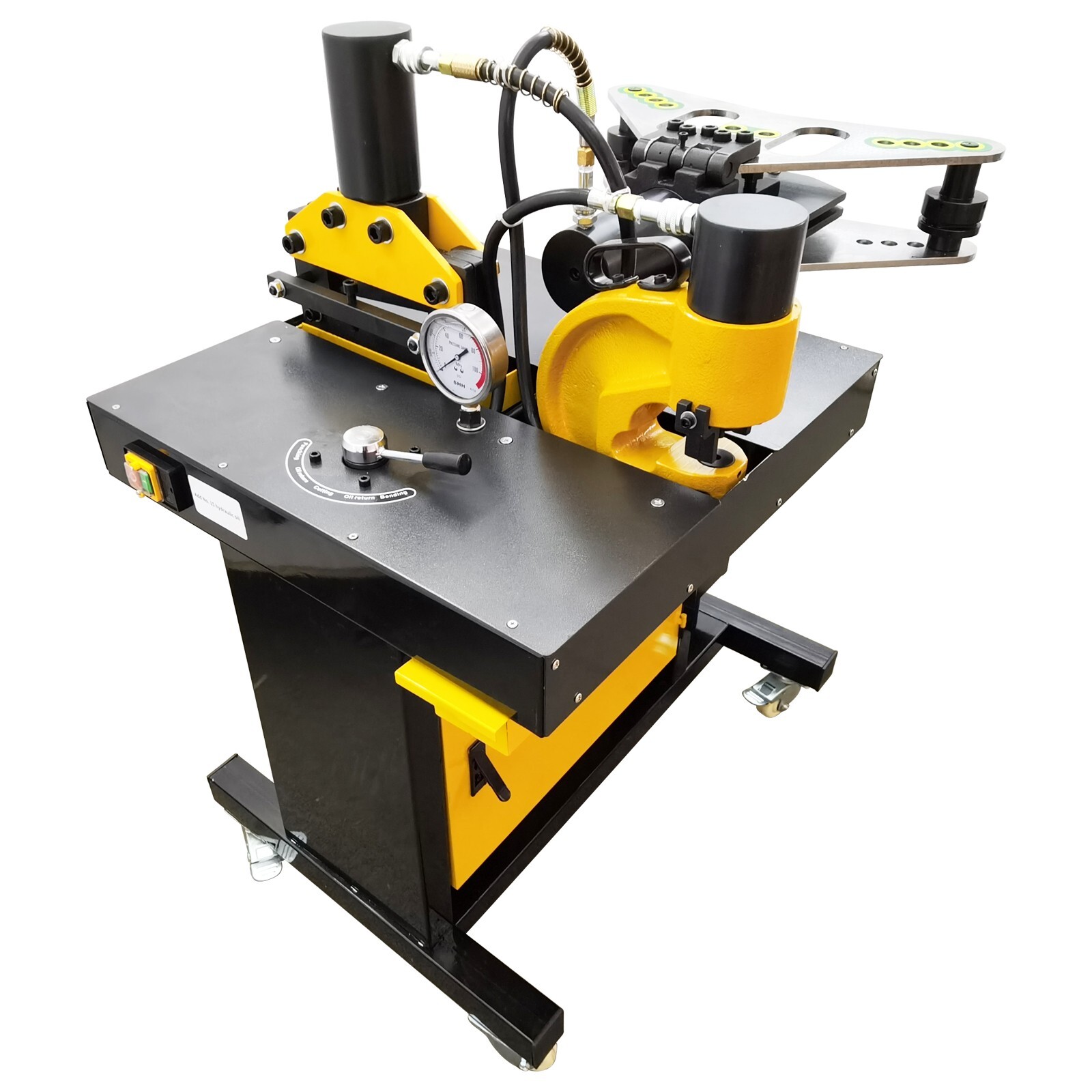

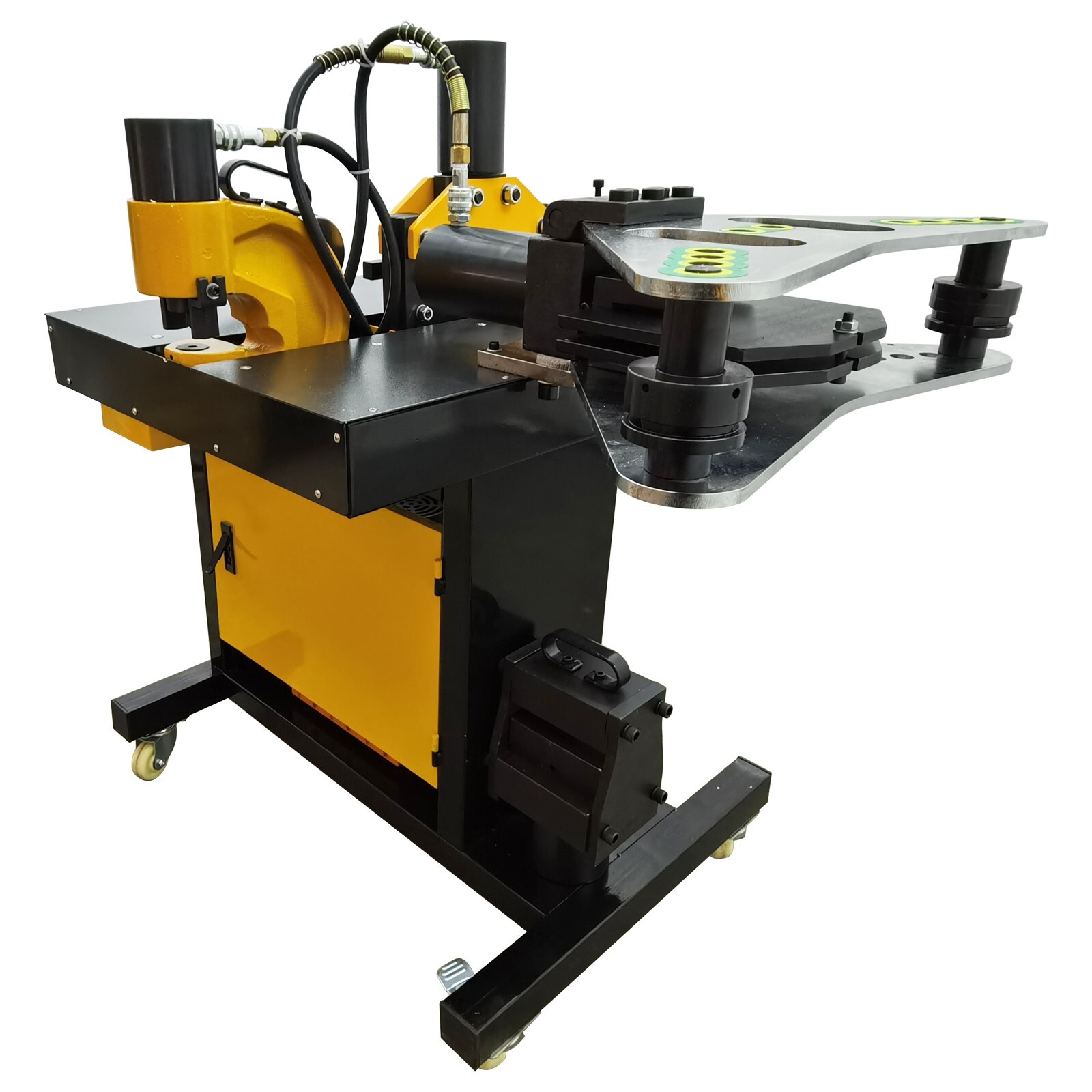

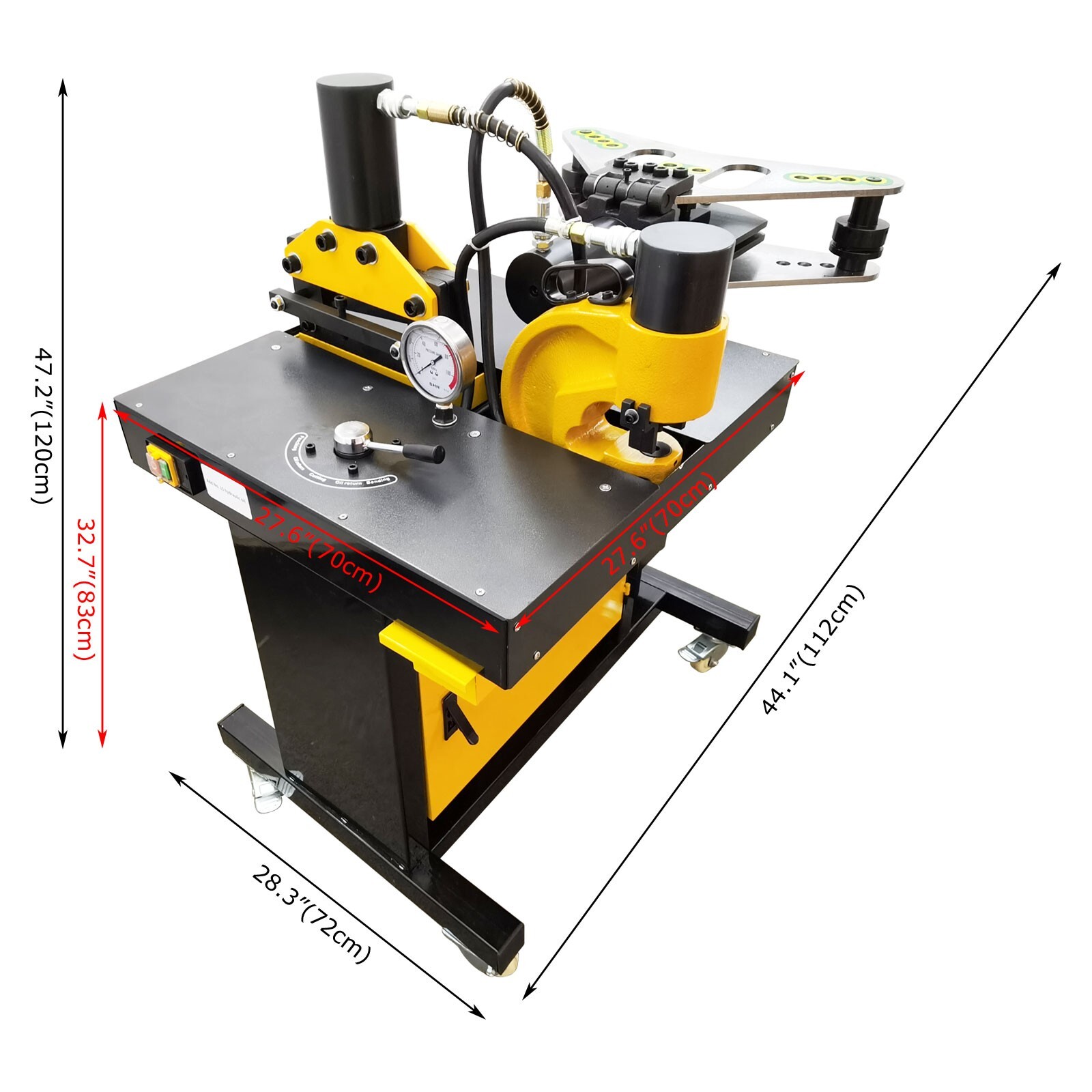

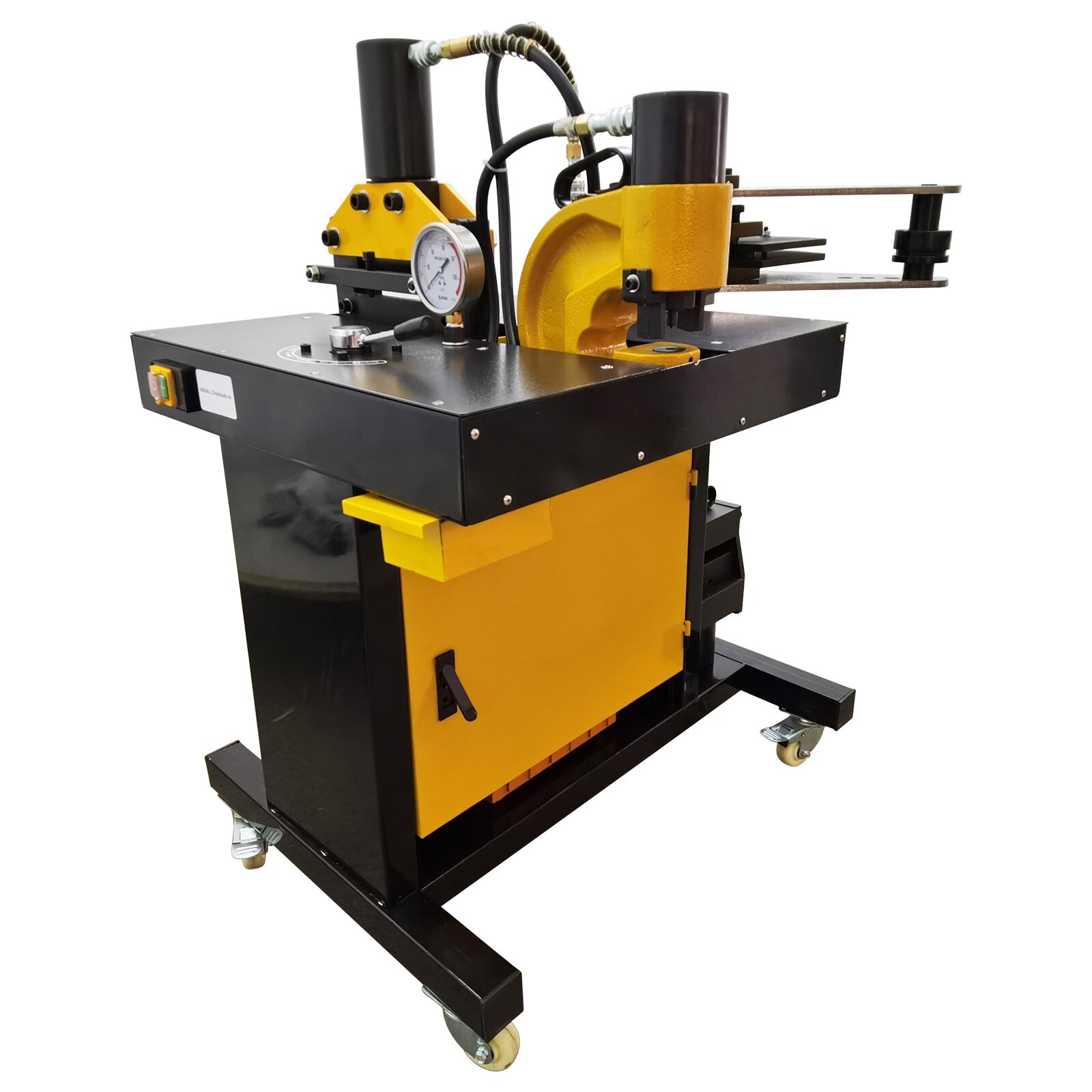

Check the listing for details. 5 in 1 Bus Processing Machine Multi-functional Puncher Cutting Punching Bending. Condition: New. Listed at 4404.04 USD. Flat/vertical bending busbar angle: 0°-90°. Bus processing machine has shearing, punching, flat bending, vertical bending and knurling five processing units, the main function for processing different specifications of copper, aluminum bus, just use the corresponding processing unit, can be convenient, fast to copper, aluminum row shear, punching, bending and other different processing.
You may also like
$649.89

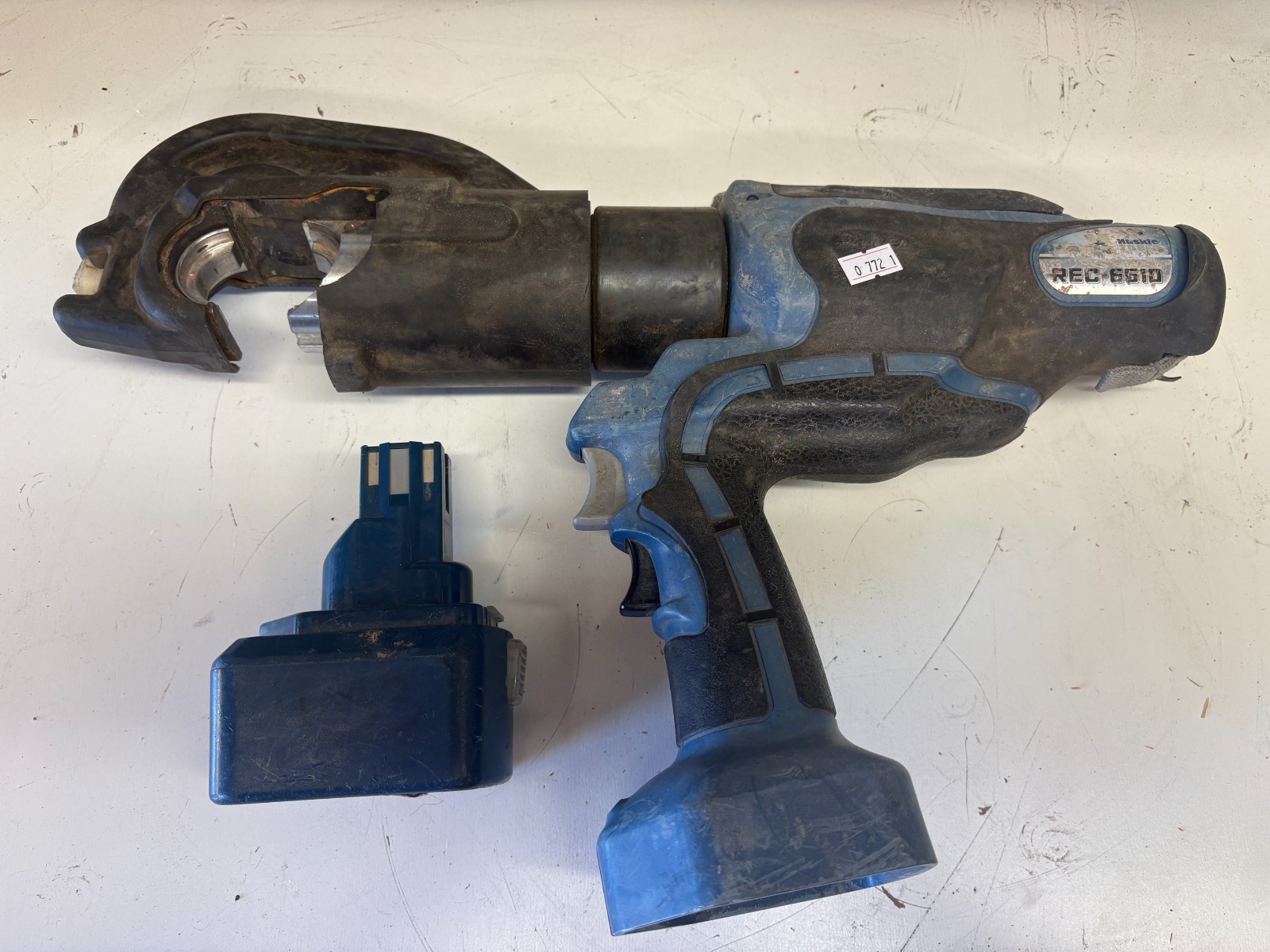

Huskie Tools Robo-Crimp 12 Ton Compression Cordless Tool REC-6510 battery BP-84
$28.48

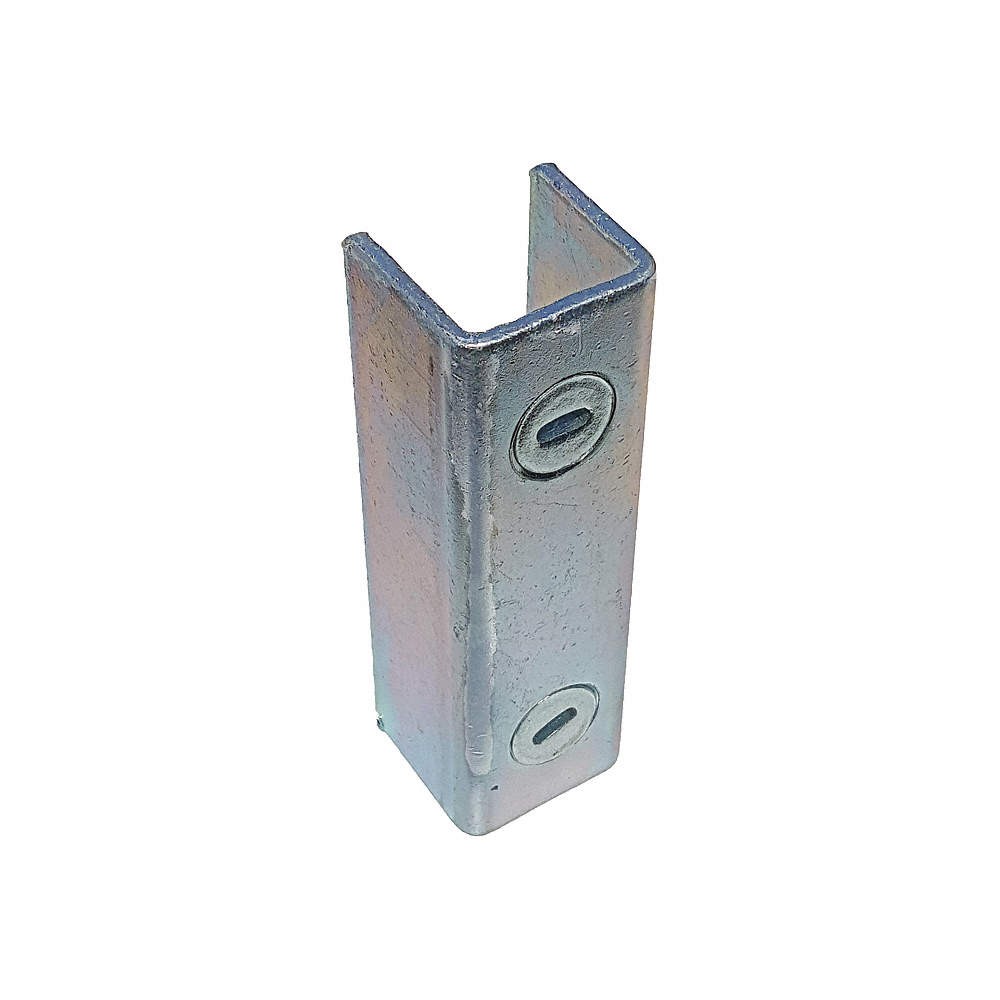

GRAINGER APPROVED V300JNREG Splice Connector, U-Shape,Steel 5YE17
$149.99
Ingersoll Rand 1401M Pneumatic Drill 950rpm 3/8" Chuck Vintage
$53.3
2mm Anti-Slip Anti-static Rubber Pad ESD Table Mat High-Temperature Resistance
$140
SIEMENS 5SX2-330-7 / 5SX23307 (NEW IN BOX)
$148.1
Cable Drum Reel Dispenser Adjustable Cable Roller Stand Load 3 Tons Capacity
$78.68

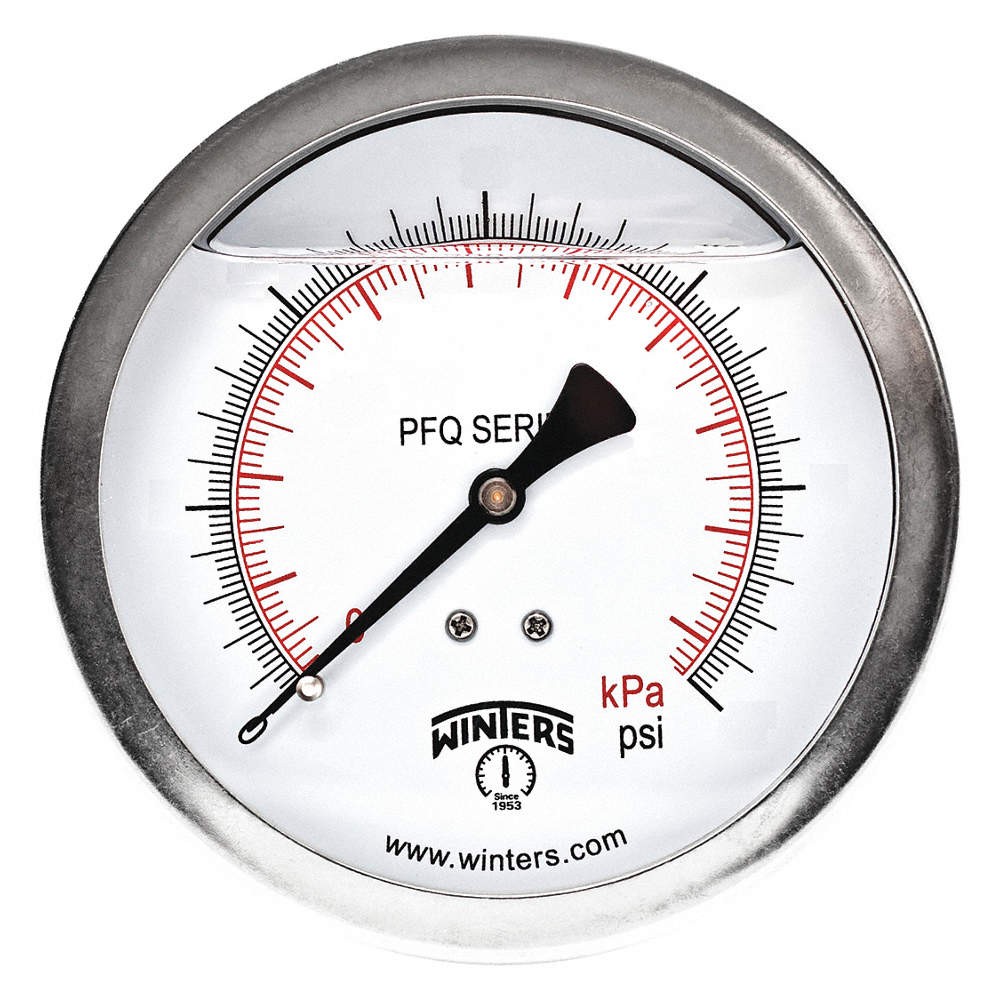

WINTERS PFQ1555 Pressure Gauge,4" Dial Size,Silver 491D88
