5 X Miniature Stepper Bipolar Motor - 5V - Driver Schematic - 2 Phase - 20 Steps

Name: 5 X Miniature Stepper Bipolar Motor - 5V - Driver Schematic - 2 Phase - 20 Steps
SKU: 271605362787
Price: 21.95 USD
Availability: InStock

$15.37

$21.95 -30%

Condition New

Item ID 271605362787

Restocking Fee	No
Return shipping will be paid by	Buyer
All returns accepted	Returns Accepted
Item must be returned within	30 Days
Refund will be given as	Money back or replacement (buyer's choice)
Type	Stepper Motor
Wiring Configuration	Hybrid 4-Wire Bipolar
MPN	Does Not Apply
Full Step Angle	18° (20 Steps)
Shaft Diameter	1.5 mm
Brand	Symbol Technologies
Nominal Rated Input Voltage	5 V
Shaft Type	Solid Shaft

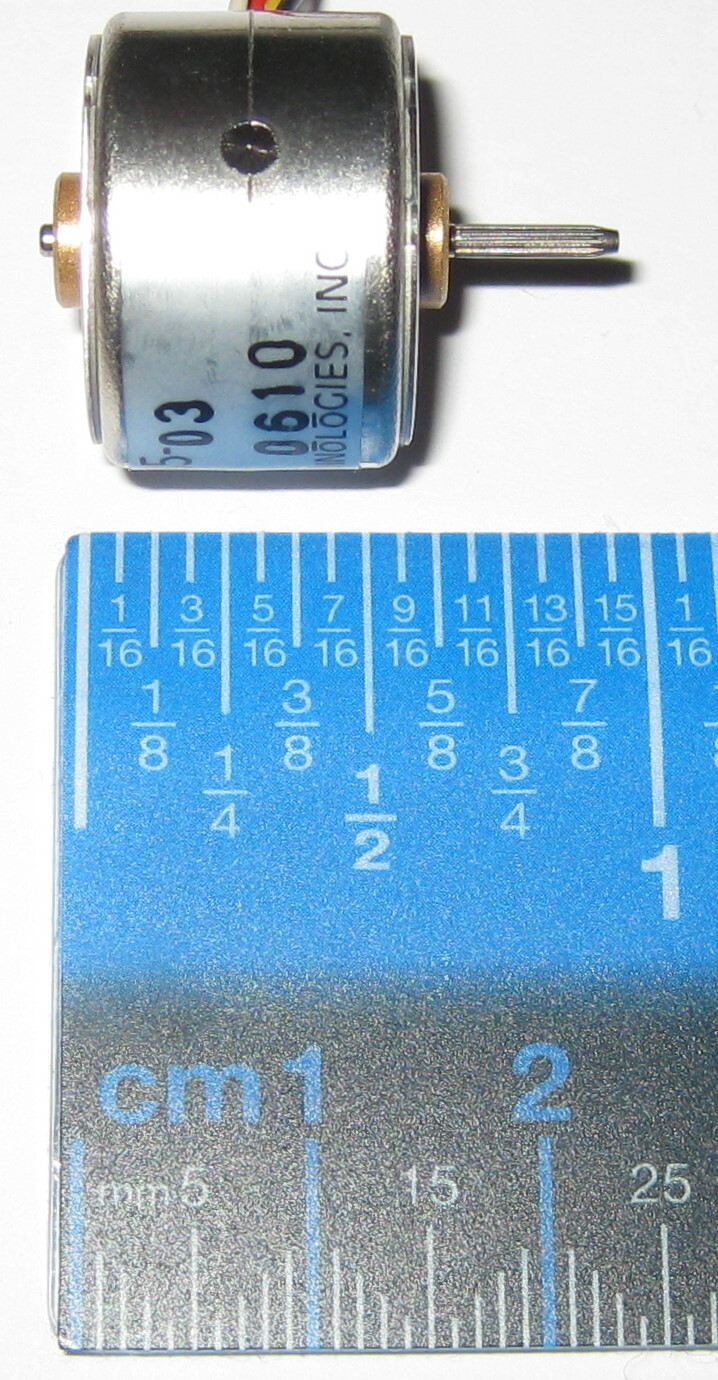

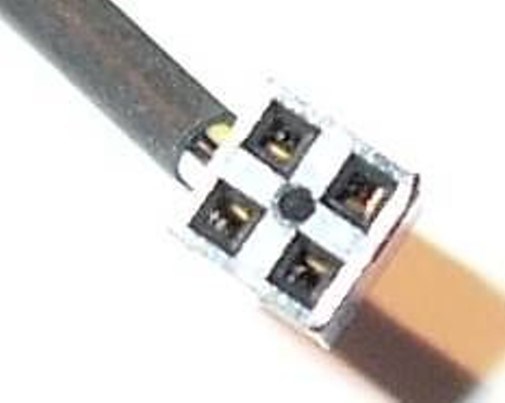

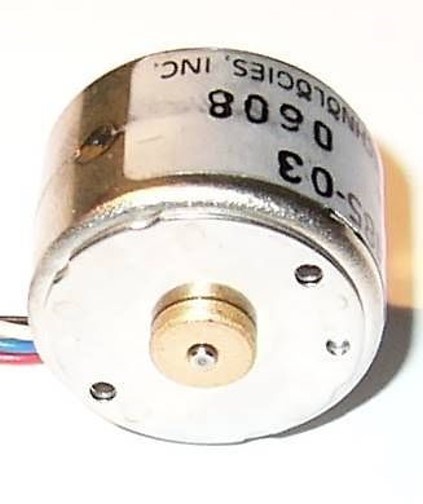

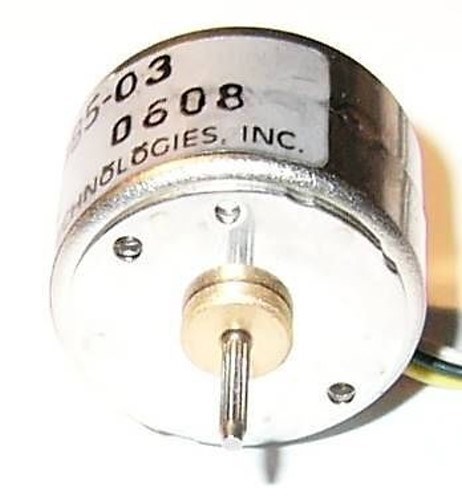

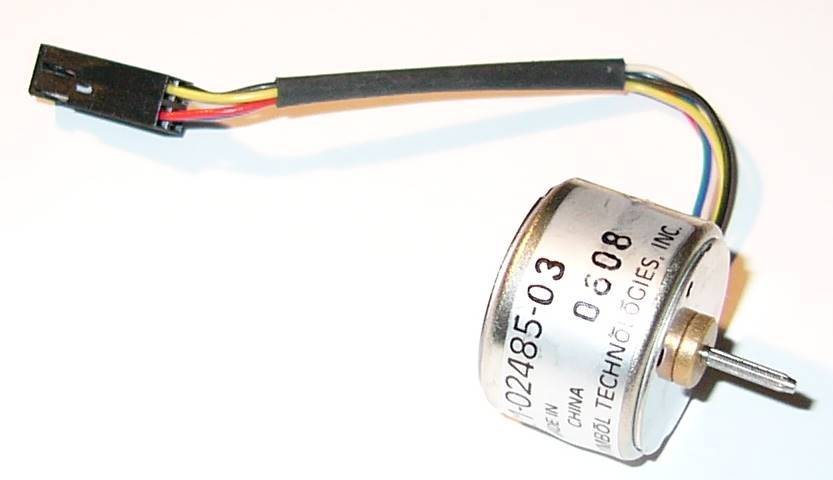

Check the listing for details. 5 X Miniature Stepper Bipolar Motor - 5V - Driver Schematic - 2 Phase - 20 Steps. Condition: New. Listed at 21.95 USD. 5 X Miniature Stepper Motors - 5V with Driver Circuit Schematic Precision miniature stepper motors Manufactured by Symbol Technologies You will receive 5 motors Operates on 5 VDC 2 phase bi-polar / quadrature motor 20 steps per revolution Motors includes a printed copy of a simple driver circuit schematic that uses 1 - 74HC86, 1 - 74HC365 and 1 - 4013 integrated circuitKnurled shaft dimensions: .3" L x .06" Diameter Motor dimensions (not including shaft): .8" Dia. x .68" H 5 lead connection (2 leads connected together) terminated with a 4 pin female plug 2 3/4" long leads
