| Brand | uxcell |
|---|---|
| Net Weight | 0.009 |
| California Prop 65 Warning | Cancer and Reproductive Harm - www.P65Warnings.ca.gov - |
| Country of Origin | China |
| UPC | 676766844112 |

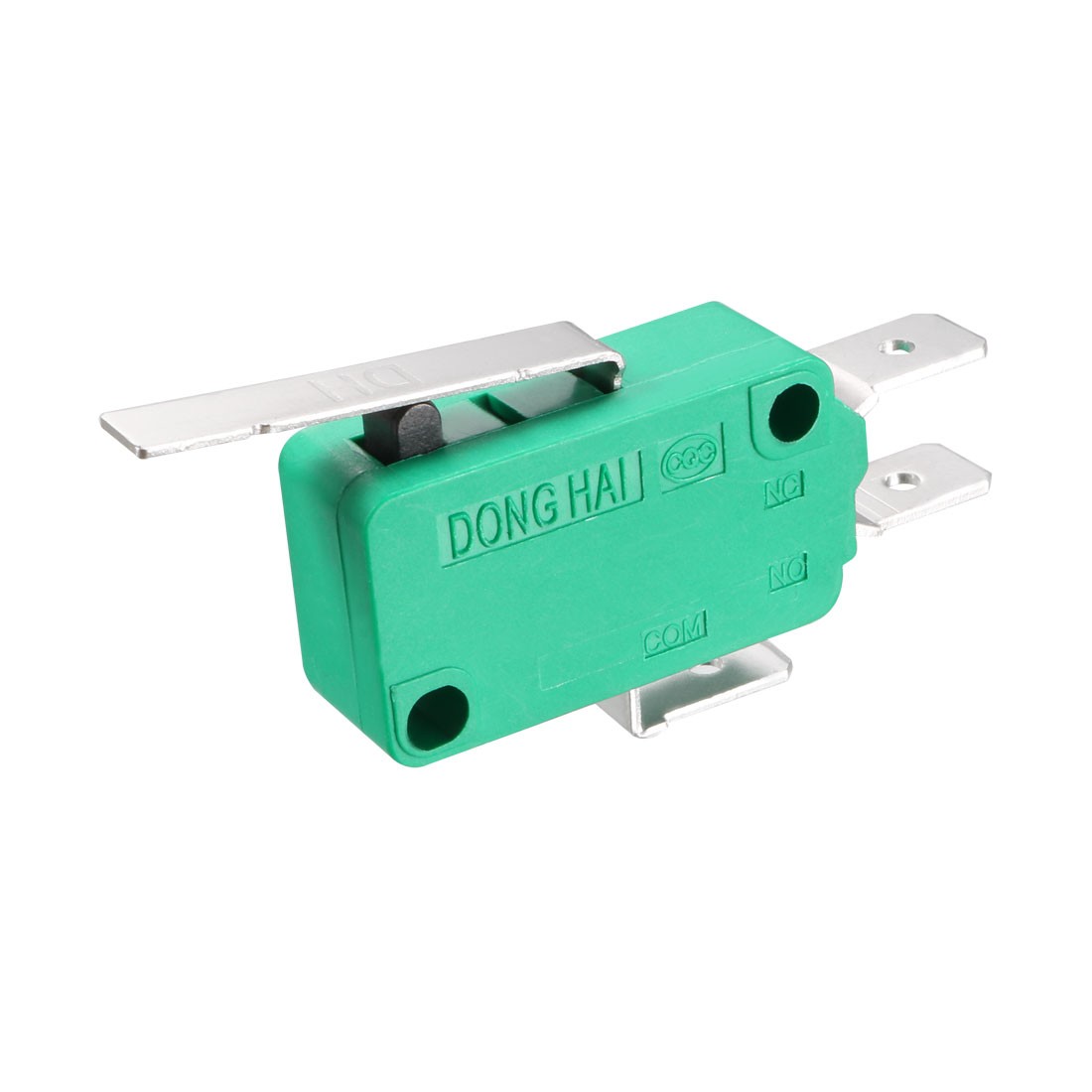

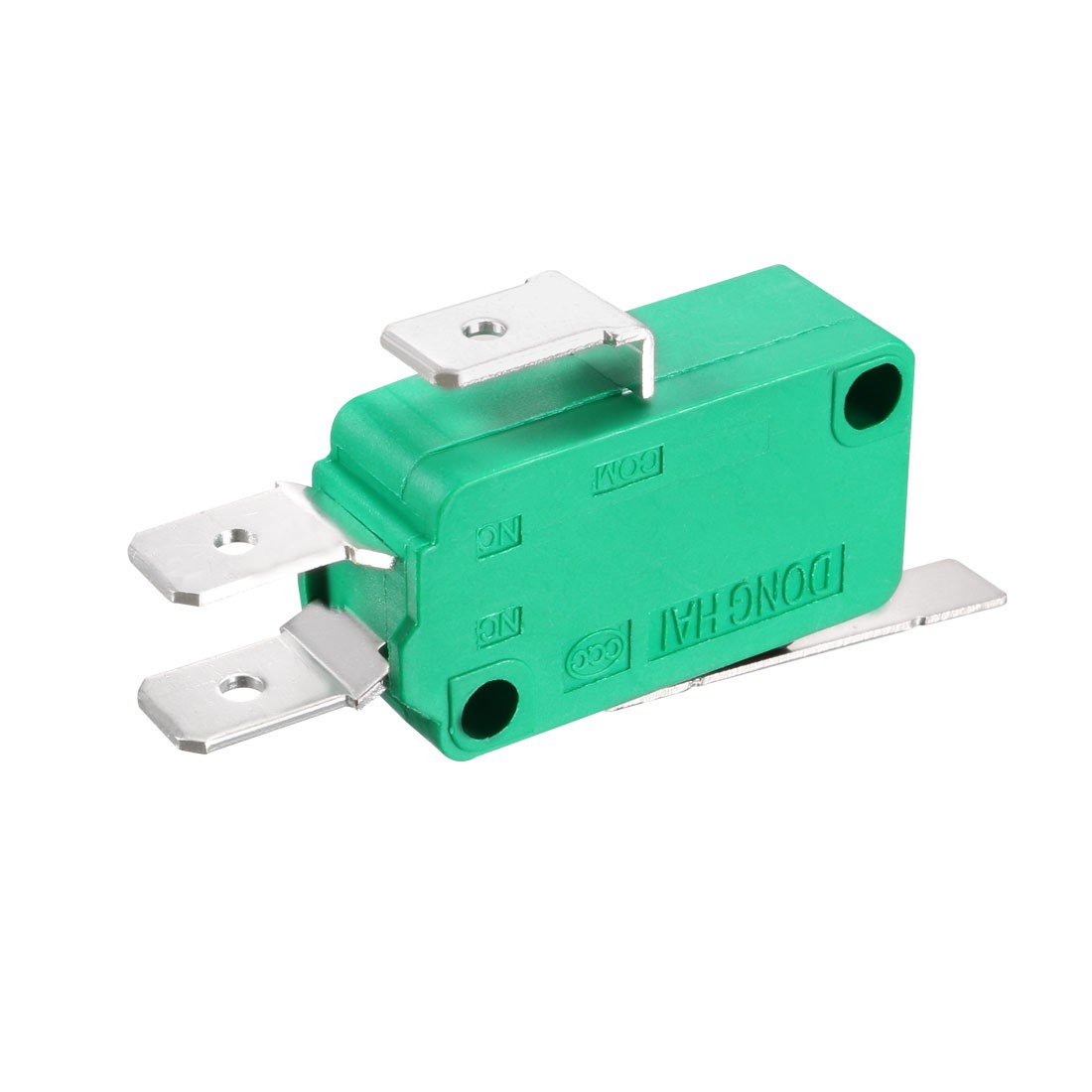

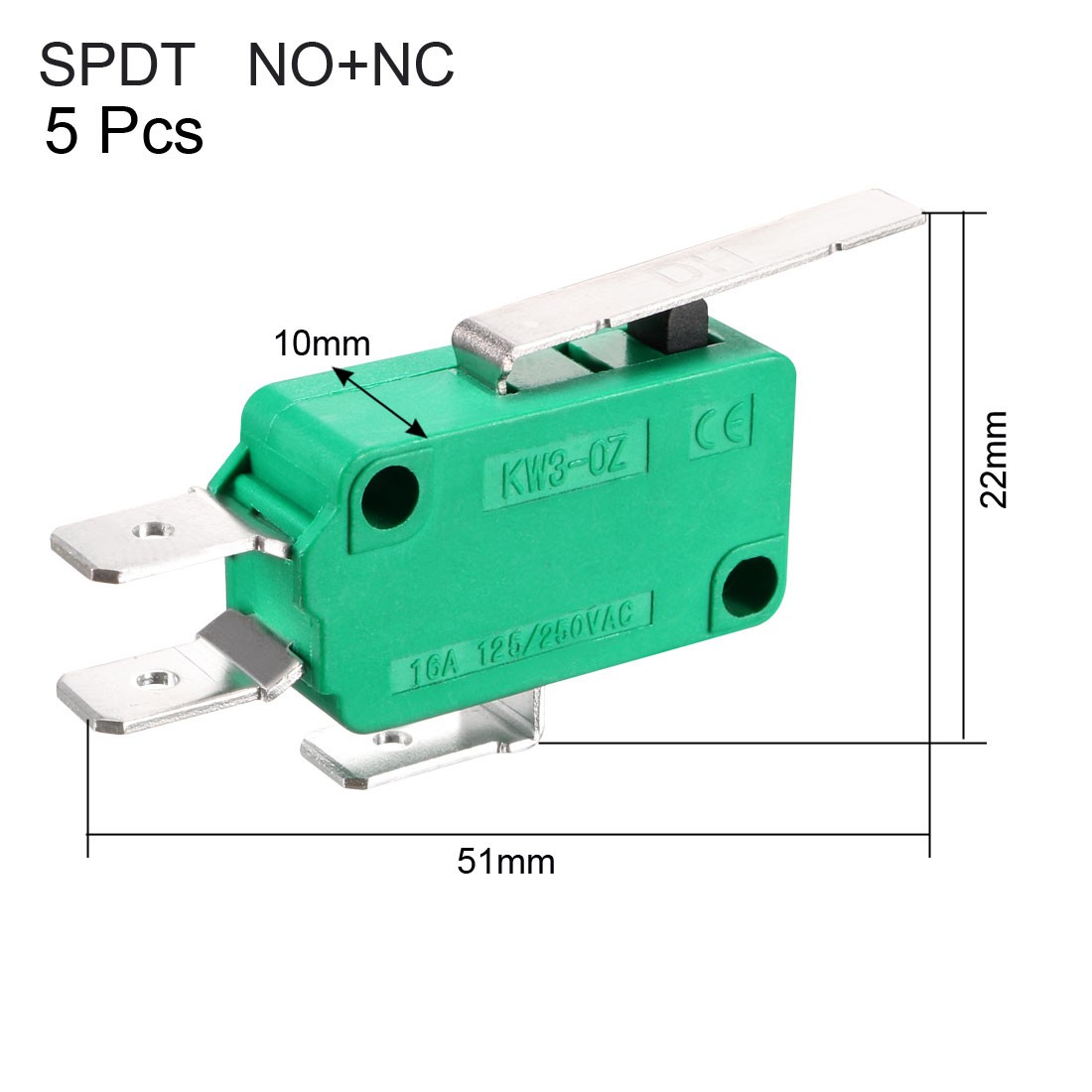

Check the listing for details. 5Pack KW3-OZ 16A 125/250VAC SPDT NO NC Hinge Lever Type Micro Limit Switch. Condition: New, Made in China. Listed at 16.17 USD. FeaturesAdopt plastic or thermoplastic;Offers long service and operations life.Small contact gap, snap , high sensitivity and small travel used in appliance, equipment, automatic machine, communication equipment, electric, and instrument, electro motion tool etc... SpecificationRating Load: 16A 125/250VACOperation speed: 0.1mm-1m/sContact resistance: 15m Ohm max. (initial)Insulation resistance: 100m Ohm min. (at DC500V)Dielectric strength: 1,000 VAC 50/60 Hz for 1minuteLife: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)Operating temperature: -25~+80°CContact Form: SPDT NO+NCPin number: 3Overall size: 51x22x10mm/2.01x0.87x0.39inch(L*W*H)Total weight: 40g Package Content5 x .
