| Brand | TBvechi |
|---|---|
| Features | Excellent Quality,Beautiful Appearance |
| Type | PV Combiner Box |
| Color | White |
| Voltage | 600V-1000V |
| Material | ABS, PC |
| Product Size | 27*15*39cm/10.6*5.9*15.35inch |
| Gross Weight | 3.5kg/7.7 lbs |
| Application | industrial |
| Net weight | 3.2kg/7.05 lbs |
| Current Rating | 63A |
| Mounting Type | Wall Mount |
| Operating temperature | -30~70℃/-22~158℉ |
| Relative humidity | 0-95%, No Condensation |
| Circuit Breaker Type | Standard |
| Input | 6 Strings |
| Output | 1 String |
| Number Of Poles | 6 |
| Number Of Max. Connection PV Array | 6 |
| Max. Input Current of Single PV Array | 15A |
| Total Input Current of PV Array | 90A |
| Max Input Voltage of Single PV Array | 1000V |
| Max Output Voltage | 550V |
| Protection Grade | IP65 |
| Cooling Method | Natural Cooling |
| Number of Surge Protection Devices | 1 |
| Surge Protection Device | 40KA, 600V |
| Number of Circuit Breakers | 1 |
| Circuit Breaker | 63A, 550V |
| Style | Modern |
| Package Size | 35*25*15cm/13.78*9.84*5.9inch |
| Current Output | 600V |
| Resistance Properties | Dustproof |

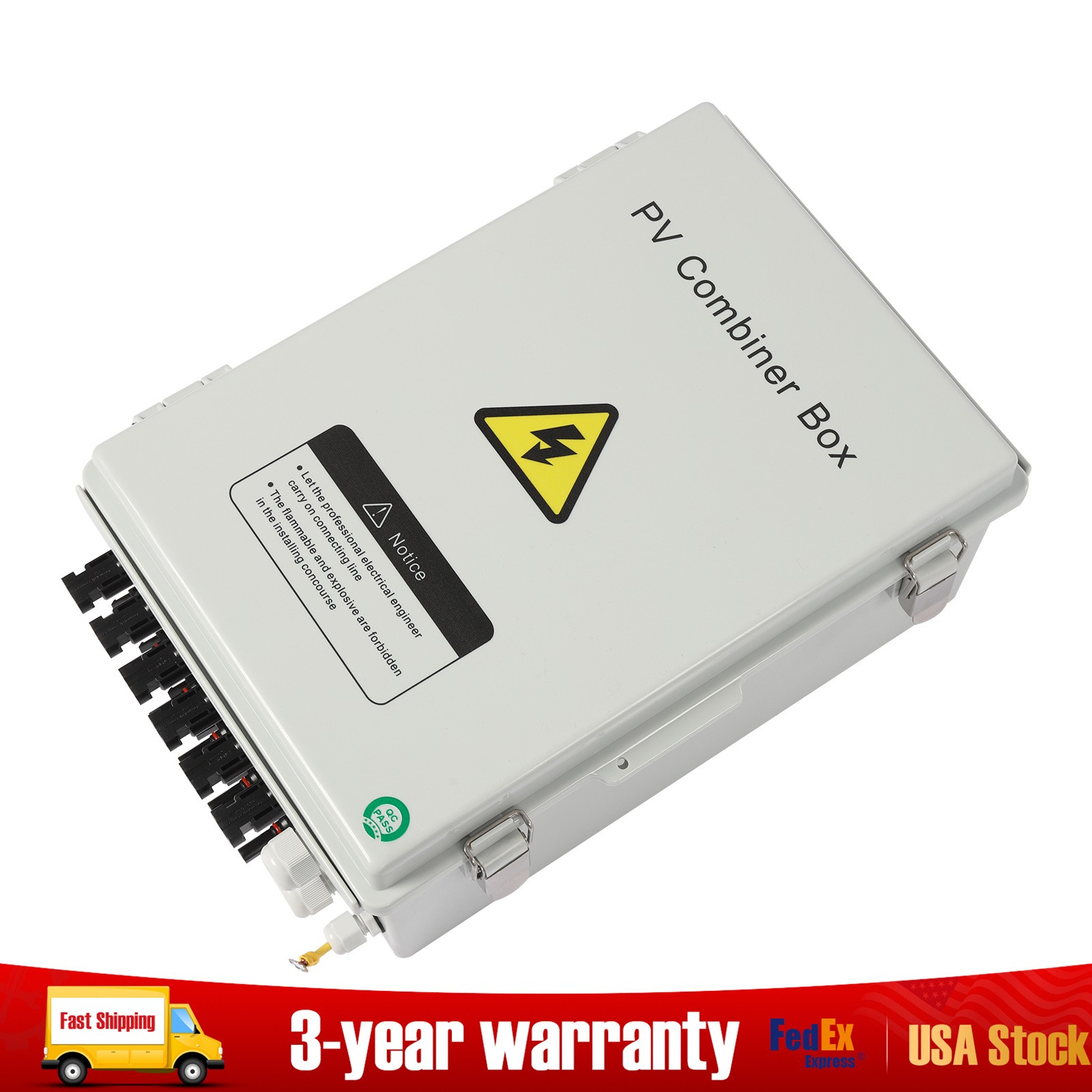

Check the listing for details. 6 String Solar PV Combiner Box 15A Circuit Breaker for Solar Panel Plastic. Color: White, Condition: New. Listed at 102.26 USD. Application The PV combiner box is suitable for photovoltaic on-grid/off-grid solar power generation systems, solar panel systems, PV arrays, RV solar power, and home solar panel systems and is mainly used with solar panels in office buildings, industrial factories, residential buildings, carports, etc. It can support solar panel systems up to 720W in a 12V system, 1440W in a 24V system, and 2880W in a 48V system. Package Included 1* PV Combiner Box 1* Combination Lock 4* Mounting Plates Other Accessories for Assembly.
You may also like
$16.95

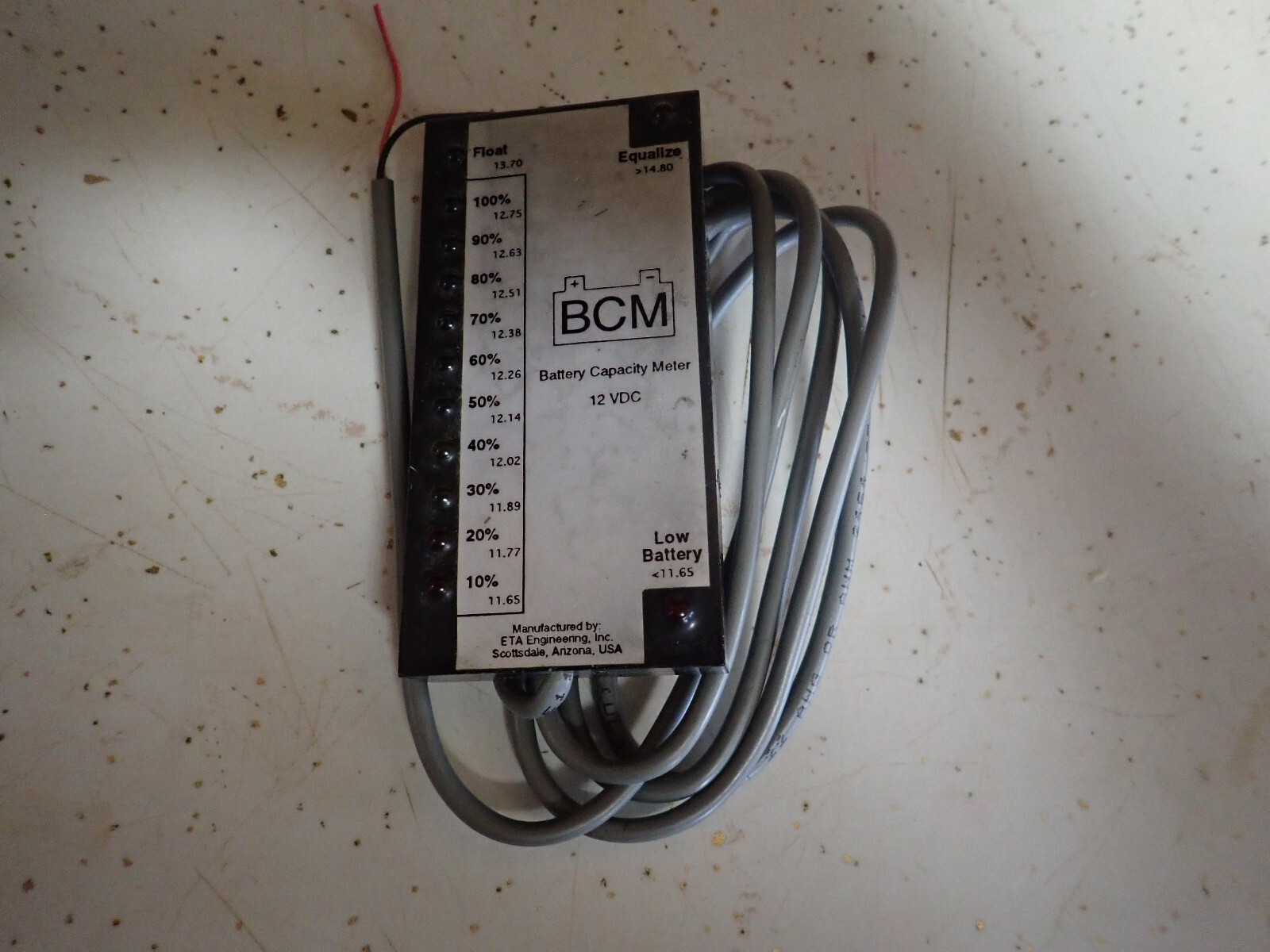

Battery Capacity Voltage Meter Monitor BCM-12 Waterproof 12v Trolling Motor
$29.95
Ironridge Solar Grounding Lug. Lot Of 6. RS-GDLG-002. New
$41.68

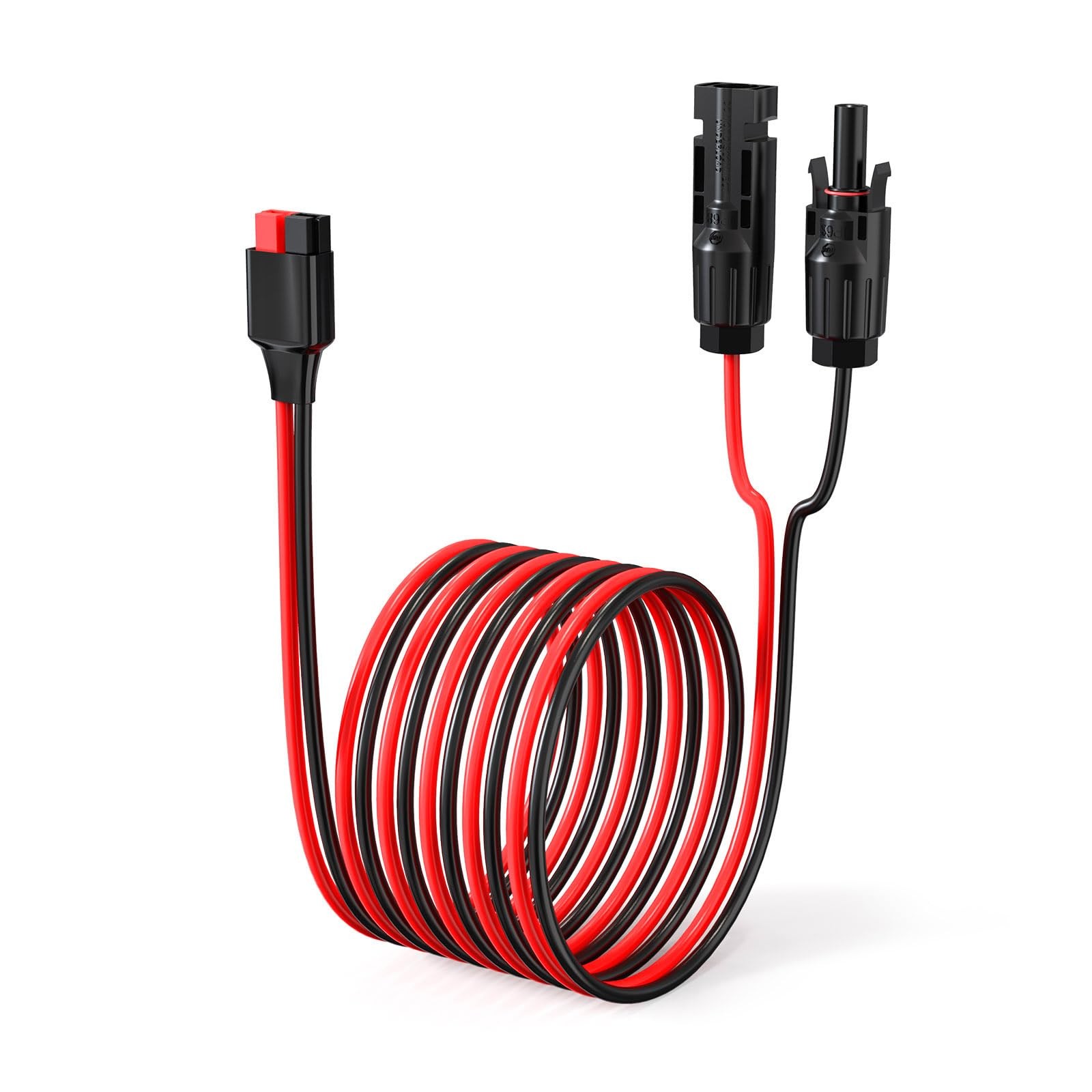

Elfculb 10Awg 10Ft Solar Panel Cable To Anderson Connector 2 6 10 20 35 50Ft
$32.22

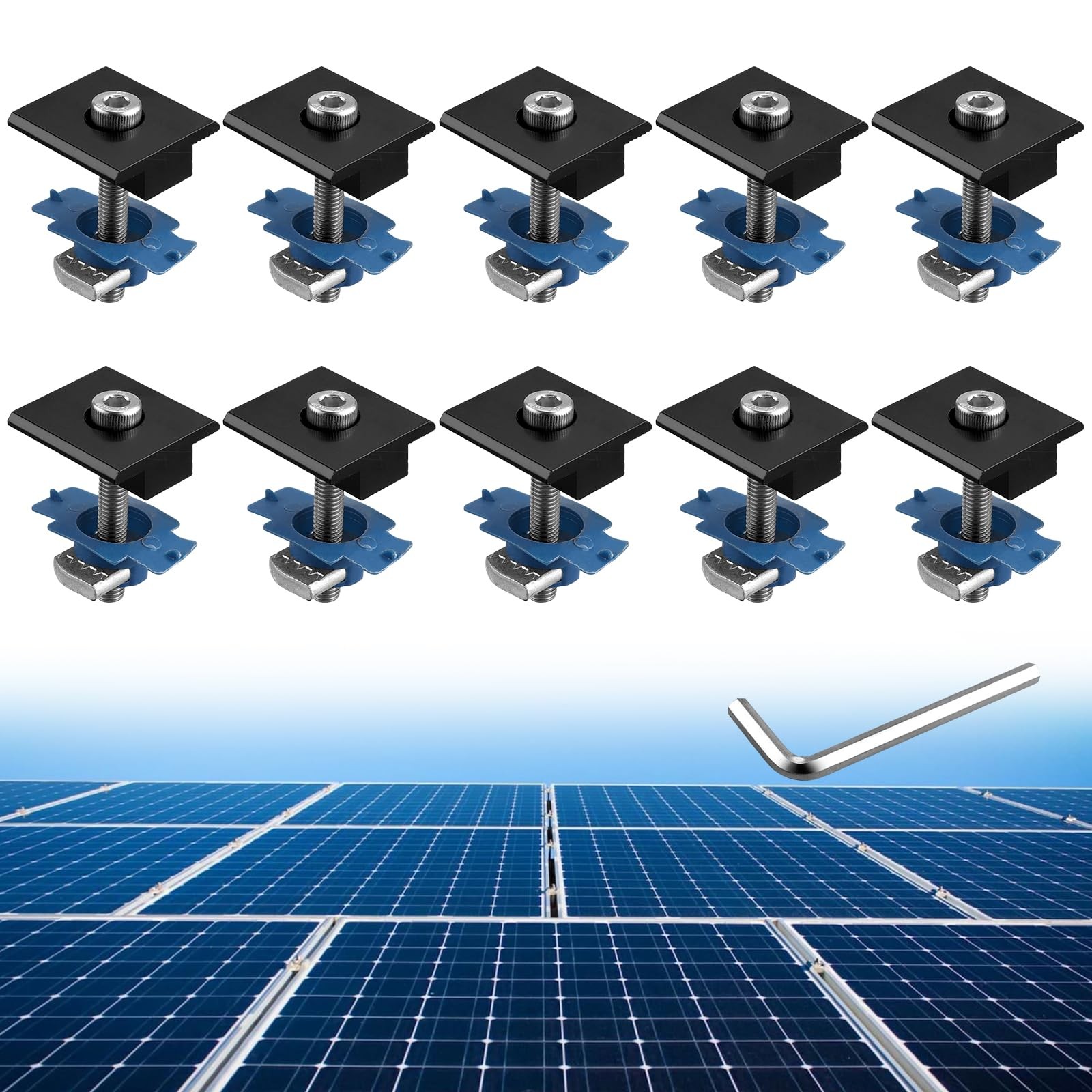

Anbte 10Pcs Solar Panels Mid Clamps For Unistrut Aluminium Solar Panel Brackets
$88.15

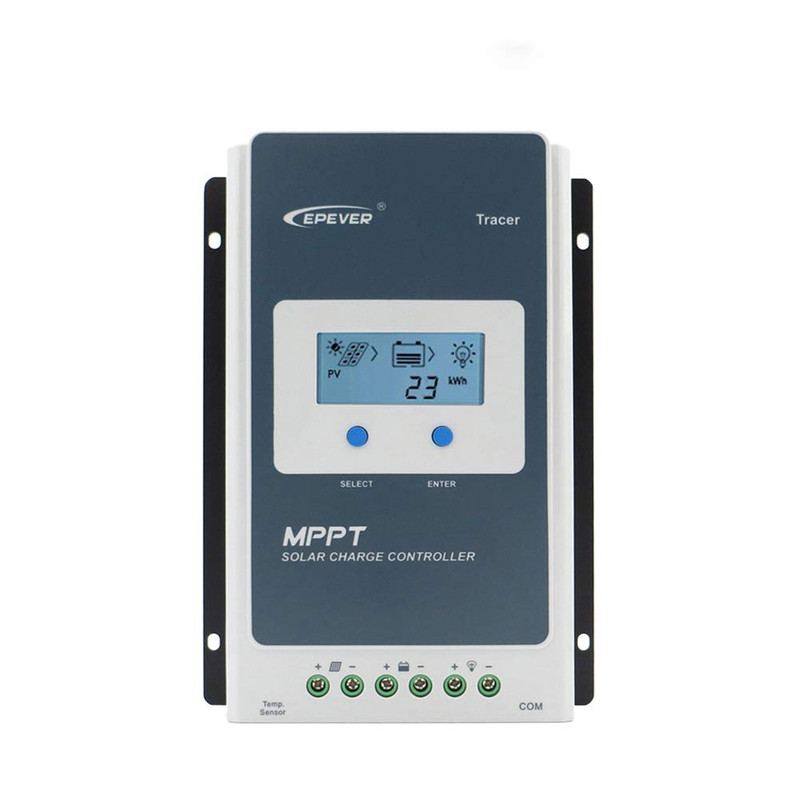

Epever 10A Mppt Solar Charge Controller 12/24V Dc Automatically Identifying
$141.52
SunPower Solar Monitoring System
$85.79

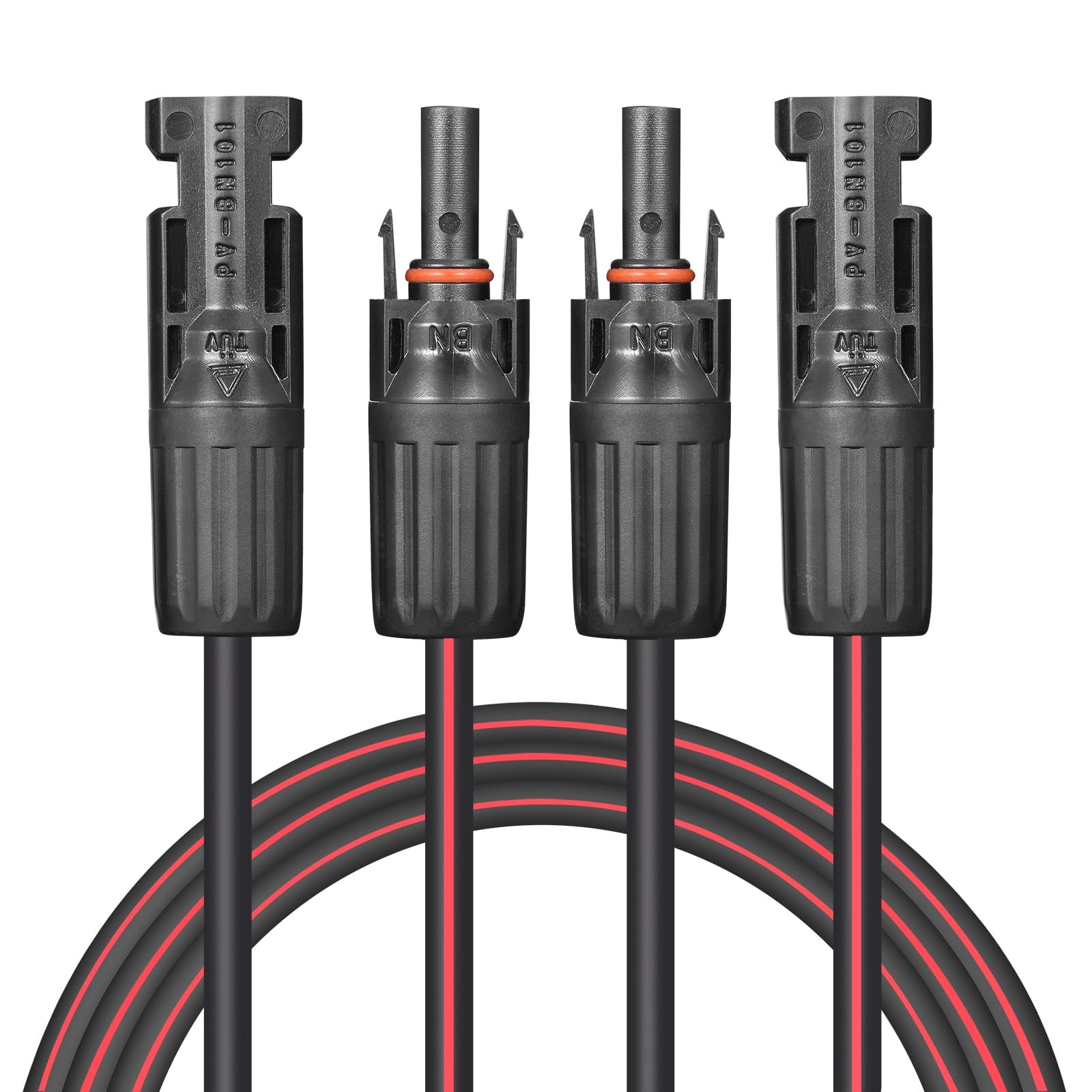

Valemo Solar Cable 30 Feet 2X10 Awg Twin Solar Extension Cable Copper Strand
$251.98

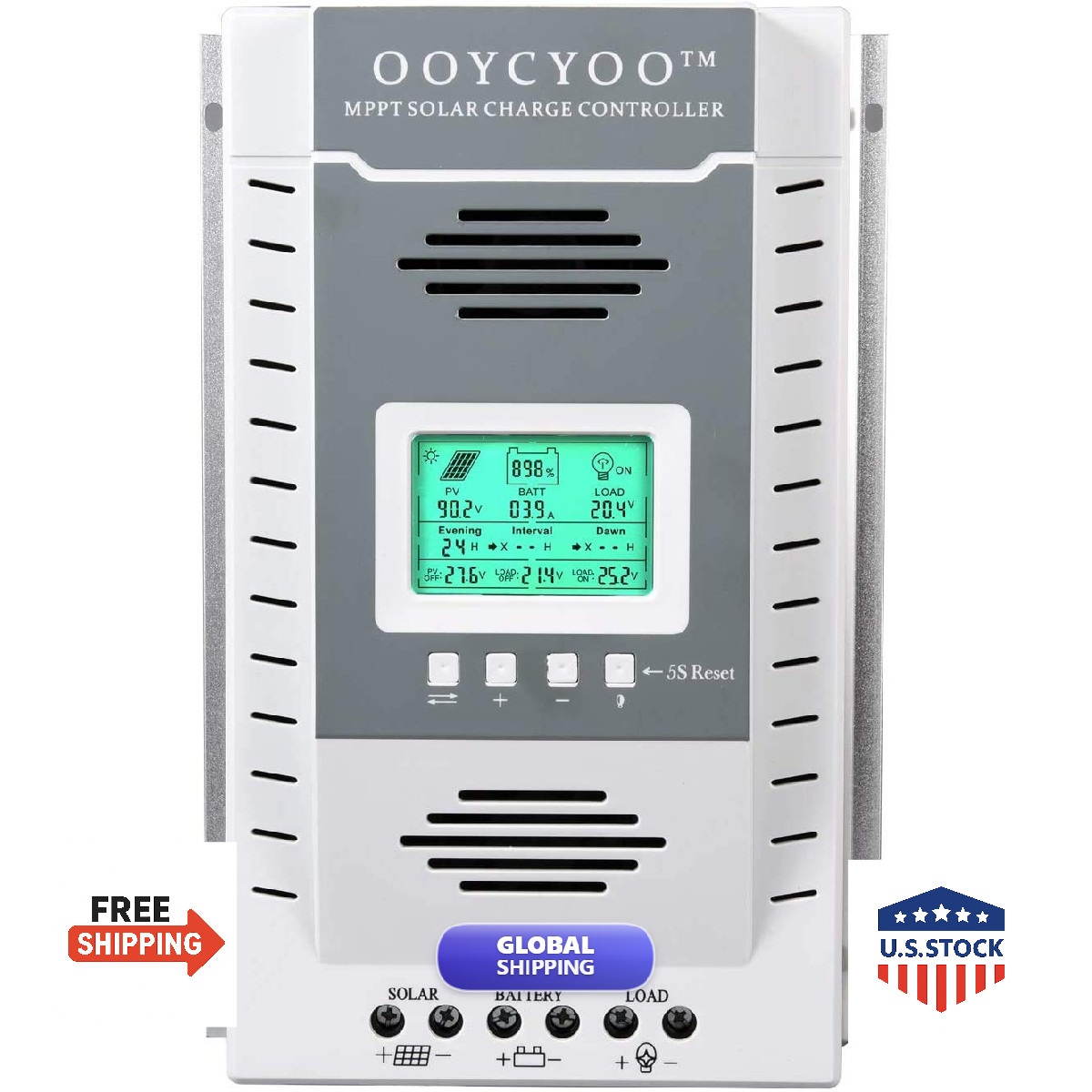

Ooycyoo Mppt Charge Controller 80 Amp 12V/24V Auto 80A Solar Panel Charge
$11

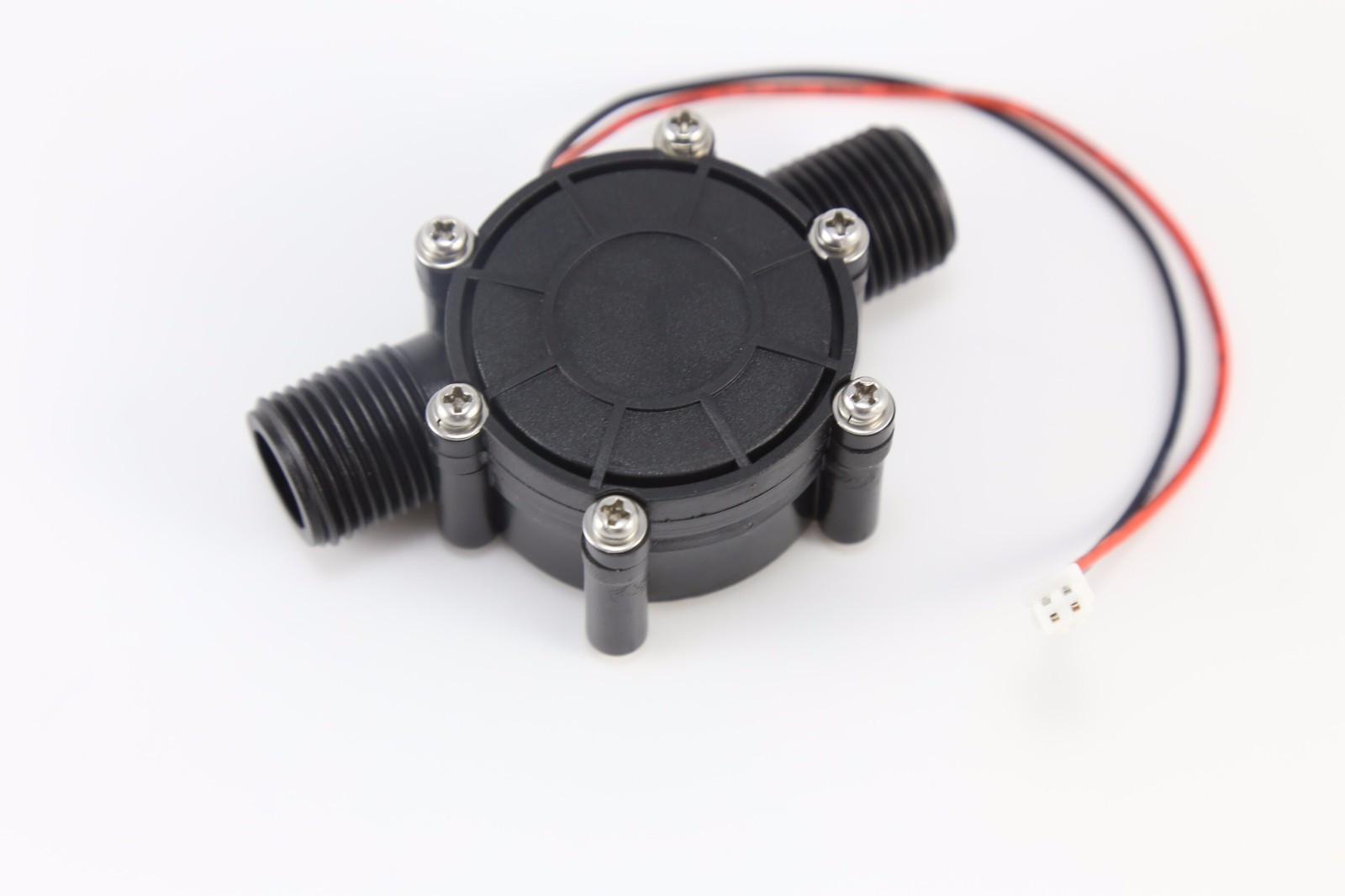

12V high power miniature hydraulic water flow generator pipeline type hydraulic
