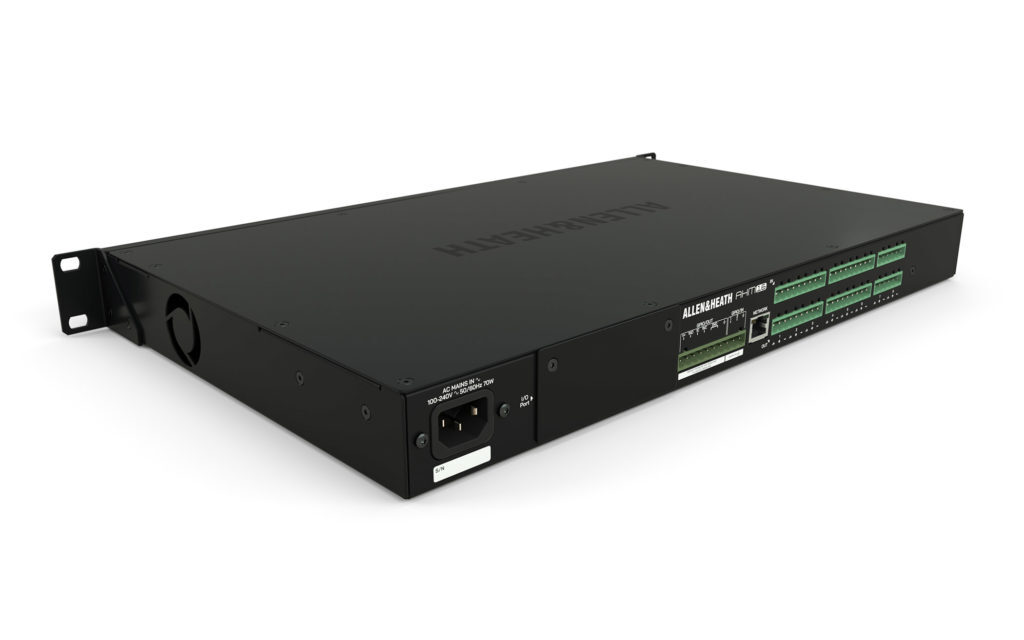

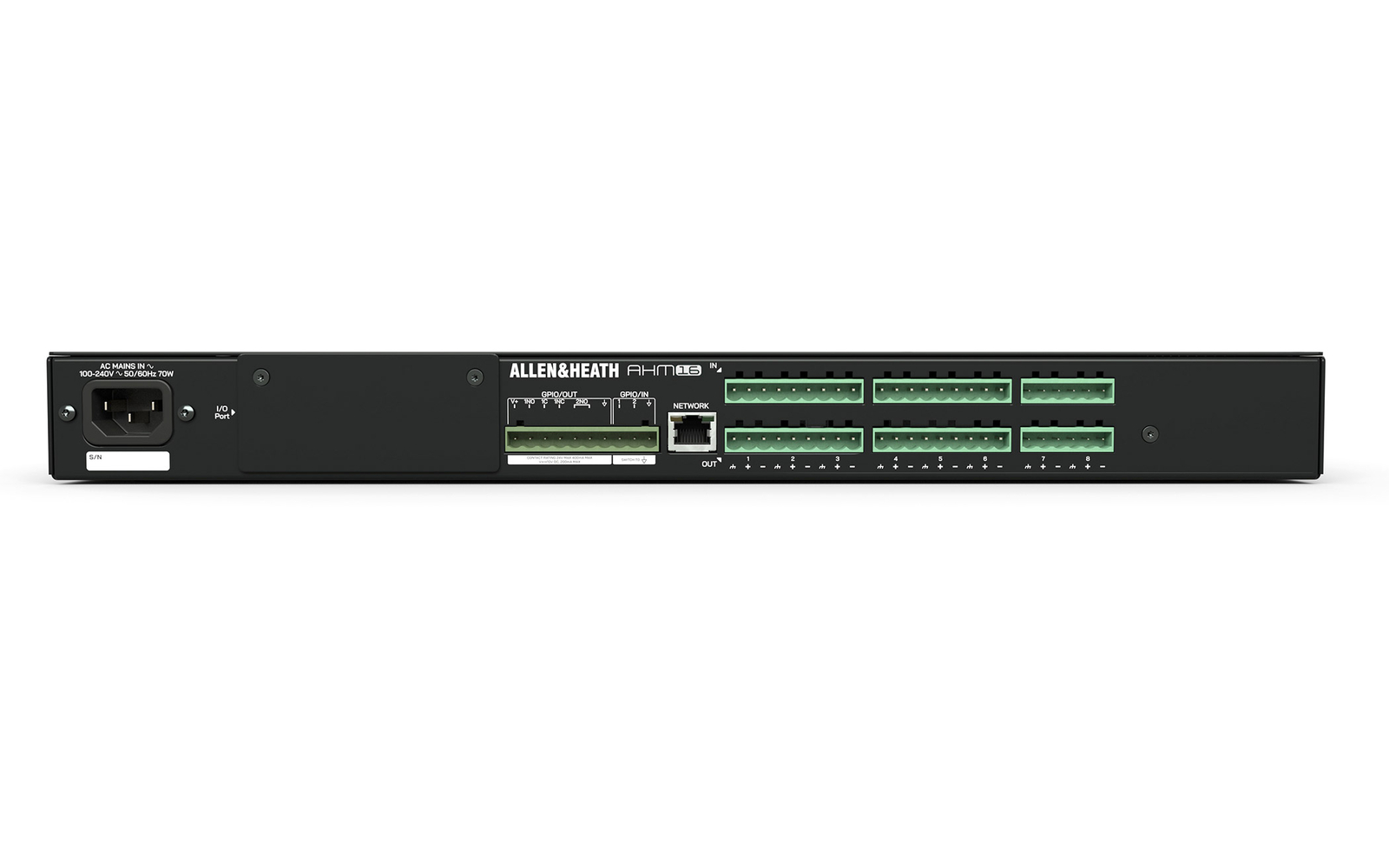

Check the listing for details. Allen & Heath AHM-16 16x16 Audio Matrix. Condition: New. Listed at 1199.00 USD. The Allen & Heath AHM-16 is a 16x16 matrix processor designed for single-room applications. With 4 user profiles and an automatic mic mixer, this processor is designed to be user-friendly for various levels of experience. The option card slot allows for external management of systems and expanded feature capabilities.Allen & Heath AHM-16 Applications: Bars/Clubs Restaurants Shops School HallsAllen & Heath AHM-16 Features:16x16 processing matrixSound management + installation applications8x8 local analog I/OScreen + 4 SoftKeysI/O Port for audio networking, up to 128x128Dante 96kHz option card available separatelySLink 128x128 option card available separately16 configurable processing outputsAutomatic Mic Mixer4 user profilesAllen & Heath AHM-16 Specifications:Technical:Inputs:Mic/Line Inputs: Balanced, +48V phantom powerMic/Line Preamp: Fully recallableInput Sensitivity: -60 to +15dBuAnalog Gain: +5 to +60dB, 1dB stepsPad: -20dB Active PADMaximum Input Level: +30dBu (PAD in)Input Impedance: >3kΩ (Pad out), >8kΩ (Pad in)Mic EIN: -127dB with 150 sourceSystem:Measured balanced XLR in to XLR out, 20-20kHz, +5dB Gain, Pad out, signal @ 0dB (meter)Dynamic Range: 108dBSystem Signal to Noise: -92dBFrequency Response: 20Hz - 20kHz +0/-0.5dBTHD+N (analog in to out): 0.005% @ +16dBu output, 1kHz +5dB gainHeadroom: +18dBSampling Rate: 96kHz +/- 20 PPMAcoustic Noise: Typical loading, 22 deg C ambientOutputs:Analog Outputs: Balanced, Relay protectedOutput Impedance:Nominal Output: +4dBu = 0dB meter readingMaximum Output Level: +21dBuResidual Output Noise: -92dBu (muted, 22-22kHz)Dimensions and Weights:Unboxed:Boxed:Operating Temperature Range: 32 to 104 deg FMains Power: 100-240V AC, 50-60Hz, 65W maxFull Processing Specs under Documents Tab
