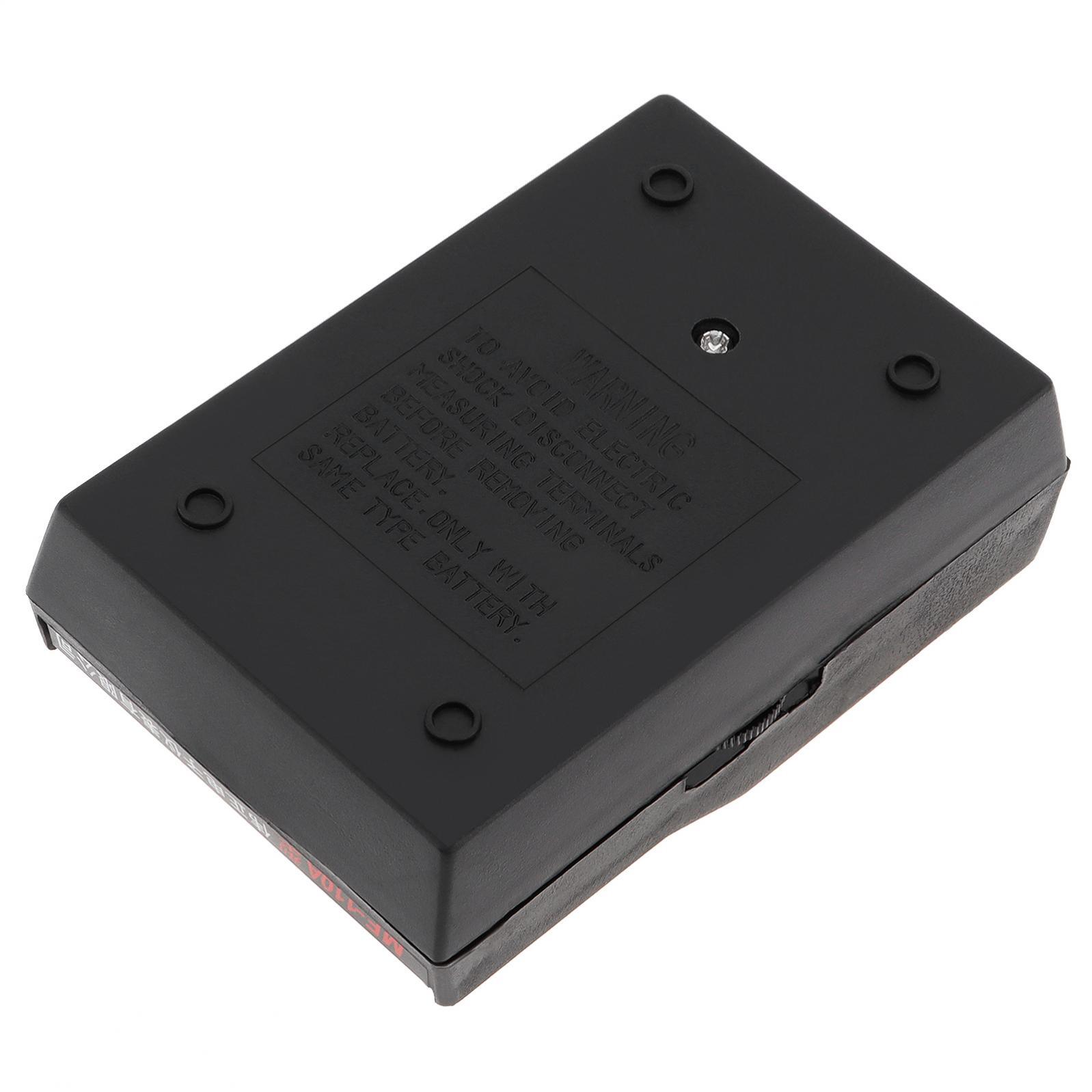

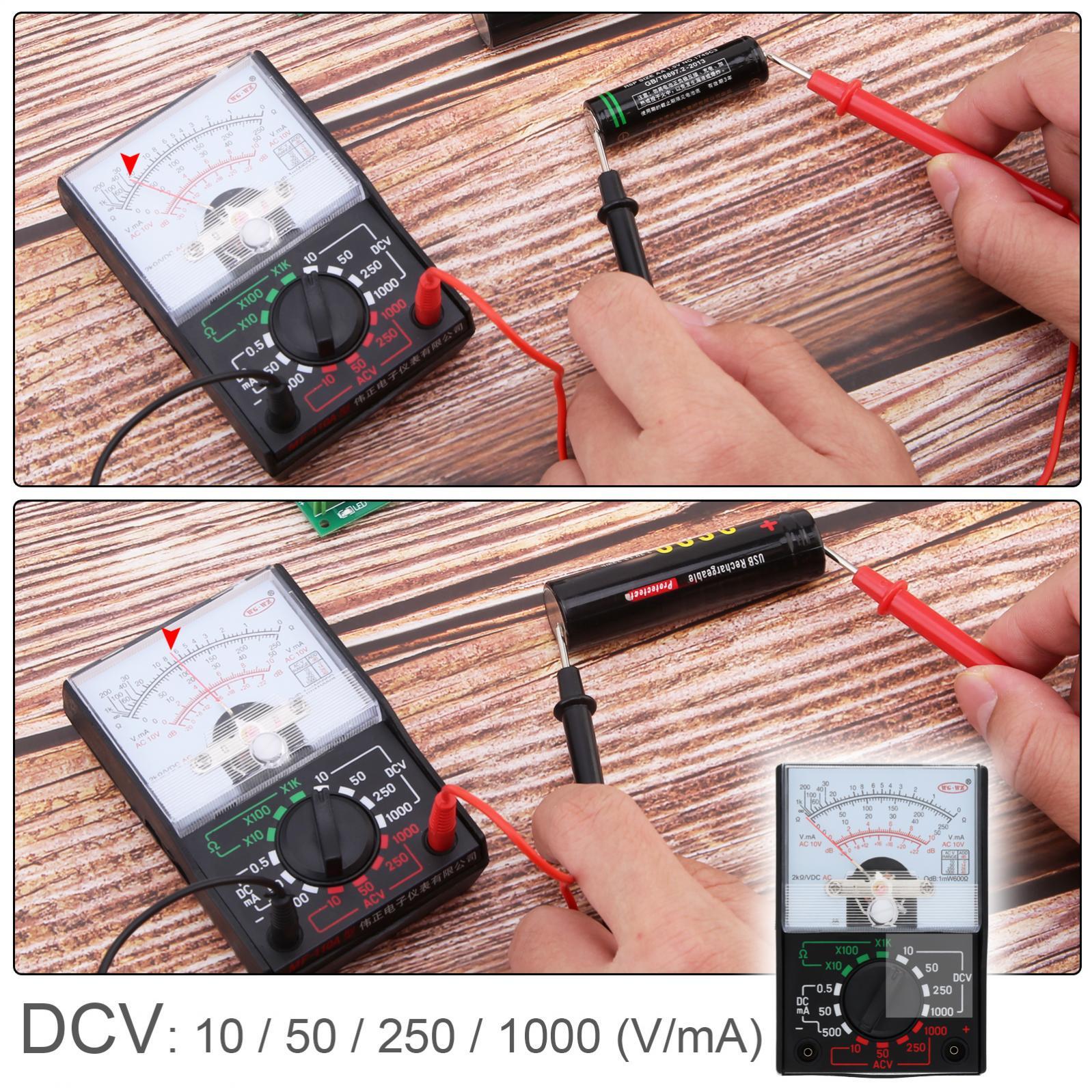

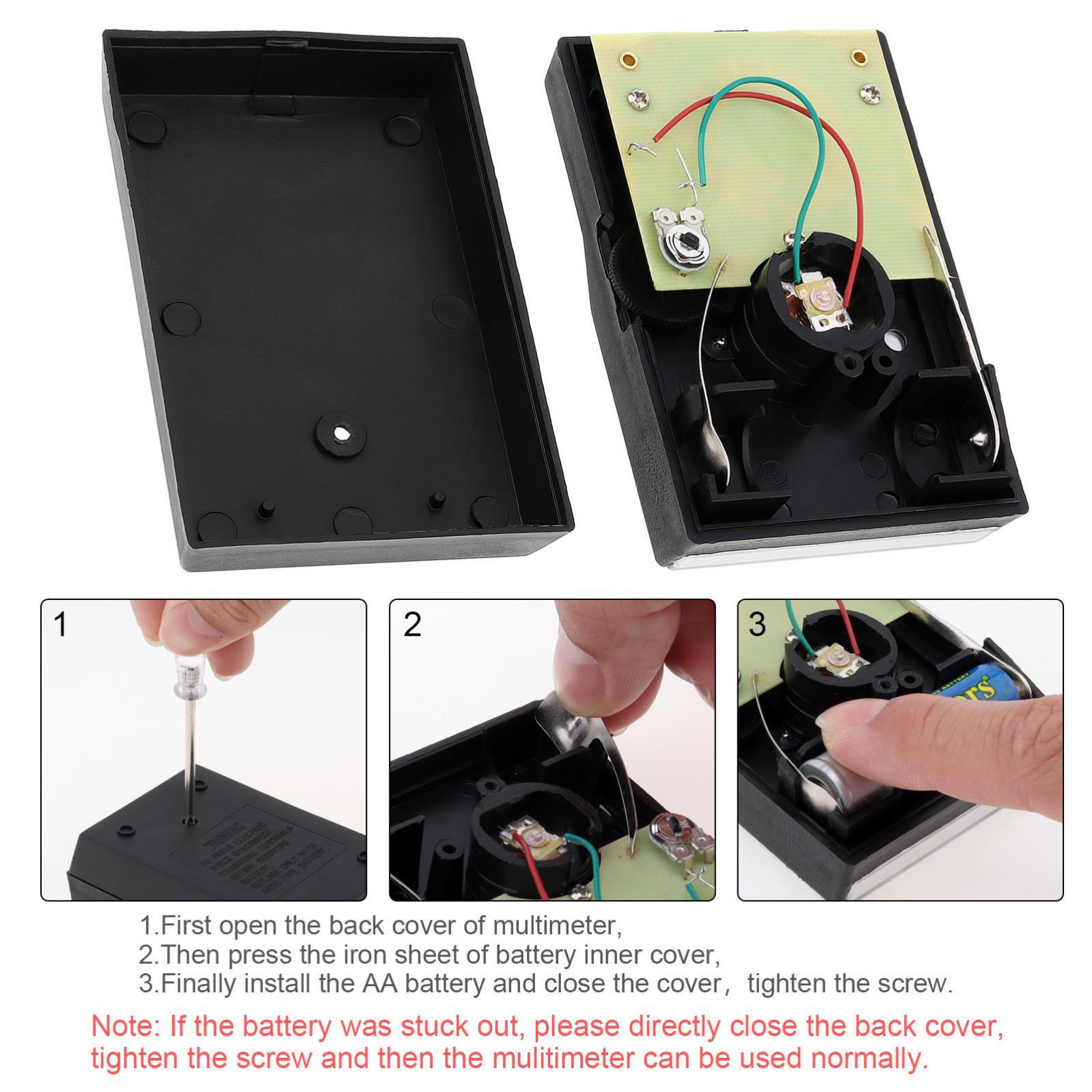

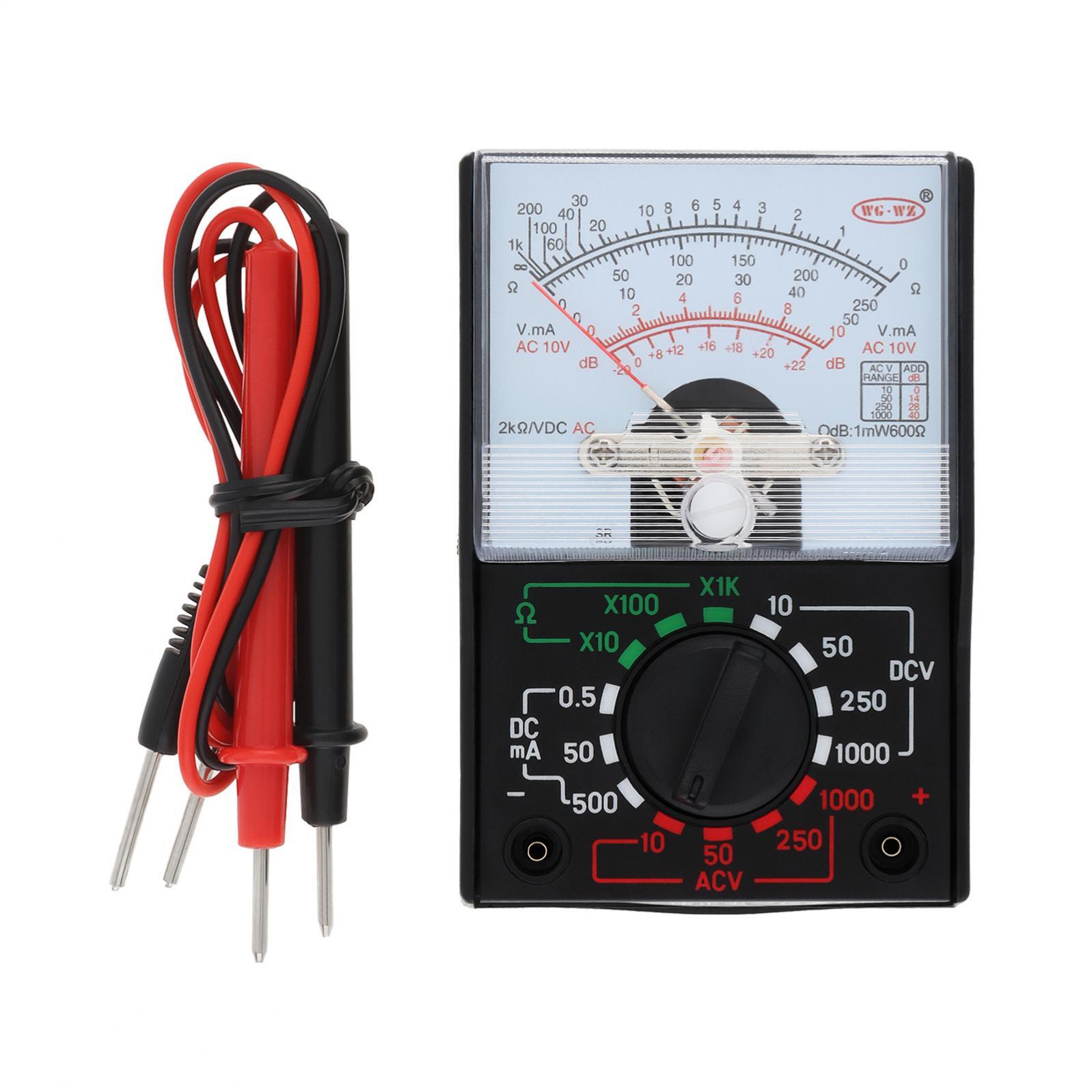

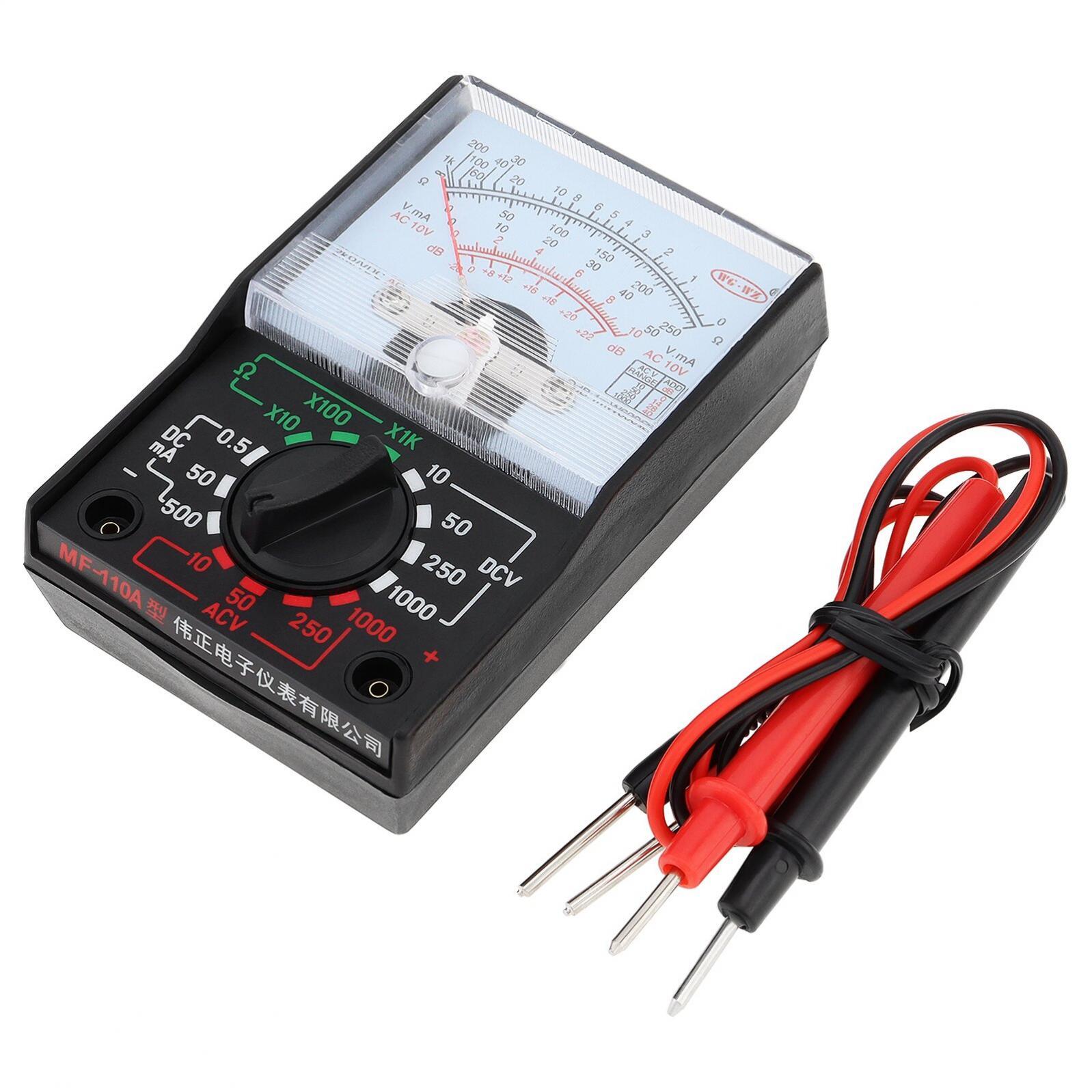

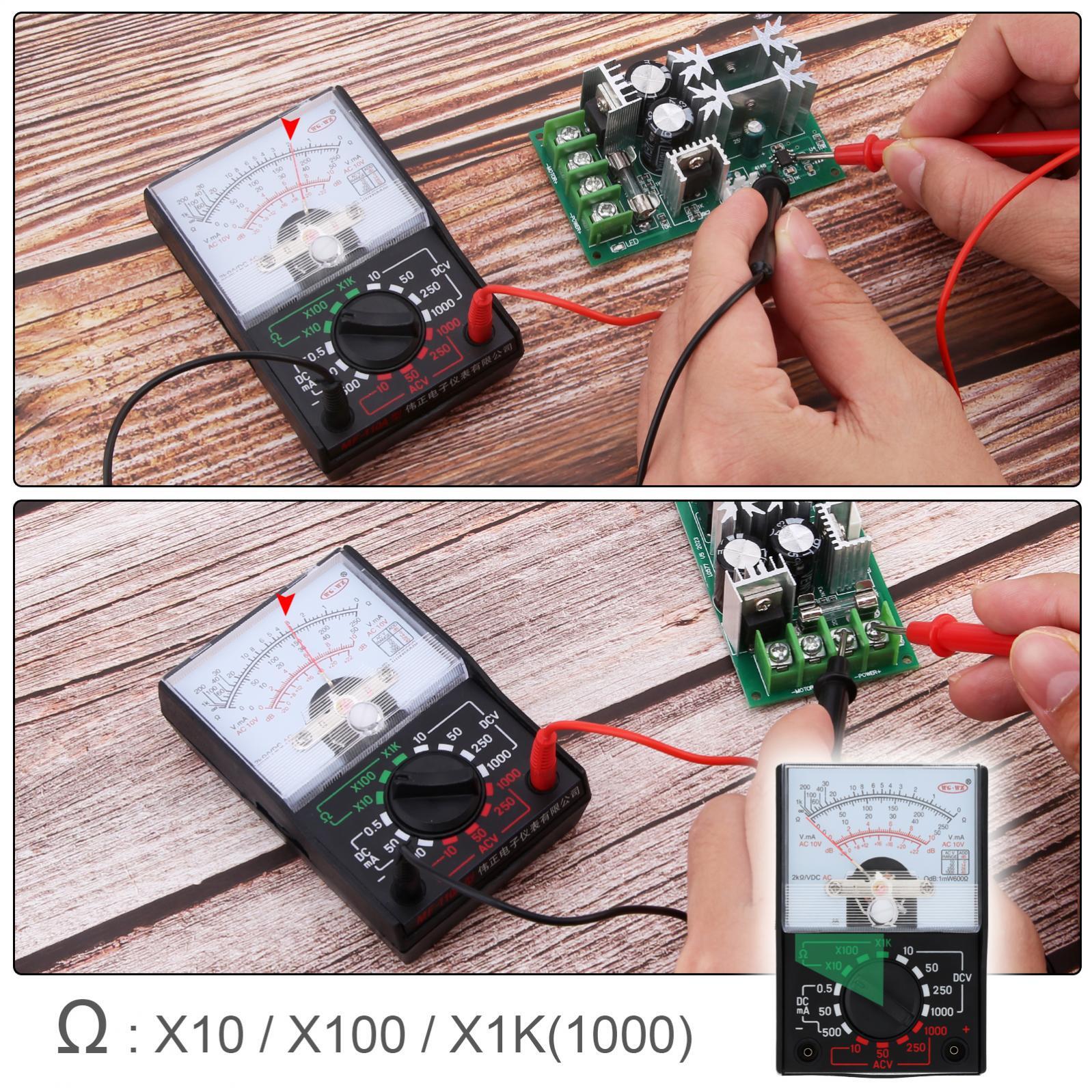

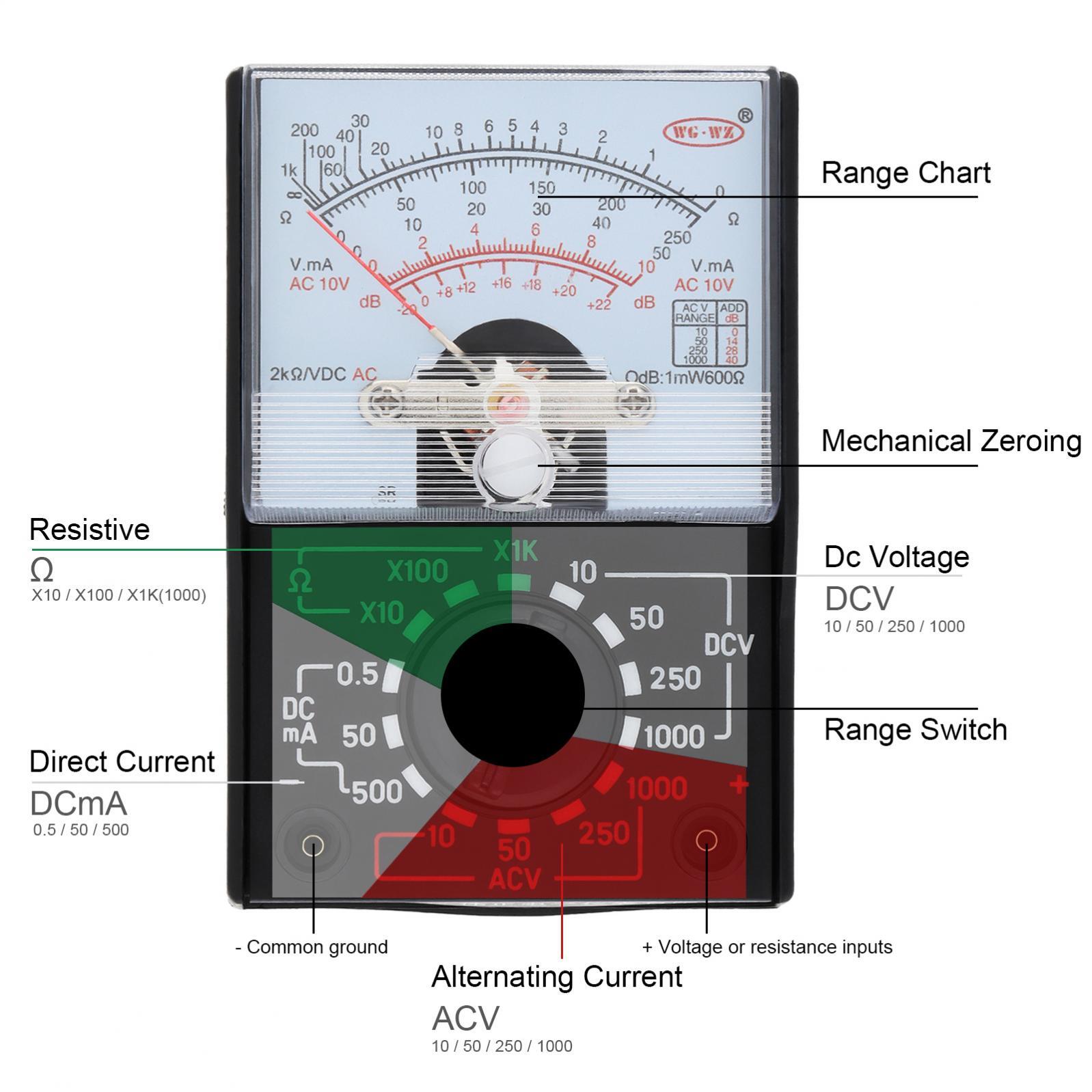

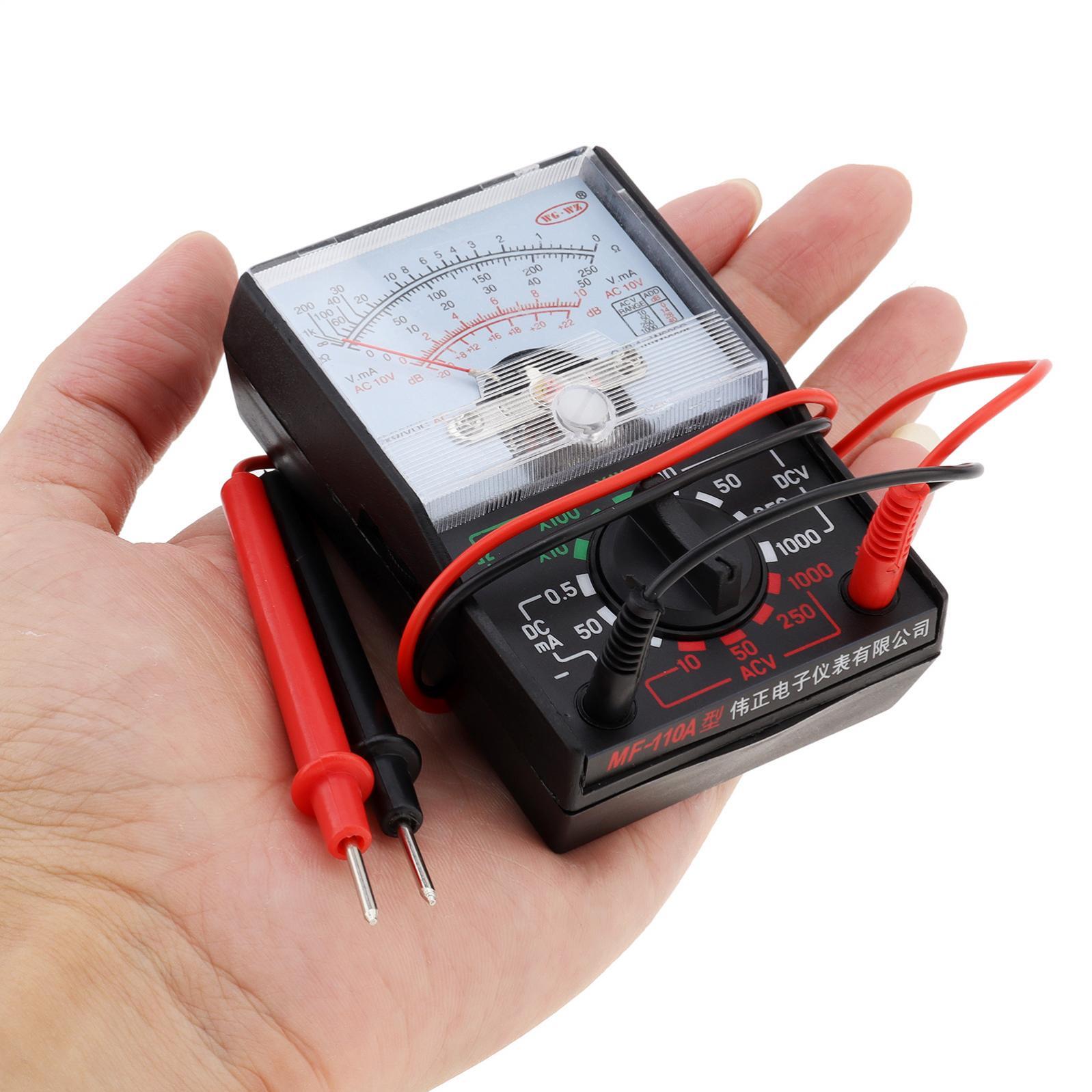

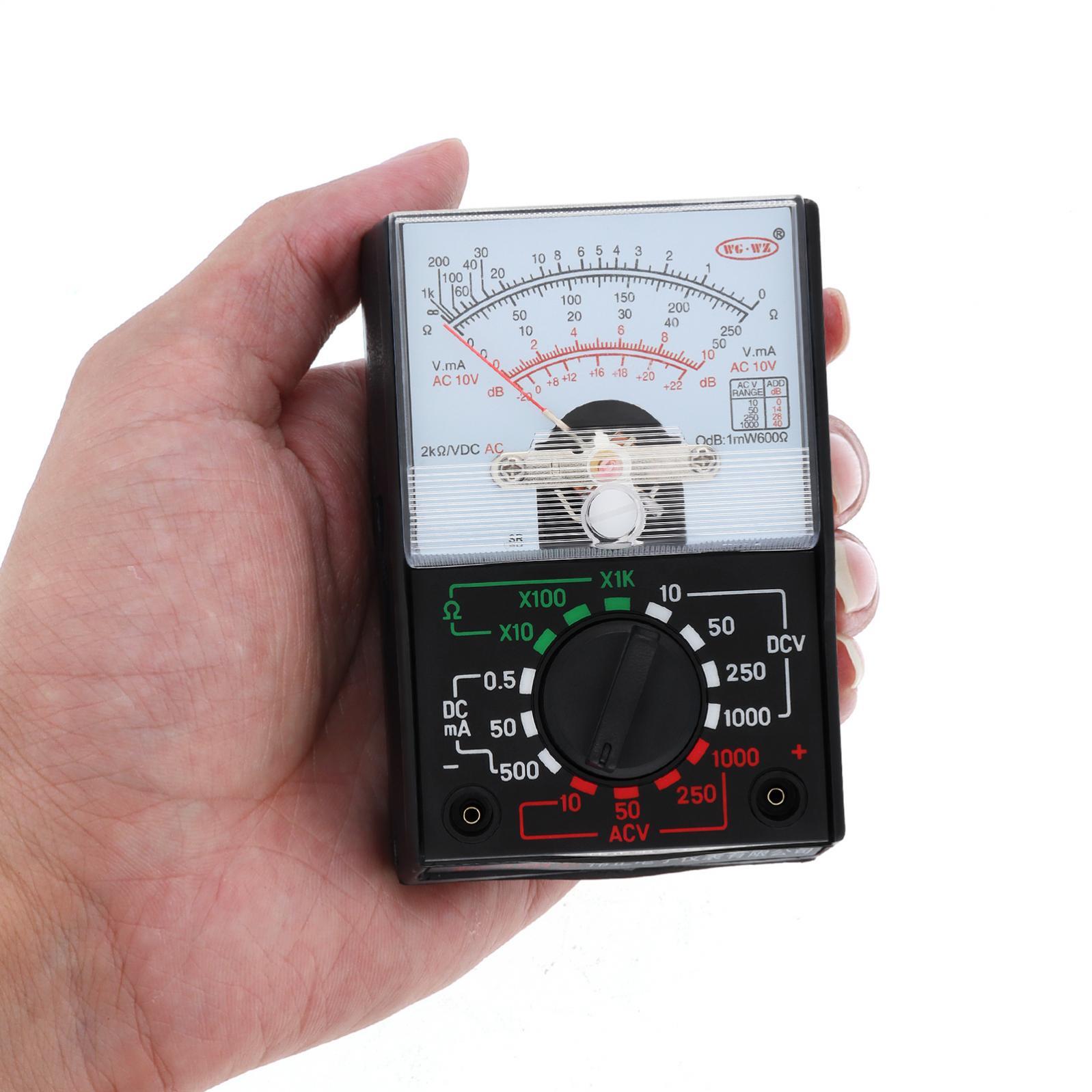

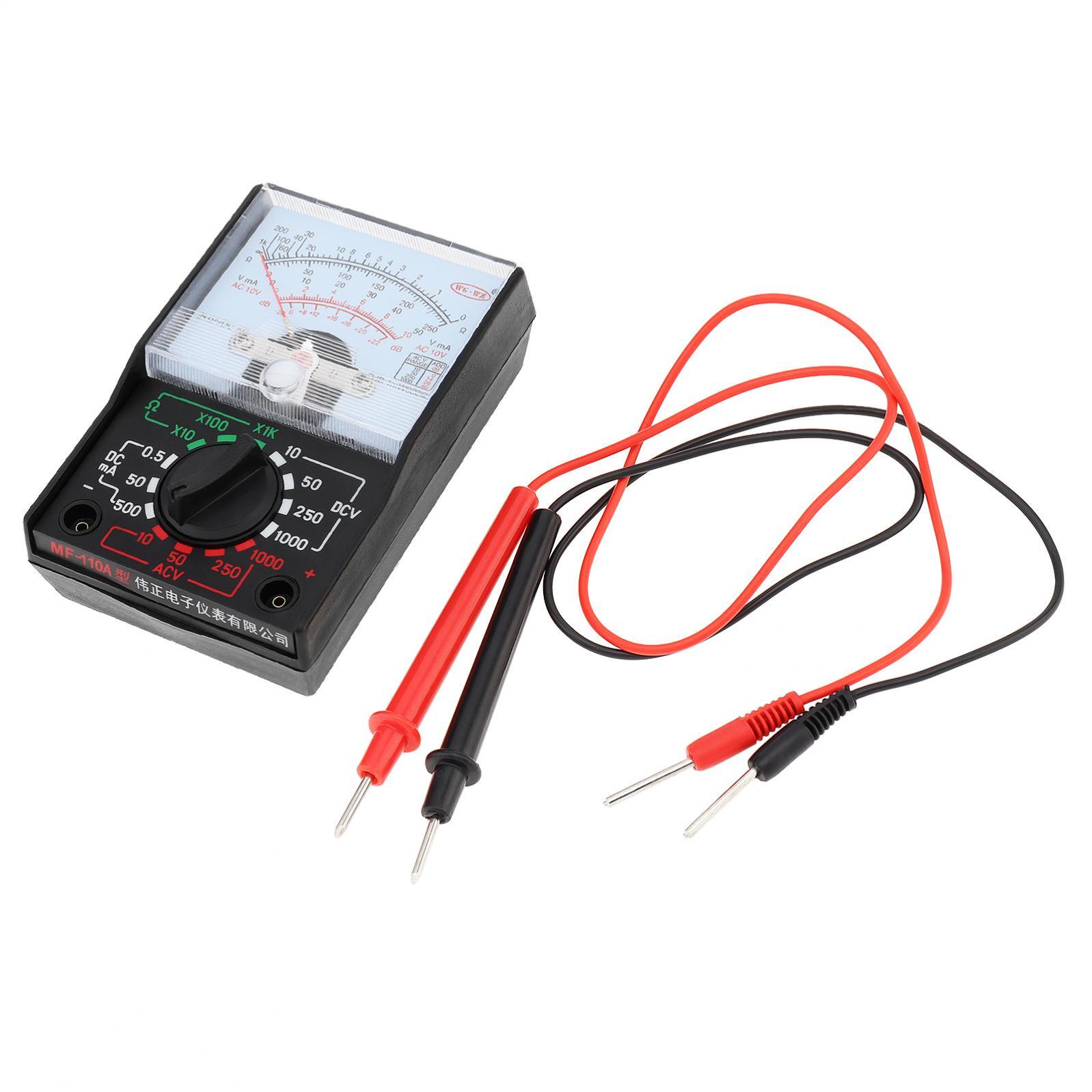

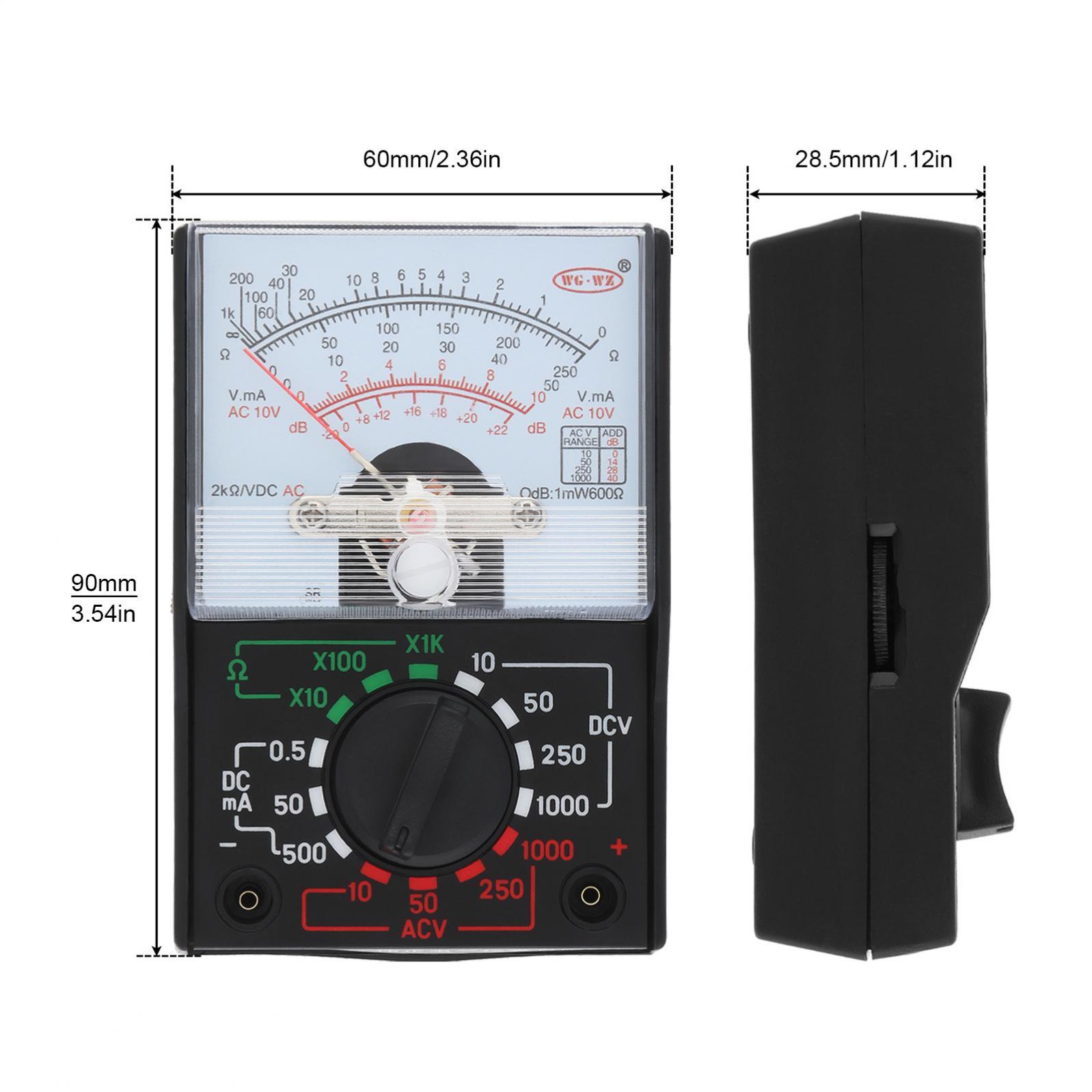

Check the listing for details. Analog Multimeter, AC/DC Volt Voltmeter Amp Tester Meter w/ Test Leads & Battery. Condition: New. Listed at 9.34 USD. DescriptionItem Description:Style: Pointer-typeDC Voltage: 10V / 50V / 250V / 1000VMaterial: ABSDC Current: 0.5mA / 50mA / 500mAOperating Mode: HandheldAC Voltage: 10V / 50V / 250V / 1000VProduct Name: Analog Pointer Multimeters Testing InstrumentFeatures: - The scale is accurate, the dial is clear, the gear is accurate, and the sense of pause between gears is strong.- The test pen is made of wire, which is not easy to break and can be used for a long time.- Made of engineering plastics, is light in whole, small in size and convenient to carry.- The regulation is simple and convenient, the workmanship is exquisite, and the measurement is accurate.- Pocket multimeter, with multiple measurement functions, full range protection and high safety performance.- Suitable for machine maintenance, communication, power, circuit equipment maintenance, colleges and universities student experiment, etc.- Multiple protection. Adopt overvoltage, overcurrent self fusing protection circuit, meter overload protection, etc.- Especially suitable for e-learning classes, amateur radio experiment of primary school students.Product Model: MF-110ARange Display: Mechanical pointer needlePerformance mode: Manual rangeProtective design: Insulating materialPower Supply: 1 x AA battery (Included)Points for attention- 1.Before measurement, check whether the position of the range selection knob is correct.- 2.If the current or voltage to be measured is unknown, set the measuring range to the highest gear, and conduct the measurement after correct measurement and selection.- 3.The maximum DC current range is 250(500)mA, and the maximum voltage range is 500(1000)V.Measurement Steps:- 1.First check whether the pointer is on the zero indexing line, otherwise turn the zero adjuster for adjustment.- 2.DC Current (DCA)- (1)Insert the red plug of the test rod into the instrument "+" and the black plug into the instrument "-".- (2)Set the measuring range to the highest gear of the current measuring range.- (3)Contact the probe of the test rod with the circuit to be tested and connect it in series with the circuit to be tested.- (4)Read the indicated value from the second scale (mAV) of the dial.- (5)If the reading on the scale is too small, turn down one gear until the best indication is obtained.- 3.DC / AC Voltage (DCV, ACV)- (1)Set the range selection to the maximum limit of voltage.- (2)Connect the probe of the test rod across the circuit under test (in parallel).- (3)Read the indicated value from the second scale. Note that the 10V gear reads the indicated value from the third scale (special for AC 10V).- (4)If the reading on the scale is too small, turn down one gear until the best indication is obtained.- 4.Resistance (OHM)- (1)Set the measuring range to the corresponding gear.- (2)Short circuit the probe of the test rod and adjust the adjustment knob to stop the pointer on the zero ohm dividing line. If the pointer cannot be adjusted to the zero ohm dividing line, the battery is exhausted and needs to be replaced.- (3)Read the resistance value from the first scale (OHM) during measurement.- (4)Use the test rod probe to measure the resistance of the device under test, which shall be connected in series with the device under test.- (5)Note: If the resistance of the circuit is measured, cut off the power supply of the circuit and discharge all capacitors.Place of Application: Battery / Resistance / DC Current Test, Machine Maintenance / Communication / Power / Circuit Equipment MaintenanceNote: If the resistance of the circuit is measured, cut off the power supply of the circuit and discharge all capacitors.The multimeter is a normal product, only for simple measurements.Package Including:Package Including: 1 x MF-110A AC/DC Analog Multimeter (Included Battery)2 x Test Pen Product Weight: 95 G / 3.35 OuncesProduct Dimensions (L*W*H): 10.0*8.0*3.0 CM / 3.94*3.15*1.18 InchesPackage Weight: 97.0 G / 3.42 OuncesPackage Dimensions (L*W*H): 15.0*10.0*3.2 CM / 5.91*3.94*1.26 InchesRetail Packaging: Yes, Colored Box Payment 1.when put the order in the awaiting payment, Payment must be paied within 7days. 2.Please write down your special requests (color, size, etc.) in the NOTE when you make payment. 3.if you would like to cancel or change your order, please contact us if you HAVE NOT received a shipping confirmation. If the order has not processed yet, the order will be canceled, and you may place a new order. If the item has been processed for shipping, we cannot cancel the order. You can return the order, and a refund will be issued once the item has been returned.Shipping Details1.Item will be shipped within 48 hours after payment received, excluding weekends and holidays. 2.We only ship to eBay confirmed address. Therefore your eBay address MUST MATCH with your Shipping address. 3.We ship worldwide via Regular Airmail. Normally the shipment to worldwide takes 10 to 35 business days, excluding weekends and holidays.4.If you don't receive your shipment within 35 days after payment, please feel free to contact us. We will take proper actions to solve the problem for you.5.Shipping are not available for PO BOX, Parcel locker, Parcel collect. Retrun 1.notify us by message before returning. 2.Contact us within 30 days of receiving the item.
