| Brand | Antelope Audio |
|---|---|
| MPN | ANDUSBPAI |
| Model | ZEN QUADRO Antelope Audio |
| Type | Podcast & Recording Interfac |
| Display | Color |
| Channels of I/O | 14 Inputs / 10 Outputs |
| Built-In DSP | Yes |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | 4 |
| Built-In Microphone | No |
| Input Level Adjustment | via Software |
| Pad | No |
| Gain/Trim Range | XLR Mic Inputs: 75 dB |
| High-Pass Filter | No |
| Solo/Mute | Solo, Mute per Input Channel |
| Analog Audio I/O | 2x Combo XLR-1/4 TRS Mic/Line/Hi-Z Input 2x Combo XLR-1/4 TRS Mic |
| Phantom Power | 48 V |
| Digital Audio I/O | 1x Mini-TOSLINK / 3.5 mm Optical ADAT Input 1x RCA Coaxial S/PDIF |
| Host Connection | 1x USB-C (Class-Compliant) 1x USB-C (Class-/USB OTG-Compliant) |
| Host Connection Protocol | USB 2.0 |
| Maximum Input Level | Mic Inputs: 20 dBu |
| Maximum Output Level | Line/Monitor: 20 dBu D/A Converters: 20 dBu |
| Impedance | Headphone : 10 Ohms |
| Dynamic Range | Mic Inputs: 122 dBA Digital D/A Converters: 130 dBA Digital A/D C |
| THD | Mic: -116 dB |
| THD+N | D/A Converters: -115 dB A/D Converters: -116 dB |
| Sample Rates | Up to 192 kHz |
| Sample Rate Conversion | No |
| Bit Depths | 24-Bit |
| Sync Sources | ADAT, Internal, S/PDIF |
| Media/Memory Card Slot | No |
| OS Compatibility | macOS 10.14.6 or Later Windows 10 or Later |
| Processor Requirement | PC: Intel Core i5 or Better |
| RAM Requirements | 4 GB, 8 GB Recommended |
| Storage Requirements | 4 GB |
| Mobile App Compatible | Yes: Android & iOS |
| Power Requirements | USB Bus Power |
| UPC | 850041548081 |

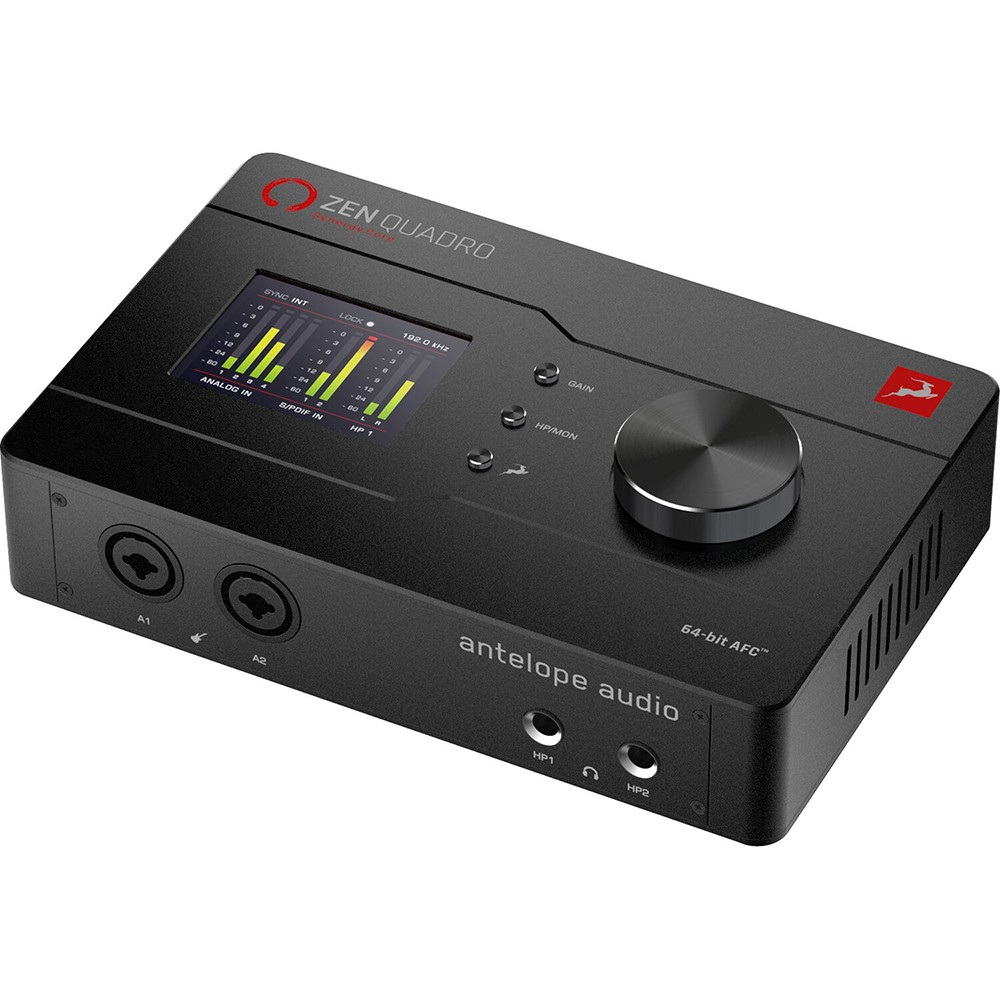

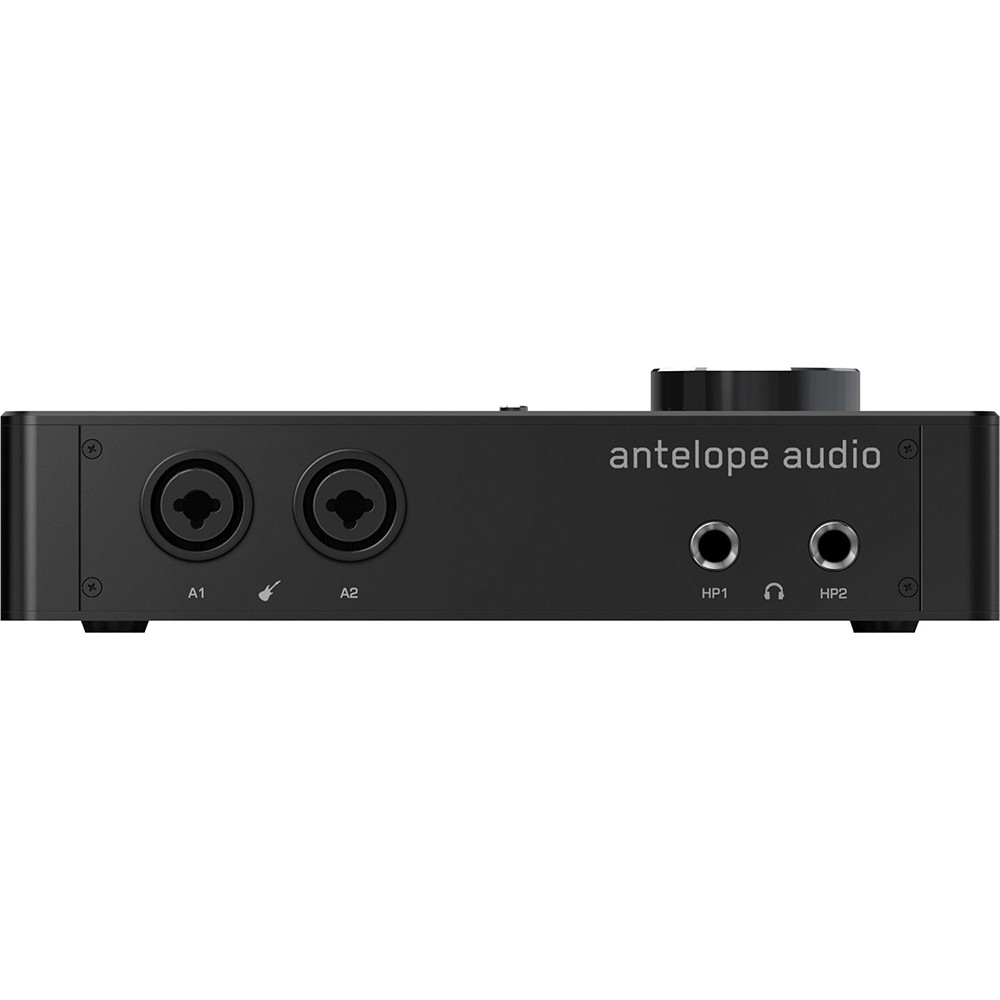

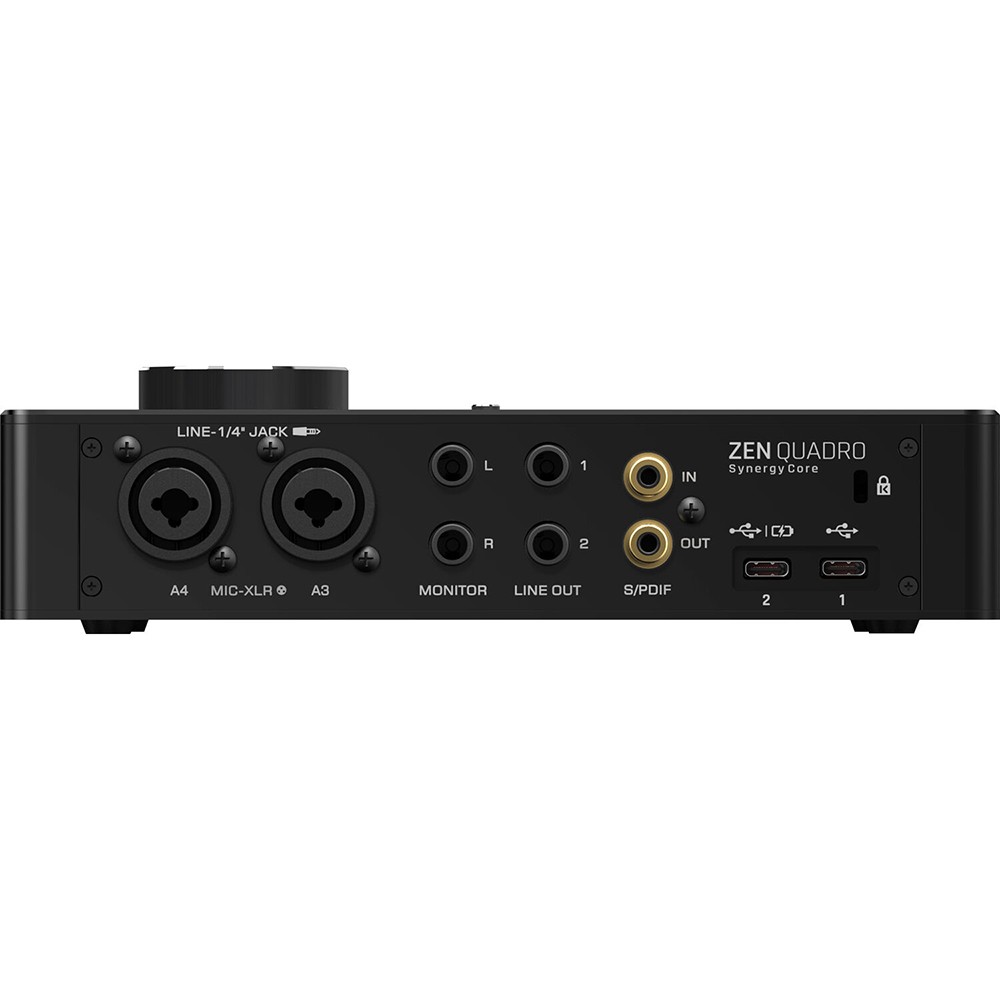

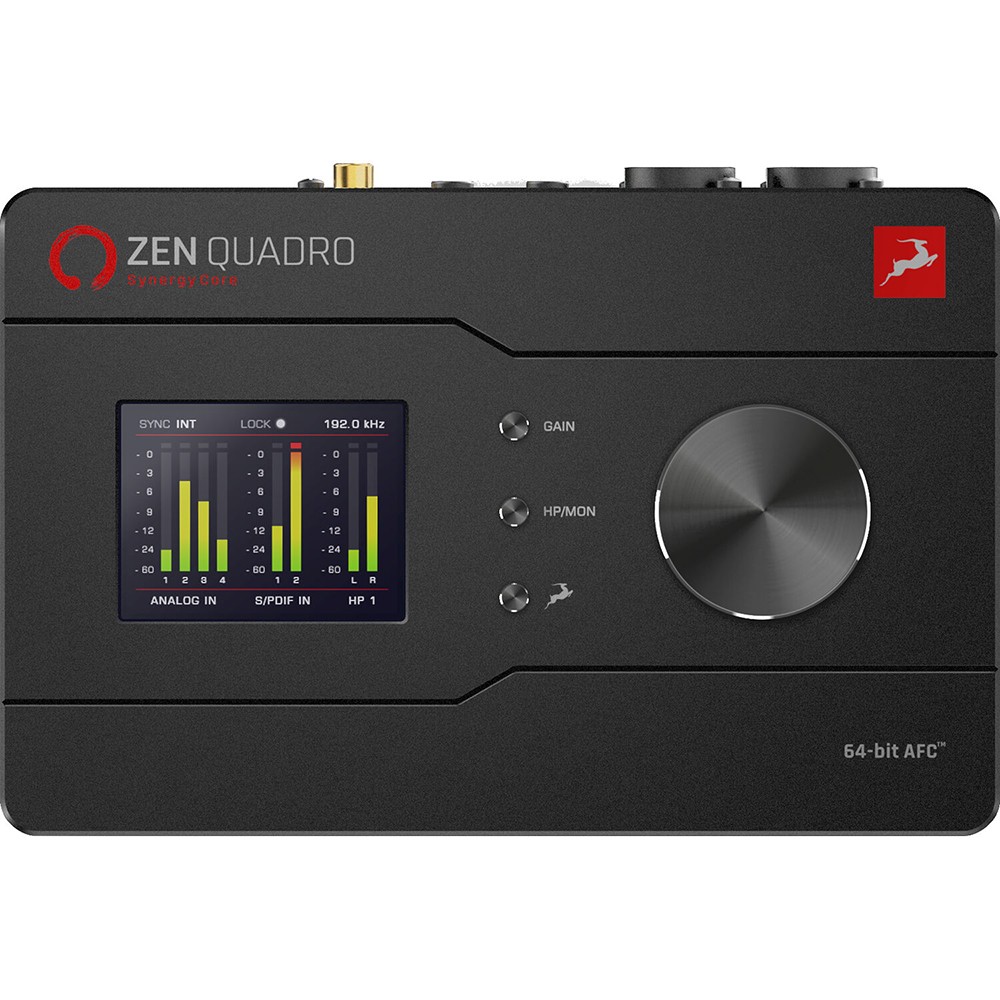

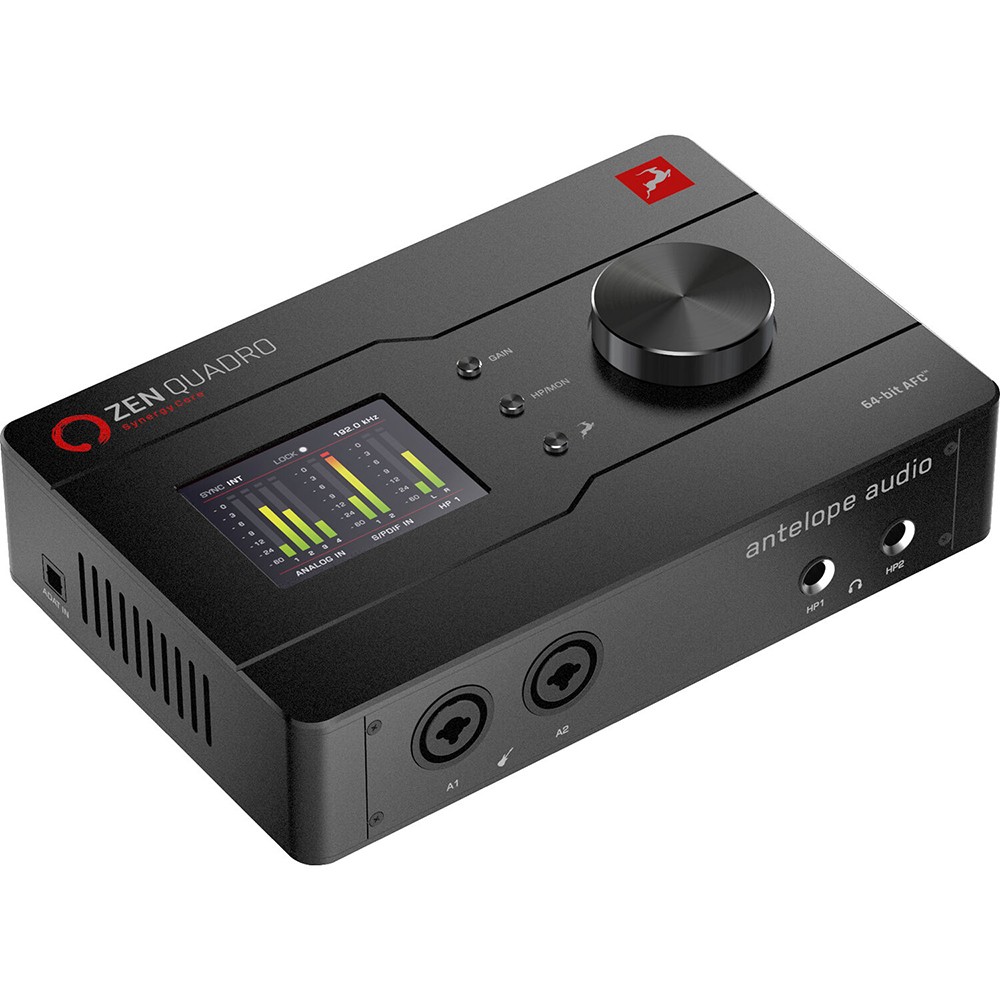

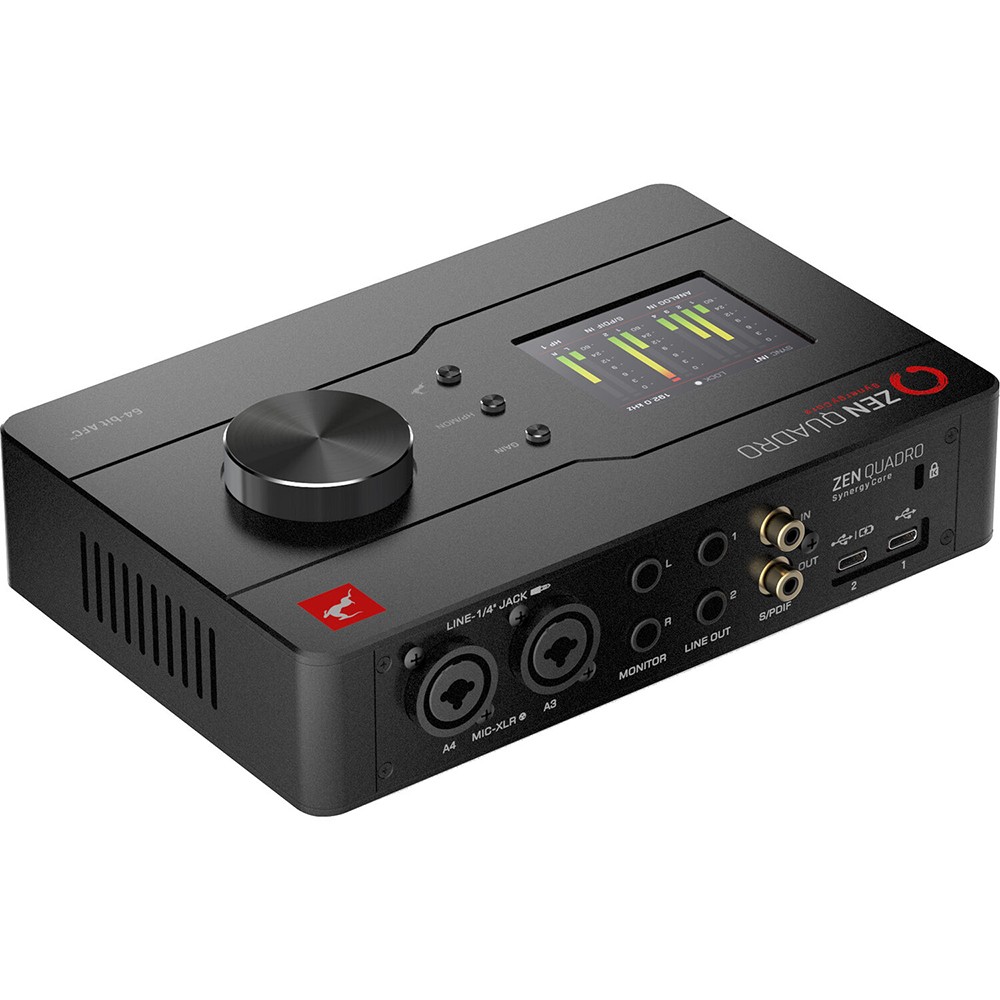

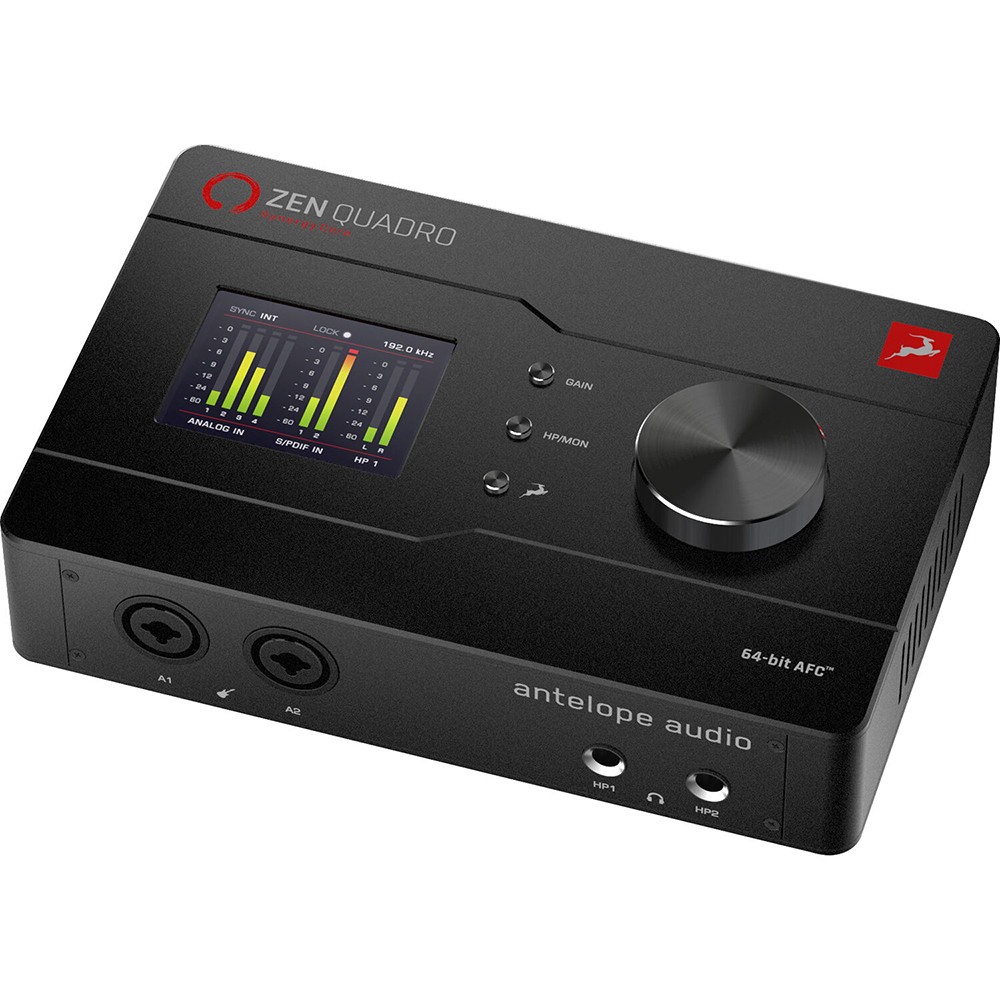

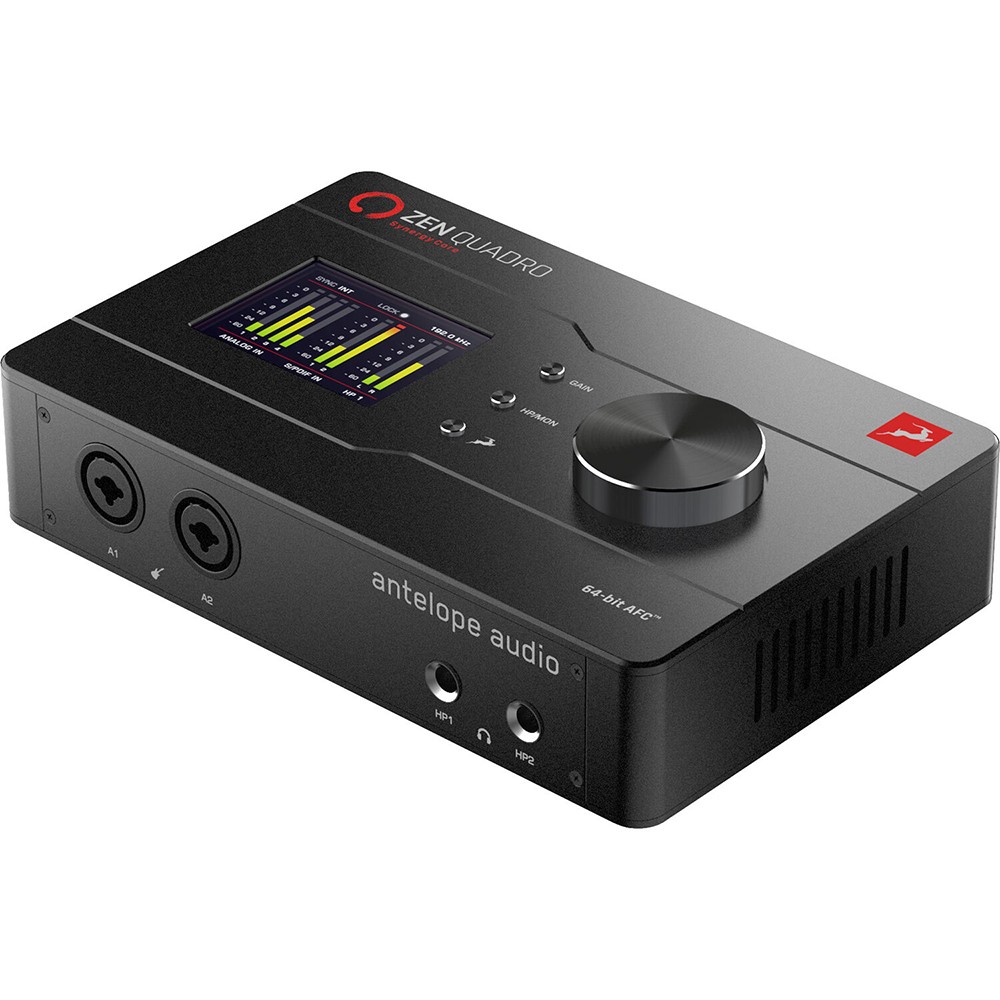

Check the listing for details. Antelope Zen Quadro Synergy Core Dual USB-C Audio Interface. Condition: New. Listed at 721.71 USD. Featuring standalone functionality and 37 analog-modeled effects, the interface can be used without a computer as an FX box during live gigs. The unit allows easy access to direct routing, preset recall, and mixer settings via its color display.
