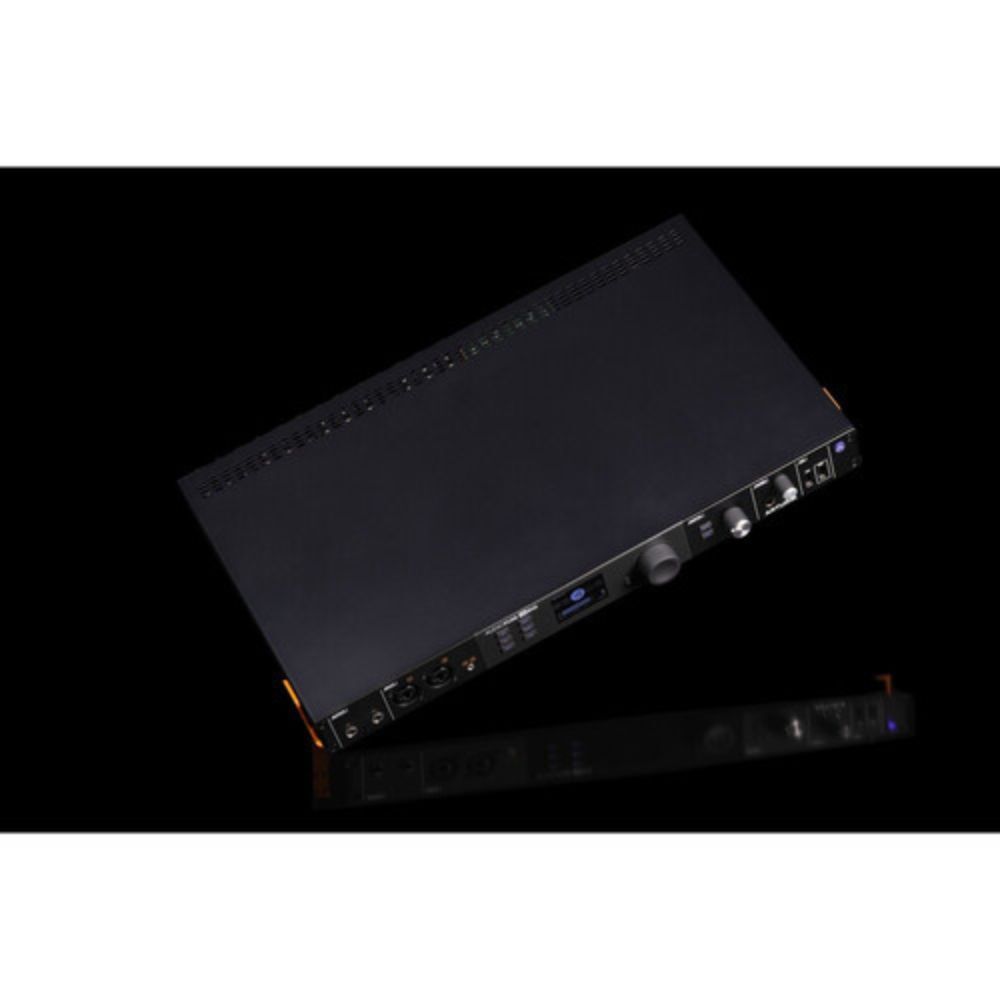

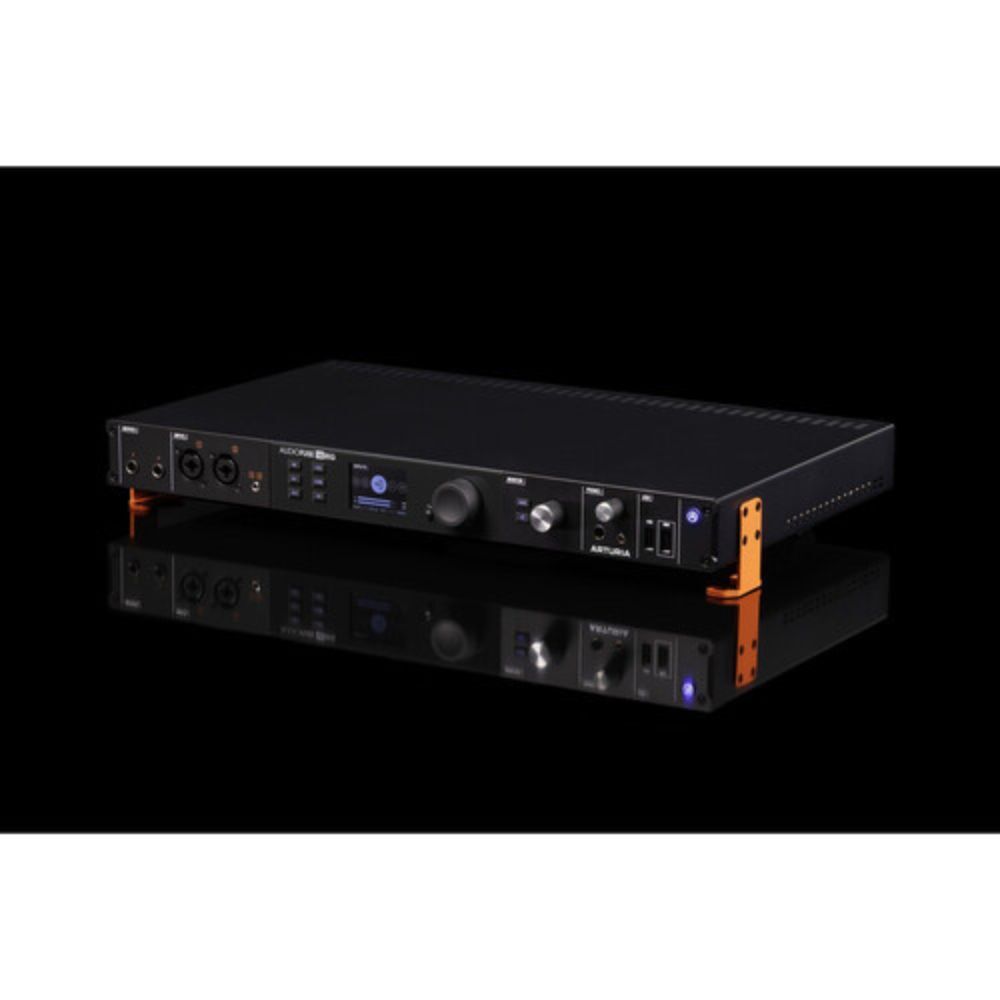

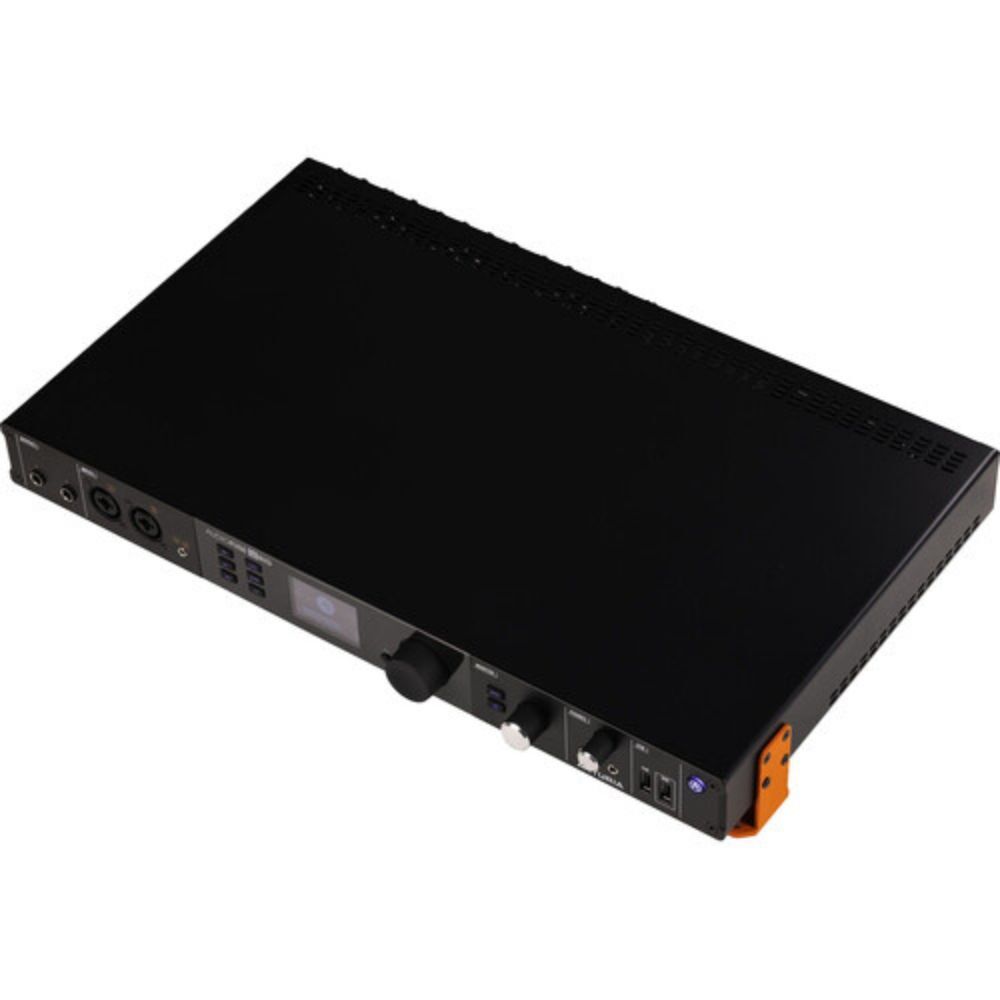

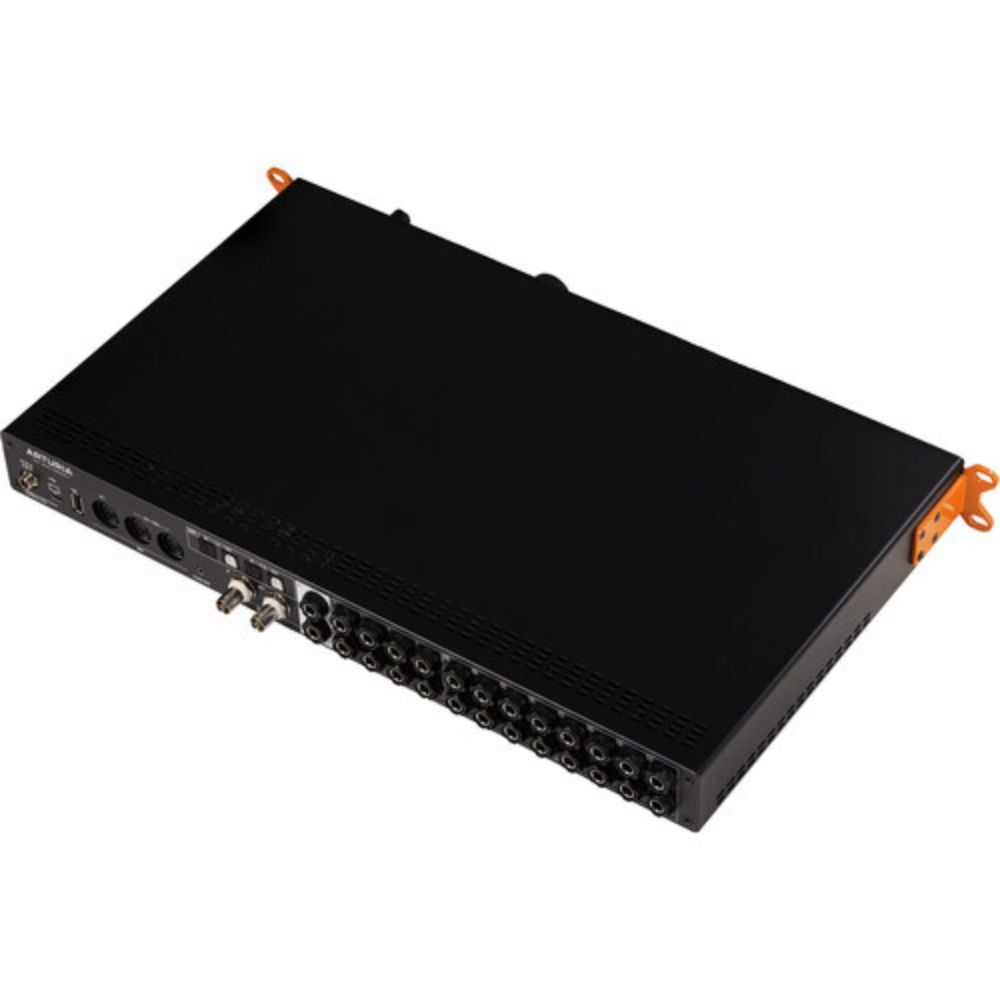

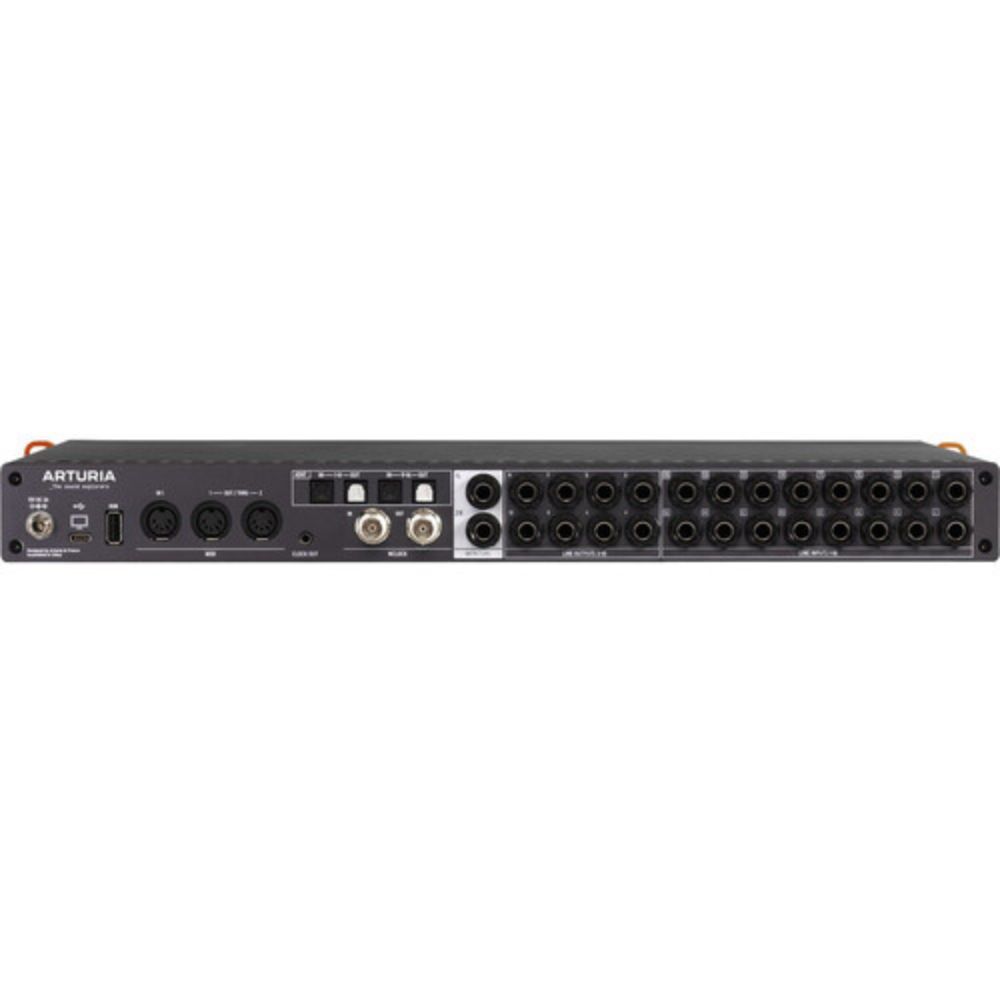

Check the listing for details. Arturia AudioFuse 16Rig USB-C Audio/MIDI Interface. Condition: New. Listed at 1299.00 USD. eBay Listing Design by OCDesignsOnline Home View all listings About Us Feedback Faq Contact Us Arturia AudioFuse 16Rig USB-C Audio/MIDI Interface Description Item Includes Specifications Description The ultimate studio centerpiece for connecting an entire synth studio, complex live-audio routing, and advanced DAW recording, the Arturia AudioFuse 16Rig is a 32-in / 28-out USB-C audio / MIDI interface that lets you leave everything connected, route anything to anything, and be more creative with your projects. Either rackmounted or on a desktop, the interface provides extensive rear I/O connections for your equipment while leaving the front panel open for additional microphones, instruments, music players, or USB devices. Featuring premium 24-bit / 192 kHz AD/DA converters and Wordclock I/O, AudioFuse 16Rig lets you record synths, guitars, vocals, or a combination of inputs with high-quality audio, and monitor your sound accurately—all perfectly in sync. Equipped with two, low-latency internal MIDI-controllable DSP mixers, AudioFuse 16Rig can function as a standalone mixer, allowing for DAWless recording, live mixing, and intricate audio routing without the need for a computer. The included AudioFuse Control Center software provides a powerful matrix for quick and flexible configuration of any type of connection to suit any need, including multiple sends/returns, A/B speaker monitoring, and more. Save your configurations and mix settings as presets, control modular synths with DC-coupled outputs, use the Reamp feature for versatile guitar tracking, and connect multiple USB devices with class-compliant connections. The Ins and Outs 16 x 1/4" TRS analog inputs (inputs 3 and 4 also available as 3.5mm stereo input on front panel). 2 x XLR/1/4" combo mic / line / Hi-Z preamps. 8 x DC-coupled 1/4" TRS line outputs. 2 x 1/4" front-panel outputs for reamping, dual-headphones. 2 x ADAT in, 2 x ADAT out. Wordclock and clock I/O. 1 x 5-pin DIN MIDI in, 2 x 5-pin DIN MIDI out/thru. 1 x USB-C host connection, 3 x USB-A hub connections. Two Standalone Mixers—No Computer Needed For DAWless recording, live mixing, and outside-the-box audio configuration, AudioFuse 16Rig just works. Fire up its two low-latency internal mixers for sessions away from the studio, process audio and MIDI without a computer connection, and save your configurations for instant recall and quick setup switching. The Main mixer controllable via MIDI. Intricate Audio Routing Get hands-on with an interface that lets you configure its connections to suit any need, including multiple sends/returns for effects, quick A/B speaker monitoring, and more. The included AudioFuse Control Center even features a matrix configuration to quickly connect anything and everything. Quantity, Meet Quality Give every recording the shine, clarity, and projection it deserves with two, high-performance digitally controlled and recallable preamps, and 24-bit / 192 kHz AD/DA converters from ESS and Cirrus Logic. Whether it’s red-hot synths, dynamic guitars, delicate vocals, or any combination of inputs, expect high-quality sound across the board. Choose Your Workflow Control AudioFuse 16Rig’s settings via the display or the included software, configure it for desktop or 1 RU rackmount operation. See how your mix is behaving in real-time with the full-color display, showing levels, channels, vital settings, and more. Essential info, settings, and visual feedback on your project is only ever a click away with accessible buttons next to the display. Tweak and automate certain settings in your mix with CC assignments that can be controlled by MIDI gear. Use the DC-coupled outputs to send signals to synth modules and connect your high-impedance headphones. Hooking Up a Synth Rig For synth lovers, analog enthusiasts, hands-on beat makers, and beyond, AudioFuse 16Rig is purpose-built to handle hardware—and lots of it. Connect up to 16 mono inputs and configure stereo channels for maximum polysynth width. Hook up the interface to ADAT-compatible expanders and even send CV signals to your modular setup from its DC-coupled outputs. Different Monitor Mixes AudioFuse 16Rig’s Cue Mixer lets you create an entirely separate mix, with different channels, levels, and panning that can be sent to a separate headphone or speaker output. Great for recording drums with guide tracks, keeping lead and backing vocals in harmony, or creating sub-mixes for on-the-fly processing. Connections Ready for Any Session Keep your staple instruments and devices connected to AudioFuse 16Rig’s rear I/Os, while still having plenty of options at the front. Great for unexpected additions like when someone brings a different guitar, their own mic, a tape recorder, or a new sample recorded on their phone. Multiple Effects Chains Map out multiple send/return chains in visual detail and create custom effects chains with the help of AudioFuse Control Center’s matrix. You might want reverb and compression on your vocals, distortion and chorus on your synths, and a dubby sprinkling of Delay TAPE-201 on your drum bus—no sweat. Save Configurations for Instant Recall Great for when you are working on different songs or different mixes that have the same connections. Save your settings as a preset, so you can quickly recall or switch between them; saving you time in sessions or giving you instant flexibility for live performance. Control Your Modular via DC-Coupled Outputs Create a bridge between the flexibility of your DAW and the tactility of your synth hardware with CV control. Using the right software, you can send control voltages from AudioFuse 16Rig’s DC-coupled outputs to compatible gear like Eurorack modules or CV-ready desktop synths for sequencing, modulating, and composing. Reamping andHigh-Impedance Headphones Send your dry guitar stems straight to external effects or amps without needing a DI box thanks to front panel outputs with true analog zero-latency passthrough. Not only can these outputs (3-4) send line- or instrument-level signals; you can also configure them to connect high-impedance headphones for that extra boost when needed. All The USB Connections You'll Need Computer connections can come at a premium; AudioFuse 16Rig’s three USB-A hub slots are primed for connecting bus-powered MIDI controllers, external drives or USB sticks, and USB MIDI devices using class-compliant connectivity. AudioFuse Control Center App AudioFuse Control Center (AFCC) app controls the mixer, selection of inputs, routing, monitoring, and additional functions such as sampling rate, Clock Source, Pad, Cue, and more. Another useful touch is that AudioFuse will remember the latest AFCC settings for standalone use until the next time you connect and change them. Premium FX Included AudioFuse Creative Suite: Analog Lab Intro Comp DIODE-609, Comp FET-76 Pre 1973, Pre V76, Pre TridA Filter MINI Chorus JUN-6 Delay TAPE-201 Rev PLATE-140 Phaser BI-TRON Box Contains Arturia AudioFuse 16Rig USB-C Audio/MIDI Interface 1 x USB-C to USB-C Cable 1 x USB-C to USB-A 1 x Power Supply 1 x Rack/Stand Ears and Rear Supports with Screws Item Includes Box Contains Arturia AudioFuse 16Rig USB-C Audio/MIDI Interface 1 x USB-C to USB-C Cable 1 x USB-C to USB-A 1 x Power Supply 1 x Rack/Stand Ears and Rear Supports with Screws Specifications BrandArturiaModelArturia 831001MPNAR831001TypeAudio/MIDI InterfaceChannels of I/O32 Inputs / 28 OutputsMaximum Sampling Rate192 kHz / 24-BitNumber of Microphone Inputs2Analog Audio I/O16 x 1/4 TRS Balanced Line Input 2 x Combo XLR-1/4 TRS Balanced Mic/Line/Hi-Z Input (Front Panel)Digital Audio I/O2 x TOSLINK Optical ADAT Input 2 x TOSLINK Optical ADAT OutputHost Connection1 x USB-C (Class-Compliant)Built-In DSPYesBuilt-In MicrophoneNoInput Level AdjustmentKnobExpansion SlotsNoPadMic: -20 dB (Switchable per Channel) Line: -12 dB (Switchable per Channel) Line: -10 dB (SwitchableSolo/MuteSolo, Mute per MasterPhantom Power48 V, Selectable On/OffHost Connection ProtocolUSB 2.0USB (Non-Host)3 x USB-A (External Storage, MIDI I/O)Sync I/O1 x BNC Word Clock Input 1 x BNC Word Clock Output 1 x 1/8 / 3.5 mm Clock OutputNetwork I/ONoMIDI I/O1 x DIN 5-Pin Input 2 x DIN 5-Pin Output/ThruWirelessNoFrequency ResponseLine Inputs: 20 Hz to 20 kHz ±0.06 dB Hi-Z Inputs: 20 Hz to 20 kHz ±0.1 dB Mic Inputs: 20 Hz to 20 kMaximum Input LevelLine: +24 dBu (Rear) +22 dBu (Front) Hi-Z: 20 dBu Mic: 22 dBuMaximum Output LevelMonitor: 20 dBu Line: 24 dBu Headphone: 14.4 dBuHeadphone Output Power271 mW into 33 OhmsImpedanceLine Inputs: 20 Kilohm Hi-Z Inputs: 1.1 Megohm Mic Inputs: 2.7 Kilohms Monitor Outputs: 240 Ohms (BaDynamic RangeLine Inputs: 118 dBA Hi-Z Inputs: 114 dBA Mic Inputs: 117 dBA Monitor Outputs: 126 dBA Line Outputs:THD+NLine Inputs: -113 dBA Hi-Z Inputs: -105 dBA Mic Inputs: -110 dBA Speaker Outputs: -114 dBA Line OutpEIN-129.5 dBu A-WeightedSample Rates44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHzBit Depths24-BitSync SourcesADAT, Internal, Word ClockMedia/Memory Card SlotNoOS CompatibilitymacOS 10.13 or Later Windows 10 or Later *As of October, 2023: Check with manufacturer for the mostIncluded SoftwareNoProcessor RequirementMac: Intel Core i5 Apple M1RAM Requirements4 GBStorage Requirements4 GBMobile App CompatibleNo *As of October, 2023: Check with manufacturer for the most up-to-date compatibilityPower RequirementsAC/DC Power Adapter (Included)AC/DC Power AdapterIncludedRackmount Size1 RU (with Included Hardware)Dimensions17.3 x 11.6 x 1.7 / 43.9 x 29.5 x 4.3 cm Payment Policy PayPal is our only method of payment. Your PayPal account must be a Verified PayPal account. Selecting "Immediate Pay" is the way to go. If you select eCheck, it may take 2-8 days to clear PayPal. Please include a phone number as UPS and our Trucking Companies require it. We prefer to ship to a confirmed PayPal address and whether yes or no we may still contact you for additional verification. For shipments in NY&CA, we are required to collect the appropriate sales tax. Shipping Policy Most purchases are shipped within 24-48 Business Hours Items with "free shipping" are only shipped free to the 48 contiguous United States. We supply tracking information directly to your eBay account as well as via email within 24 hours after the shipment leaves our warehouse. Return Policy Downtown Photo is proud to offer a 30 day return or exchange policy on most items for a full money back refund, excluding any shipping charges (for items which we offer free shipping, our standard shipping charges will be deducted from any refund or credit) Returned or exchanged products must be in brand-new, mint condition. Items must be in the original, undamaged manufacturer's packaging with all packaging materials, including instruction booklets, packing inserts, and the blank warranty cards. Memory cards and any other Blister Pack items are not returnable once opened. Any merchandise missing the original Universal Product Code (UPC) cannot be returned. The manufacturer's labeled packaging must be enclosed within an additional shipping carton. Please do not place stickers or shipping labels on the original manufacturer's package. Please be aware that we cannot accept returns on the following items unless they are shown to be defective in manufacture (as decided by the manufacturer): Underwater equipment (once taken underwater Inkjet printers (once ink cartridge/ribbon has been installed) Processing equipment (once used with chemicals) Educational DVDs, Tapes and Books once opened Blister-packed items once opened Original manufacturer software once opened Please enclose a copy of your invoice with your return and tell us whether you would like the item to be replaced, exchanged, or refunded. Returns can take up to 5 days in-house from the date we receive it to process. When returning an item, please make sure you use a shipper which provides you with Insurance and a tracking number. Items returned without a tracking number might take much longer to be processed. Store Categories Albums & Storage Bags & Cases Batteries & Power Binoculars & Spotting Scopes Cameras & Lenses Computers & Accesories Film & Memory Cards Filters Flash & Lighting Pro Audio Production & Post Production Tripods Underwater Video Other items Newsletter Add my Store to your Favorites and receive my email newsletters about new items and special promotions! Sign up Home | View all listings | About Us | Feedback | Faq | Contact Us Copyright © 2017 DownTown Photo. All rights reserved.
