| Brand | Uxcell |
|---|---|
| Model | ASH-10DD |
| Contact Current | 10A |
| Protection Character | Resin Soldering |
| Relay Size | 44.8 x 57.4 x 28mm/1.76"x2.25"x1.1"(L*W*H) |
| Screw Terminal Number | 4 |
| Contact Type | Non-contact |
| Input Resistance/Power | 4-32VDC |
| Rated Voltage | 5-250VDC |
| Mounting Hole Size | 4mm/0.15" |
| Control Mode | DC-DC |
| Country of Manufacture | CHINA |
| Main Color | Black,Silver Tone |
| Net Weight | 105g |
| Package Content | 1 x Solid State Relay |
| California Prop 65 Warning | Cancer and Reproductive Harm - www.P65Warnings.ca.gov - |
| Contact Material | Plastic & Metal |
| UPC | 709874028430 |

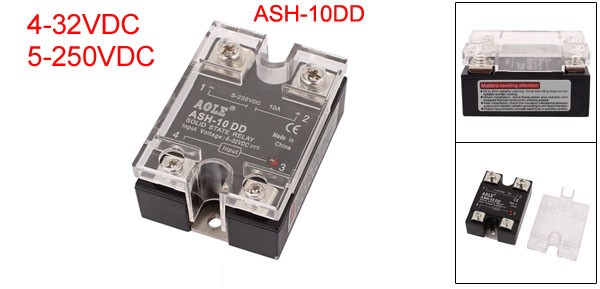

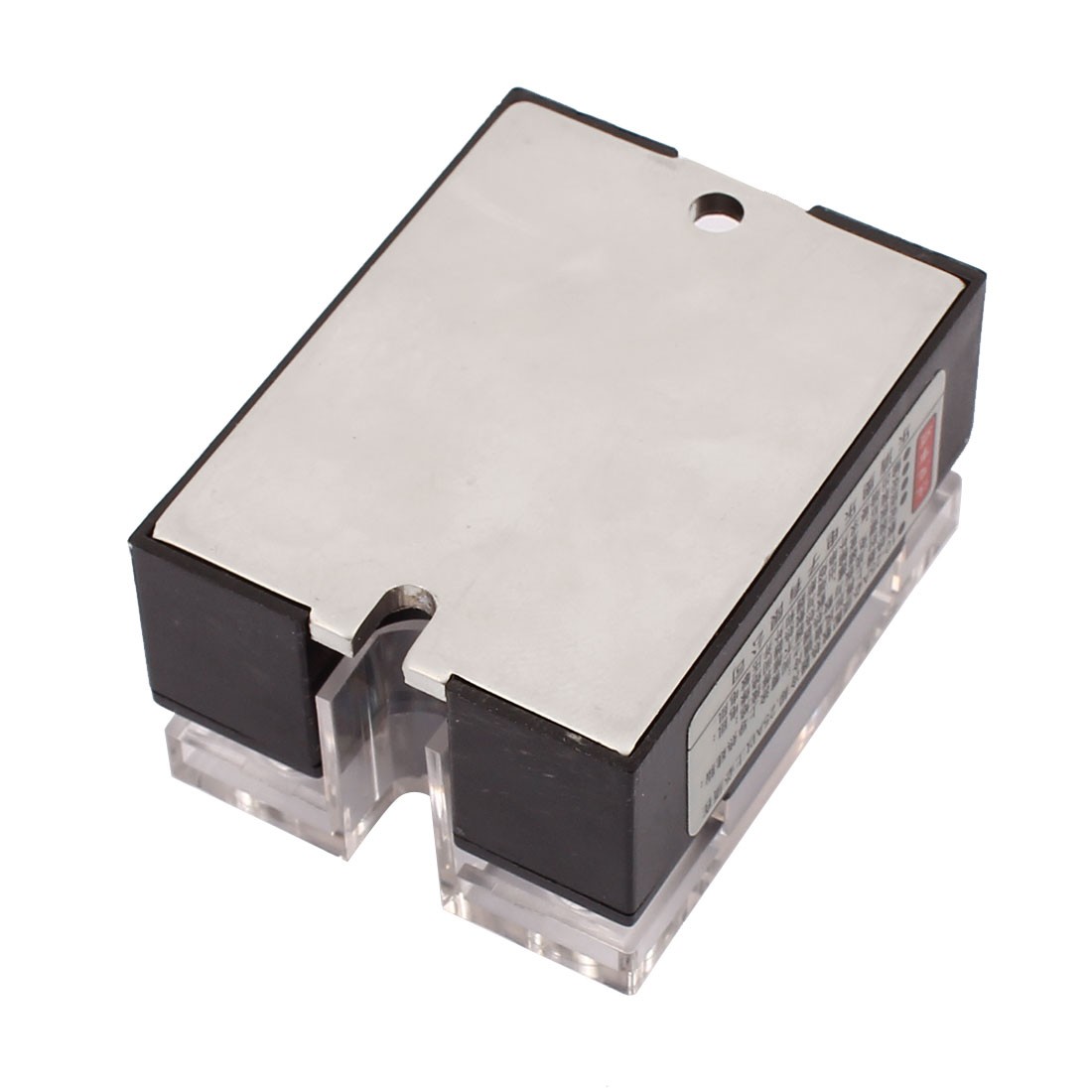

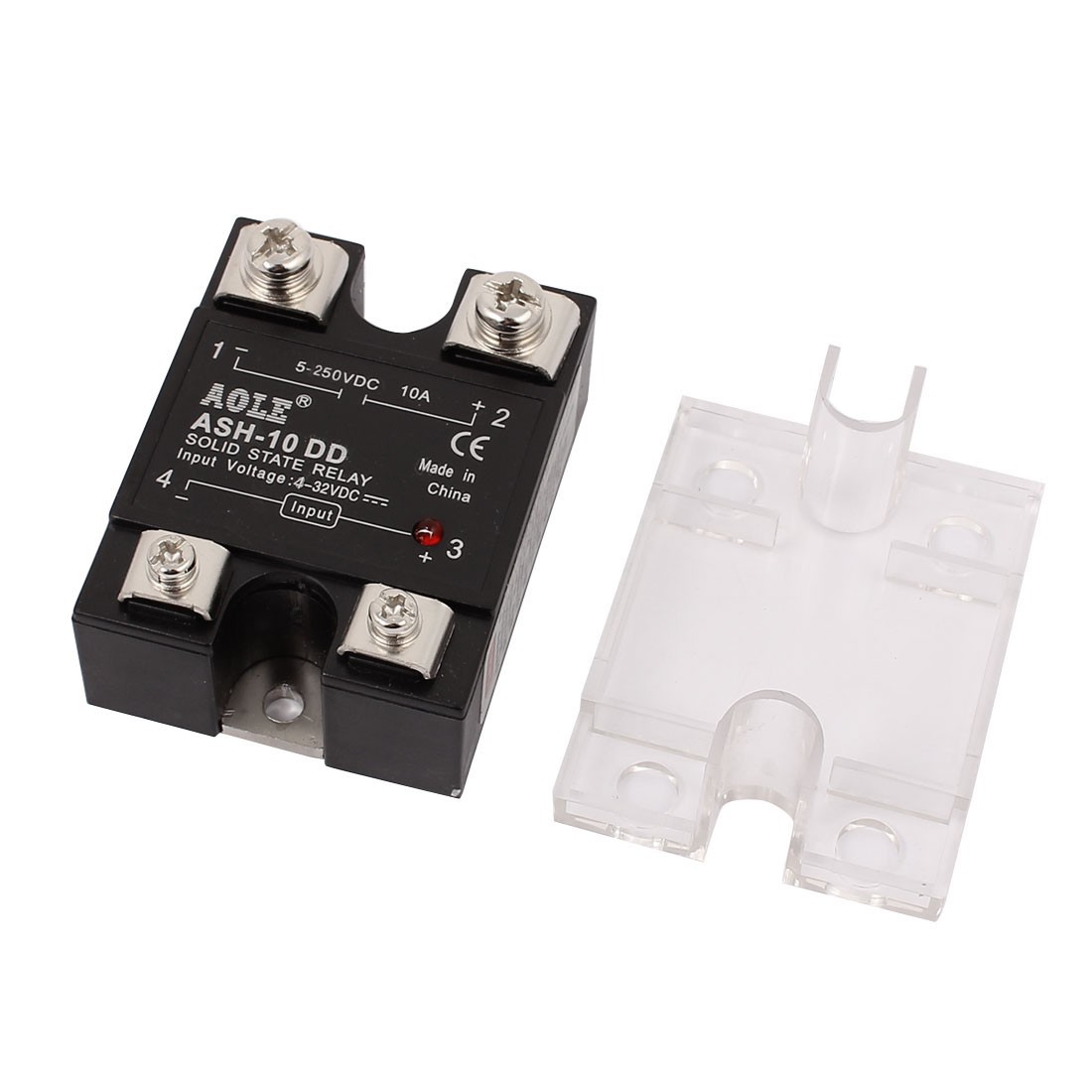

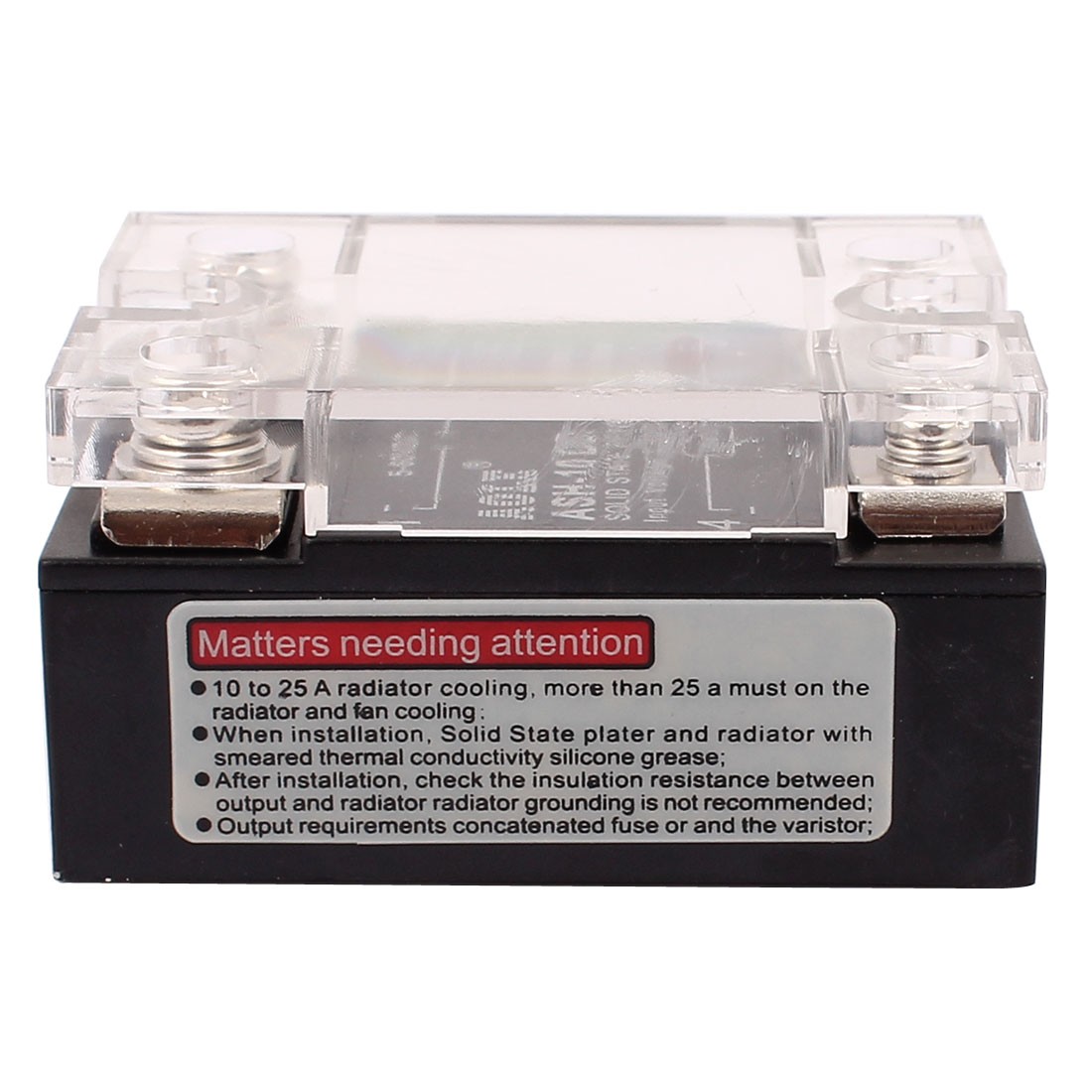

Check the listing for details. ASH-10DD 4-32V DC to 5-250V DC 10A Single Phase Solid State DC-DC Relay. Condition: New. Listed at 17.46 USD. This is solid state relay ASH-10DD. Model: ASH-10DD Input Resistance/Power: 4-32VDC Output voltage: 5-250VDC Output current: 10A Control Mode:External Controlling Potentiometer Insulation Resistance:1000M ohm/500VDC Ambient Temperature:-30C - +75C Protection Character:Resin Soldering Off Leakage Current: less or equal to 2mA Mounting Method: Bolts Fixed Relay size: 44.8 x 57.4 x 28mm/1.76"x2.25"x1.1"(L*W*H) Weight:105gPackage Content:1 x ASH-10DD Solid State Relay. Matters Needing Attention: 1. The current on the product is the maximum load current, not the rated current.2. On the basis of the difference of the load character, you should keep the different levels of the current when you choose the product.
