| Nominal voltage | AC/DC 24 V |
|---|---|
| MPN | AFB24-S |
| Nominal voltage frequency | 50/60 Hz |
| Auxiliary switch | 2x SPDT, 1 mA...3 A (0.5 A inductive), DC 5 V...AC 250 V, 1x 10% |
| Electrical Connection | (2) 18 AWG appliance cables, 3 ft , with 1/2" NPT conduit connect |
| Brand | Belimo |
| Transformer sizing | 7.5 VA |
| Type | Spring Return Damper Actuator |
| Overload Protection | electronic throughout 0...95° rotation |
| Electrical Protection | actuators are double insulated |
| Model | AFB24-S |
| Switching capacity auxiliary switch | 1 mA...3 A (0.5 A inductive), DC 5 V...AC 250 V |
| Nominal voltage range | AC 19.2...28.8 V / DC 21.6...28.8 V |
| Power consumption in operation | 5W |
| Power consumption in rest position | 2.5 W |
| Country of Origin | United States |

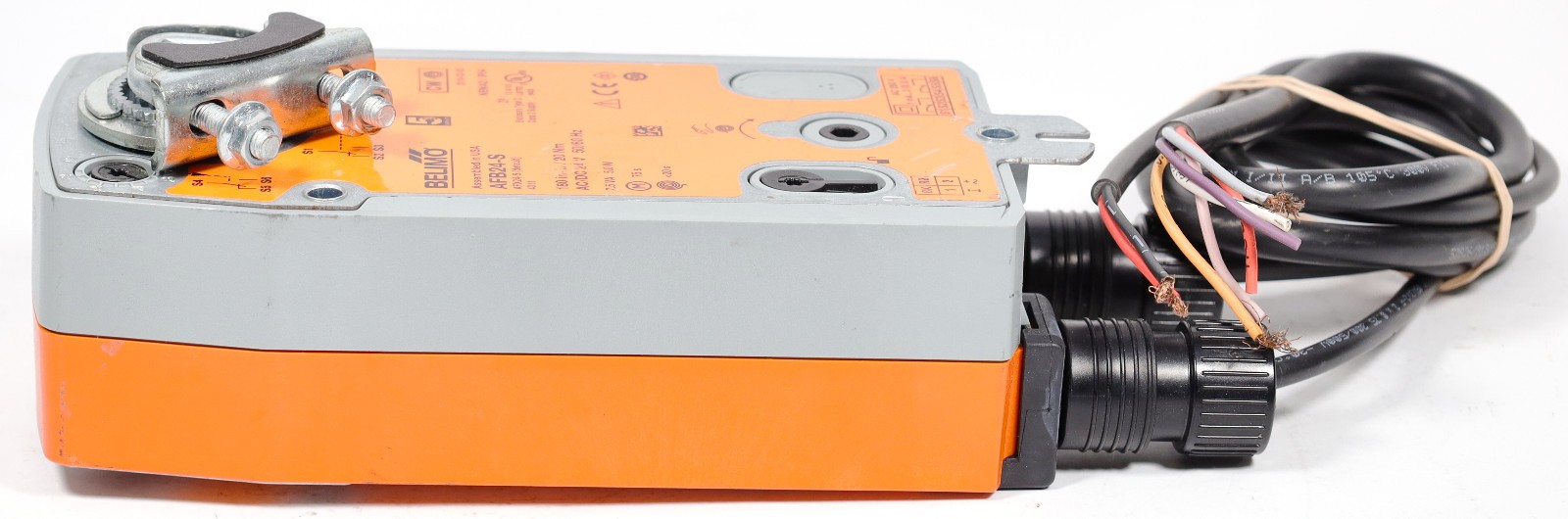

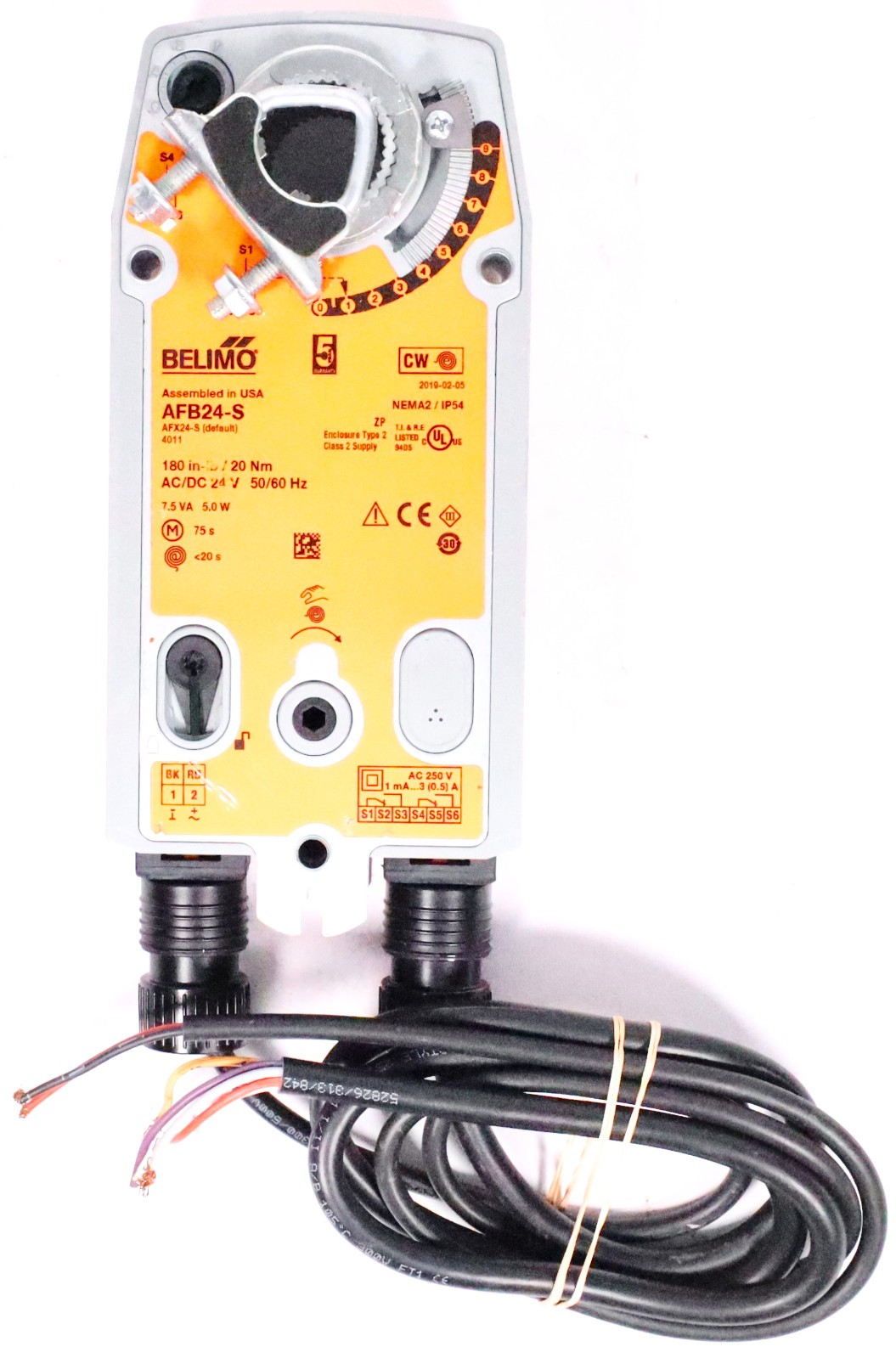

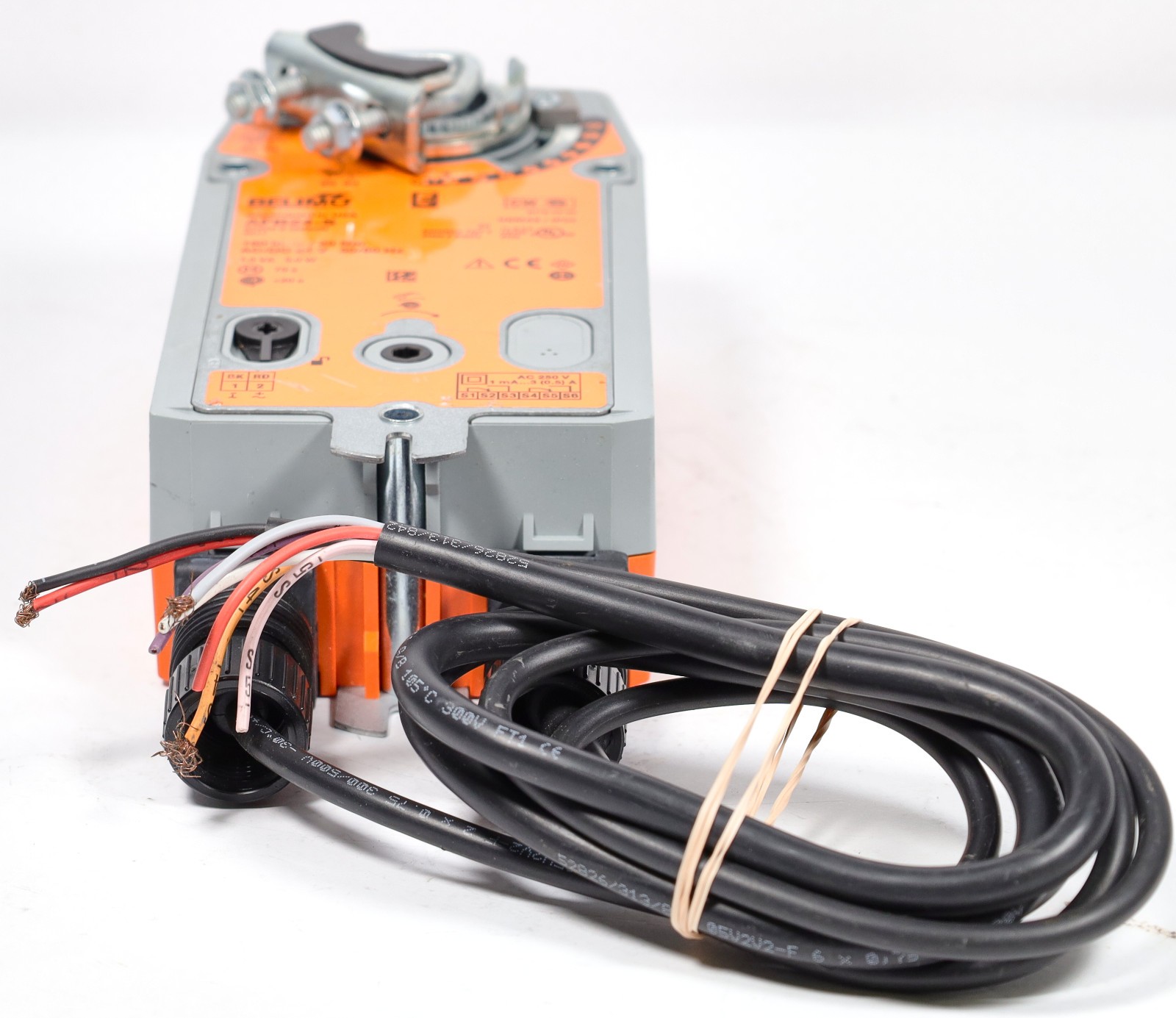

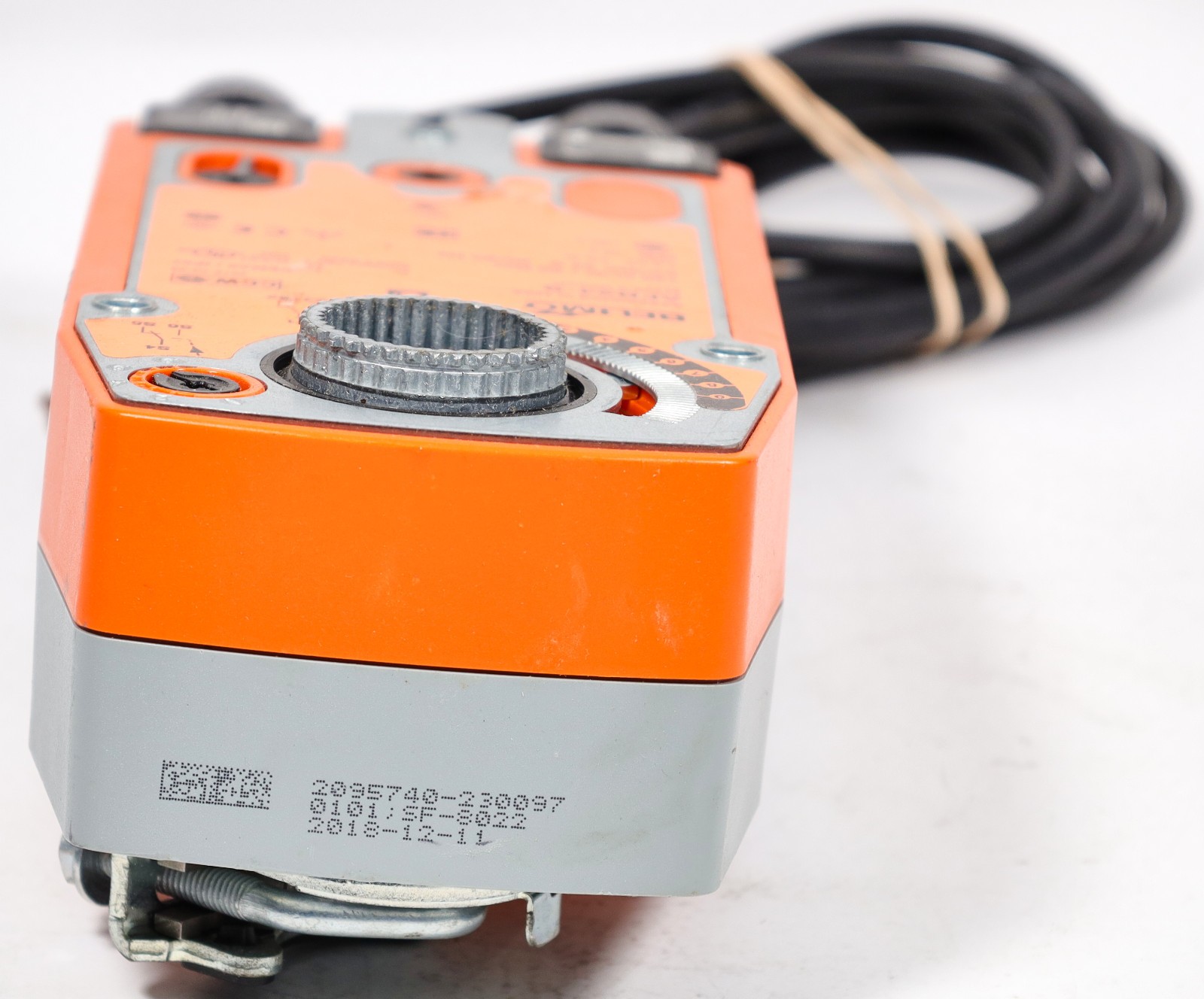

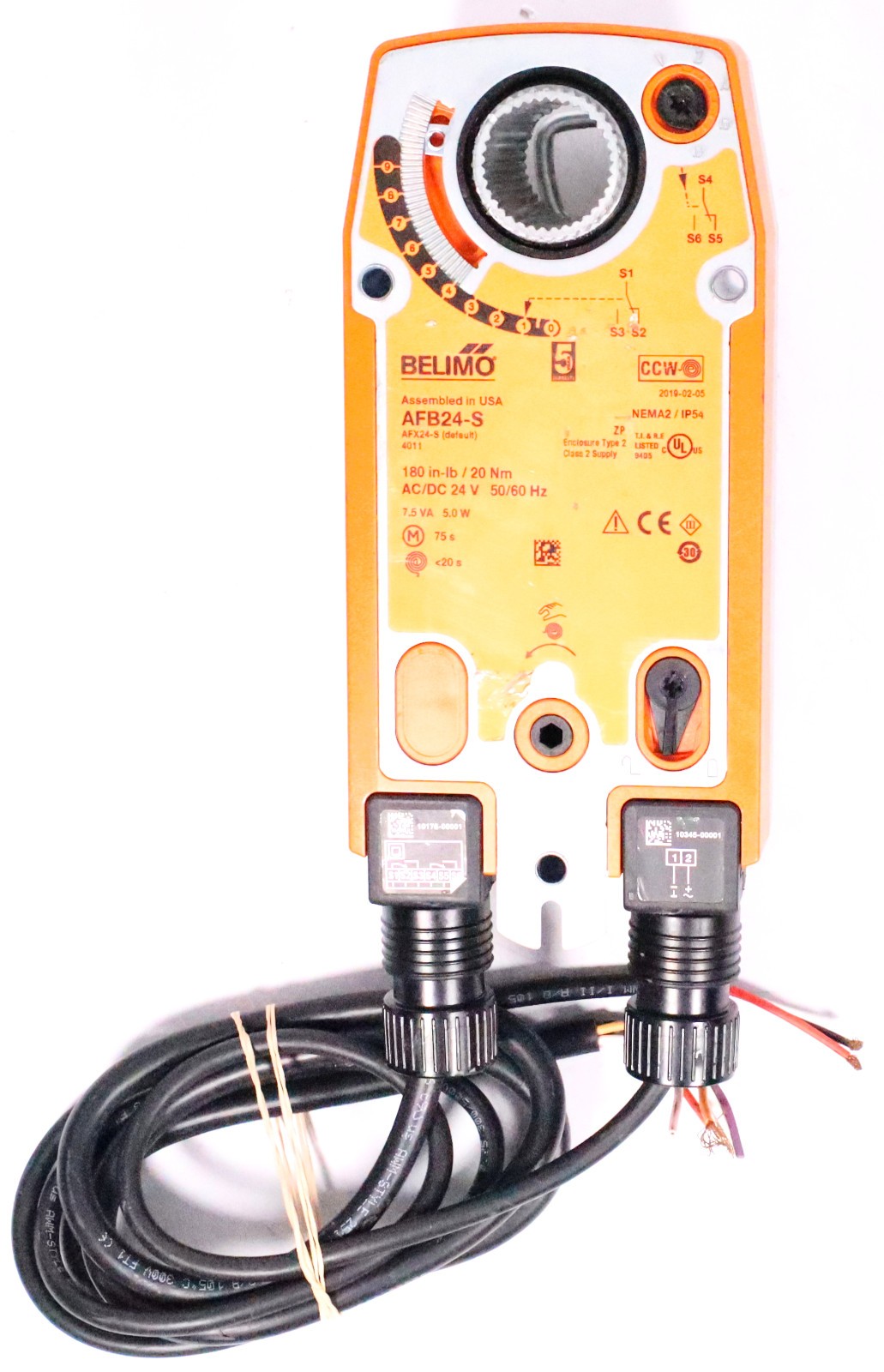

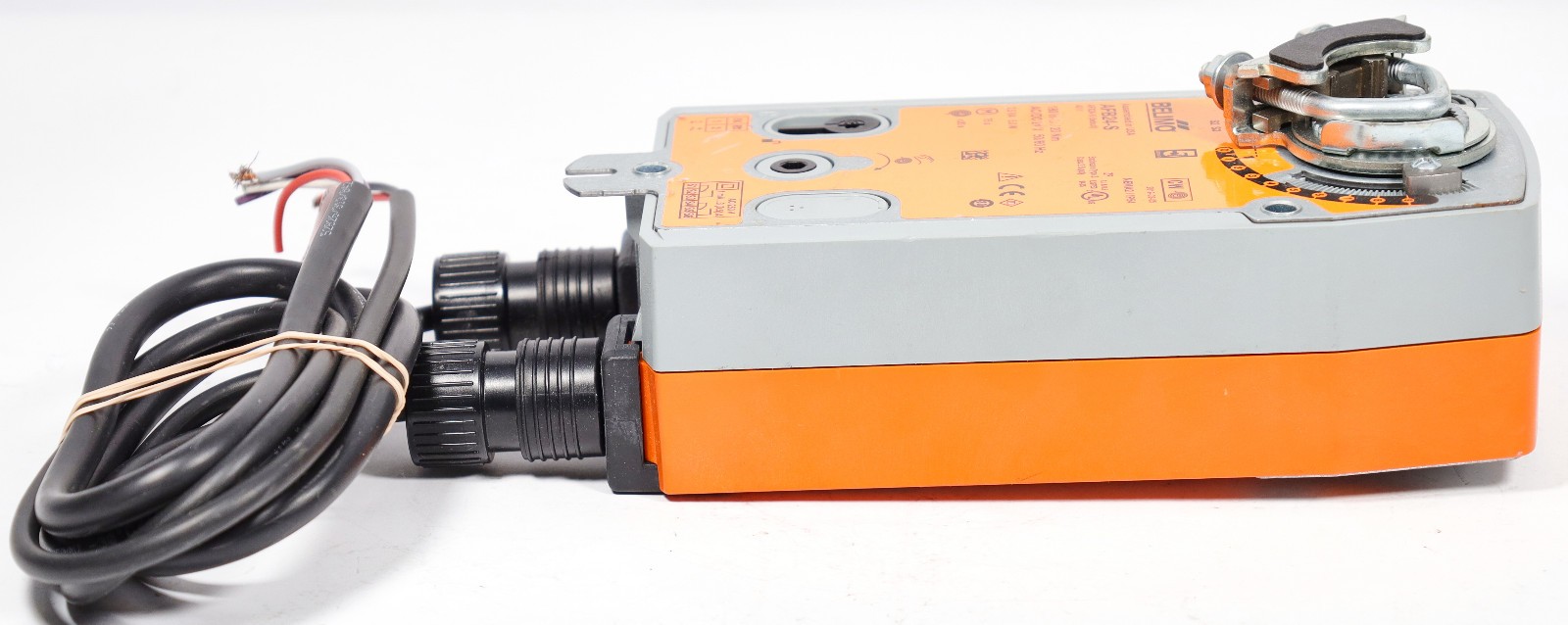

Check the listing for details. Belimo AFB24-S Spring Return Damper Actuator. Condition: Used, Made in United States. Listed at 99.99 USD. Belimo AF24-S Fail-Safe Actuator. Belimo FSLF120-FC Damper Actuator Fire & Smoke. Belimo LF120-S Damper Actuator Fire & Smoke. Belimo FSNF120-FC Fire Smoke Damper Actuator. The AFB24-S is a 24V On/Off fail-safe actuator designed to move large air dampers with precision.
