| Operation Method | On/Off |
|---|---|
| Waterproof Rating | IP66 |
| Custom Bundle | No |
| Cranking Rating | 1200A (30 sec) |
| MPN | 9003E |
| E Series | Yes |
| Continuous Rating | 350A |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Manufacturer Warranty | Lifetime |
| Features | Ignition Protected, Waterproof |
| Case Material | Reinforced Polycarbonate |
| Intermittent Rating | 600A (5 min) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Number of Positions | 2 |
| Color | Red |
| Compatible Model | Marine engines, gas or diesel |
| Switch Type | Single Circuit ON-OFF |
| Dimensions | 3.85 x 3.85 in (97.79 x 97.79 mm) |
| Material | Reinforced Polycarbonate |
| Mounting Type | Surface, Rear, or Front Panel Mount |
| Terminal Stud Size | 3/8-16 (M10) |
| Maximum Voltage | 32V DC |
| Modified Item | No |
| Certification | UL Listed, CE, SAE J1171 |
| Brand | Blue Sea Systems |
| Type | Battery Switch |
| Switch Actuator | Knob |
| Coil Voltage | 6V/12V/24V/32V |
| Ignition Protected | Yes |
| Application | Marine, Boat, RV, Truck |
| Country of Origin | Mexico |

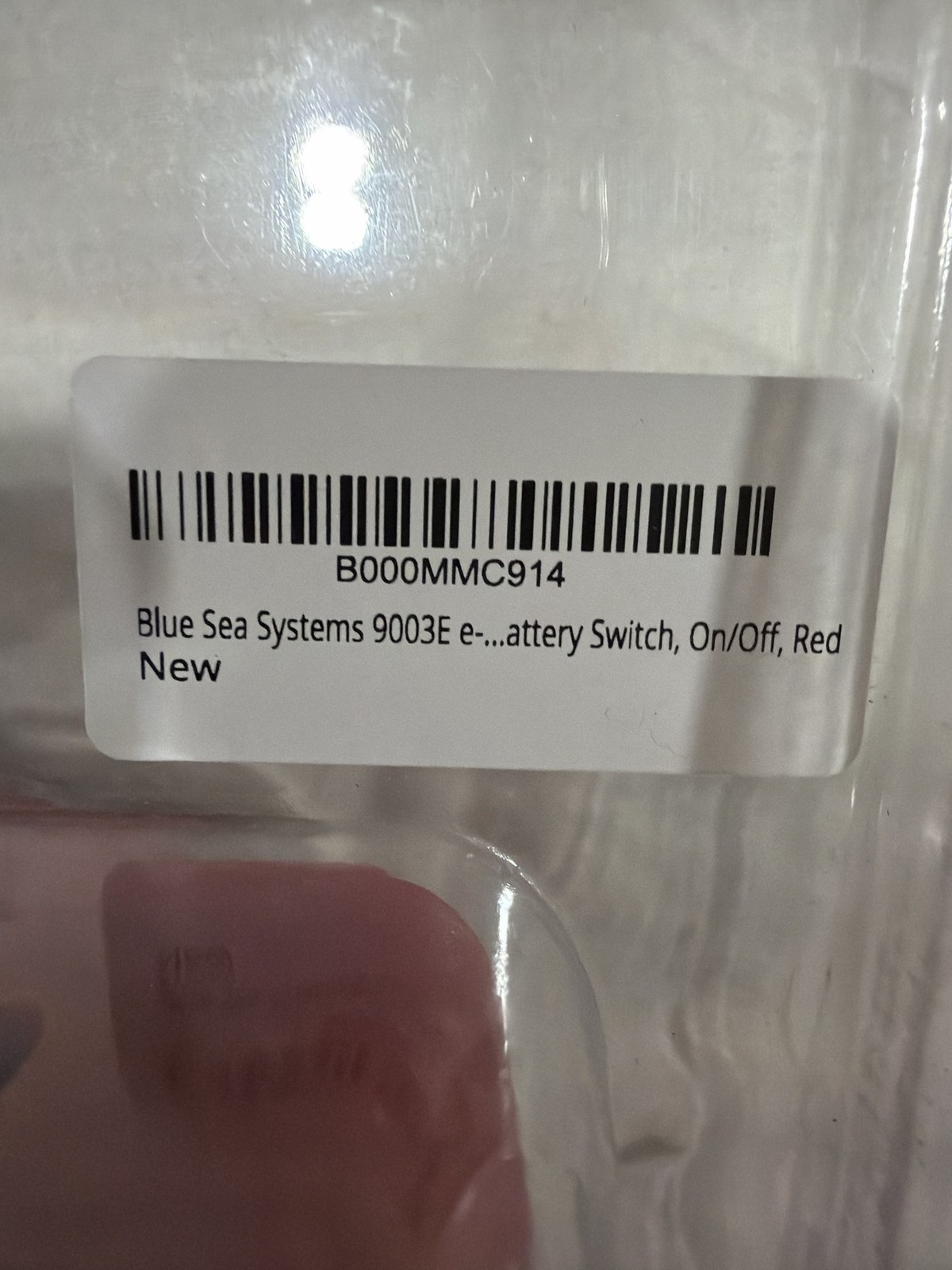

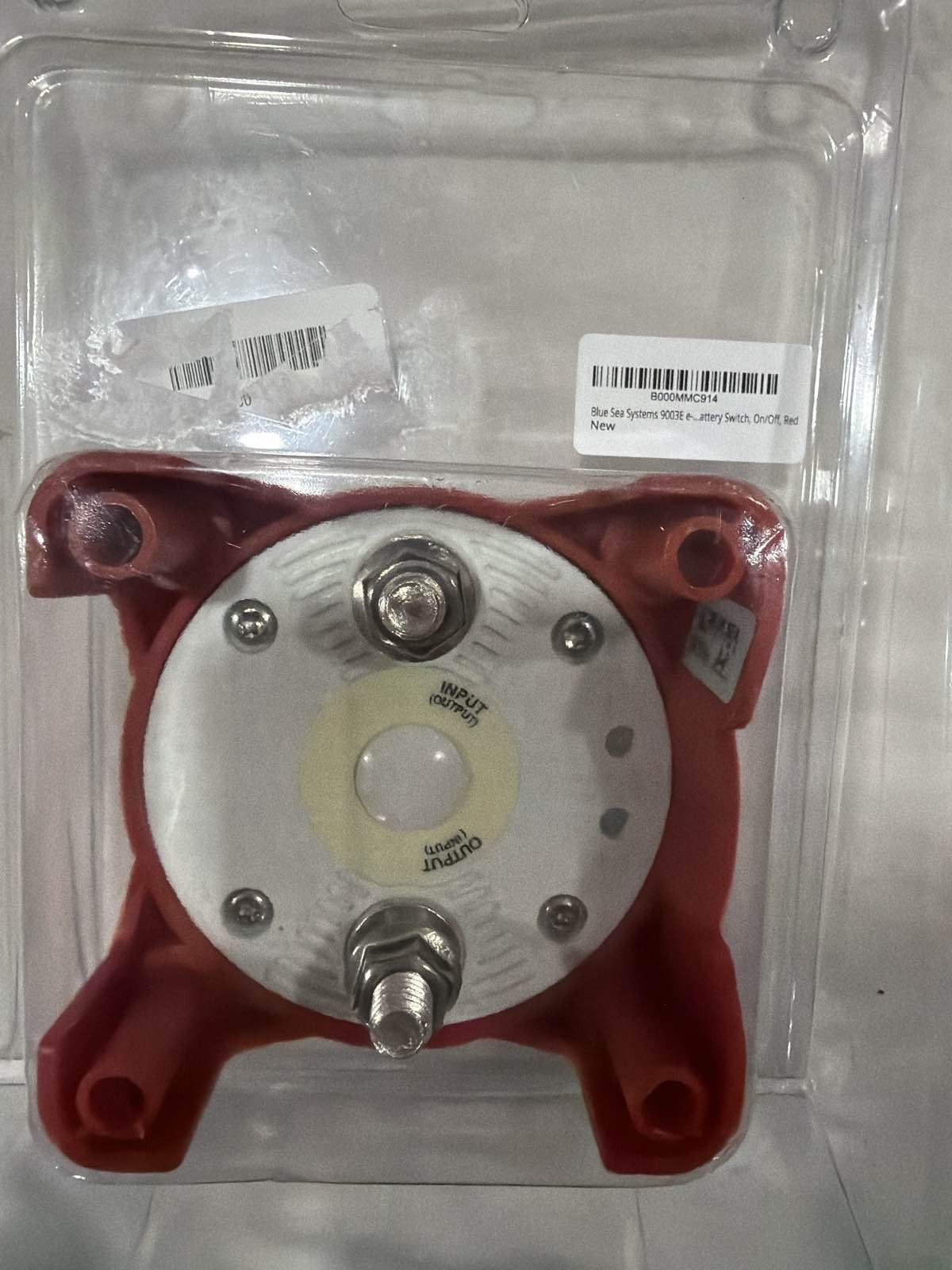

Check the listing for details. Blue Sea Systems 9003E e-Series Battery Switch Single Circuit ON/OFF. Color: Red, Condition: New, Made in Mexico. Listed at 44.95 USD. It features Alternator Field Disconnect (AFD) to protect the alternator diodes if the switch is accidentally turned to the OFF position while the engine is running, ensuring the electrical integrity of your boat or vehicle.
