| Maximum Amperage | 25 amps |
|---|---|
| Power Source | DC |

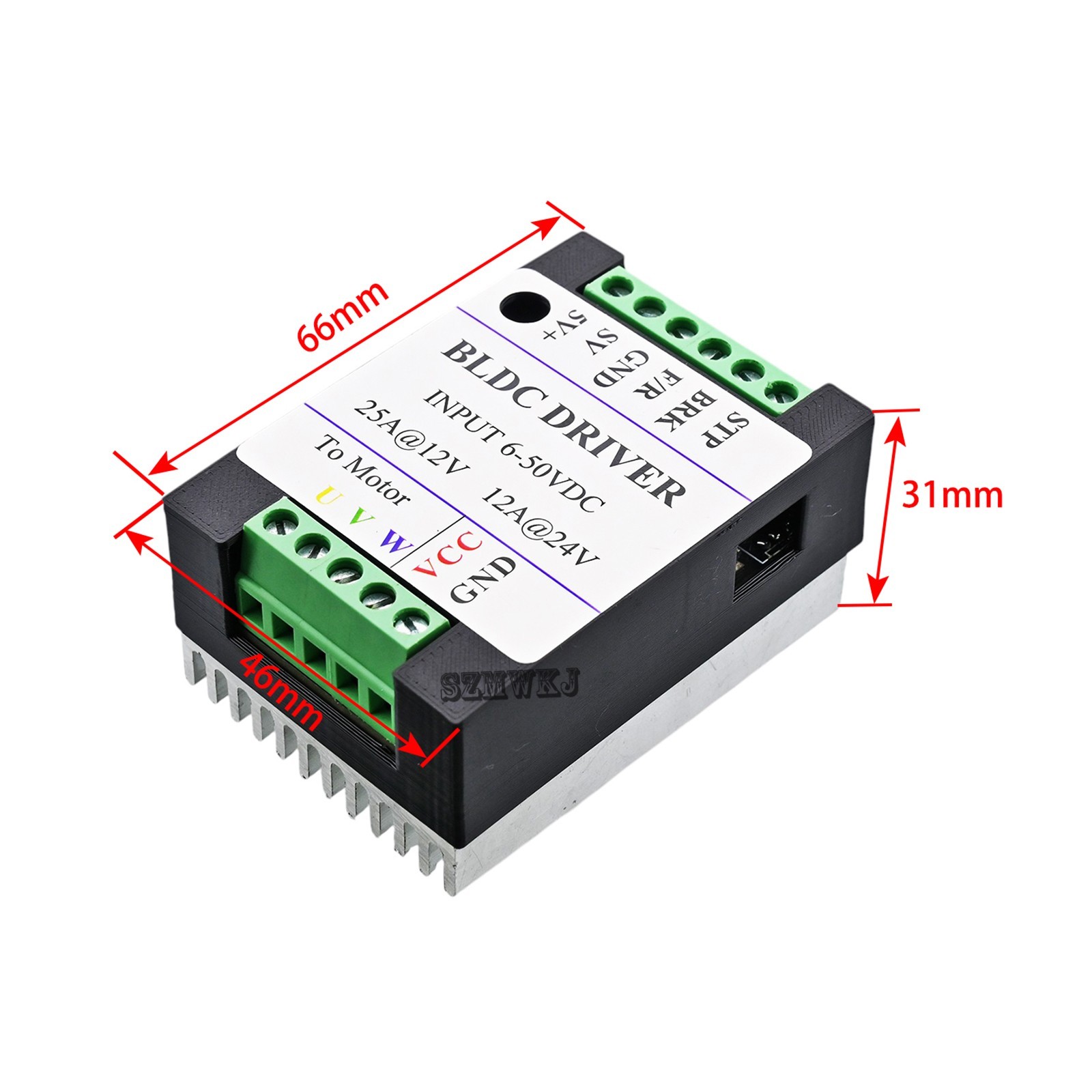

| Dimensions | 66*46*31mm |

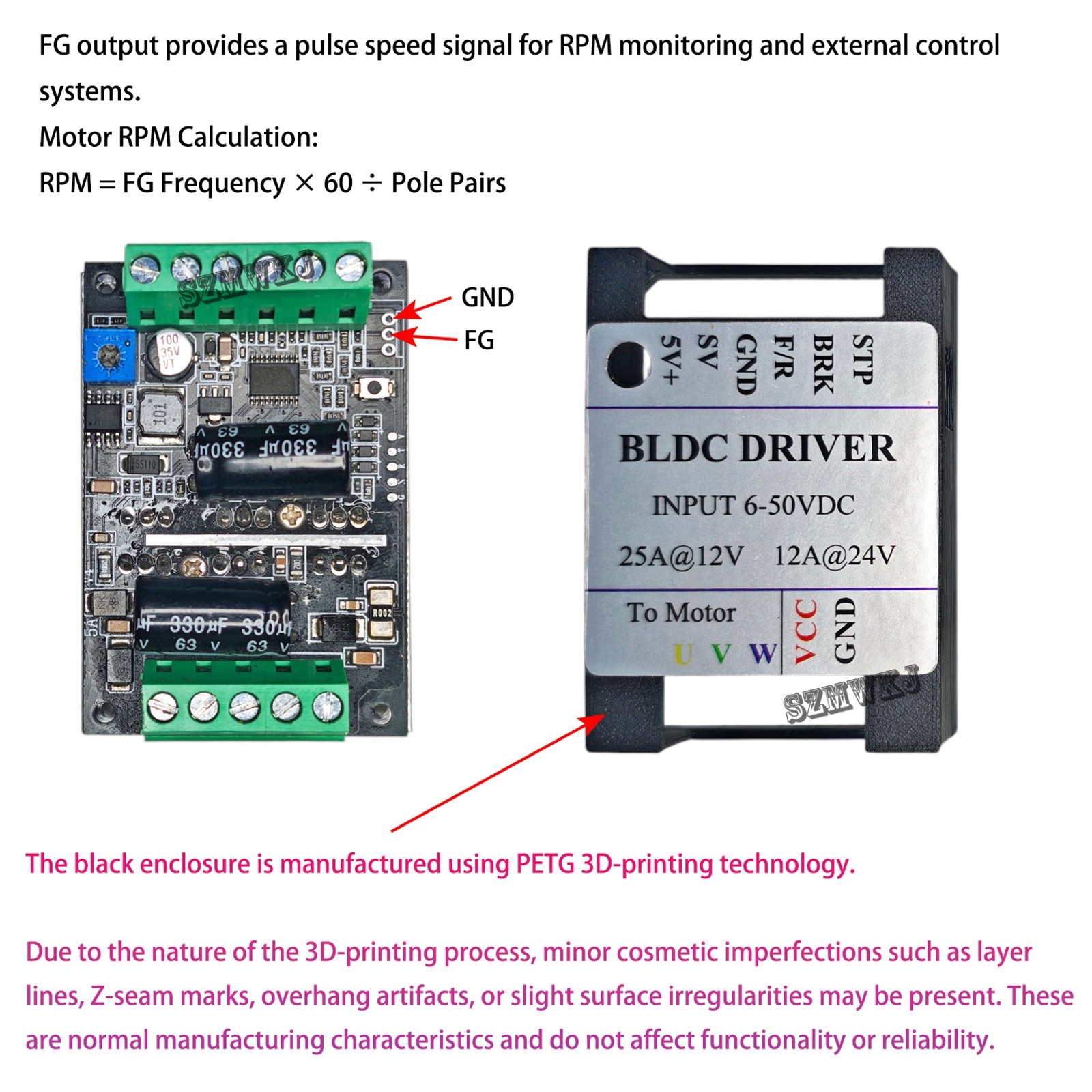

| Functions | Forward / Reverse / Stop / Electronic Brake / FG Speed Output |

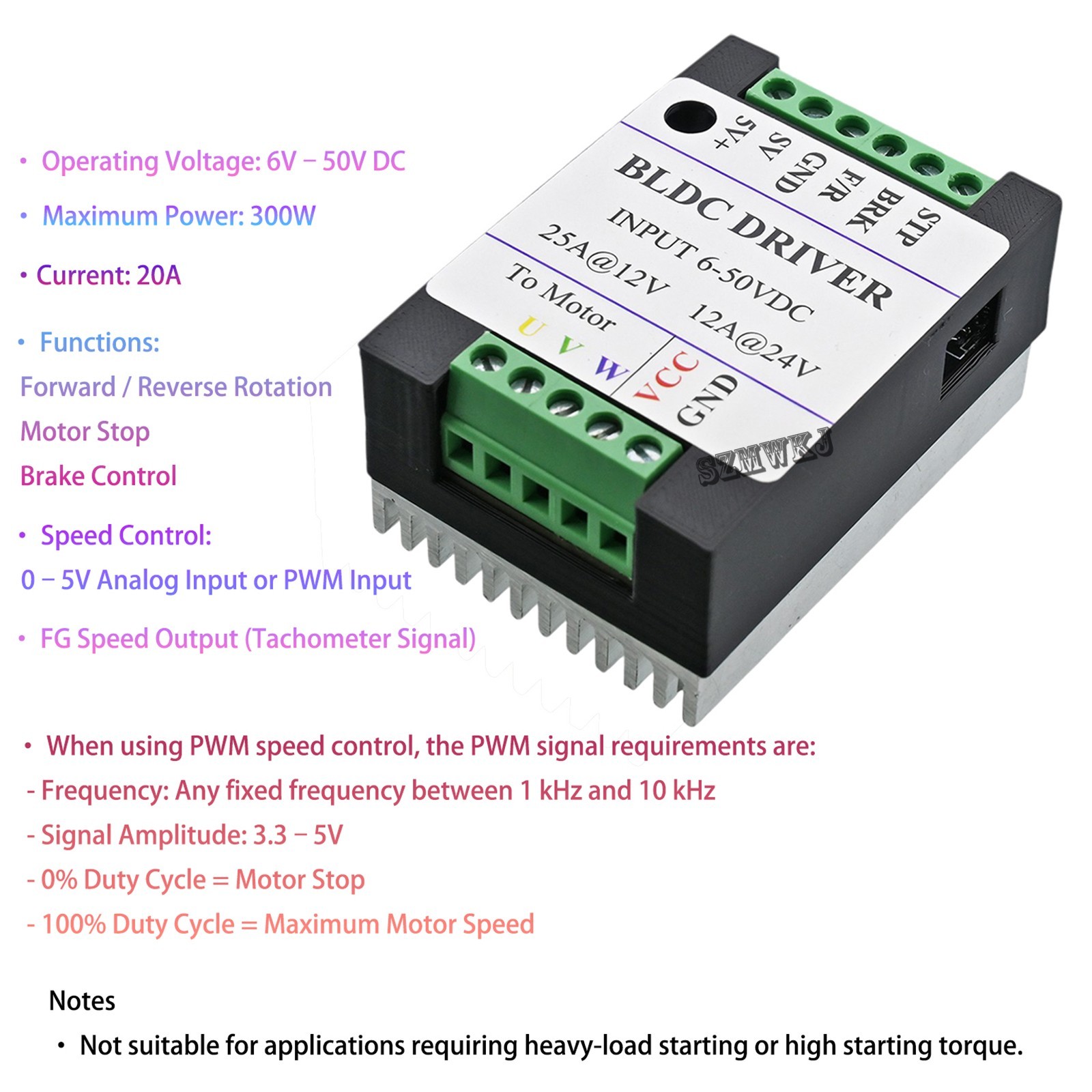

| PWM Input | Frequency: 1kHz-10kHz , Amplitude: 3.3V-5V |
| Brand | SZMWKJ |
| Continuous Power | 300W |
| Operating Voltage | DC 6V-50V |
| Voltage | DC 6V-50V |
| Maximum Current | 25A |
| Motor Type | 3-Phase BLDC Motor |
| Supported Motors | Up to 10 Pole Pairs |

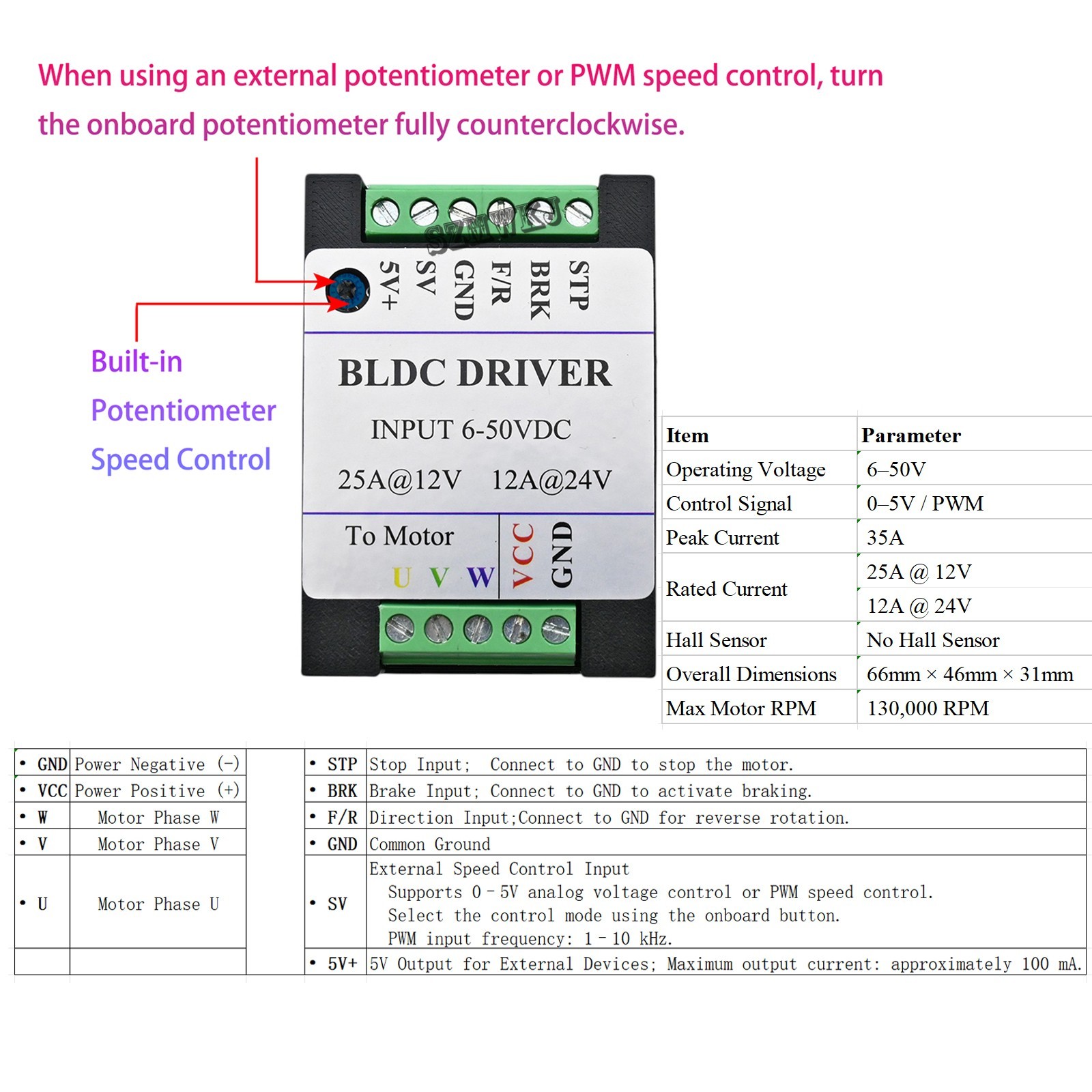

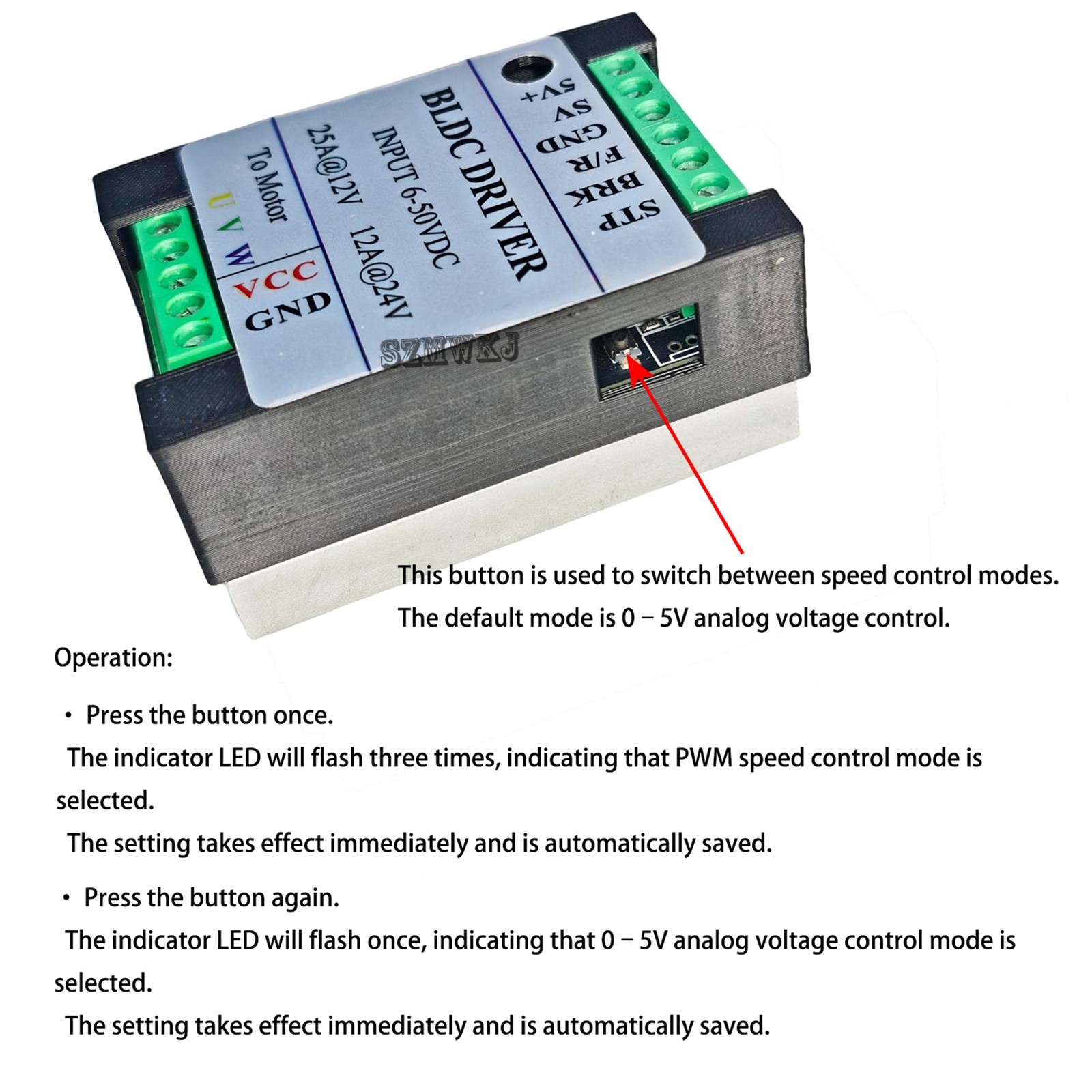

| Speed Control | Built-in Potentiometer / 0-5V Analog Input / PWM Input |
| Net Weight | 100g |
| Country of Origin | China |

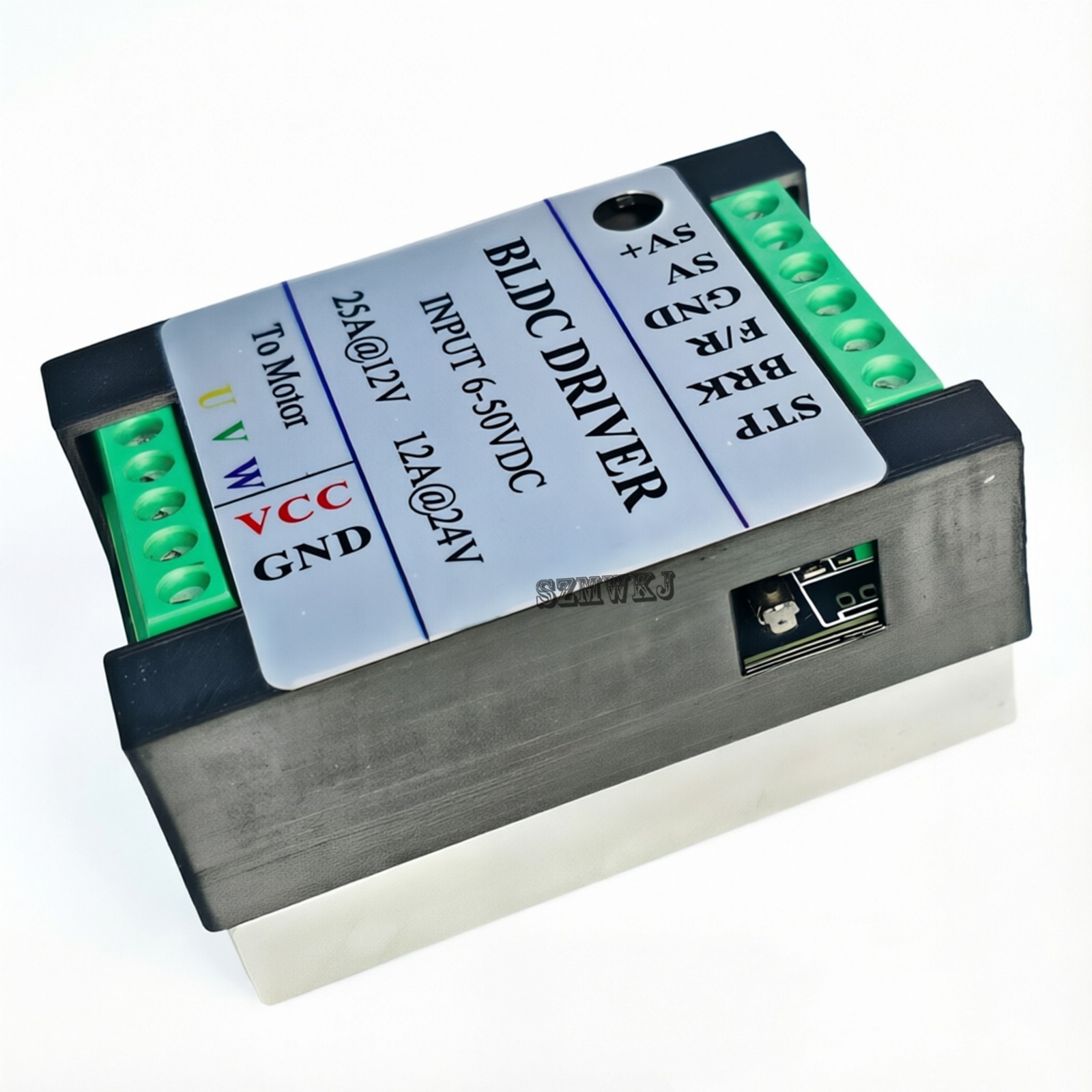

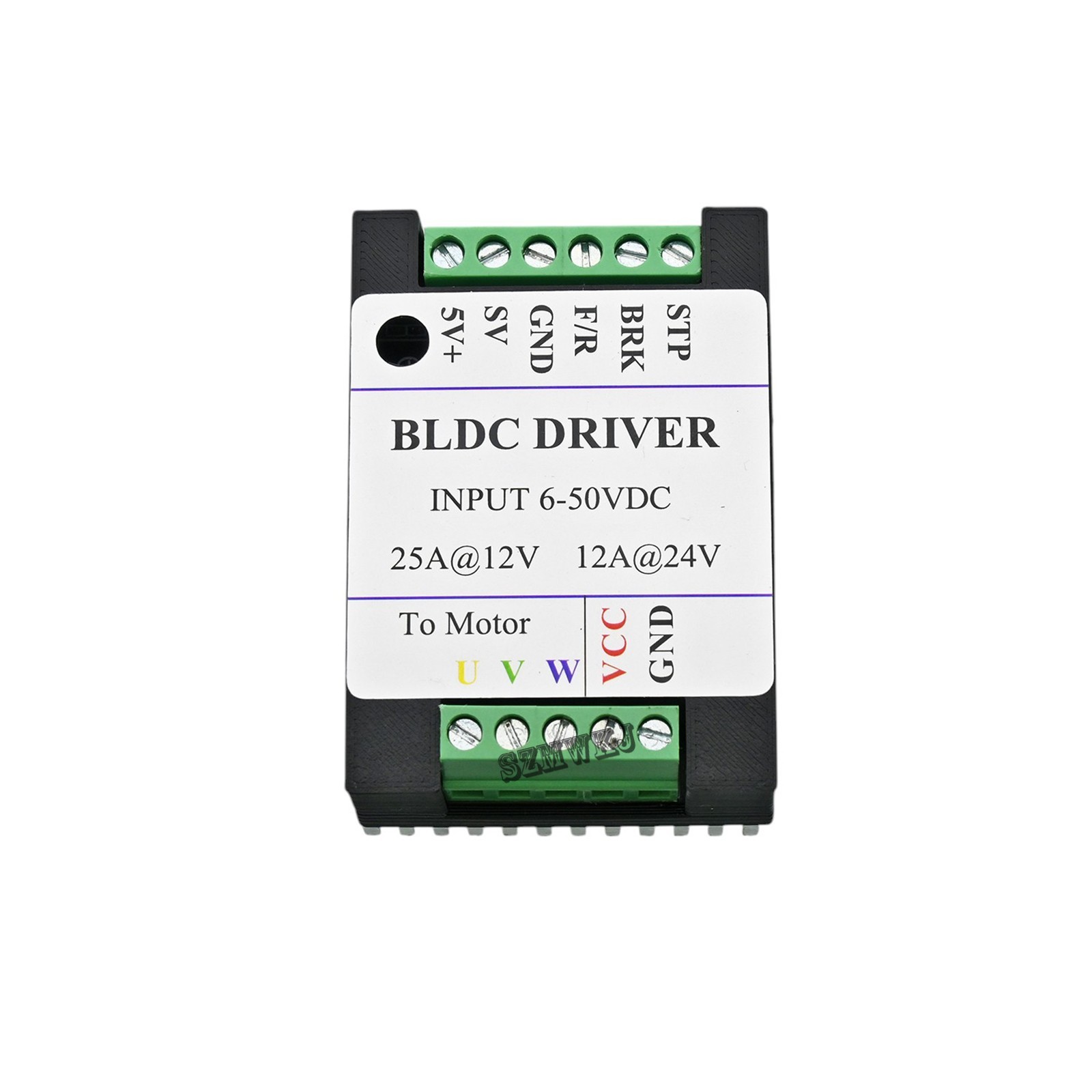

Check the listing for details. Brushless BLDC Motor Driver Sensorless PWM Controller DC12V 24V 36V 48V 25A 300W. Condition: New, Made in China. Listed at 19.99 USD. • Supports Sensorless Three-Phase BLDC Motors. 3-Phase BLDC Motor. • Continuous Output Power up to 300W. • Continuous Power: 300W. • Maximum Current: 25A. • PWM Input • Motor Stop Function. Only the motor phase wires (U, V, and W) are required for operation.
