| Brand | BURNDY |
|---|---|
| MPN | KSA2/0 |
| UPC | 781810559031 |

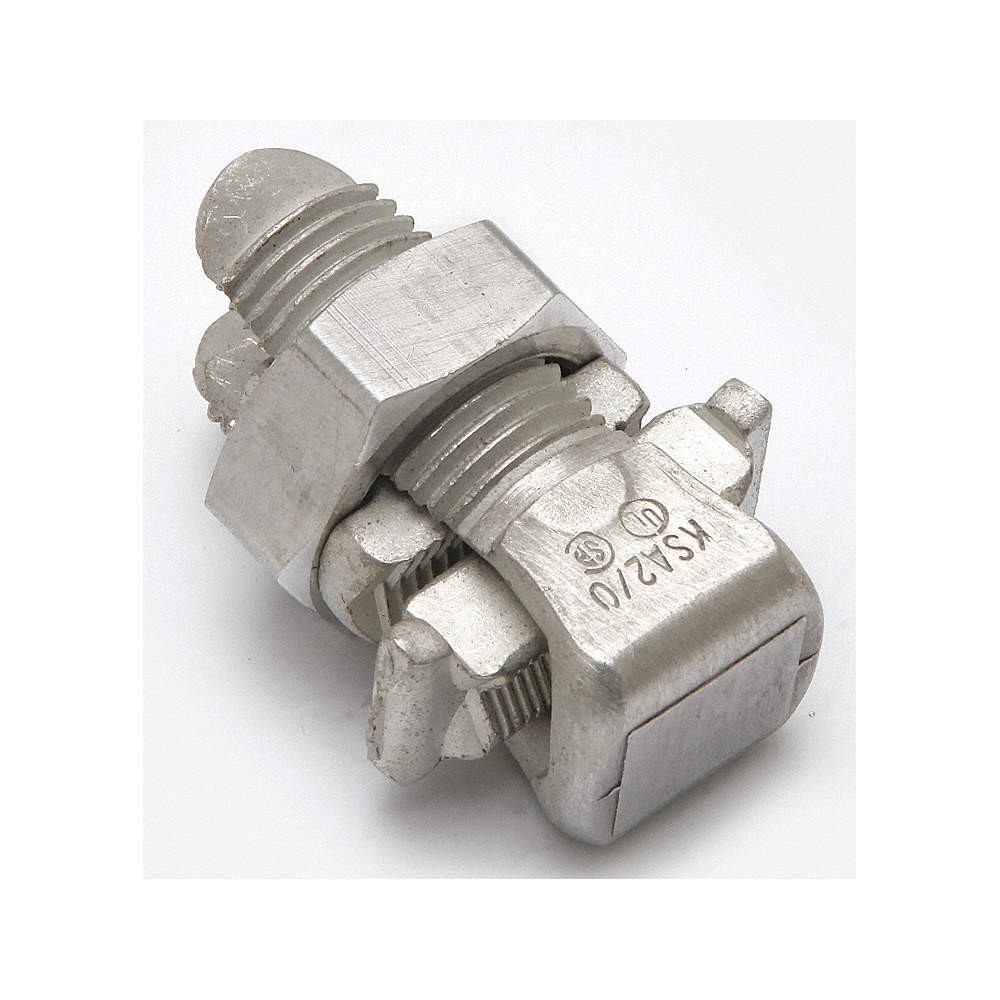

Check the listing for details. BURNDY KSA2/0 Split-Bolt Conn,Tin Pltd,Al,Square Head 22C167. Condition: New. Listed at 62.70 USD. Split-Bolt Connector, Body Finish Tin Plated, Body Material Aluminum, For Conductor Material Aluminum, Copper, For Minimum Run Wire Size 2 AWG, For Maximum Run Wire Size 2/0 AWG, For Minimum Tap Wire Size 8 AWG, For Maximum Tap Wire Size 2/0 AWG, Head Style Square Head, Hex Nut Size 1.12 in, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35,000 V, Torque 385 in-lb, Overall Length 1.92 in, Overall Width 0.88 in, RoHS Compliant Yes, Standards CSA Certified, UL 468A, UL 486B, UL 486D Split-Bolt Connector is highly resistant to cracking and corrosion. Provides maximum pressure and a secure connection on all combinations of run and tap conductors.
