| Brand | Uxcell |
|---|---|
| Model | LW28-20 CO4/2 |
| Country of Manufacture | CHINA |
| Main Color | Black, Silver Tone, Blue |
| Material | Plastic & Metal |
| Net Weight | 115g |
| Package Content | 1 x Changeover Switch, 4pcs x Screw |
| Overall Size | 49 x 49 x 72mm / 1.93" x 1.93" x 2.83" (L*W*H) |
| Action Type | Latching |
| Ith | 20A |
| Ui | 550V |
| Positions | 2 |
| Terminals Quantity | 8 |
| Size | 2 P, 8 T, Ith 20A |
| UPC | 714998077899 |

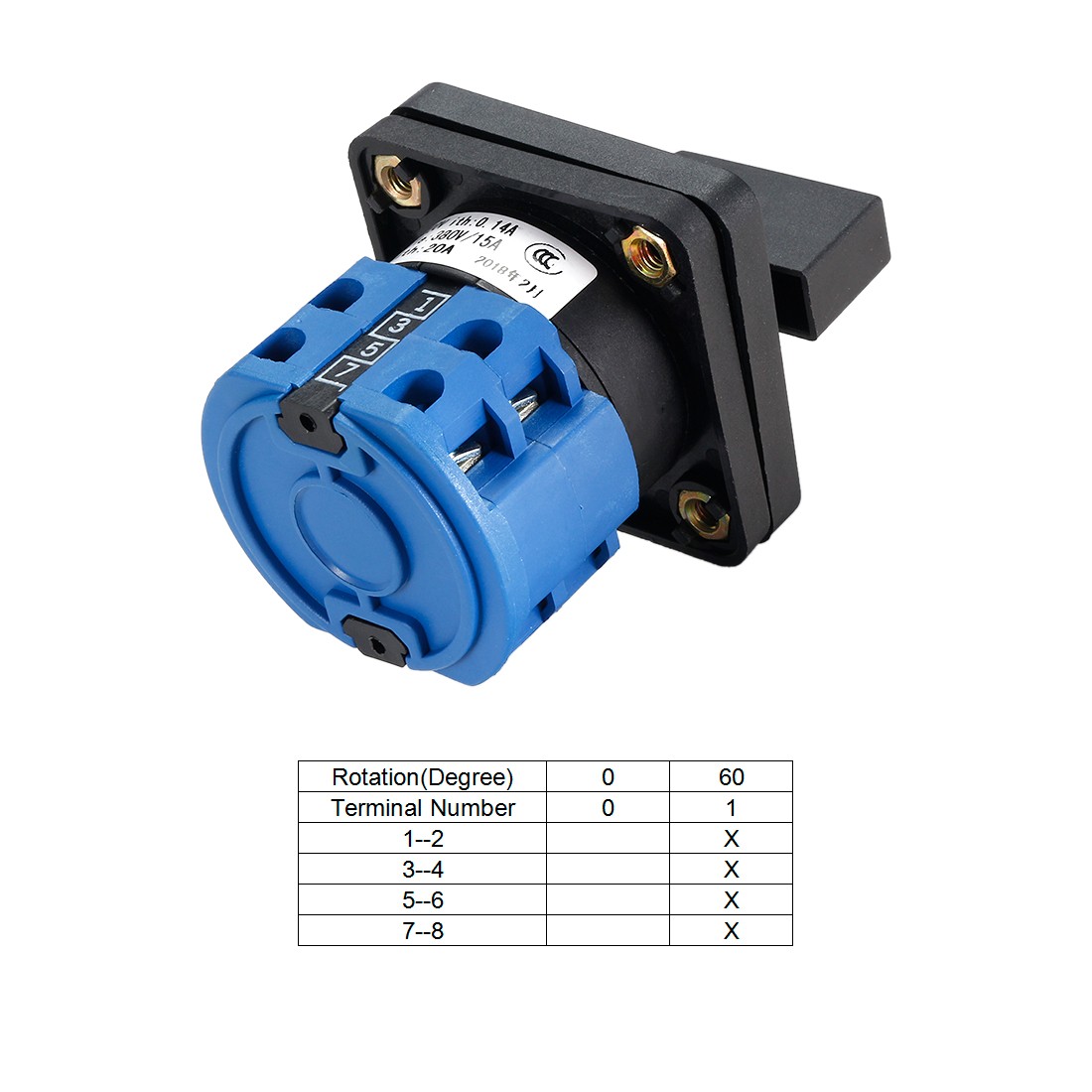

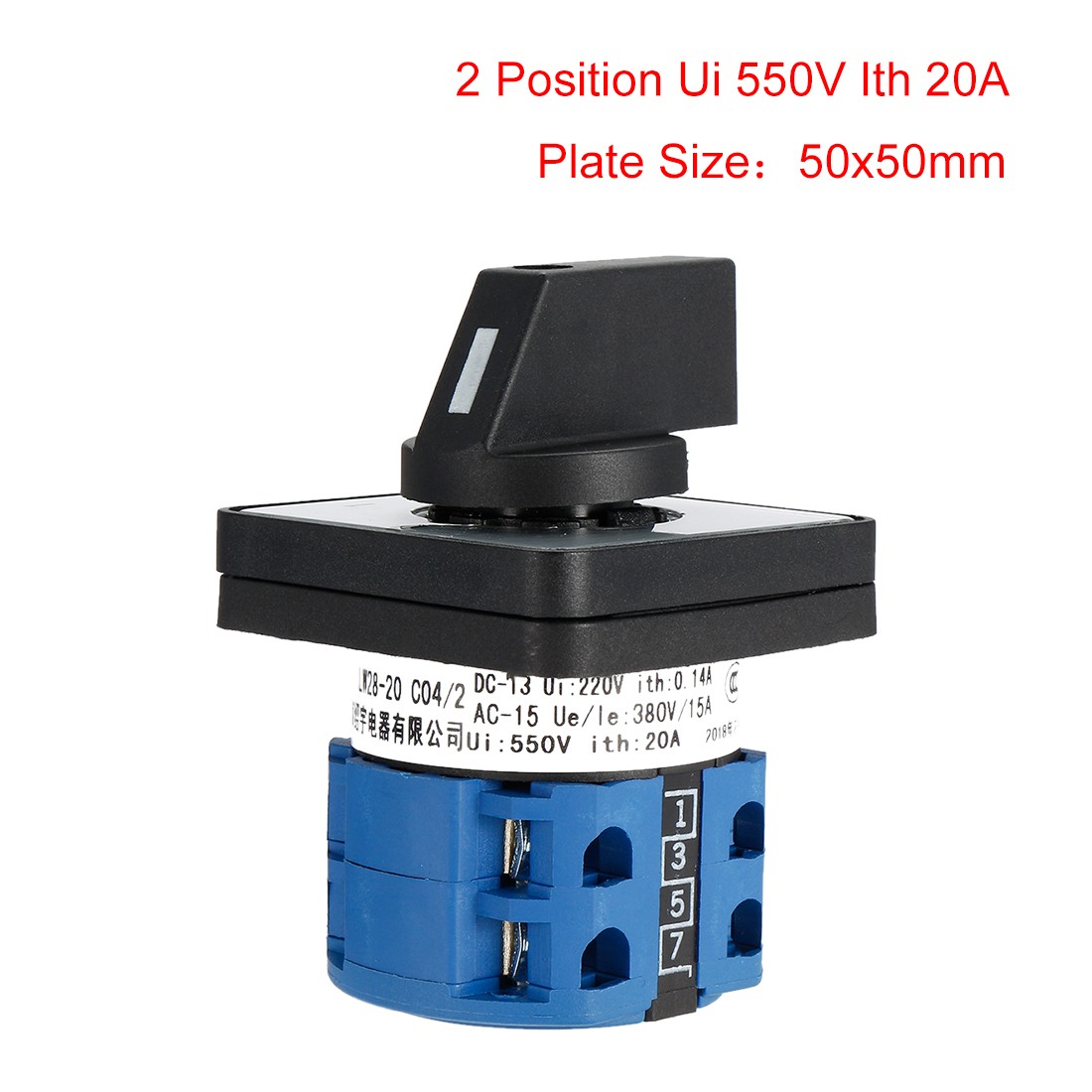

Check the listing for details. Changeover Switch 2 Place Rotary Selector Cam Switch 8 Terminal Latching. Condition: New. Listed at 16.17 USD. Descriptions:*Suitable for the thickness between 1mm to 4mm of the mounting board.*Rotary selector design switch, easy to control, square plate and screws for easily mounting.*Changeover switch mainly suitable for electrical wiring in the power switch and asynchronous motor start-up, reversing, speed switches, also can make the conversion of the control circuit. Specification:*Model: LW28-20 CO4/2*Positions: 2*Terminals: 8*Ui: 550V ; Ith: 20A*Action Type: Latching*Positioning angle: 0-60 Degree*Mounting Type: Plate, Screw*Mounting Hole Distance: 36mm x 36mm / 1.41inch x 1.41inch (L*W)*Overall Size: 49mm x 49mm x 72mm / 1.93inch x 1.93inch x 2.83inch (L*W*H)*Rating: DC-13: Ui: 220V, Ith: 0.14A ; AC-15: Ue / Ie: 380V / 1.5A Package Content :*1 x Changeover Switch, 4pcs x Screw.
