| Measurement Range | 0-50 KG |
|---|---|
| Expiration Date | None |
| Shield | Unshielded |
| Creep | ±0.05%F.S/30min |
| Temperature effect on output | ±0.05%F.S/10℃ |
| Output Type | None |
| Cable length | 3m |
| MPN | None |
| Wanranty | 3 Years |
| Zero output | ±1%F.S |
| Current Type | DC |
| Accuracy | 0.05%F.S (linearity + hysteresis + repeatability) |
| Unit Type | Unit |
| Termination Type | Cable |
| Sensor Type | Solid State |
| Protection class | IP67 |
| Safety overload | 150%F.S |
| Compatible Mounting Type | Surface Mount |
| Unit Quantity | 1 |
| Input impedance | 700Ω or 1400Ω |
| Insulation resistance | ≥5000MΩ |
| Contact Form | None |
| California Prop 65 Warning | None |
| Brand | DAYSENSON |
| Temperature effect on zero | ±0.05%F.S/10℃ |
| Sensitivity | 2.0±0.1mV/V |
| Response time | 3-4ms |
| Bridge voltage | DC 5~10V |
| Country of Origin | China |
| Operating temperature | -20℃~+80℃ |

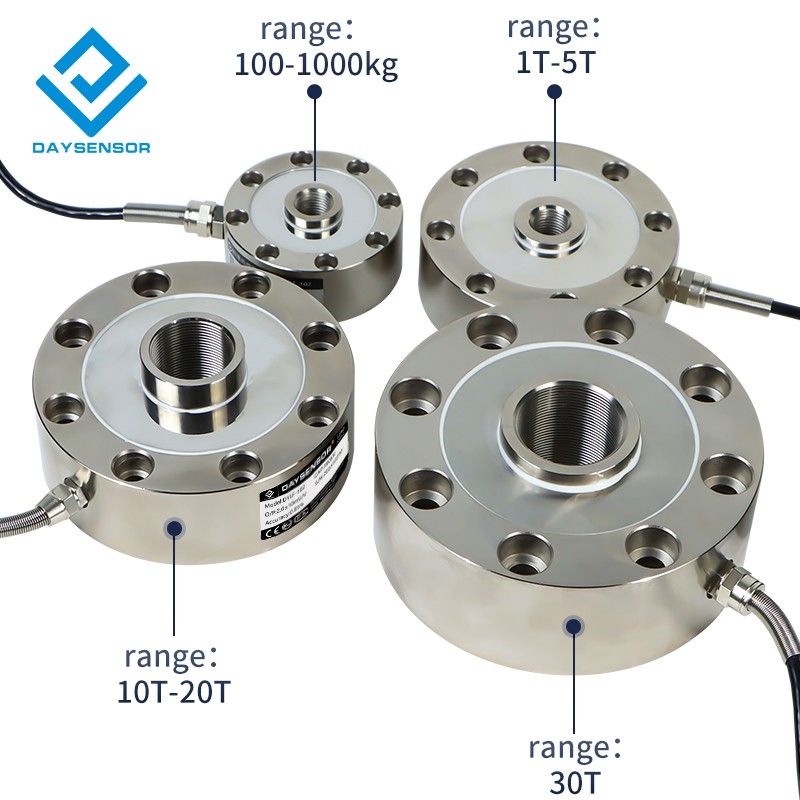

Check the listing for details. DAYSENSOR Spoke Type Load Cell Sensors Scale Weigh Force Capacity 50KG - 500T. Condition: New, Made in China. Listed at 65.99 USD. Dynamic/Static Transducer. Customized output signal is 0-5V, 0-10V, or 4-20mA. Load Cell Sensor. 4、Order Revision✏️.
You may also like
$13.99
10 pc Elegoo HC-SR04 Arduino Ultrasonic Sensor
$157.5
New In Box INGERSOLL RAND 39538079 Temperature Sensor
$16.06

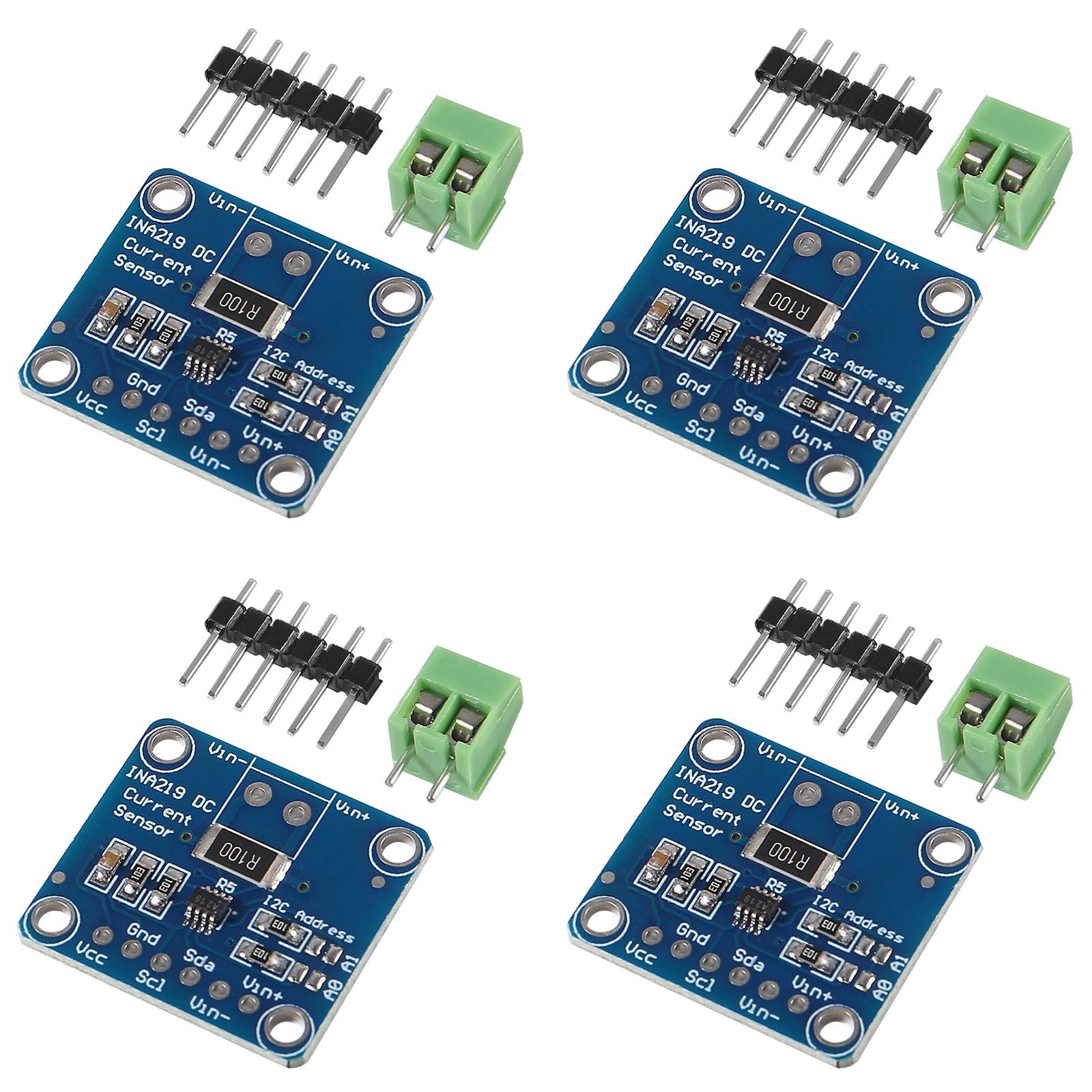

4Pcs INA219 I2C Bi-Directional DC Current Power Supply Sensor Breakout Board ...
