| Operation Mode | ON-OFF |
|---|---|
| Current Rating | 15 Amps |
| Operating Voltage | 250 Volts |
| Contact Type | Normally Open |
| Connector Type | Clamp |
| Switch Type | Push Button |
| Terminal | Screw |
| Circuit Type | 3-way |
| Mounting Type | Panel Mount |
| Actuator Type | Plunger |
| Number of Positions | 1 |
| Upper Temperature Rating | 50 Degrees Celsius |
| Controller Type | Push Button |
| Control Method | Touch |
| Connectivity Protocol | Auxiliary |
| Wattage | 250 watts |
| Compatible with Vehicle Type | Any Vehicle |
| Control Type | Manual |
| Compatible Devices | Appliances, Machinery, Electronic Devices |
| Smart Home Compatibility | Not Smart Home Compatible |
| Item Dimensions | 1.97 x 2.36 x 0.71 inches |
| Unit Count | 1.0 Count |
| Number of Items | 1 |
| Material Type | Metal |
| Contact Material | Metal |
| International Protection Rating | IP54 |
| Specification Met | CE |
| Model | Z-15GQ-B |
| Manufacturer | RENEW Electronic Co.Ltd |
| upc | 670534168929 |
| Part Number | Z-15GQ-B3 |
| Color | Black |
| Item Length | 1 |
| Item Height | 1 |
| Item Width | 1 |
| Country of Origin | China |
| UPC | 670534168929 |

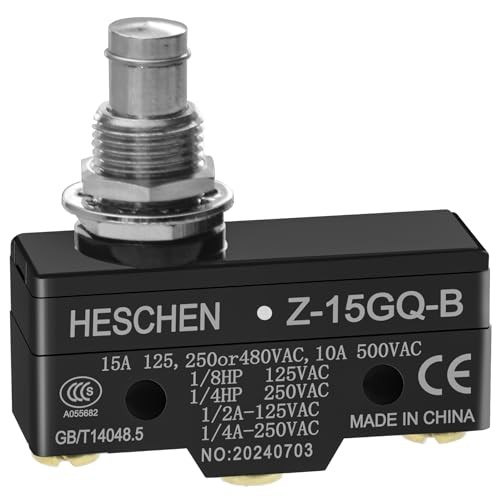

Check the listing for details. General Purpose Micro Switch Z-15GQ-B, Panel Mount Plunger, Medium OP, 3. Color: Black, Condition: New, Made in China. Listed at 12.87 USD. Actuator Type: Panel Mount Plunger.
