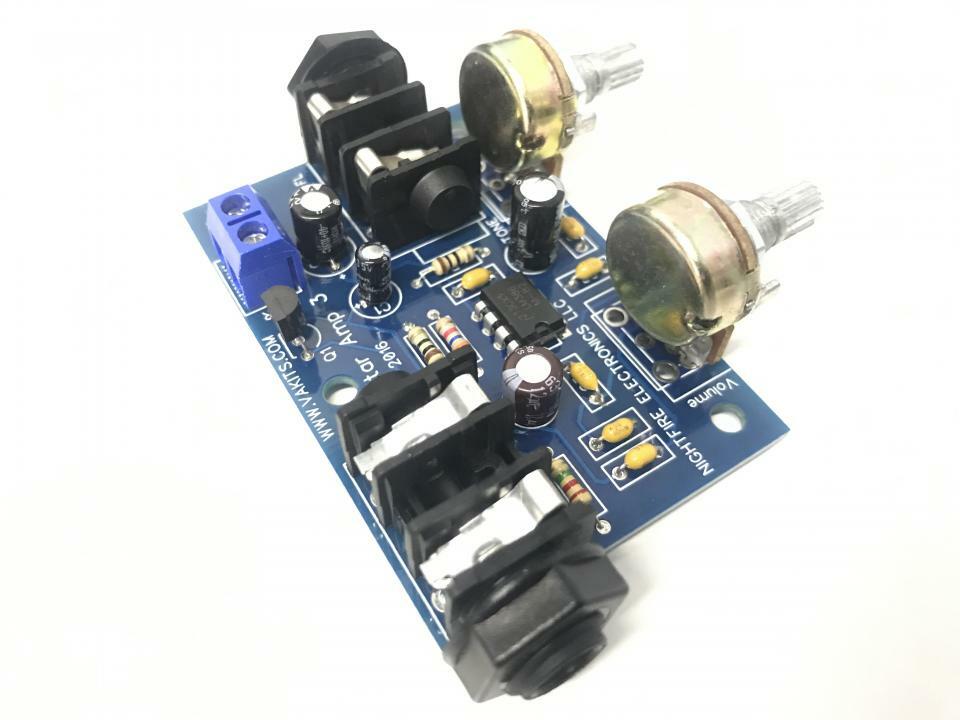

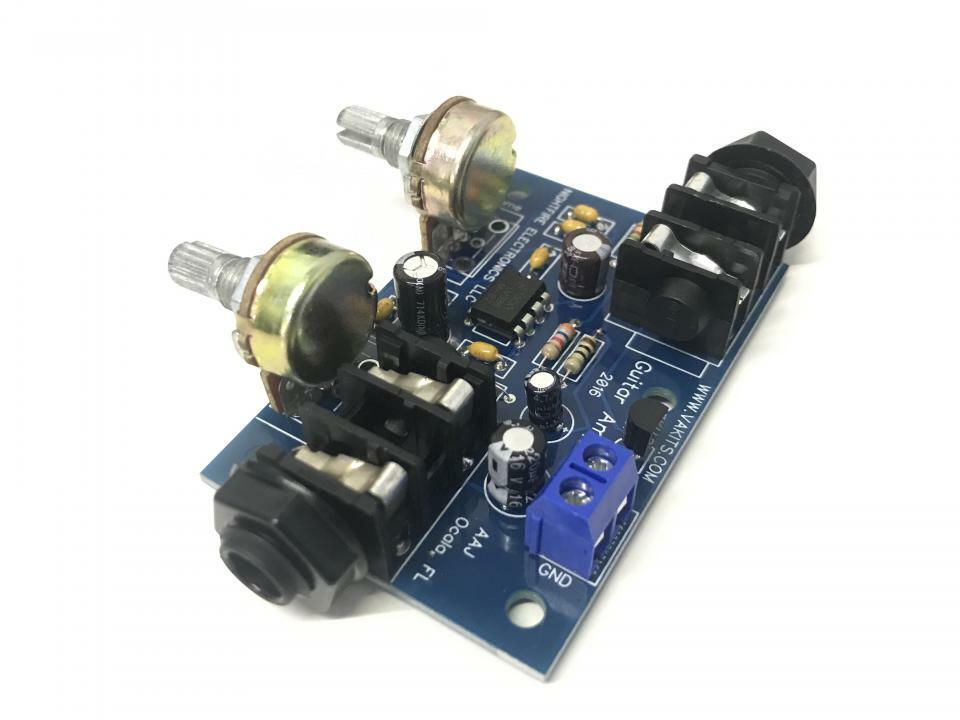

Check the listing for details. Guitar Mini Amplifier Kit (#1127). Condition: New. Listed at 12.99 USD. This is the Guitar Amplifier Kit. This is a fun and easy kit to build. It uses an LM386 Audio Amplifier IC to amplify an Electric Guitar input and will drive a set of Headphones or it can directly drive a speaker. It has a Volume and Tone control for a nice sound. The output power of the LM386 is a minimum of 350mW. The circuit has been designed for a very small foot-print. The PCB is double-sided, plated thru-holes, 1.20" long x 2.20" wide made of .062" FR-4 epoxy glass with 1-oz copper. It has green Solder Mask (LPI) on both sides with white Silk Screen on the Top side. It includes two mounting holes. This kit is also offered with a "Built & Tested" option for those that do not want to build the kit themselves. It can run off a 9v battery, but does better with 12vdc. It has a 1/4" Phono Jack (female) to fit a Guitar cable (male) and a 2-pin screw Terminal for the power input and a 1/4 inch phono jack for the speaker output. This kit does not include the tools you will need to assemble the circuit. You will need tools such as a soldering iron, solder, wire cutters, etc.
