| Brand | uxcell |
|---|---|
| Type | A/V Receiver |
| Model | / |
| Net Weight | 0.009 |
| UPC | 041814481623 |

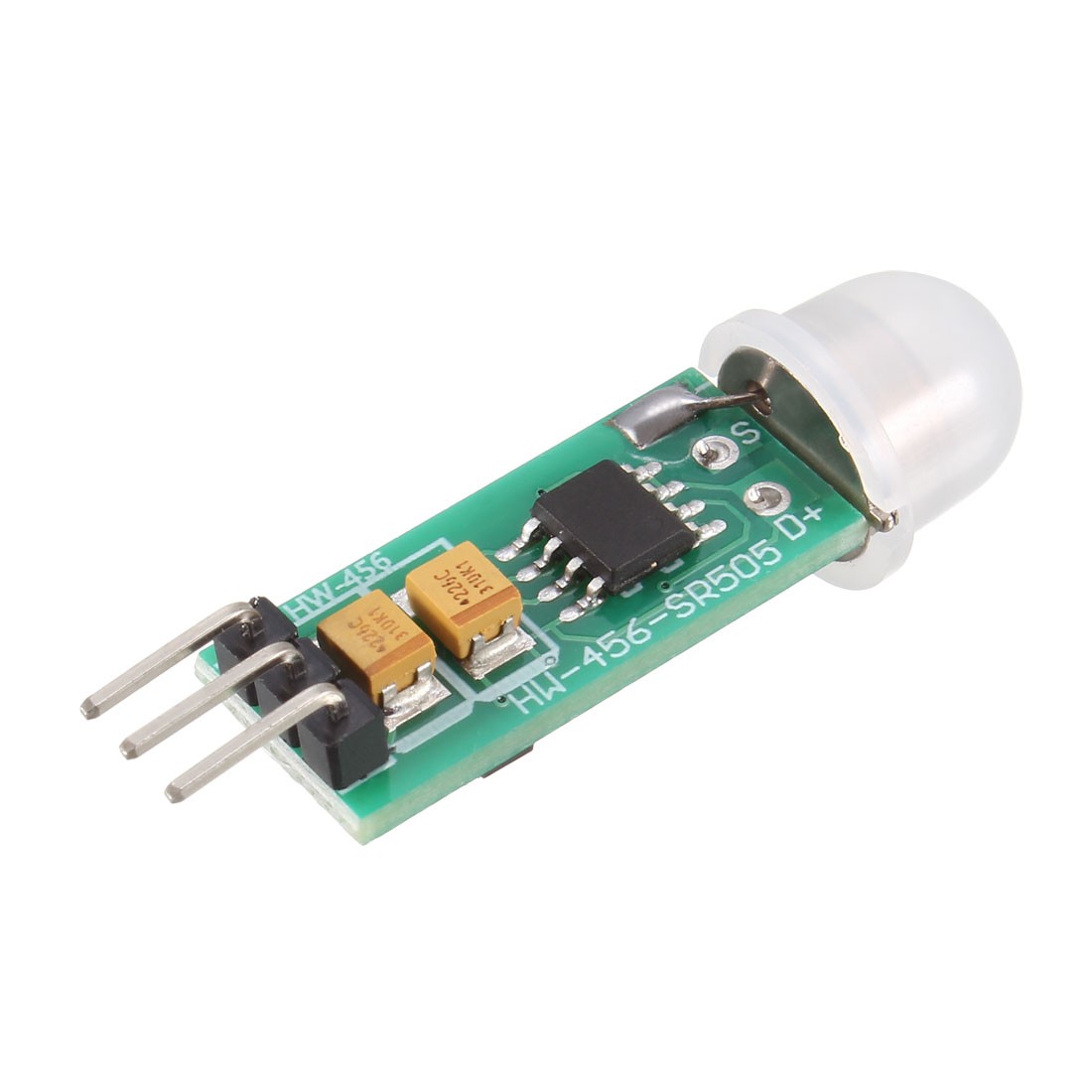

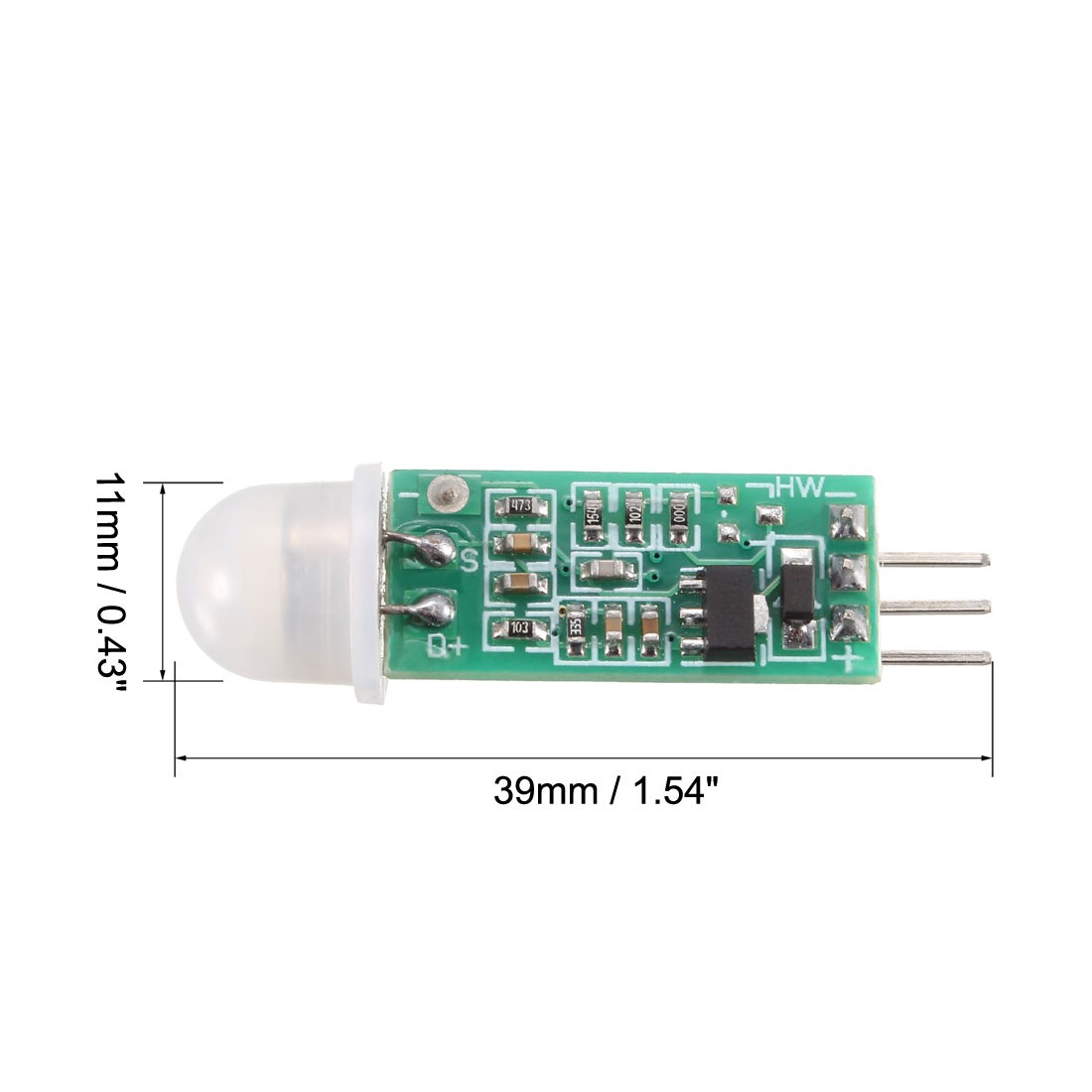

Check the listing for details. HC-SR505 Mini Infrared PIR Human Motion Sensor Detector Module. Condition: New. Listed at 10.10 USD. Application:Without interference from radios around the module.Widely used in your robot project, DIY lighting projects and automatic control products, etc.About wiring:keep the lens on right and 3 pin you can see:up pin: +, for DC input, positive power supplymiddle pin: for output, detecting human motion,then output high electrical leveldown pin: -, for functional earthing, negative power supplySpecification:Working Voltage: DC 4.5 -20 VOutput Electrical Level: High 3.3V / Low 0VSensing Range: less than 100 degree cone angle, 3 meter / 9.8 ft (depending on the lens)Trigger Type: repeatable trigger modeStatic Power Consumption:
