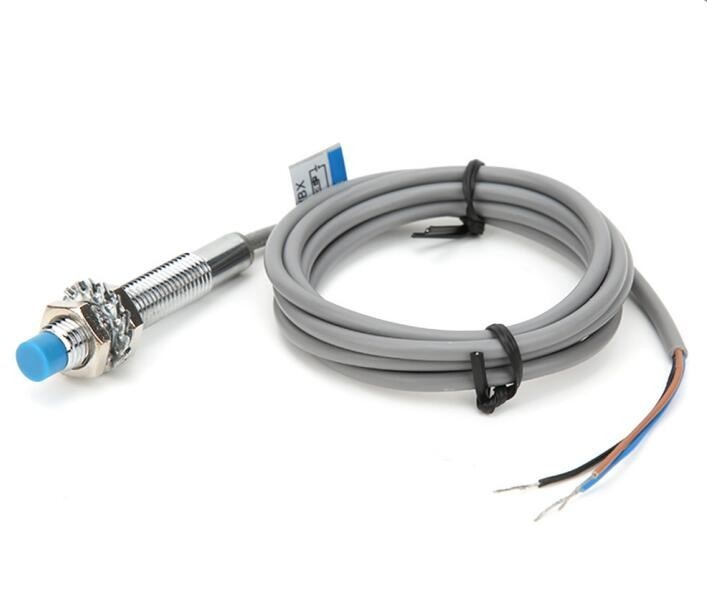

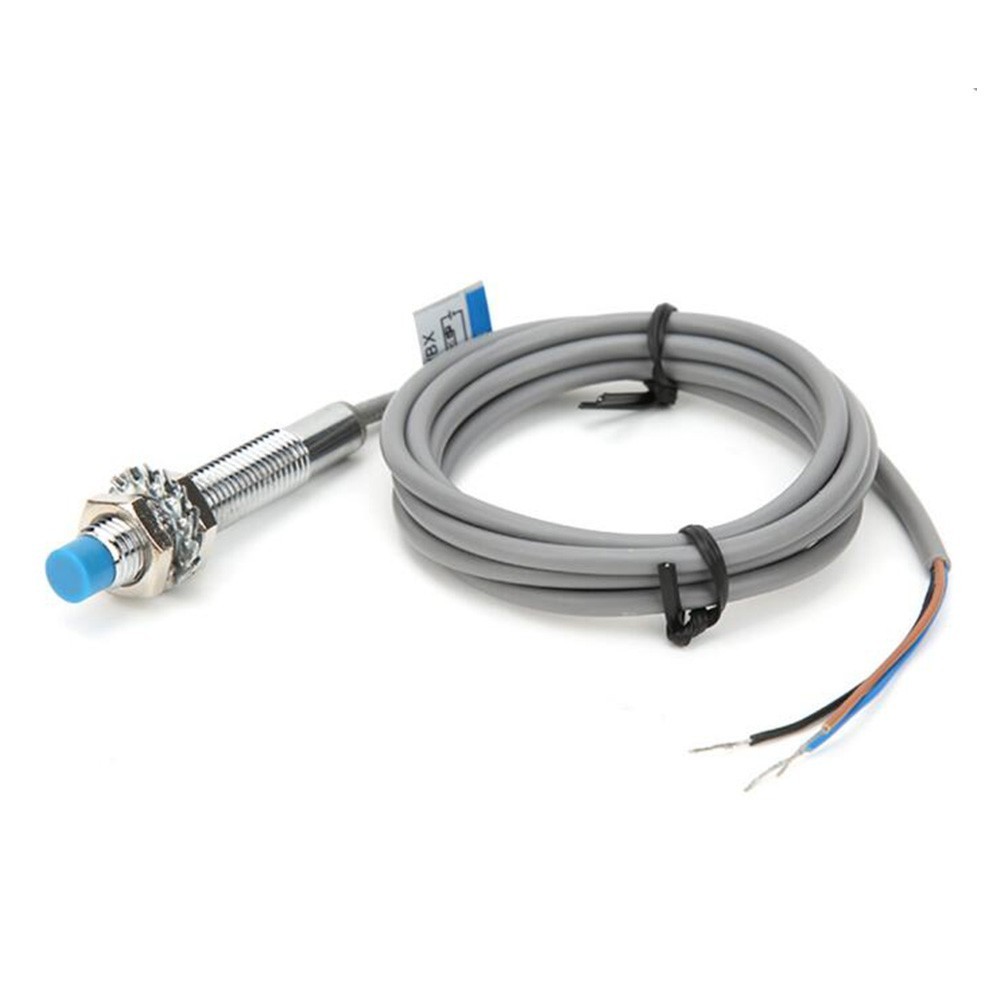

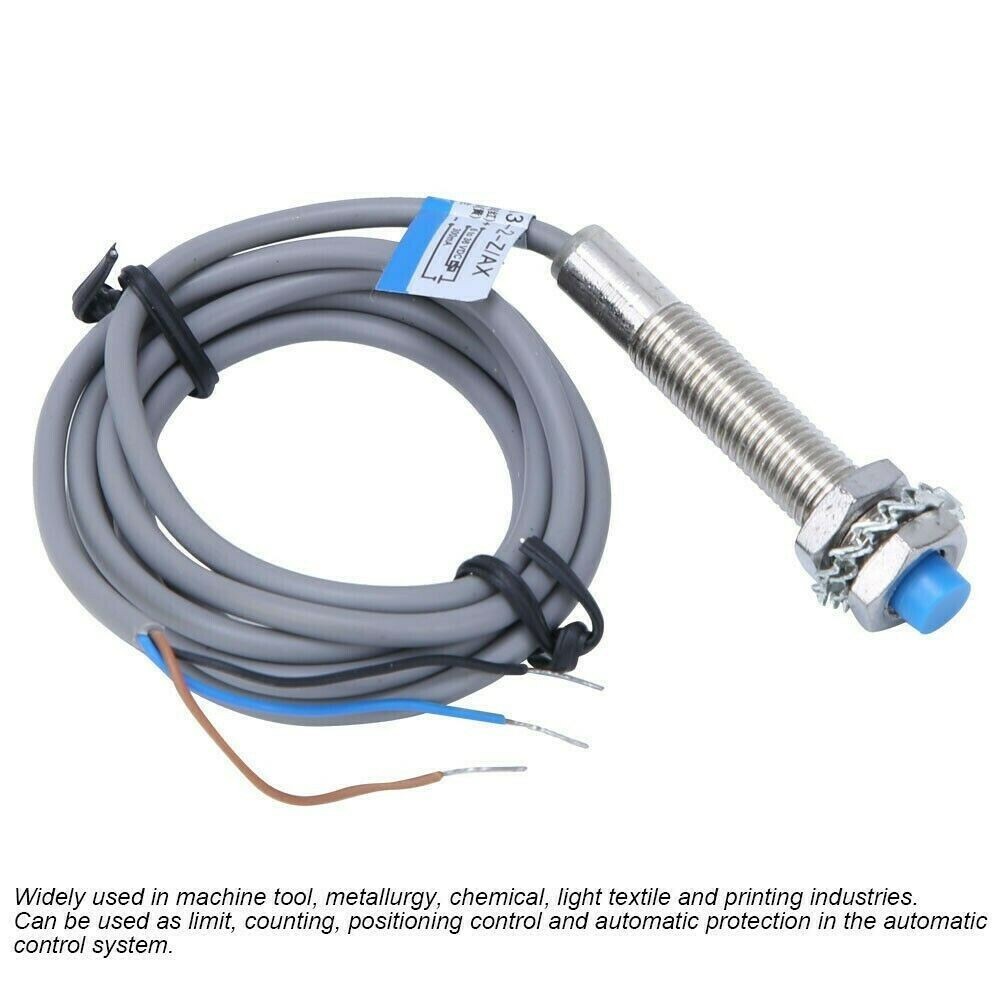

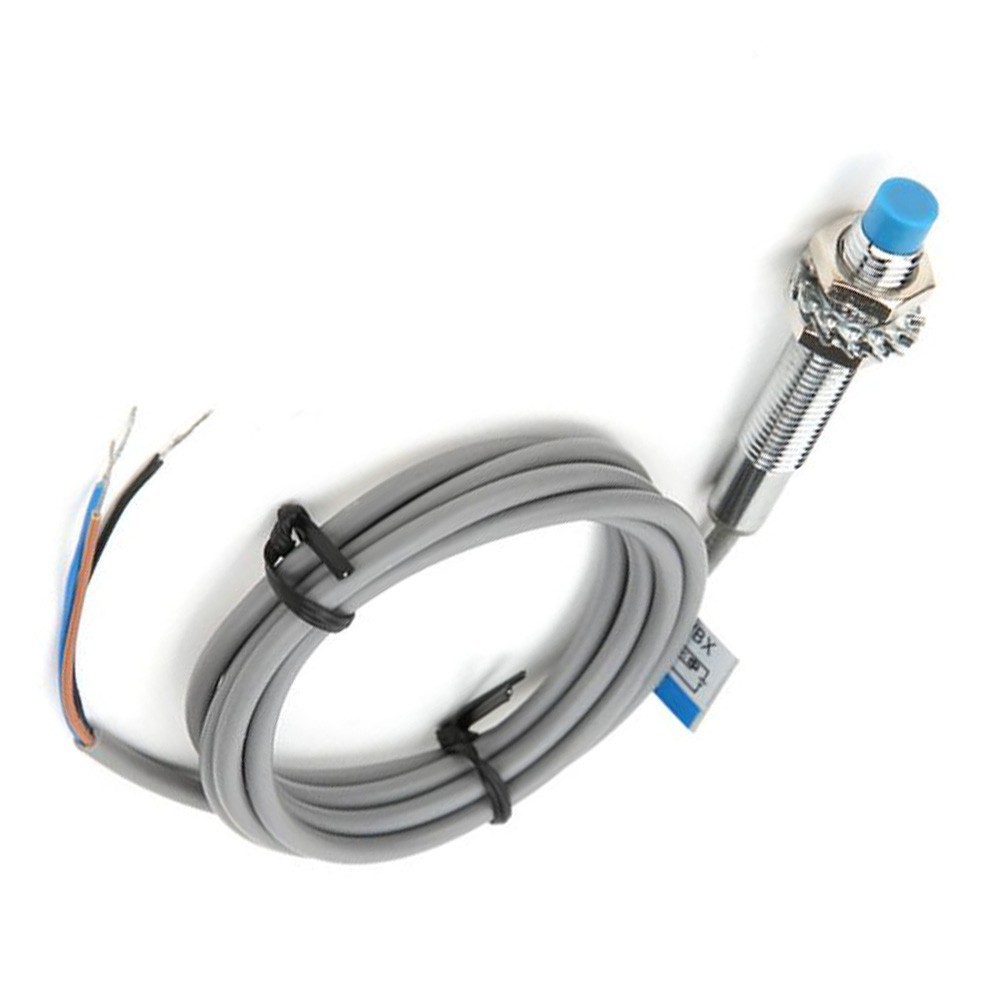

High Quality M8 NPN NO Inductive Switch with Red LED Output Indication

Name: High Quality M8 NPN NO Inductive Switch with Red LED Output Indication
SKU: 366513165791
Price: 11.02 USD
Availability: InStock

$7.71

$11.02 -30%

Brand Unbranded

Condition New

Item ID 366513165791

Brand	Unbranded
Package Contents	1*Inductive proximity switch

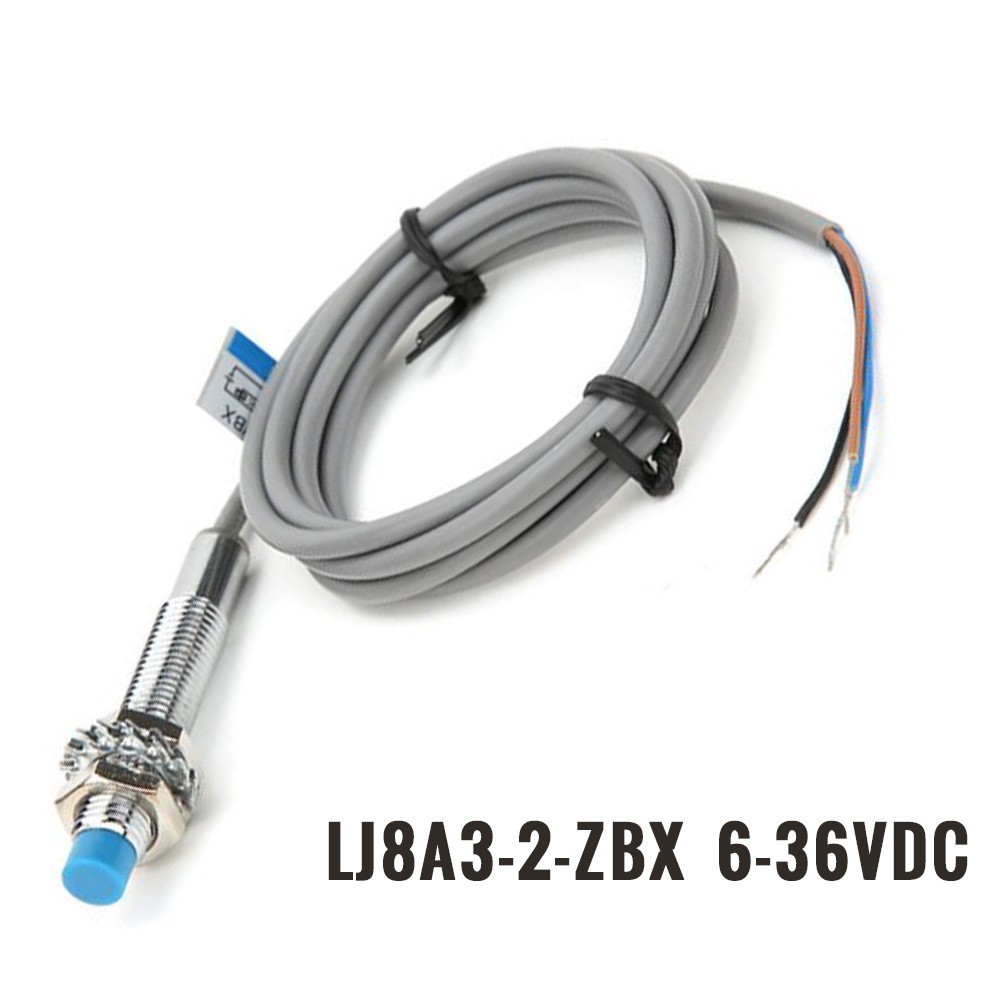

Model	LJ8A3-2-Z/BX
Dimensions	M8x50
Installation type	shield
Detection distance	2mm
Power supply voltage	6-36Vdc
Output current	DC max 300mA
AC type	400mA
Standard test object	low carbon steel (12x12x1mm)
Sensing object	magnetic metal
Response frequency	500Hz
Output indication	red LED
Short circuit protection	NO
Reverse connection protection	Yes
Insulation resistance	50MΩ minimum
Dielectric strength	1000Vac, 1 minute
Protection level	IP65
Operating temperature	25 to 70°C (13 to 158°F)
Cable length	1.2m, PVC cable
Material	Case brass nickel plated
Sensing surface	ABS
Country of Origin	China

Check the listing for details. High Quality M8 NPN NO Inductive Switch with Red LED Output Indication. Condition: New, Made in China. Listed at 11.02 USD. M8 cylindrical NPN inductive for proximity switch normally open (NO). Inductive for proximity switch. Output indication: red LED. Standard test object: low carbon (12x12x1mm). Output current: DC 300mA.
