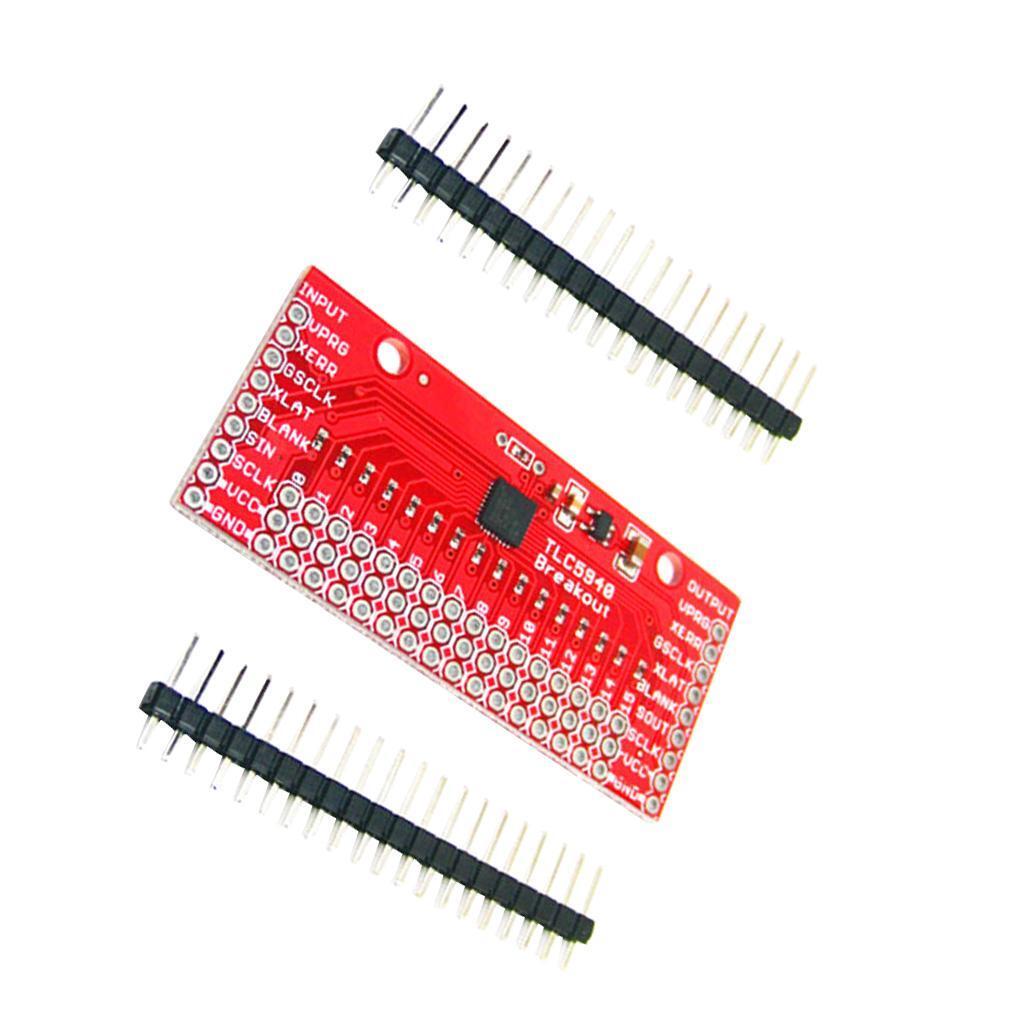

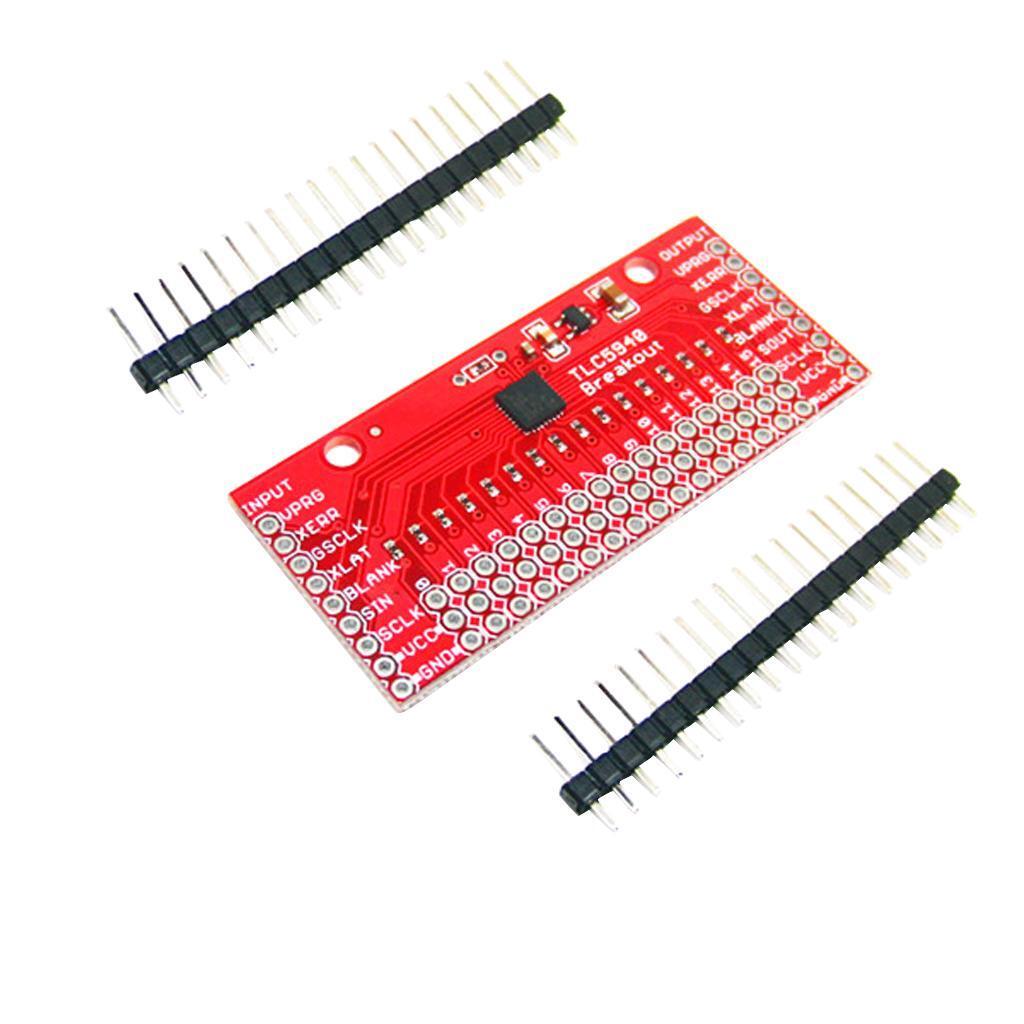

Check the listing for details. LED Driver Breakout - TLC5940 (16 Channel) LED Control Board DIY Module. Condition: New. Listed at 11.26 USD. Store Home | eBay Motors | Business & Industrial | Consumer Electronics | Home & Garden | Cell Phones & Accessories | Sporting Goods | Toys & Hobbies | Health & Beauty | Travel LED Driver - TLC5940 (16 Channel) LED Control Board DIY Module Description: The TLC5940 is channel unit with 12 bit duty cycle control (0-4095), current limit control (0-63), and a daisy chainable serial This board is a good way to take of this useful All 16 channels are broken out to standard 0.1" headers, which run alongside convenient and ground rails. Also, because the TLC5940 can be daisy-chained, the is designed to support that feature. On the left-hand of the board all serial inputs are broken out to 0.1" headers and likewise with output on the right-hand Specification: Use this board to increase the number of pins available to your for applications such as Monocolor, Multicolor or Full Displays, LED Signboards, Display Backlighting, Servo control, or any other project where a large number of drivers are necessary. Size: Approx. 32x 3.5mm/ 2.36x 1.26x 0.14inch Package Includes: 1 Piece LED Driver Note: While each 3-pin header is 0.1" spaced, the space between each header is slightly larger in order to accommodate servo connections. In order to make this board suitable for use with servos, 2 pull s have been included on each output as Finally, the 2 on the pin sets the output current to 17.8mA but a parallel through-hole connection is provided for an additional to increase the current if necessary. To determine the value you need for a given output check the equations provided on the schemat Shipping And Handling Policy People always bought together with
