| All returns accepted | ReturnsNotAccepted |
|---|---|
| Brand | OPENMV |

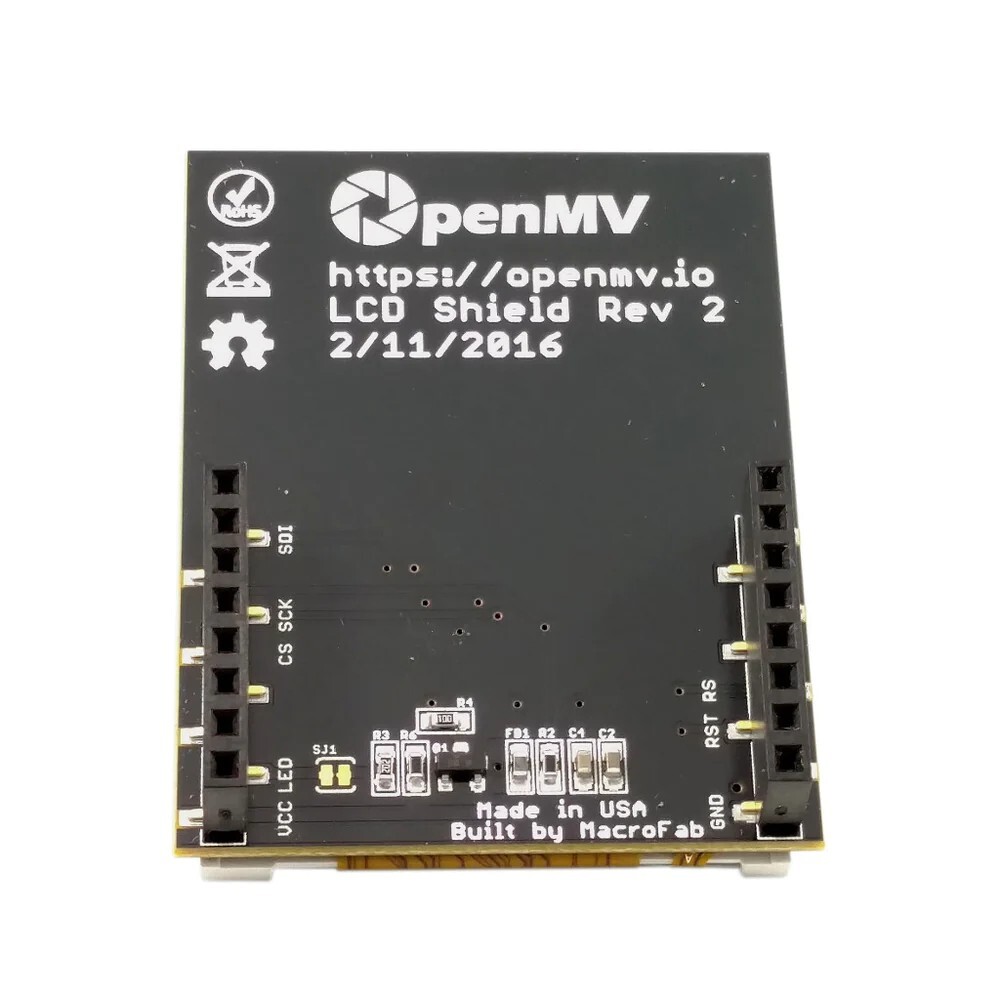

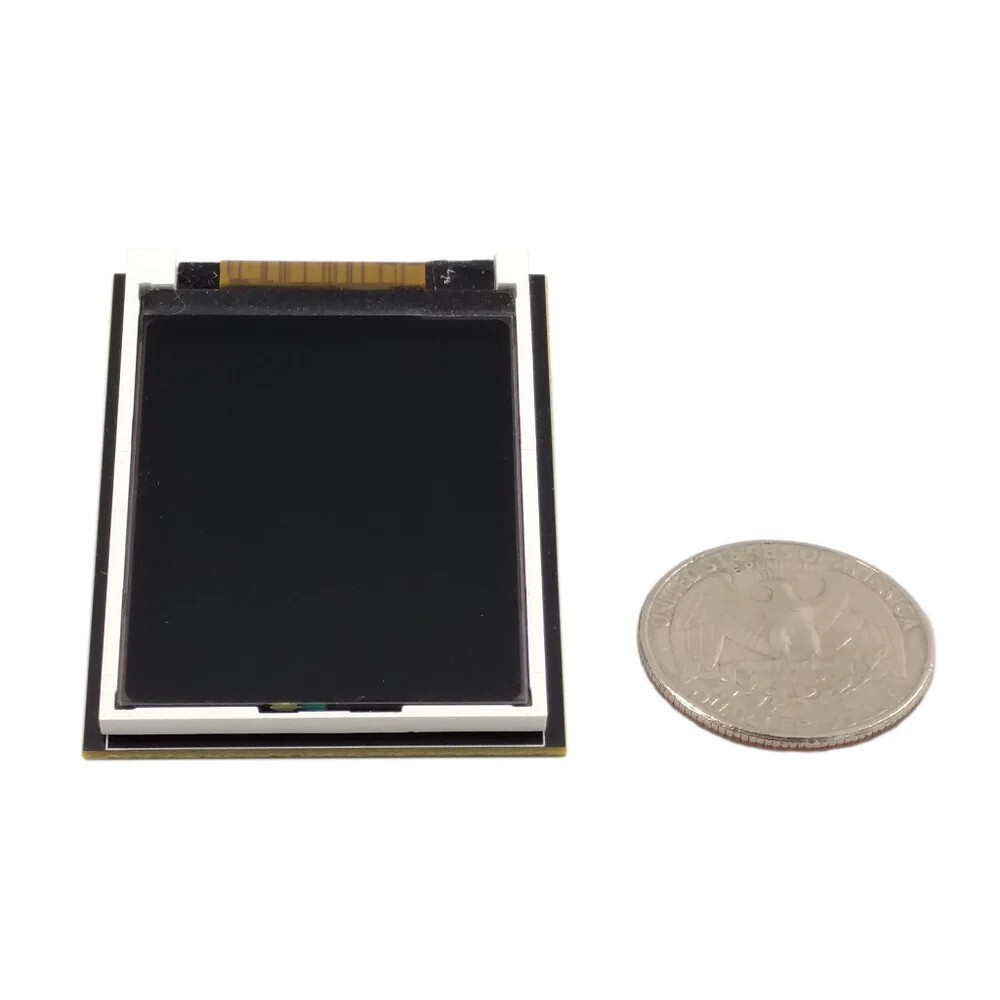

Check the listing for details. OpenMV LCD Shield. Condition: New. Listed at 10.00 USD. The LCD Shield gives your OpenMV Cam the ability to display what it sees on-the-go while not connected to your computer. It features a 1.8" 128x160 16-bpp (RGB565) TFT LCD display with a controllable backlight. Your OpenMV Cam's firmware has built-in support for controlling the LCD Shield using the SPI Display Class. The LCD Shield is great for robotic applications where you need to debug your OpenMV Cam in the field - like when debugging a line following robot. For example, you can use the LCD Shield to display the frame buffer after you've thresholded and drawn markups on an image. Screen Type: 1.8" TFT LCDHorizontal Resolution: 128 pixels (28.03mm) 0.18mm pixel pitchVertical Resolution: 160 pixels (35.04mm) 0.18mm pixel pitchDisplay Colors: 64K 16-bit RGB565
