| Measuring Range | 0 - 14 Ph |
|---|---|
| Item Package Quantity | 1 |
| Brand | Teyleten Robot |
| Lower Temperature Rating | -10.0 |
| Current Rating | 5.0 |
| Part Number | Db7 |
| Specific Uses For Product | Industrial, Electronic |
| Style | Modern |
| Maximum Supply Voltage | 5.0 |
| Model Number | Db7 |
| Output Type | Analog |
| Material | Copper |
| Mounting Type | Surface Mount |
| Response Time | 5.0 |
| Upper Temperature Rating | 50.0 |
| EAN | 0768432424473 |
| ISBN | 0768432424473 |
| Package Dimensions LxWxH | 8.46x3.46x1.46 Inches |
| Weight | 0.24 Pounds |
| UPC | 768432424473 |

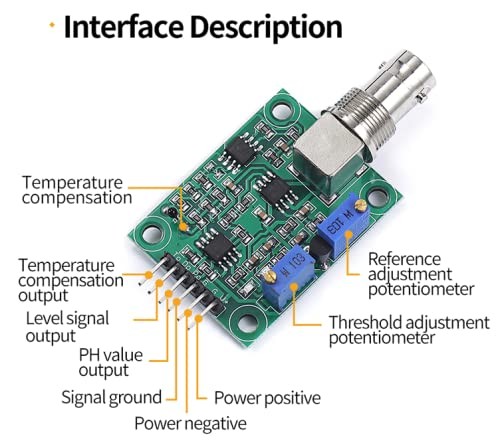

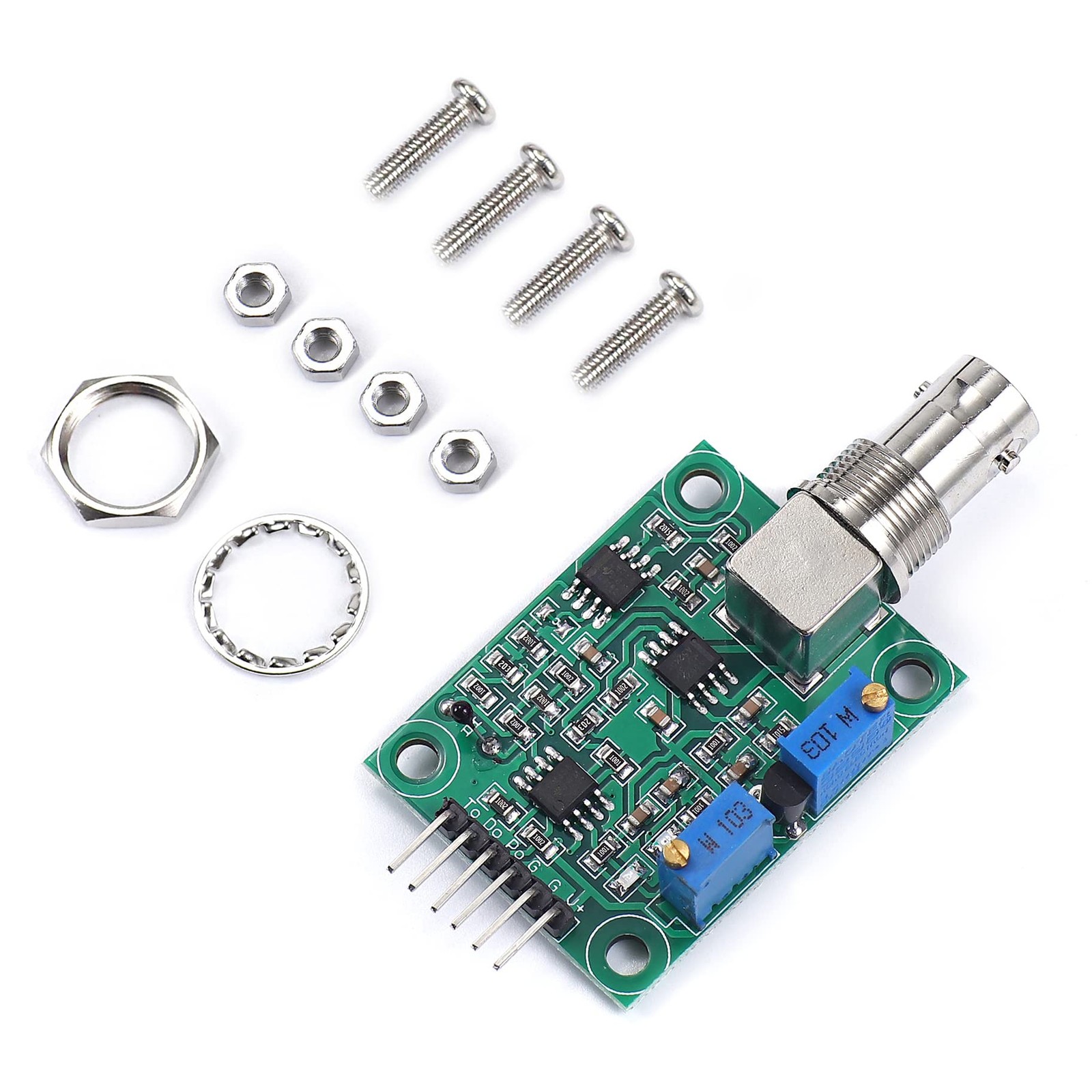

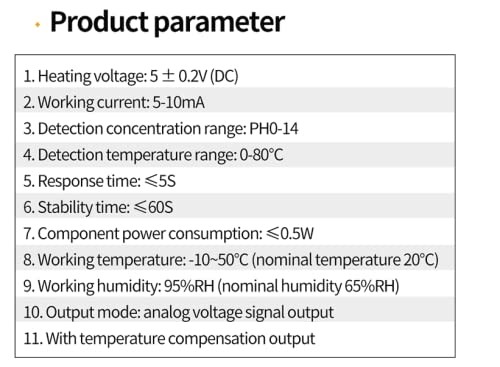

Check the listing for details. PH Value Data Detection and Acquisition Sensor Module Acidity and Alkalinity .... Condition: New. Listed at 38.59 USD. Features: Heating voltage: 5 plusmn 0.2V (AC middot DC) Working current: 5-10mA Detectable concentration range: PH0-14 Detection Temperature range: 0-80 ℃ Response time: le5S Settling Time: le60S Component Power: le0.5W Working temperature: -10 ~ 50 ℃ (nominal temperature 20 ℃) Humidity: 95% RH (nominal humidity 65% RH) Module Size: 42mm times 32mm times 20mm Output: analog voltage signal output With 4pcs M3 Mounting Holes Heating voltage: 5 plusmn 0.2V (AC middot DC) Working current: 5-10mA Response time: le5S;Settling Time: le60S Detection Temperature range: 0-80 ℃ Component Power: le0.5W
You may also like
$18.91

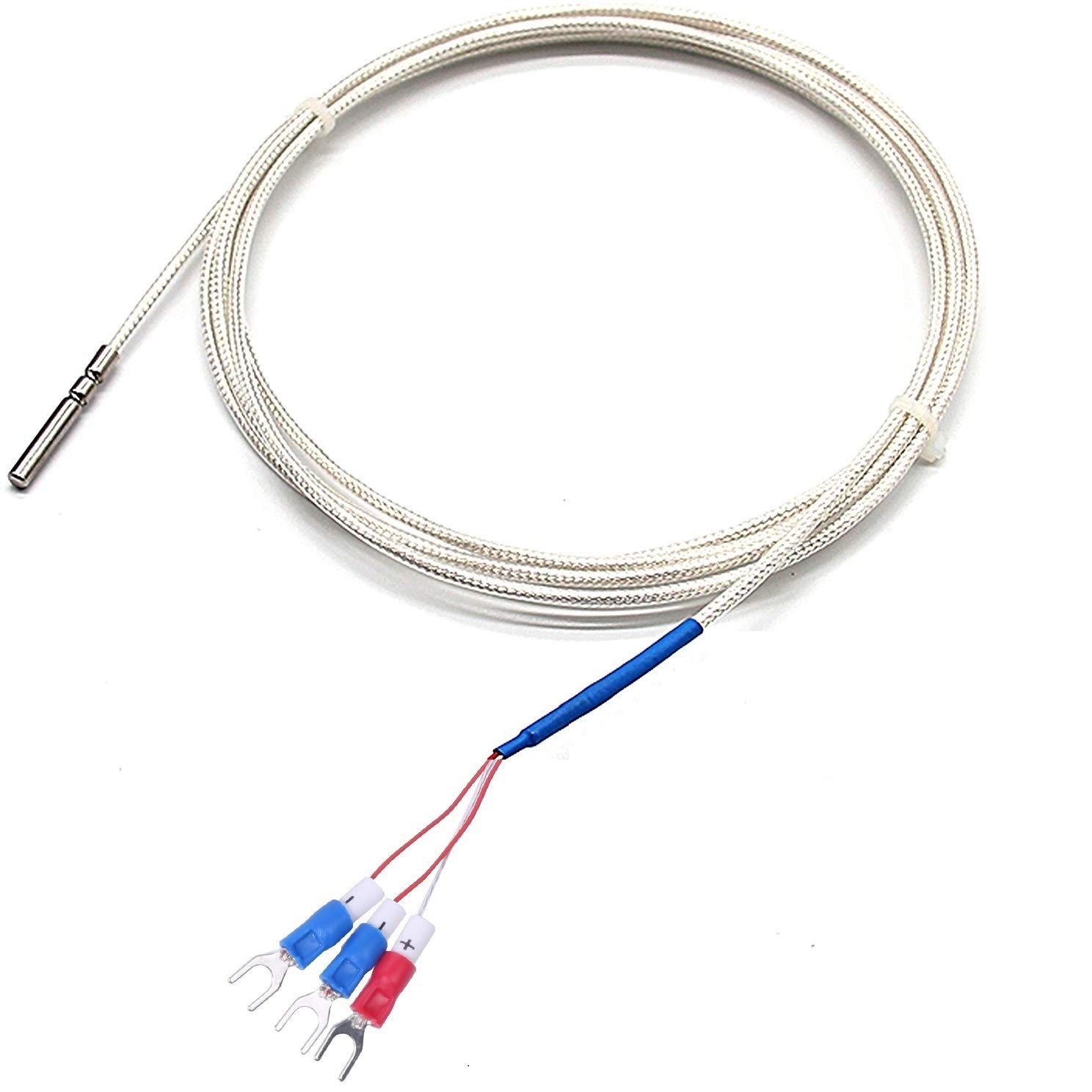

RTD Pt100 Temperature Sensor Probe, Jaybva Waterproof Stainless Steel Thermistor
$48.86
ZL-7918C Digital Temperature Humidity Controller Incubator Controller AC100~240V
$23.02

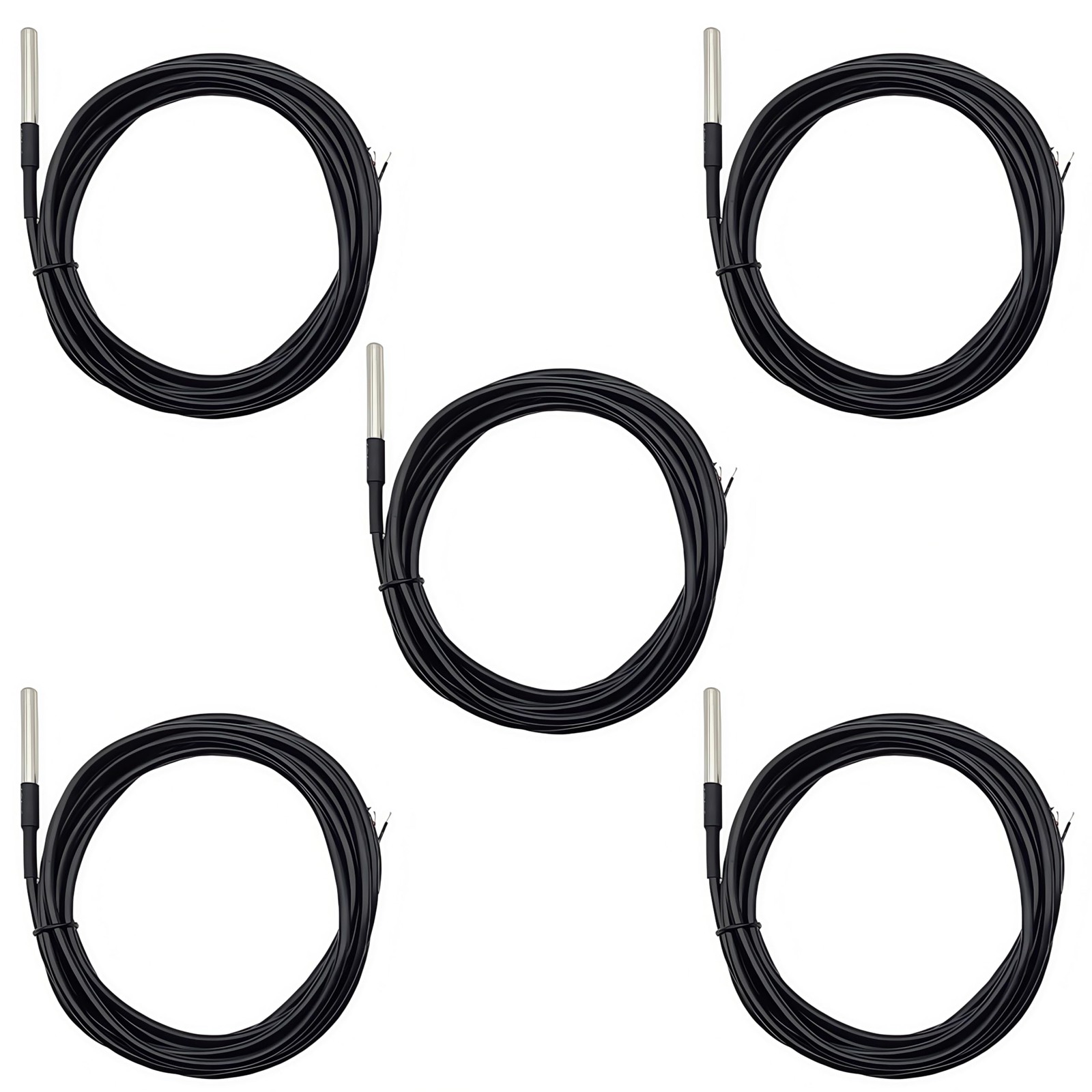

5 PCS DS18B20 Temperature Sensor Waterproof Digital Stainless Steel Probe
$11.59
10K NTC Thermistor Probe 7.9 Inch Temperature Sensor for Air Conditioner
$95.2
TME KS08 Surface Temperature Probe Ribbon 210mm x 12mm 0-1100 Deg C
$10.7

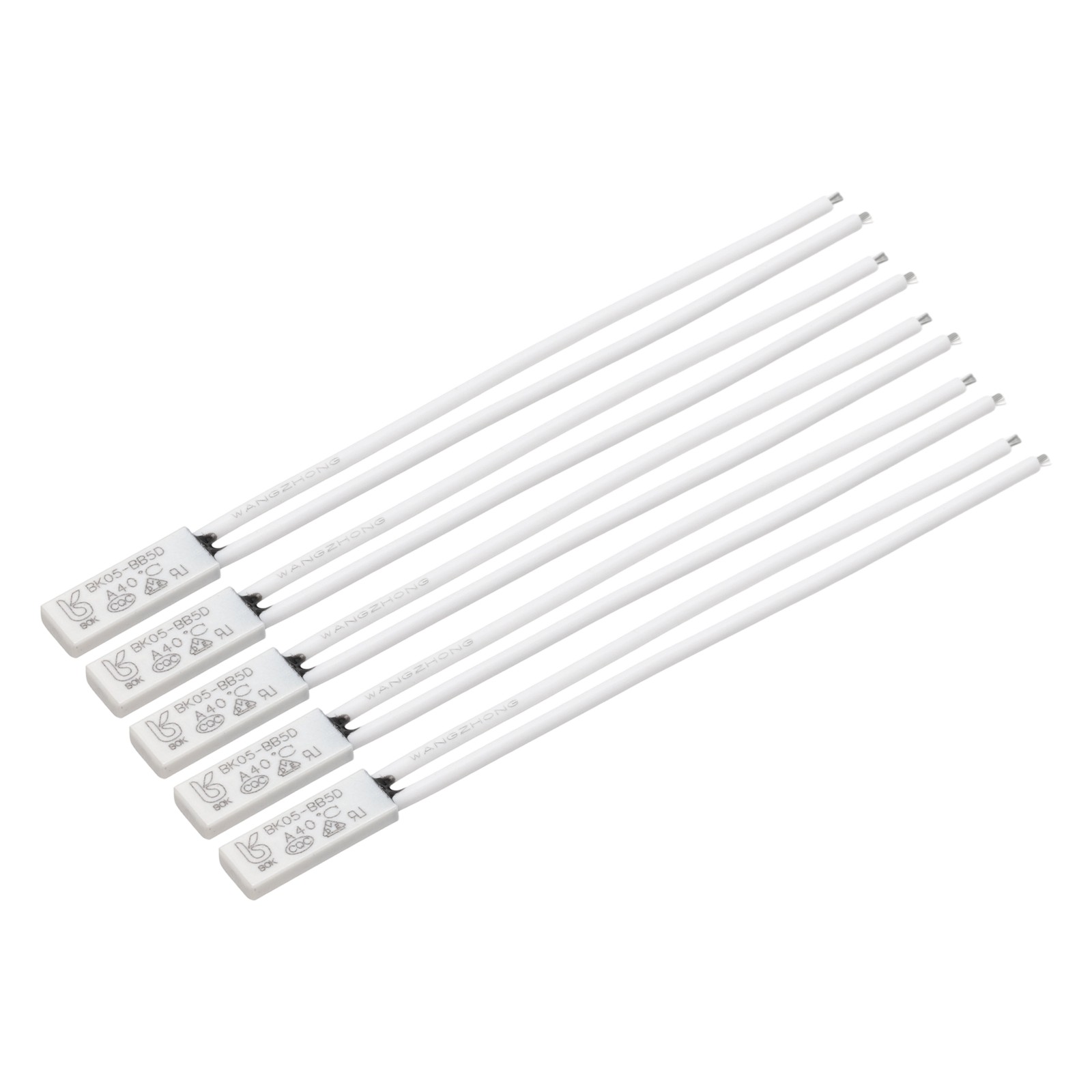

5Pcs KSD9700 Thermostat, 40C N.C 2A Bimetal Normally Closed Thermal Protector
$13.49

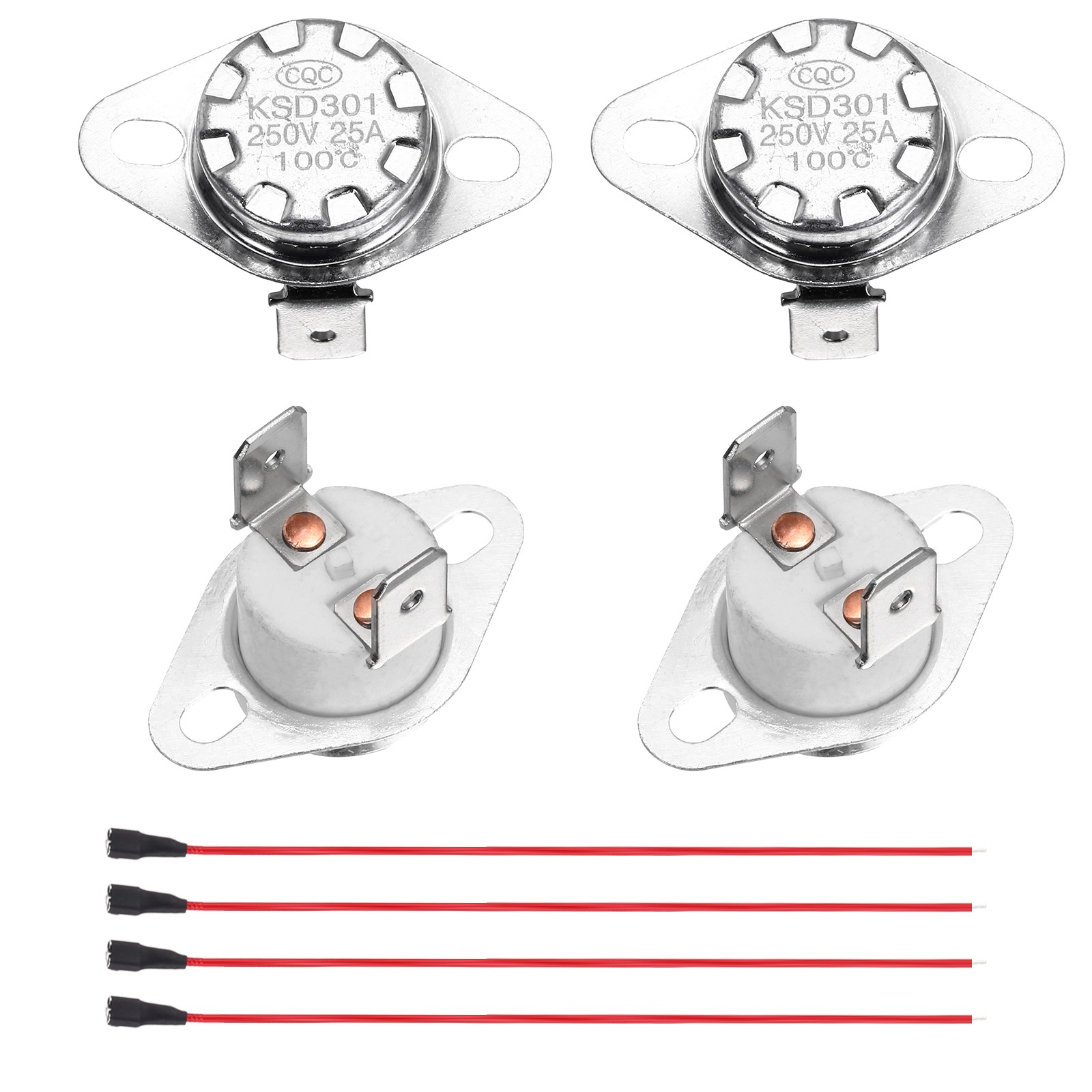

2 Pcs KSD301 Thermostat 100°C/212°F 25A N.C with Terminal Wire
$34.48

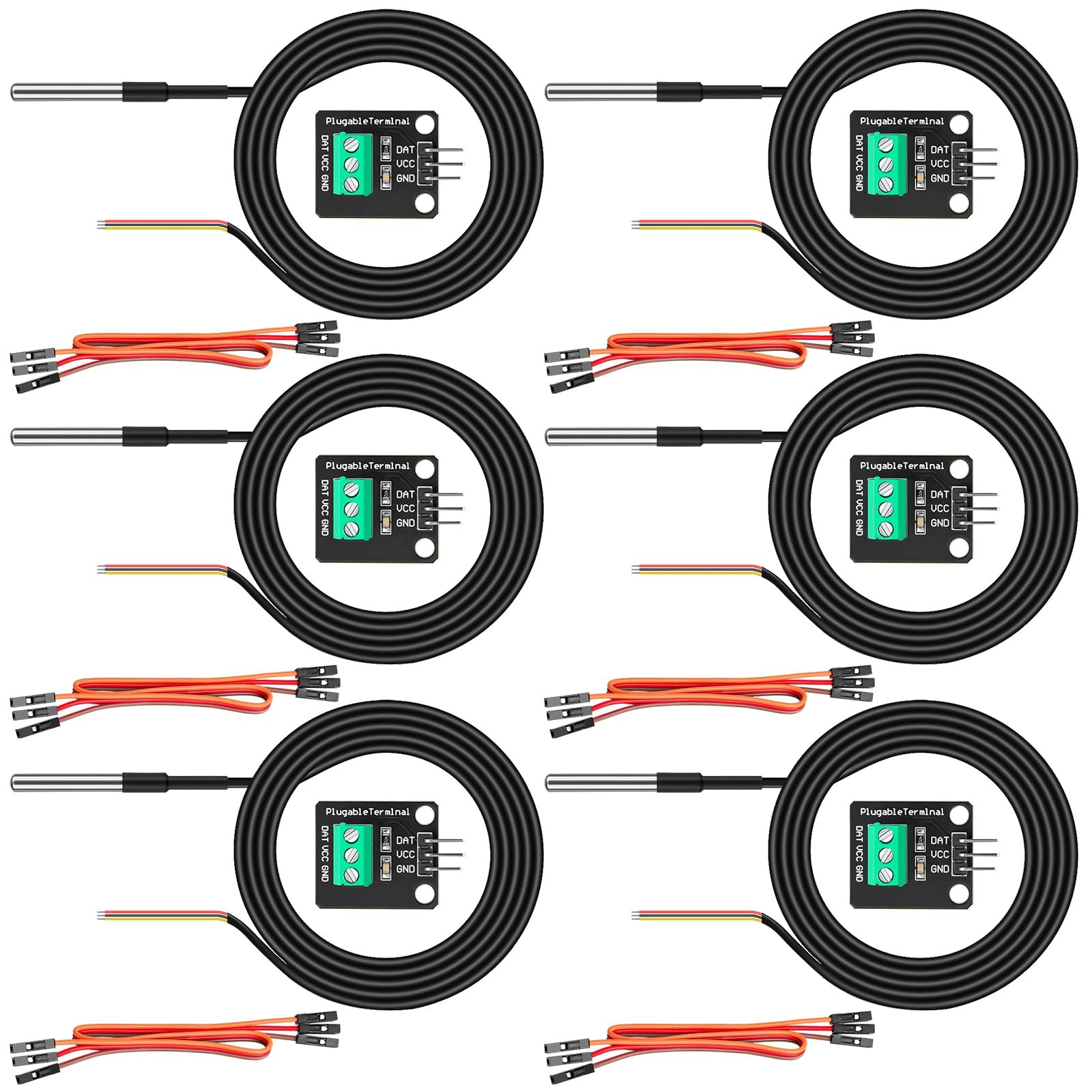

6 PCS DS18B20 Temperature Sensor HighAccuracy Probe Adapter Jumper Wires
$69.99
Pyromation Temperature Sensor w/ 16" Stem B1202-2879
$34.5
Water Temperature Sensor MC880901 MS713 MS715 for Mitsubishi Engine S4Q2
$14.87

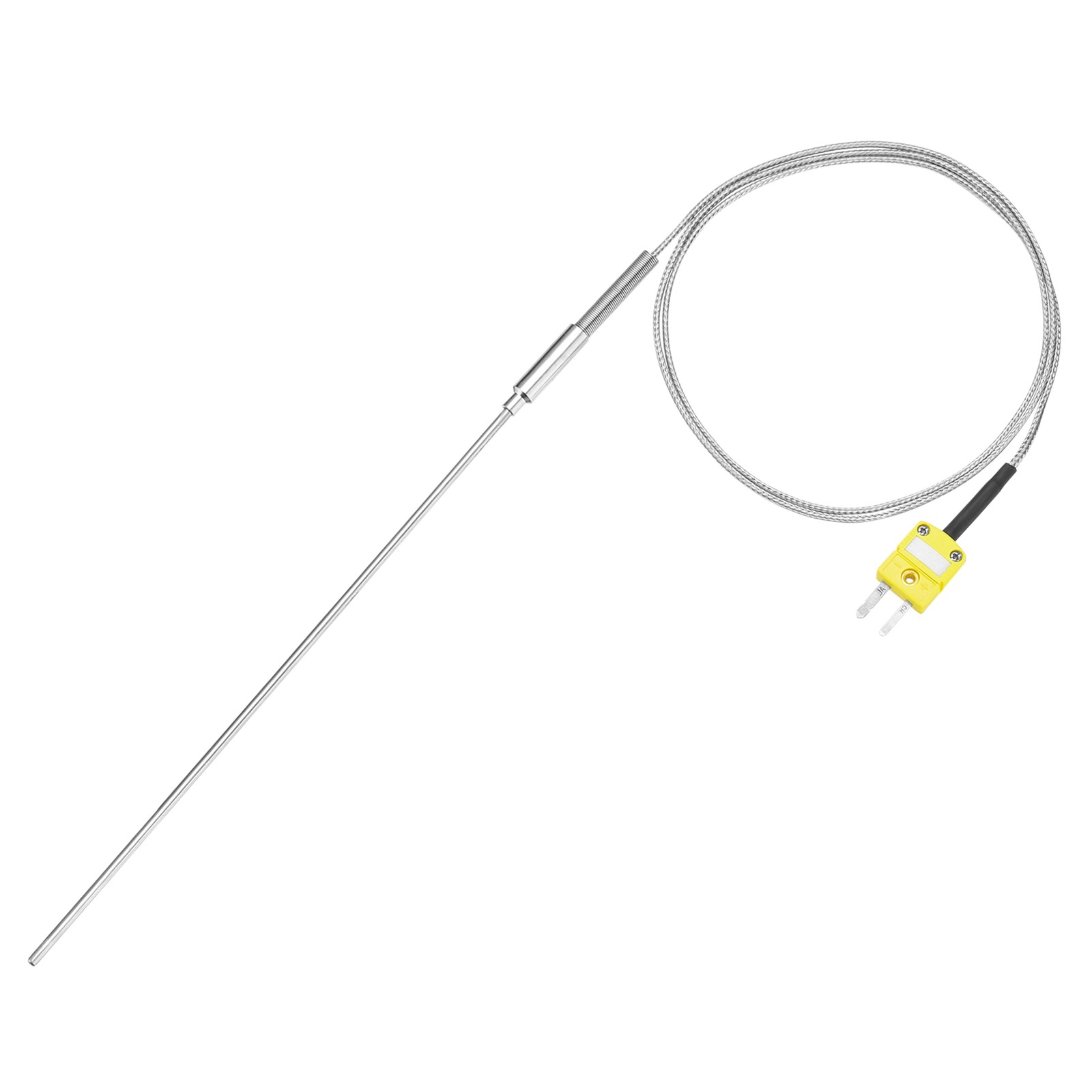

K Type Thermocouple with Plug,Temperature Sensor -50 to 1100°C 2.5x300mm 3.3ft
$23.03

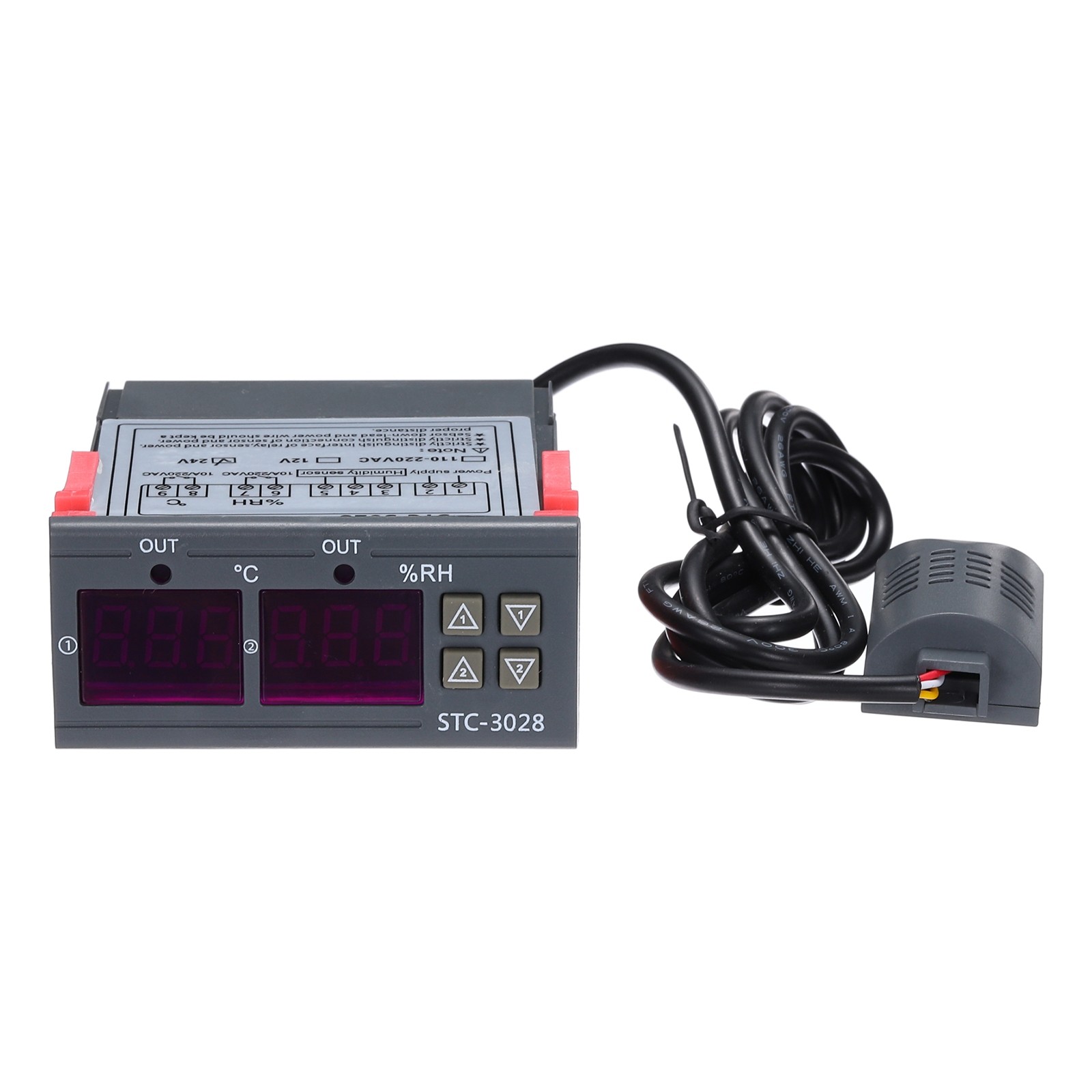

STC- 3028 10A DC 24V Digital LED Digital Temperature and Humidity Controller
