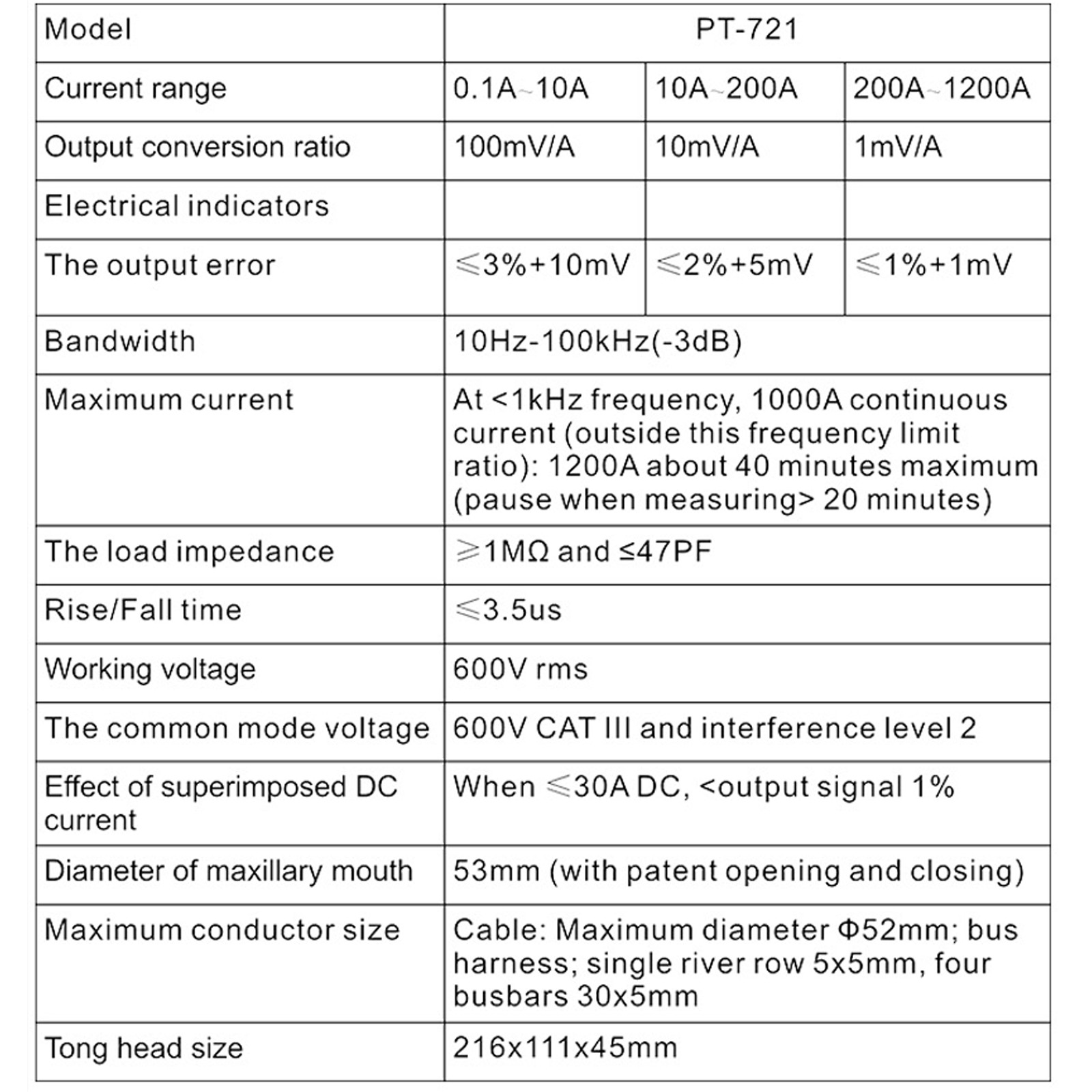

| Output Error | ≤3%+10mV; ≤2%+5mV; ≤1%+1mV |
|---|---|
| Load Impedance | ≥1MΩ and ≤47pF |
| Effects of Superimposed DC Current | 1% of output signal at ≤30A DC |
| Size | 216 х 111 х 45 m |
| Working Voltage | 600V rms |
| Common-mode Voltage | 600V CAT III and Interference Class 2 |
| Diameter of Maximum Mouth | 53mm/2.17in |
| Weight | 500g/1.1lb |
| Bandwidth (-3dB) | 10Hz~100kHz(-3dB) |
| Brand | PINTECH |
| Unit Type | Unit |
| Rise Time | 3.5 μs |
| Model | PT-721 |
| Output Conversion Ratio | 100mV/A; 10mV/A; 1mV/ |
| Unit Quantity | 1 |
| Country of Origin | China |
| Current Rang | 0.1A~10A; 10A~200A; 200A~1200A |
| dV/dt(Max) | 10A/μs |

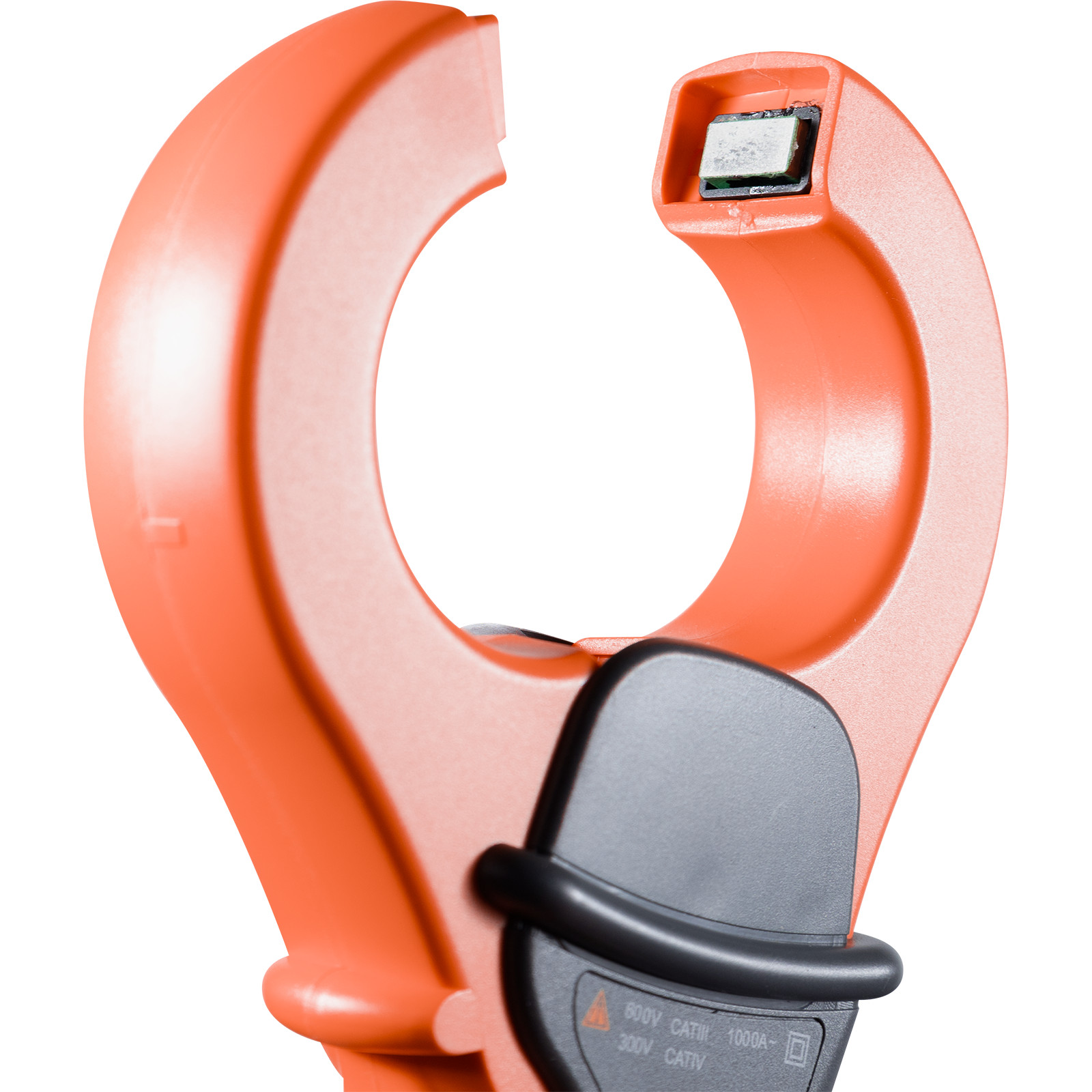

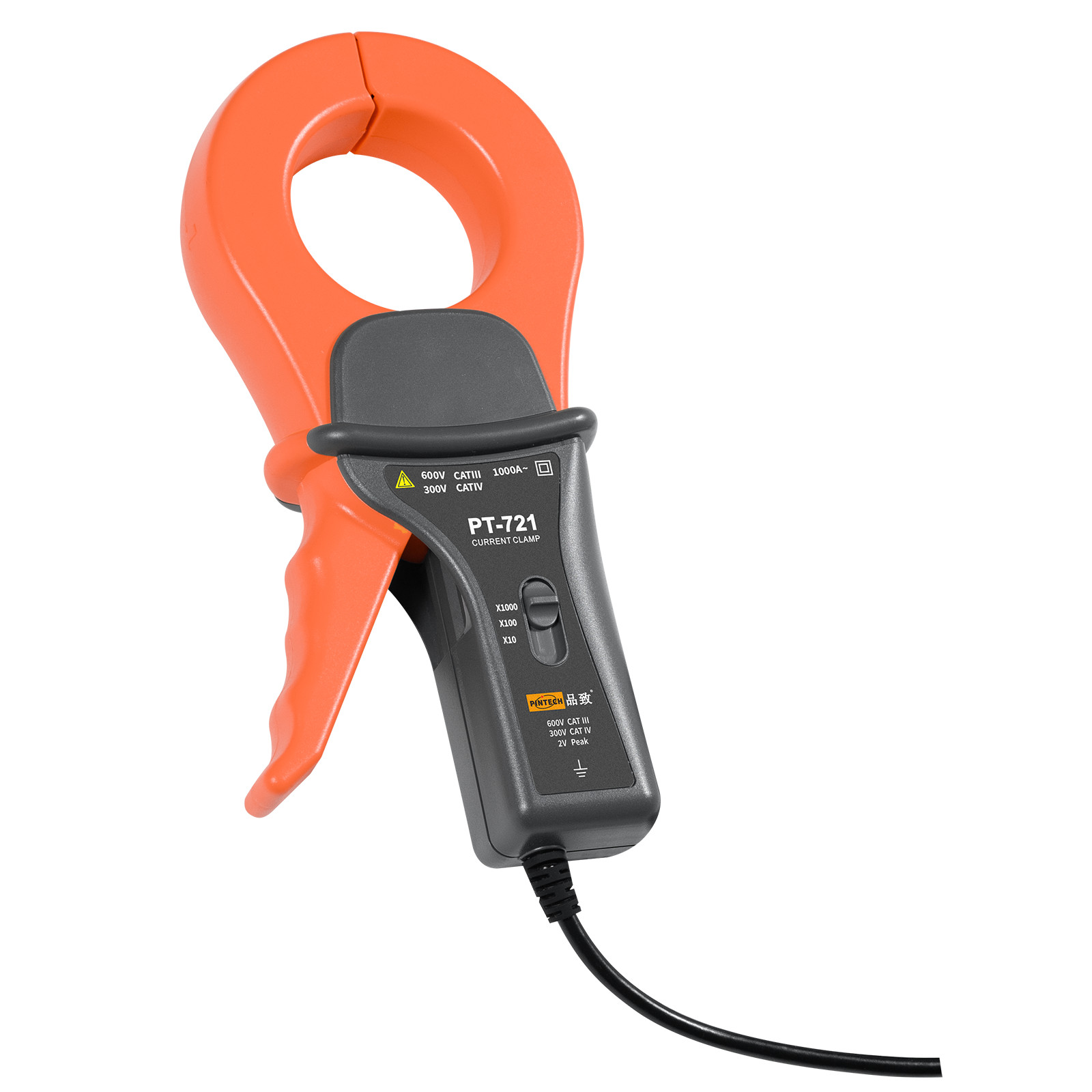

Check the listing for details. PINTECH AC Current Probe for Oscilloscope, Multimeter, 100kHz, 10A/200A/1200A. Condition: New, Made in China. Listed at 469.00 USD. The AC Current probe is 3 Current Range: 0.1A-10A, 10A-200A, 200A-1200A. High Frequency AC current probe PT-721 Bandwidth 10Hz-100kHz(-3dB).
