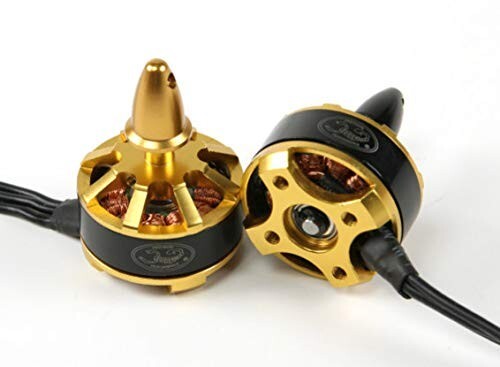

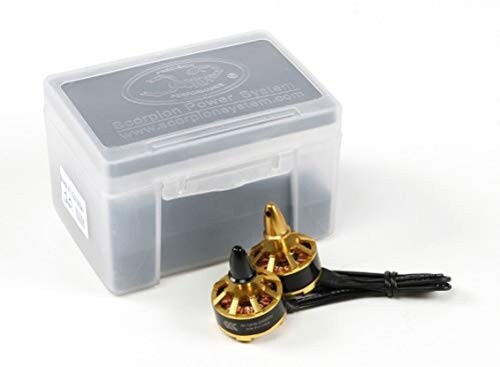

Check the listing for details. Scorpion M-2205-2350KV Brushless Outrunner Motor Pair (CW/CCW). Condition: New. Listed at 39.95 USD. Scorpion M-2205-2350KV Brushless Outrunner Motor (CW) (CCW)Scorpion Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price.Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Plated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand temperatures of up to 200 degrees C (392 F).Included in the box is one CW motor and one CCW motor. A great way to get your multi-rotor flying.Specs:Stator Diameter: 22.0 mm (0.87 in)Stator Thickness: 5.0 mm (0.197 in)No. of Stator Arms: 12Magnet Poles: 14Motor Wind: 22 Turn DeltaMotor Wire: 4-Strand 0.21mmMotor KV: 2350 RPM / VoltNo-Load Current (Io/10V): 0.88 AmpsMotor Resistance (Rm): 0.775 OhmsMax Continuous Current: 25 AmpsMax Continuous Power: 420 WattsWeight: 30.6 Grams (1.08 oz)Outside Diameter: 27.85 mm (1.13 in)Shaft Diameter: 2.98 mm (0.12 in)Body Length: 21.35 mm (0.84 in)Output Shaft Length: 12 mm (0.47 in)Max LiPoly Cell: 4sMotor Timing: 5degDrive Frequency: 8kHzIncluded:1 x M-2205-2350KV motor CW1 x M-2205-2350KV motor CCW2 x Bullet nuts8 x M3 screwsThrust DataProp Throttle V Amps RPM Thrust (G)6 x 4 50% 11.1 5.38 11720 &nb
