| All returns accepted | ReturnsNotAccepted |
|---|---|
| Brand | Sekonix |
| Type | Drive camera |
| Maximum Resolution | 2.3 MP |
| Model | SF3325-100 Sekonix_Camera_2M_AR0231_LVDS(PoC)_60(H) - 26x26x2b_re |

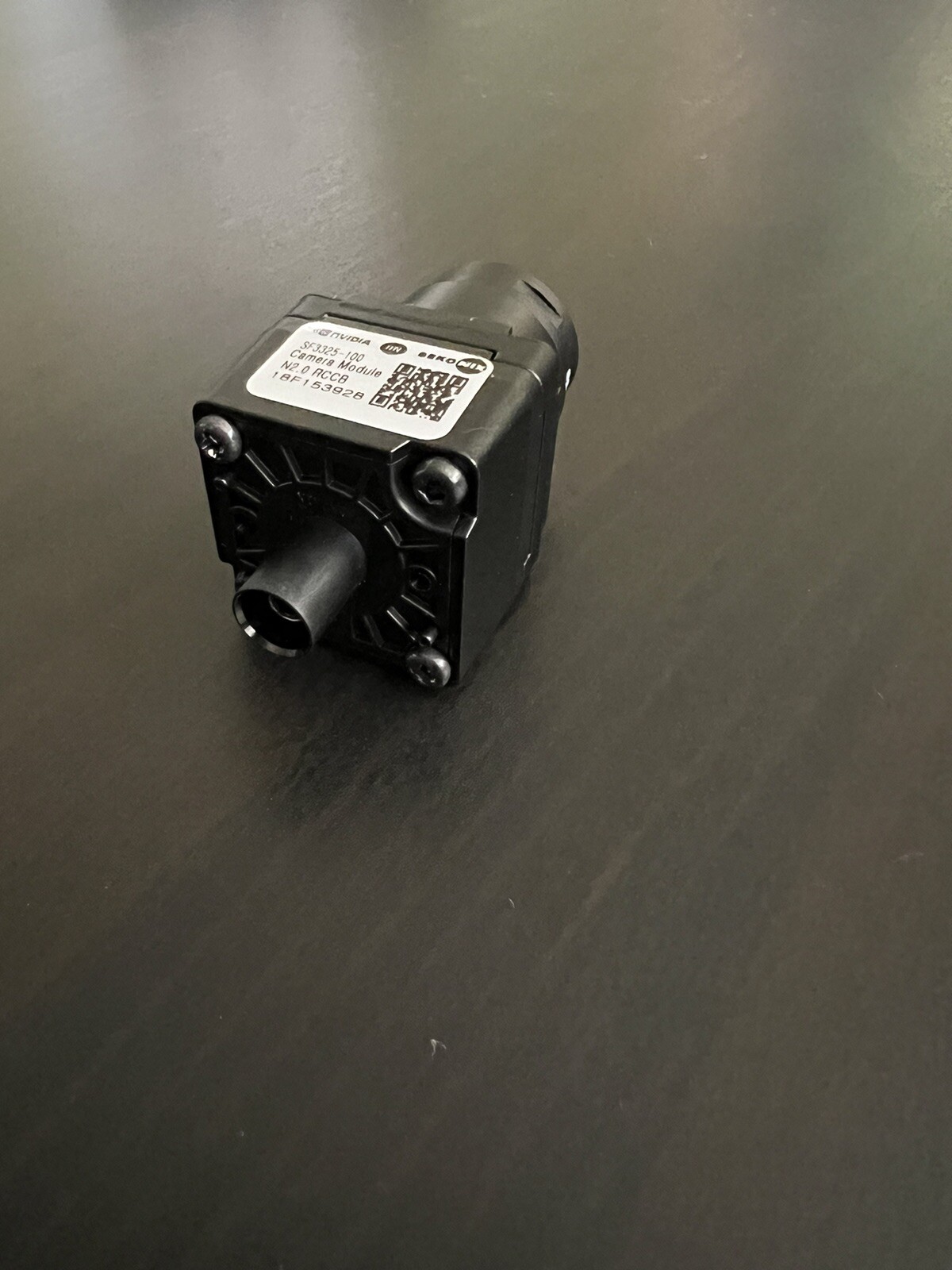

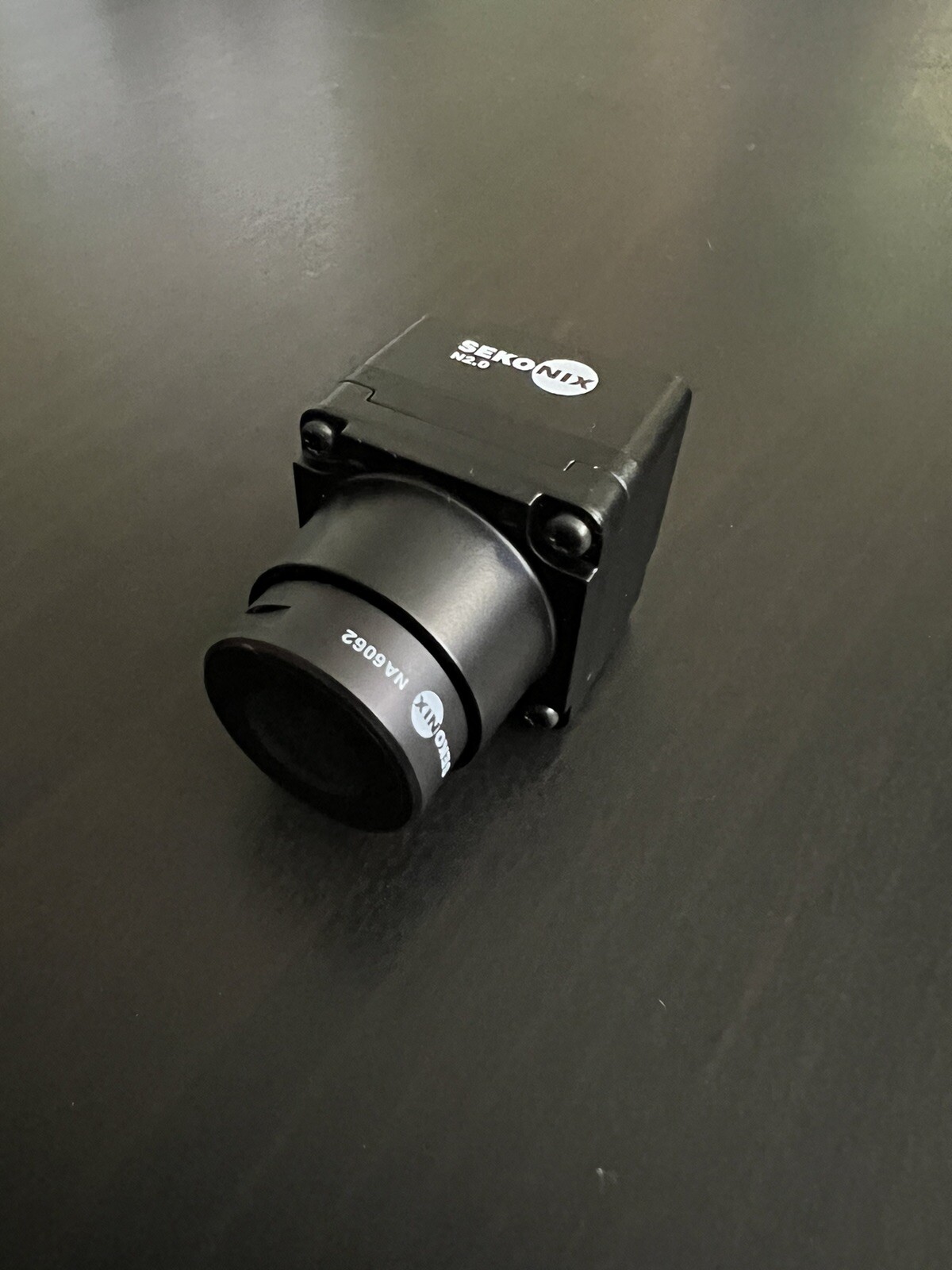

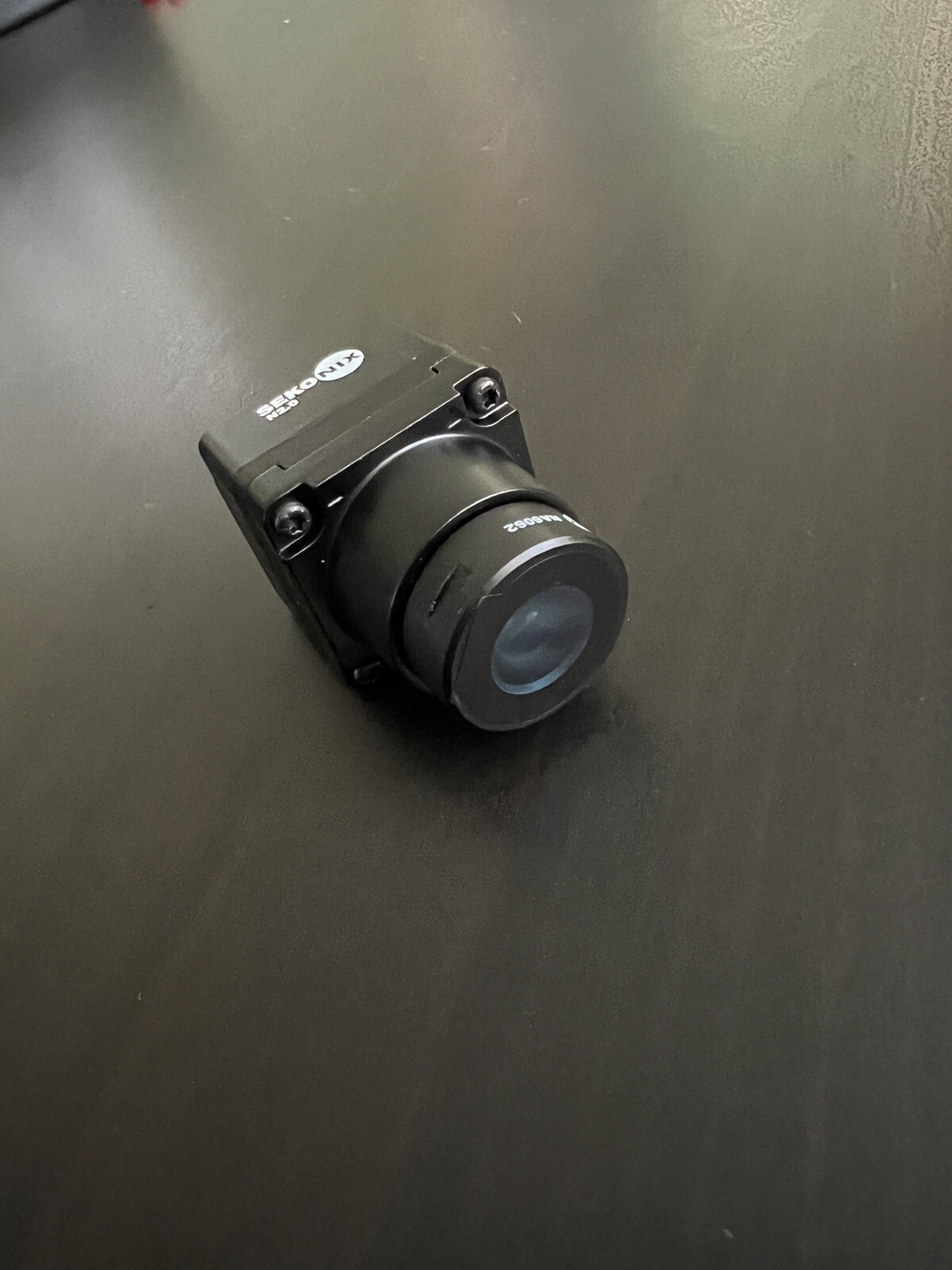

Check the listing for details. Sekonix Camera Nvidia 2.3MP. Condition: New. Listed at 30.00 USD. SF3325-10x w NA6062 lens Feature ▪ 1928 x 1208 Resolution (2.3M Pixel) ▪ Optical format: 1/2.7-inch ▪ Pixel size: 3μm x 3μm ▪ 27MHz clock input ▪ Analog power supply, from 8V (±10%) ▪ Ultrahigh resolution Lens ▪ MAXIM - MAX96705 Serializer ▪ FAKRA Z – TYPE Connector ▪ Waterproof – IP69K Lens Specification NA6062 - FOV 60 Lens The lens of SF3325-10X designed and made by Sekonix – NA6062. The NA6062lens designed and optimized for best performance with ONSEMI AR0231 sensor. Furthermore, it targets to meet automotive qualification. Model Name SEKONIX NA6062 - Grade 1 / 2.7” 2Mega Viewing Angle H : 60°, V : 38°, D : 70° MTF TBD IR CUT wavelength 700 ± 10nm Mount Dimension M12 x 0.5P SPEC SHEET - http://sekolab.com/wp-content/uploads/2020/02/SF332X-10X_2Mega-LVDS-Automotive-Camera-Datasheet_Ver-2.2.5_190726.pdf
