| Brand | SENVA |
| MPN | P6-1500-1LX |

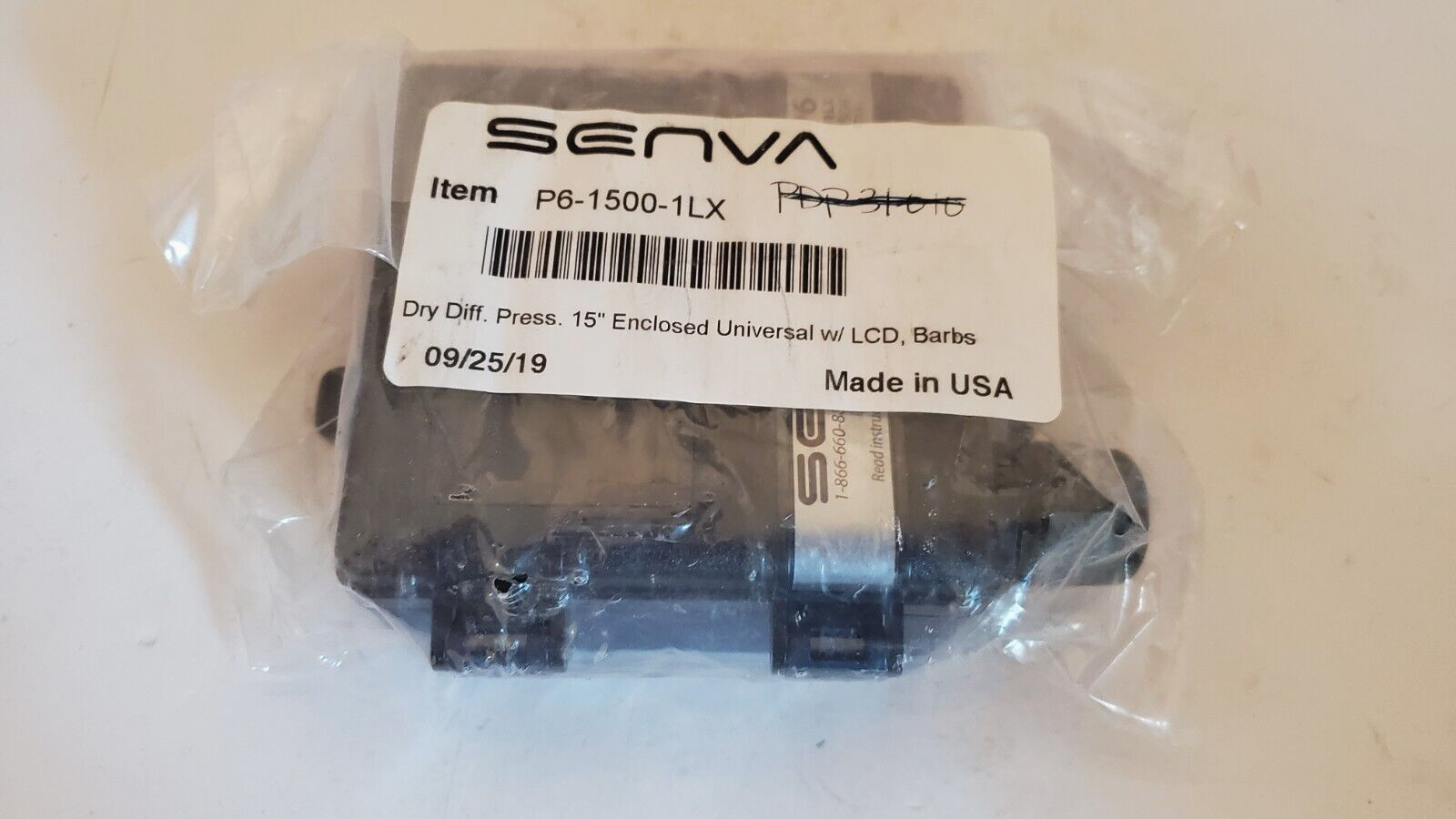

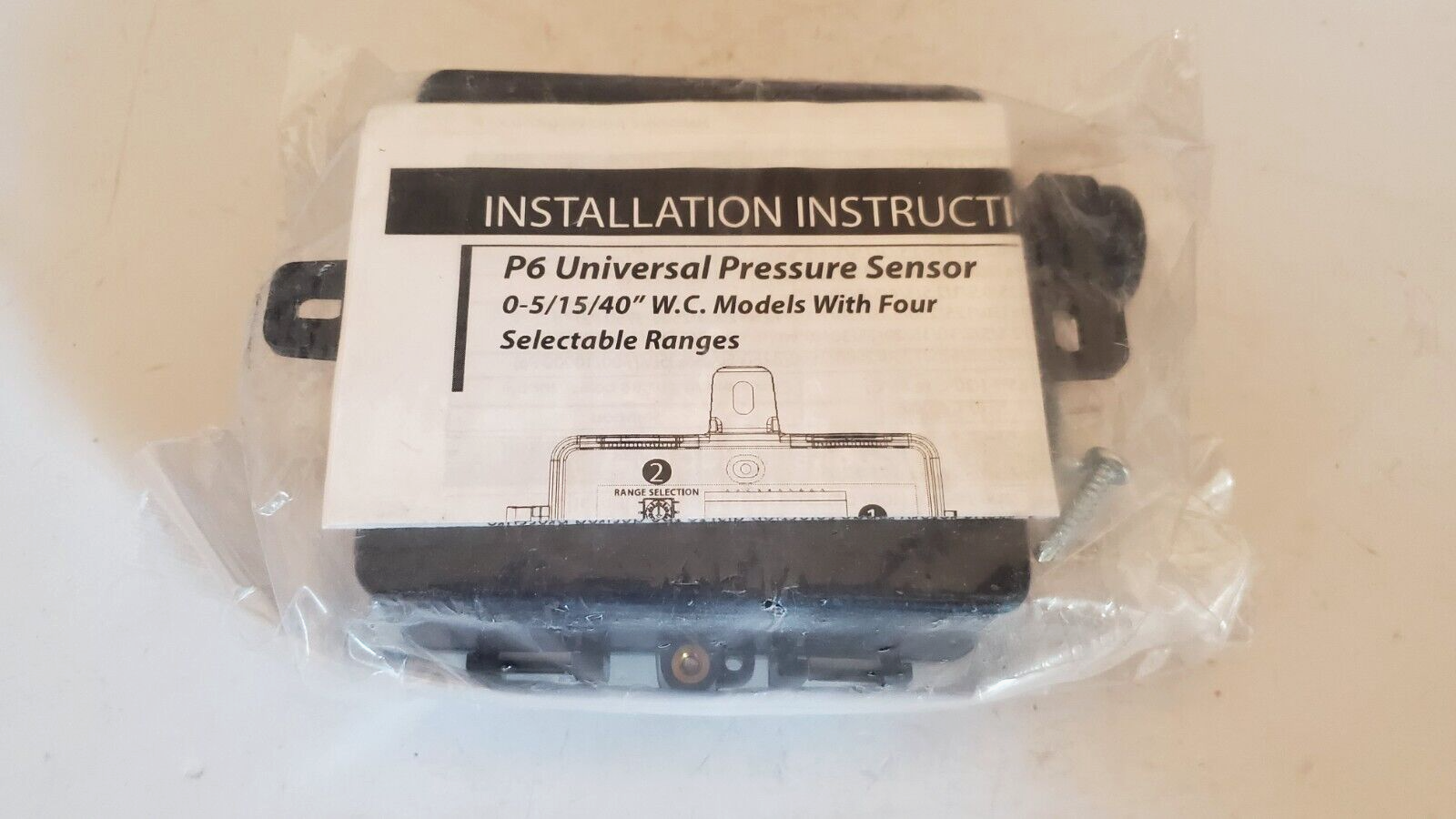

Check the listing for details. SENVA P6-1500-1LX Universal Pressure Sensor DryDiff 15" Enclosed Universal w LCD. Condition: New – Open box. Listed at 80.00 USD. †Power Supply:†12-30VDC/24VAC (1), 30mA max.†Selectable Outputs:†4-20 mA loop powered, 4-20 mA 3-wire, 0-5VDC, 0-10VDC†Output Scaling - Max Range:†Selectable Sub Ranges†- 0-5":†0.1/0.25/0.5/1/1.5/2/2.5/3/4/5"wc†- 0-1250Pa:†25/50/125/250/375/500/625/750/1000/1250 Pa†- 0-15":†0.25/0.5/1/2.5/3/4/5/8/10/15"wc†- 0-3750Pa:†50/125/250/625/750/1000/1250/2000/2500/3750 Pa†- 0-40":†1/2.5/5/8/10/15/20/25/30/40"wc†- 0-10000Pa:†250/625/1250/2000/2500/3750/5000/6250/7500/10000 Pa†Operating Temperature Range† ††:†-4 to 185°F (-20 to 85°C)††Compensated Temperature Range:†32 to 122°F (0 to 50°C)††Media Compatibility:†Dry, oil-free air, N2†Sensor Type:†MEMS silicon piezoresistive; precision calibrated†Sensor Accuracy:†+/- 1.0% of selected range (combined linearity and hysterisis), 0.025%/C, (Relative to 25C, 0-50C), Non-position sensitive, Zero Drift (1 year), Auto-zero input, 1% max, Push-button and N.O. contact closure†Response Rate:†Selectable,†Fast = 2 seconds, slow = 8 seconds†Dimensions:† 4.0"h x 3.7"w x 2.1"d
