Single Phase Voltage Current Power Data Logger with Voltage Range 0.01V ~ 600V

Name: Single Phase Voltage Current Power Data Logger with Voltage Range 0.01V ~ 600V
SKU: 377292135614
Price: 500.00 USD
Availability: InStock

$250.00

$500.00 -50%

Brand VTSYIQI

Condition New

Item ID 377292135614

Power Frequency	50/60Hz

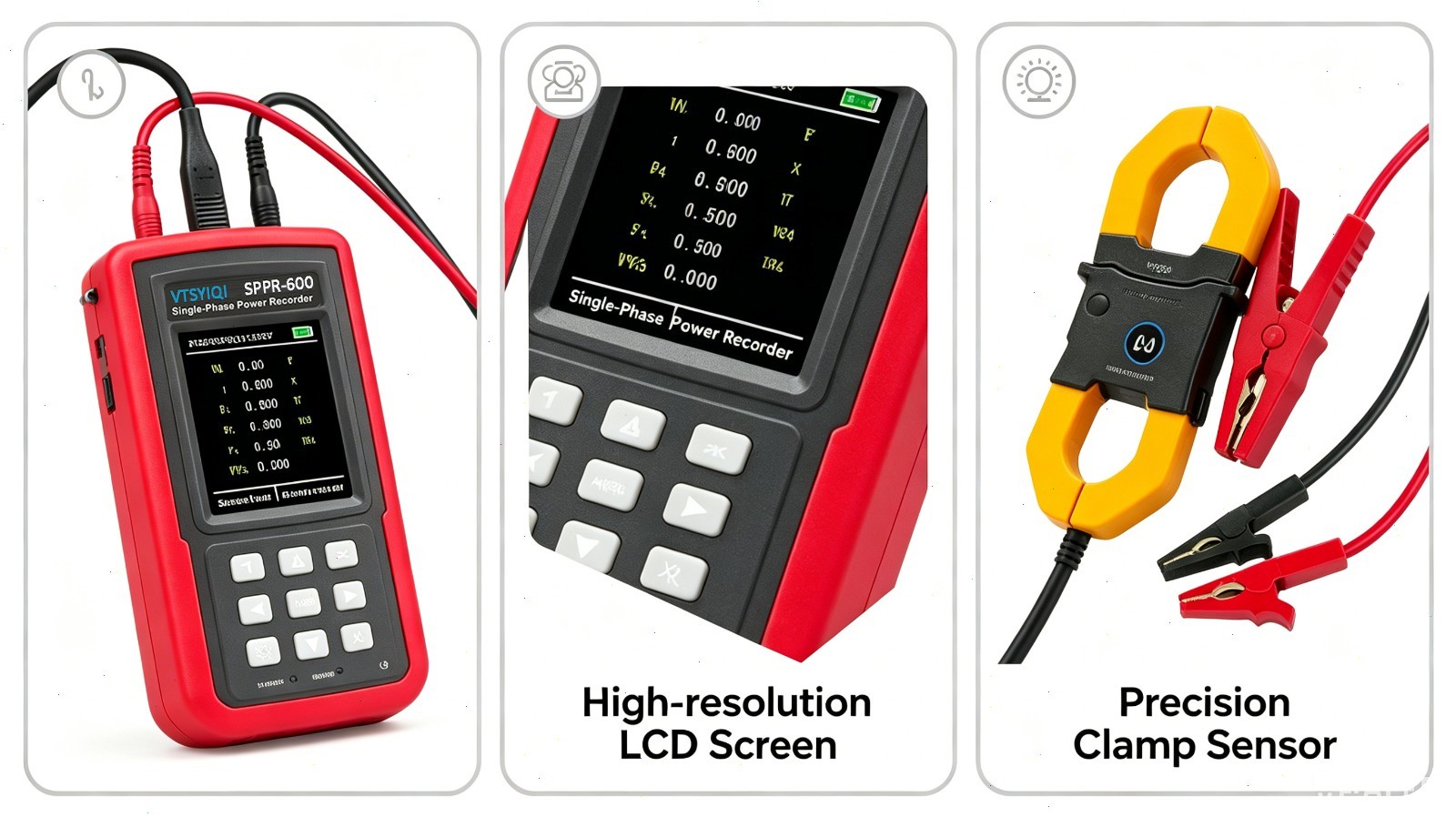

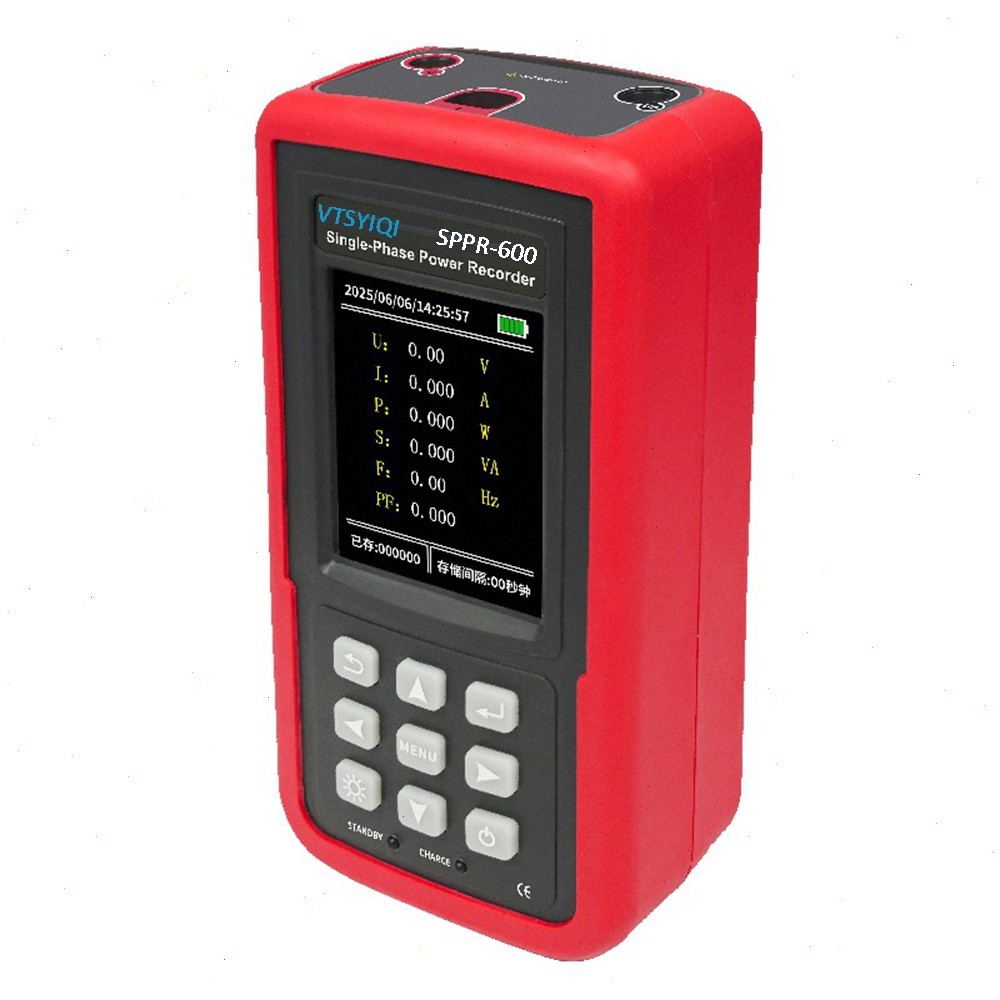

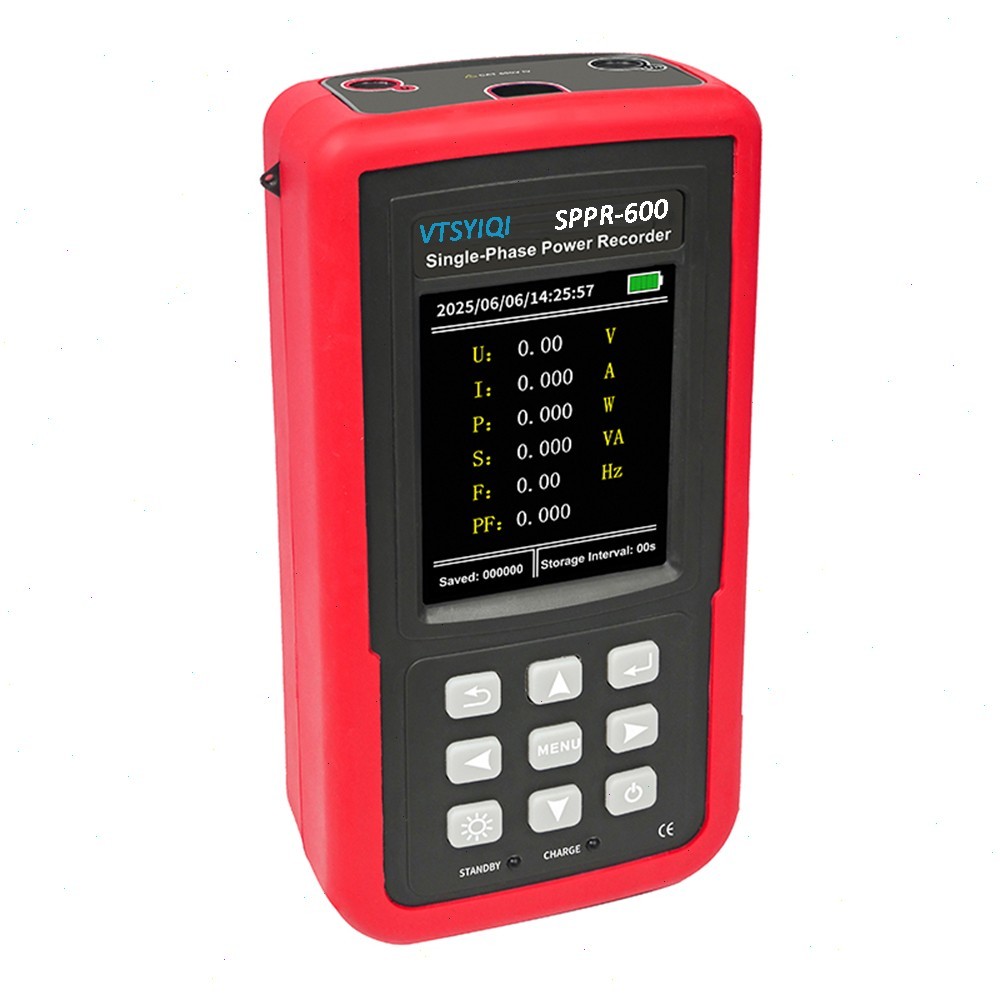

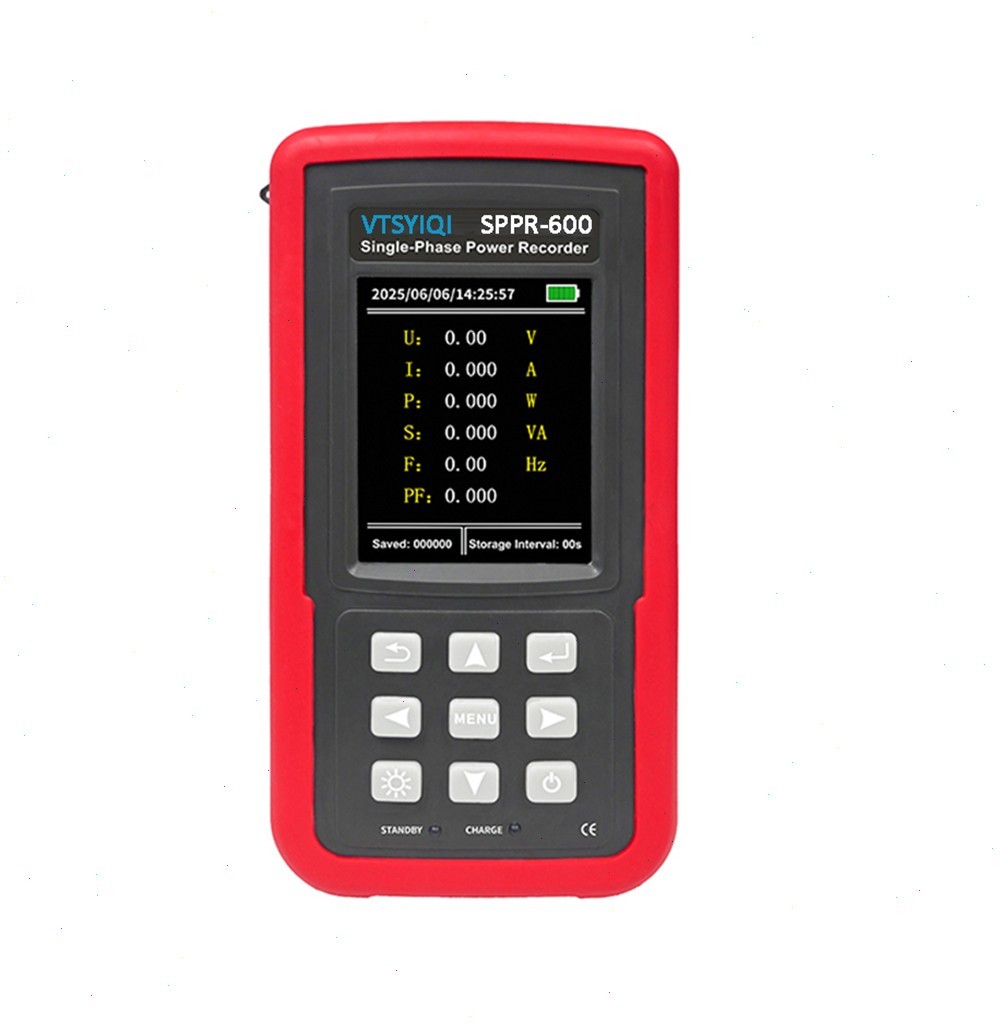

Display Mode	2.8-inch TFT color LCD screen; display area 58mm × 44mm
MPN	VTSYIQI SPPR-600
Communication Interface	TYPE-C interface
Weight	Approx. 1.6kg (including accessories)

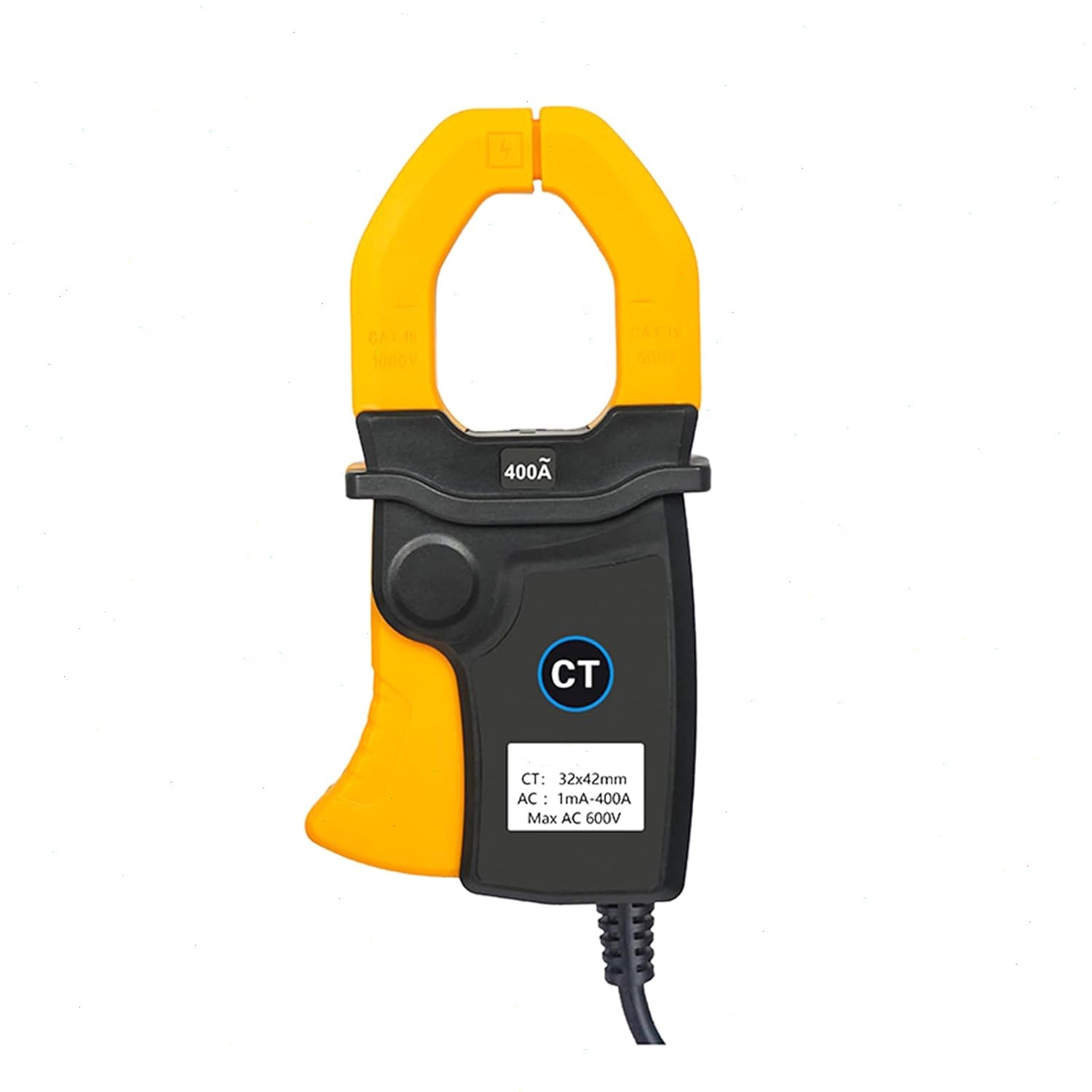

Jaw Size	32mm×42mm
Power Supply	Rechargeable lithium battery, DC 3.7V, 5200mAh
Brand	VTSYIQI
Active Power	Range: 0.01mW～240kW Resolution: 0.01mW Accuracy: ±1.5%rdg±5dgt

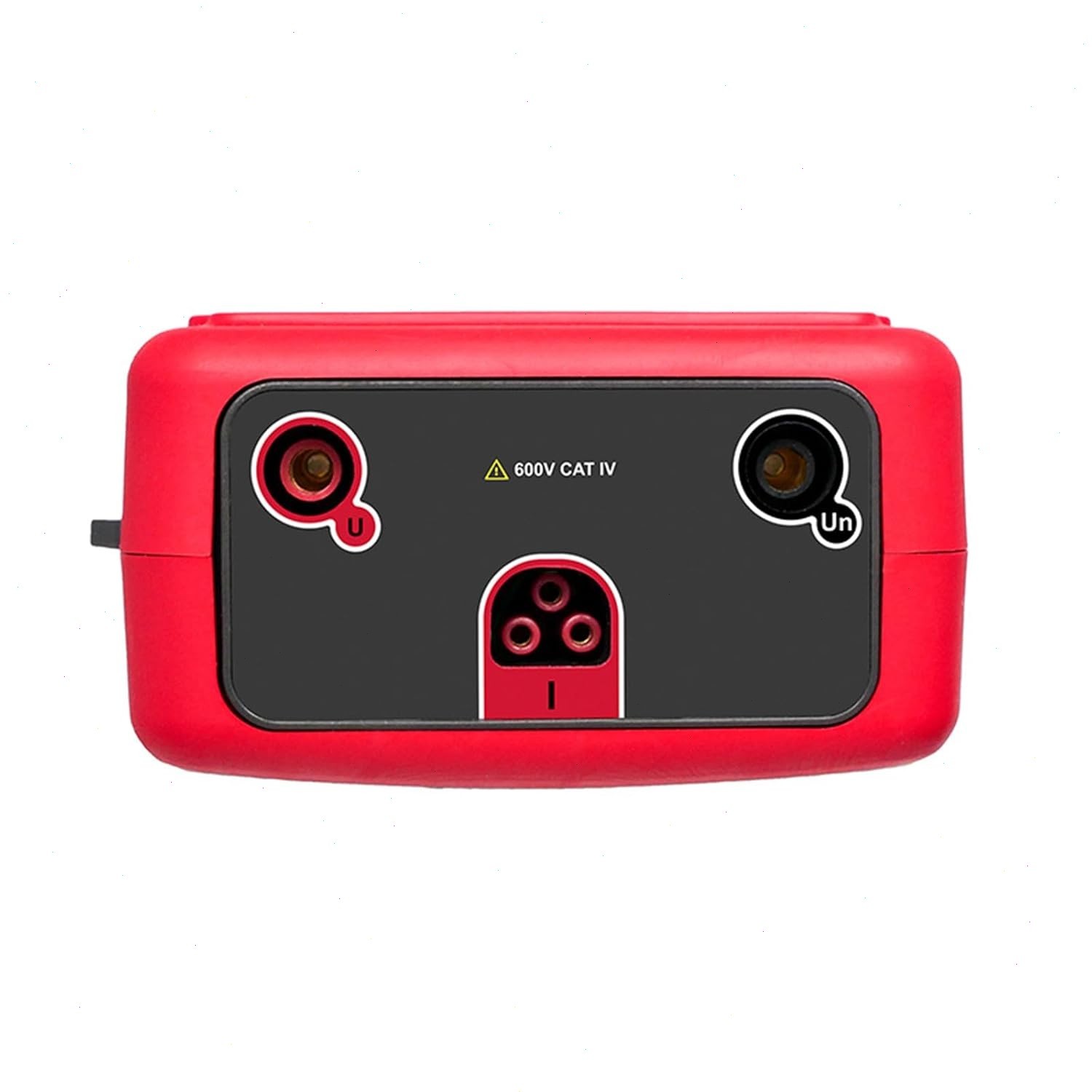

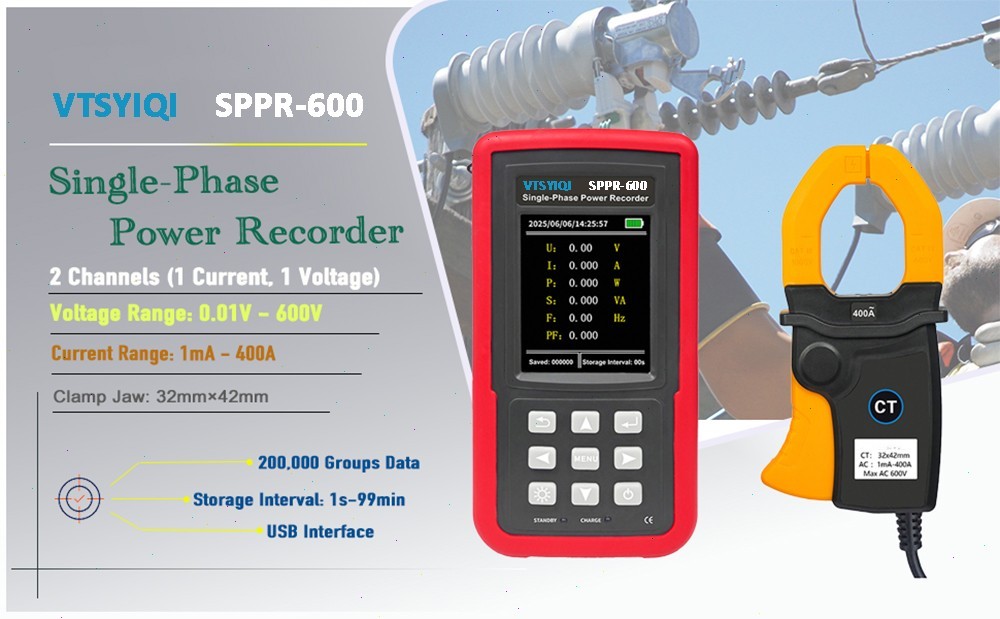

Input Channel	2 channels (1 current channel, 1 voltage channel)
Type	Single-Phase Power Recorder
Voltage	Range: 0.01V～600V/Resolution: 0.01V/Accuracy: ±1.5%rdg±5dgt
Frequency	Range: 45Hz～65Hz Resolution: 0.01Hz Accuracy: ±1.5%rdg±5dgt
Main Unit Size	170mm×87mm×48.5mm
Power Factor	Range: -1.000～1.000 Resolution: 0.001 Accuracy: ±0.03
Apparent Power	Range: 0.01mVA～240kVA Resolution: 0.01kVA Accuracy: ±1.5%rdg±5dgt
Current	Range: 1mA～400A Resolution: 0.01A Accuracy: ±1.5%rdg±5dgt
Data Storage	200,000 data sets
Country of Origin	China

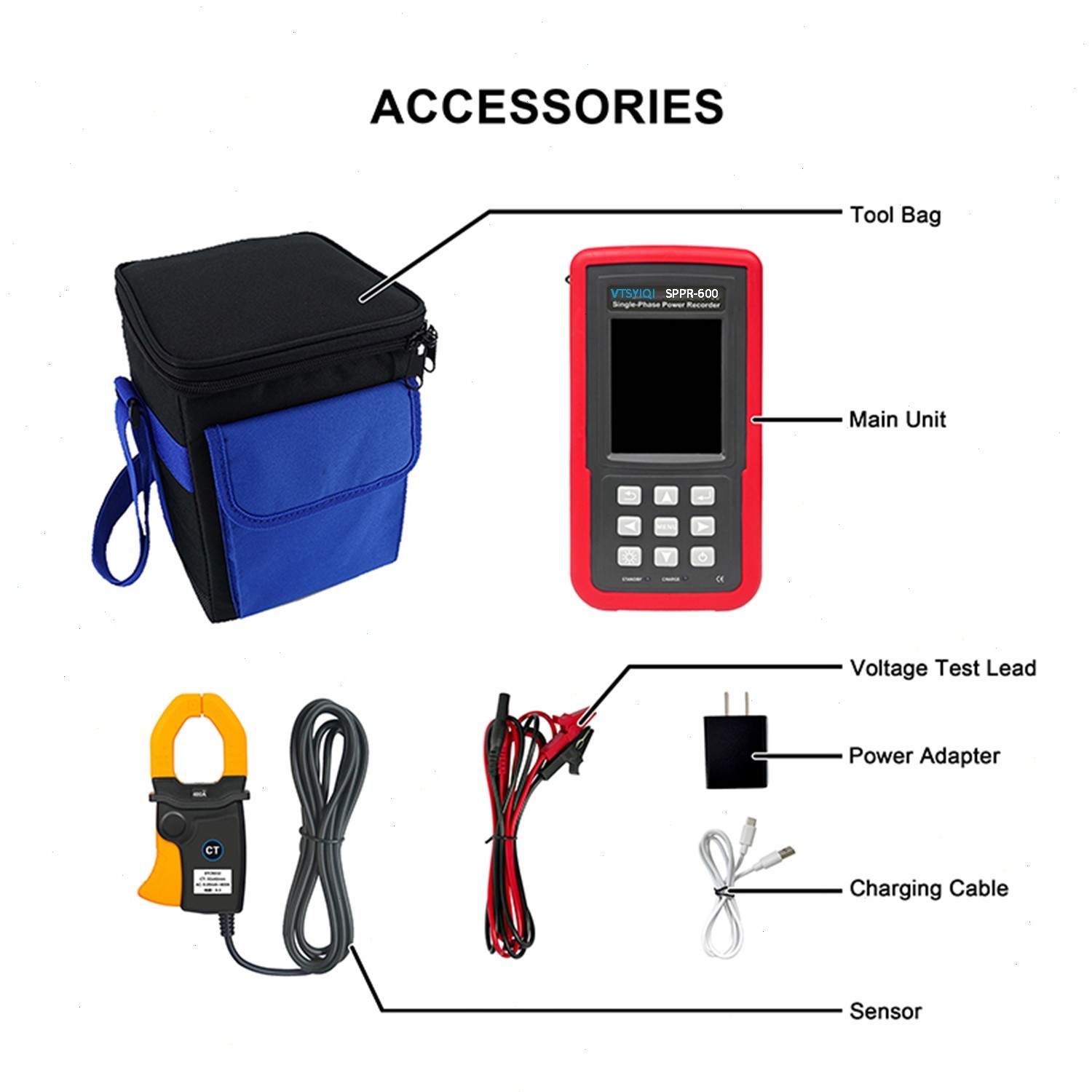

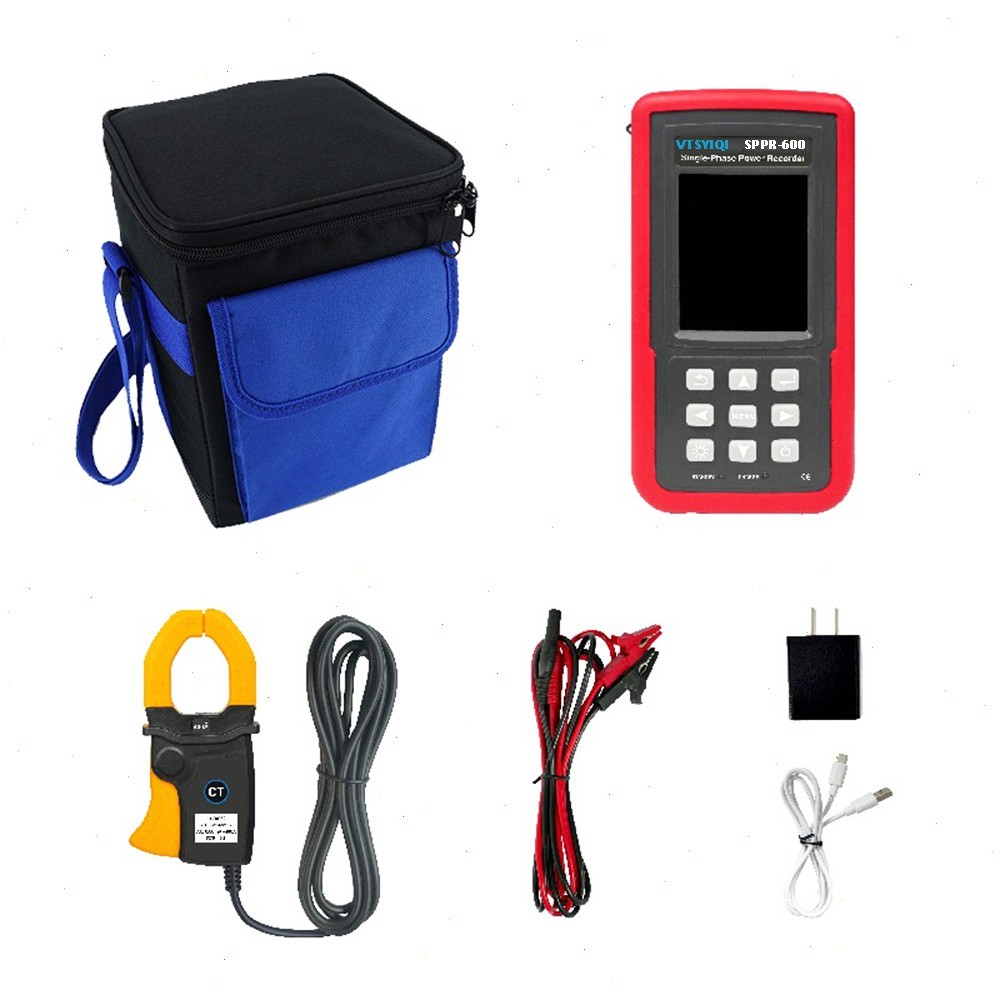

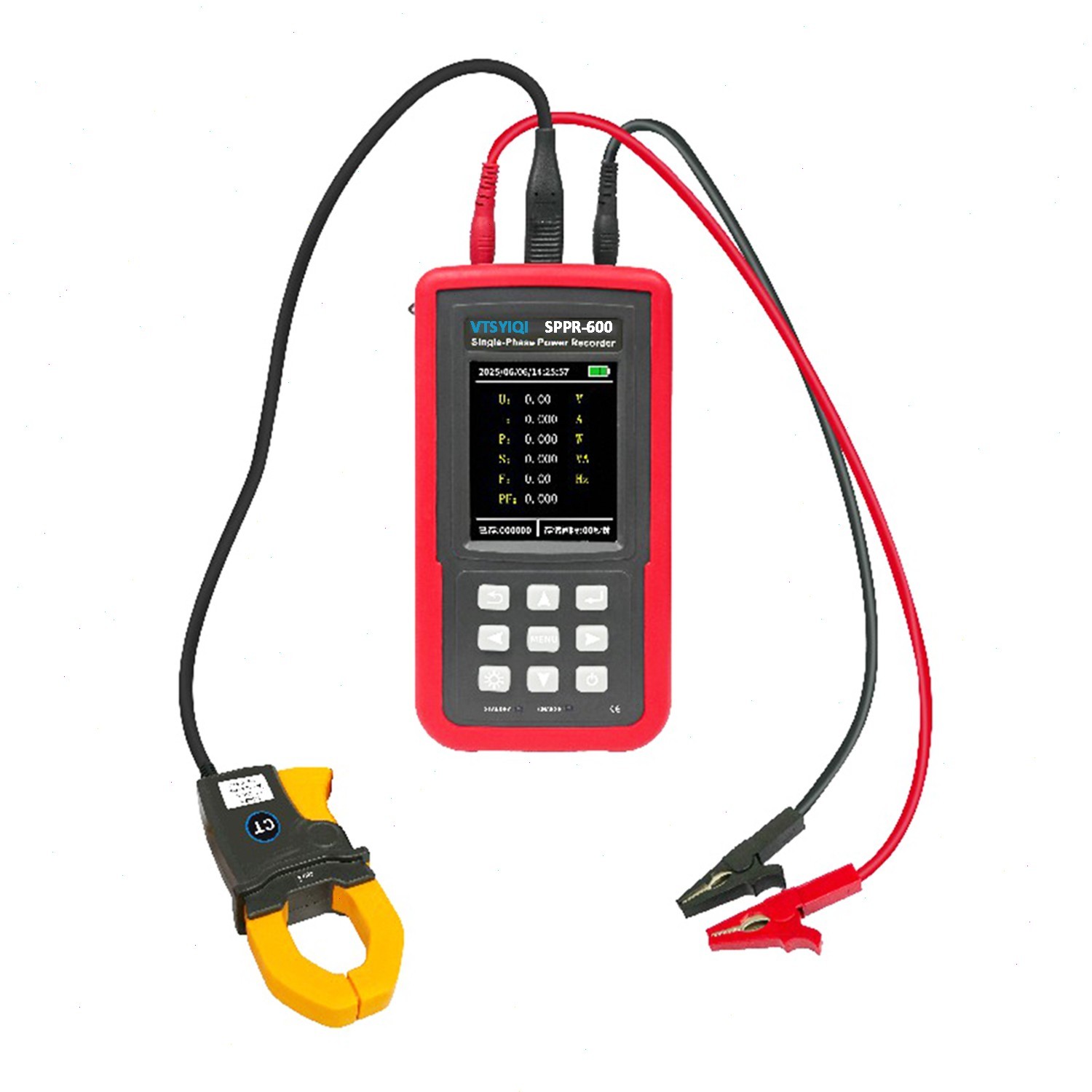

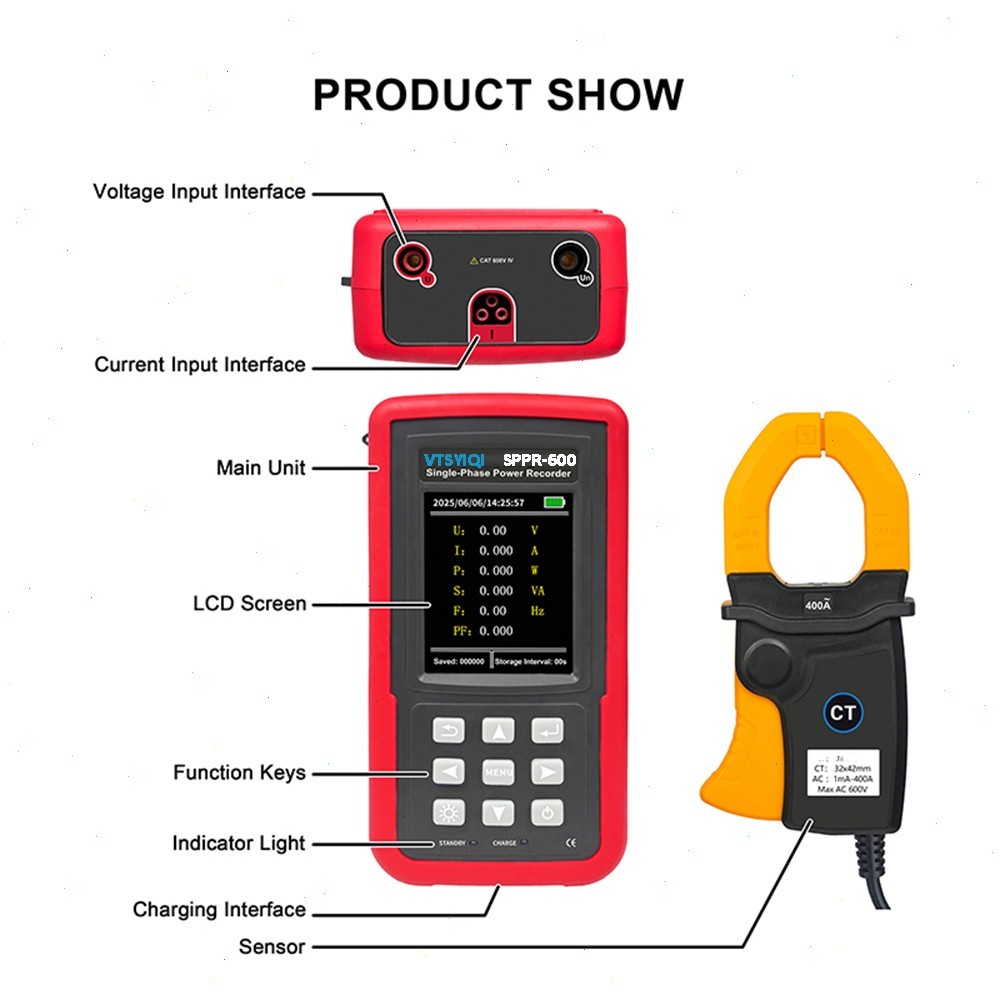

Check the listing for details. Single Phase Voltage Current Power Data Logger with Voltage Range 0.01V ~ 600V. Condition: New, Made in China. Listed at 500.00 USD. Range: 0.01V ～ 600V. Self-setting recording interval. The recorder consists of a main unit, current clamp, power adapter, communication cable, and data upload software. IEC1010-1, IEC1010-2-032, Pollution Degree 2, CAT Ⅲ (600V), IEC61326 (EMC standard).
