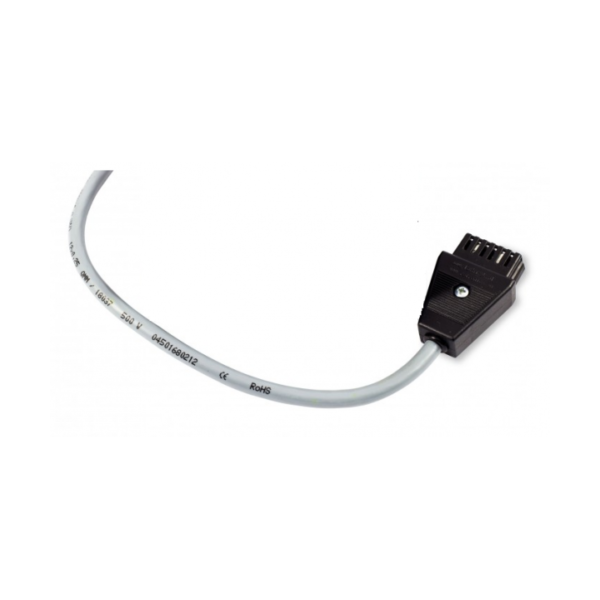

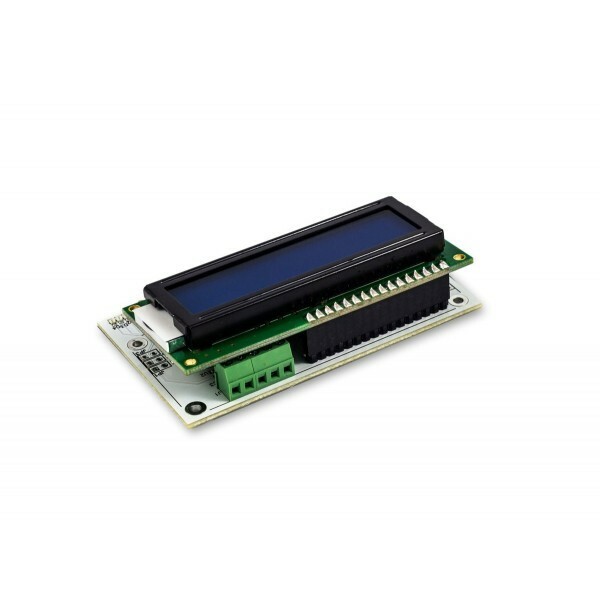

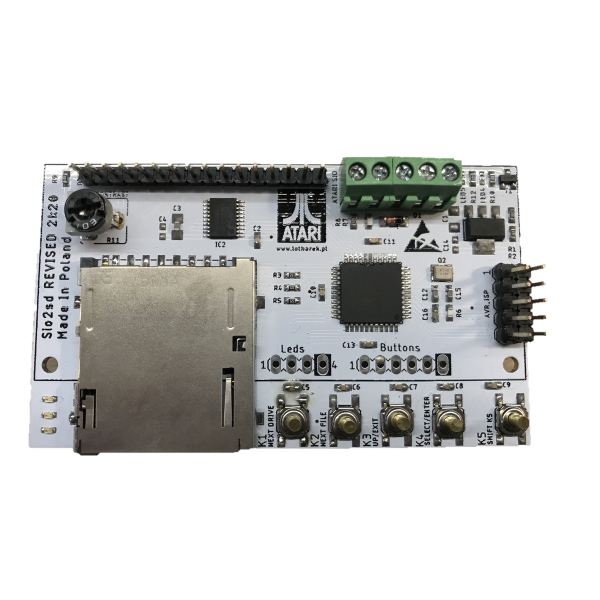

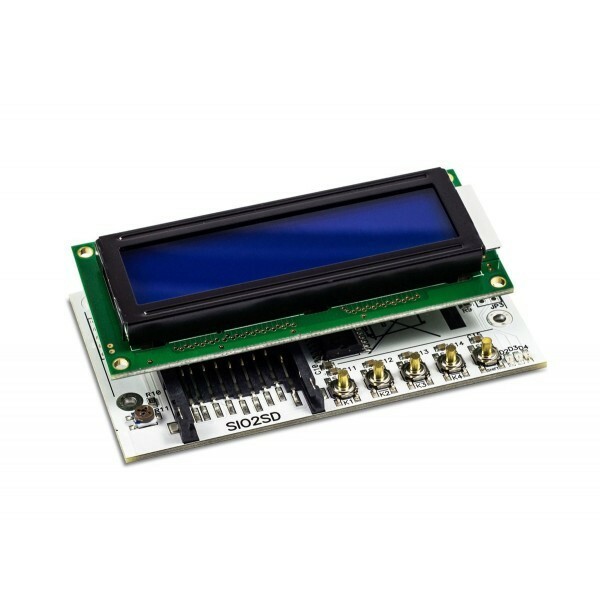

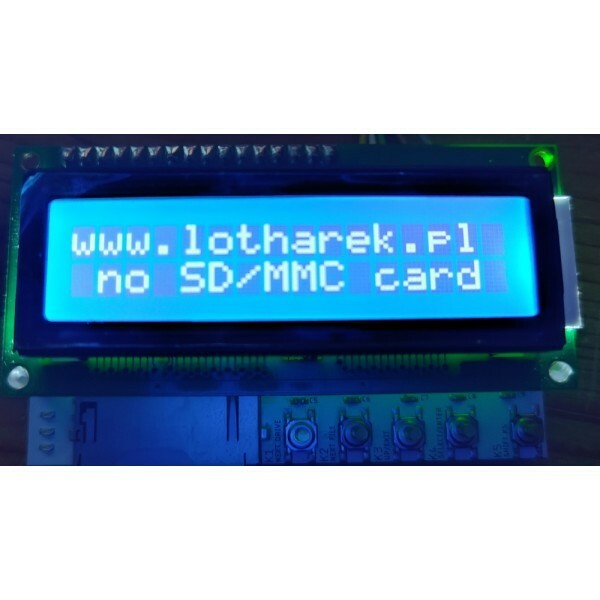

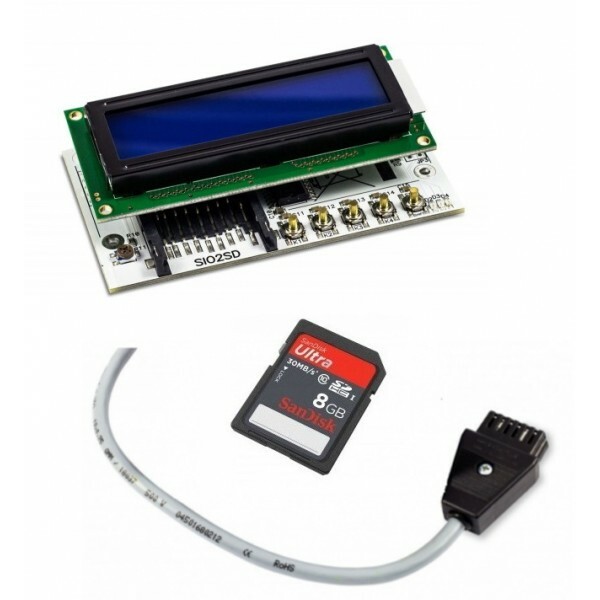

Check the listing for details. SIO2SD SD Card Reader starter set (device+cable+card) for Atari XL/XE (Lotharek). Condition: New. Listed at 65.60 USD. SIO2SD is a device that allows you to load games/applications into 8-bit Atari computers via SIO interface from SD/MMC cards. Device abilities:Works with SD/MMC (FAT12,FAT16 and FAT32 formats)Handles ATR (R/W), XFD (R/O) and COM/XEX (R/O) file types16x2 LCD display allows to browse the catalog tree and choose files to loadHandles SIO with turbo (allows to set speed index from 1 to 16, default is 6 (69kb/s), in versions 1.x speed index was always 10 (51kb/s))All densities with 128B and 256B sectors, including 16MB disksHandles drives D1: to D8: (up to version 1.2 only D1: to D4: drives were available)Can be configured using ATARI (it\'s possible to load configuration tool directly from MCU flash memory, so no SD card is needed)Hirose heavy duty SD card slot (push-pull)polarity protection with indicators led (OK/NOK polarity) IN THE BOXSIO2SD deviceSIO cable - 5 signals cable + injection moulded SIO plug (already attached)SD card with freeware demos, games Basic usageYou have to format SD card using a PC. Remember to use FAT format as above.In the root directory of the card, create a folder called Atari. You need to place all files in this folder, anything outside of it will not be visible to the device. It is advisable to do not place more than about 100 files for best performance. You can use subfolders to organise your files.On the first use, SIO2SD will create a SIO2SD.CFG file in the root directory of the card. This keeps whole configuration of the device (for example files to drives mapping). ButtonsK1: next Atari drive (D1:,D2:,..)K2: next file/folderK3: parent directory (cd ..)K4: go to folder/map file to current Atari driveSHIFT+K2: firmware upgradeSHIFT+K4: turn off current Atari drive ("eject disk") Options:SIO high speedoffhsindex from 1 to 16 (6 is the default setting)Config tool load (when to override D1 to load configuration program)neverstartup+shift - only when SHIFT was pressed during startup (power on)every startupno card - only if SD card is not inserted (default setting)shift pressed - SHIFT always causes D1 override (tested on every SIO \'S\' command on D1 - available from version 2.2)LED mode (meaning of LEDs)SD read/write - first LED shows SD reads, second LED shows SD writesSIO read/write - first LED shows SIO reads, second SIO writesSD act/SIO act - first LED shows any SD activity, second any SIO activitydevice id (number of device for SIO2SD.XEX - available from version 2.2)values from 0 to 3write protect (write protection in ATR files - available from version 2.2)never - ATR\'s are always R/W (write protect flag ignored)obey ATR flag - obey ATR write protect flag - defaultalways - ATR\'s are always R/O
