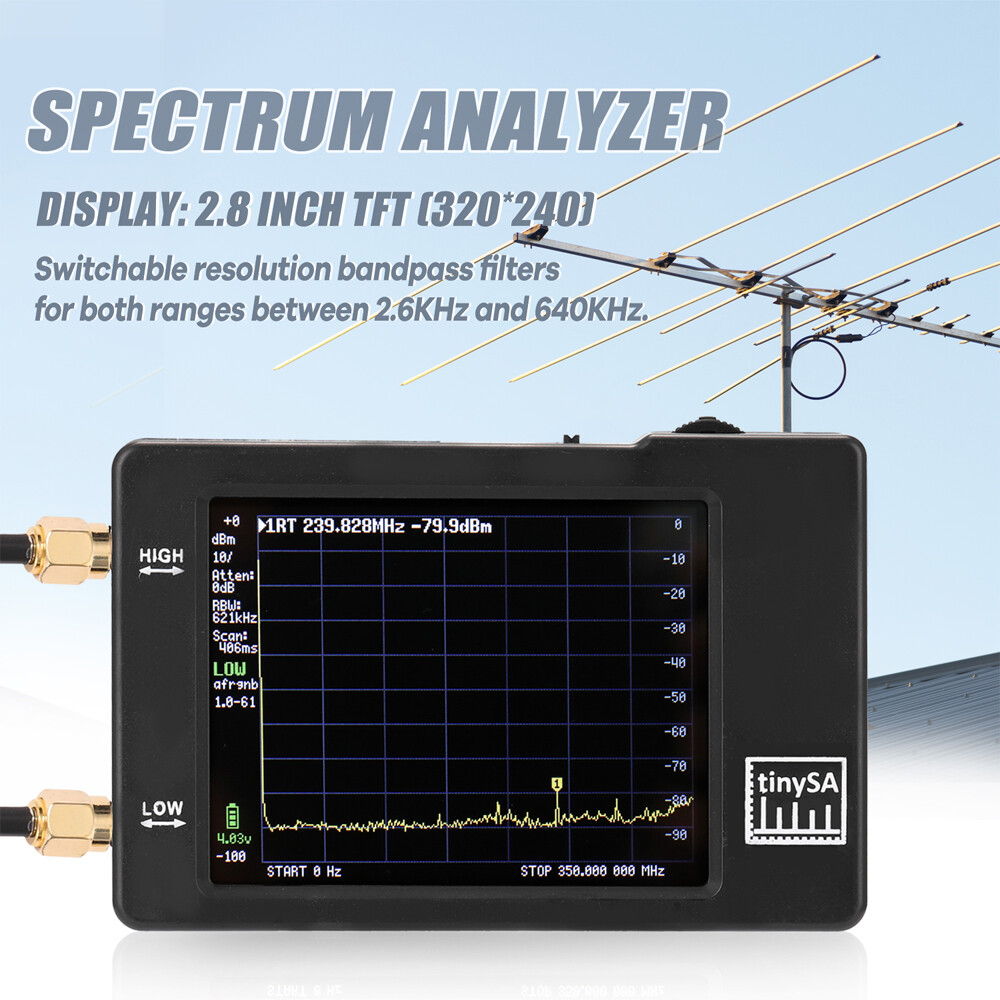

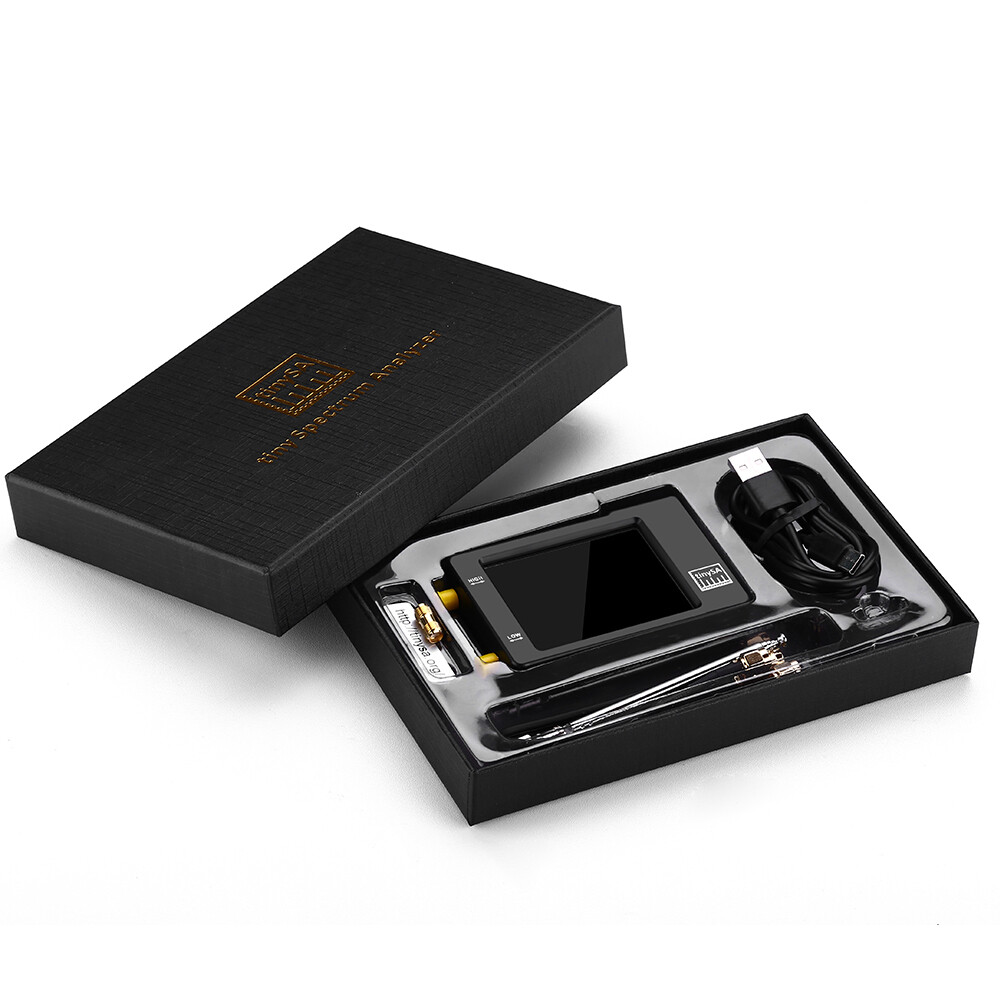

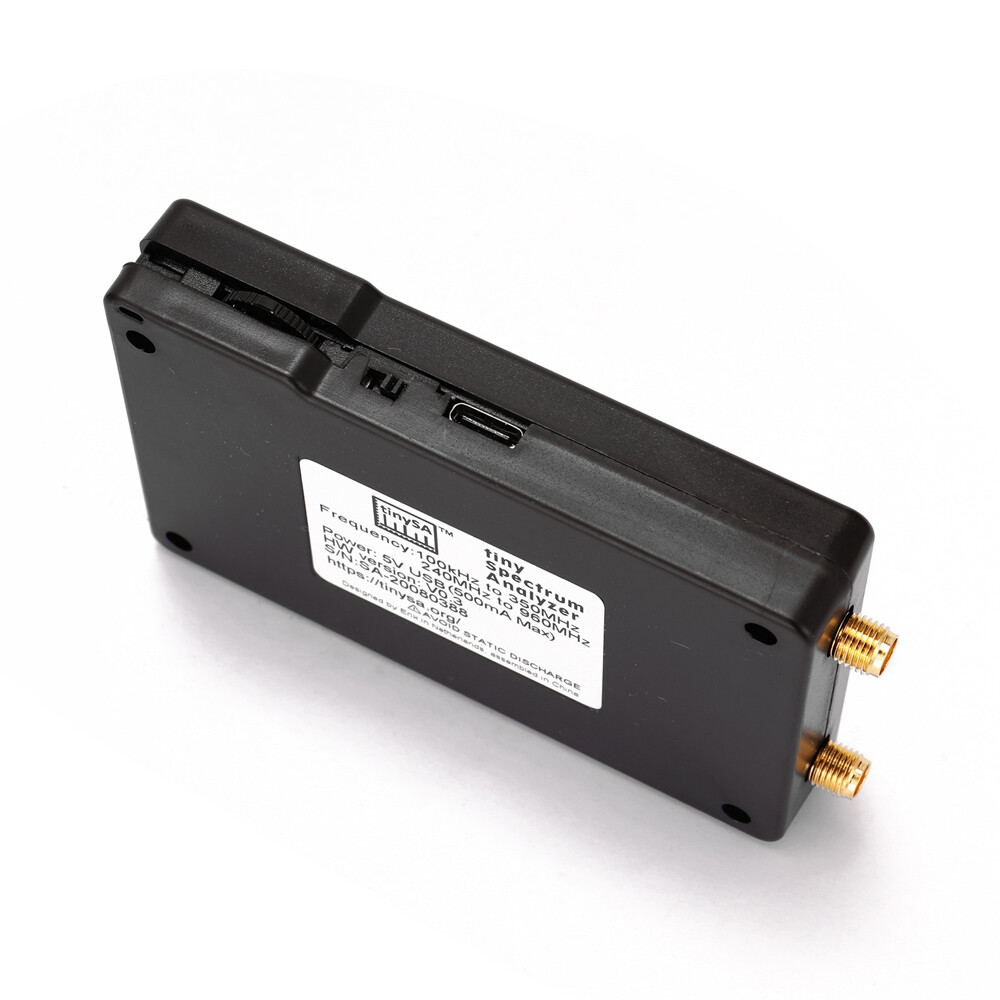

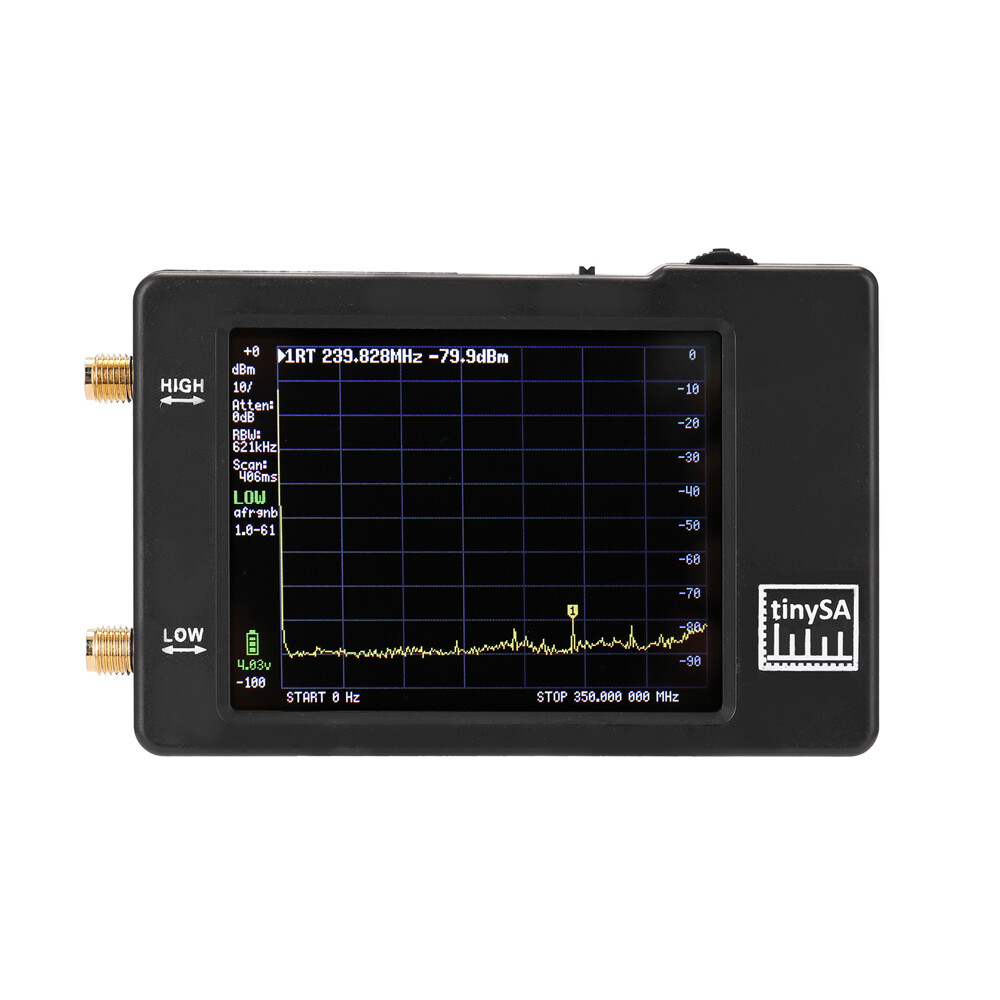

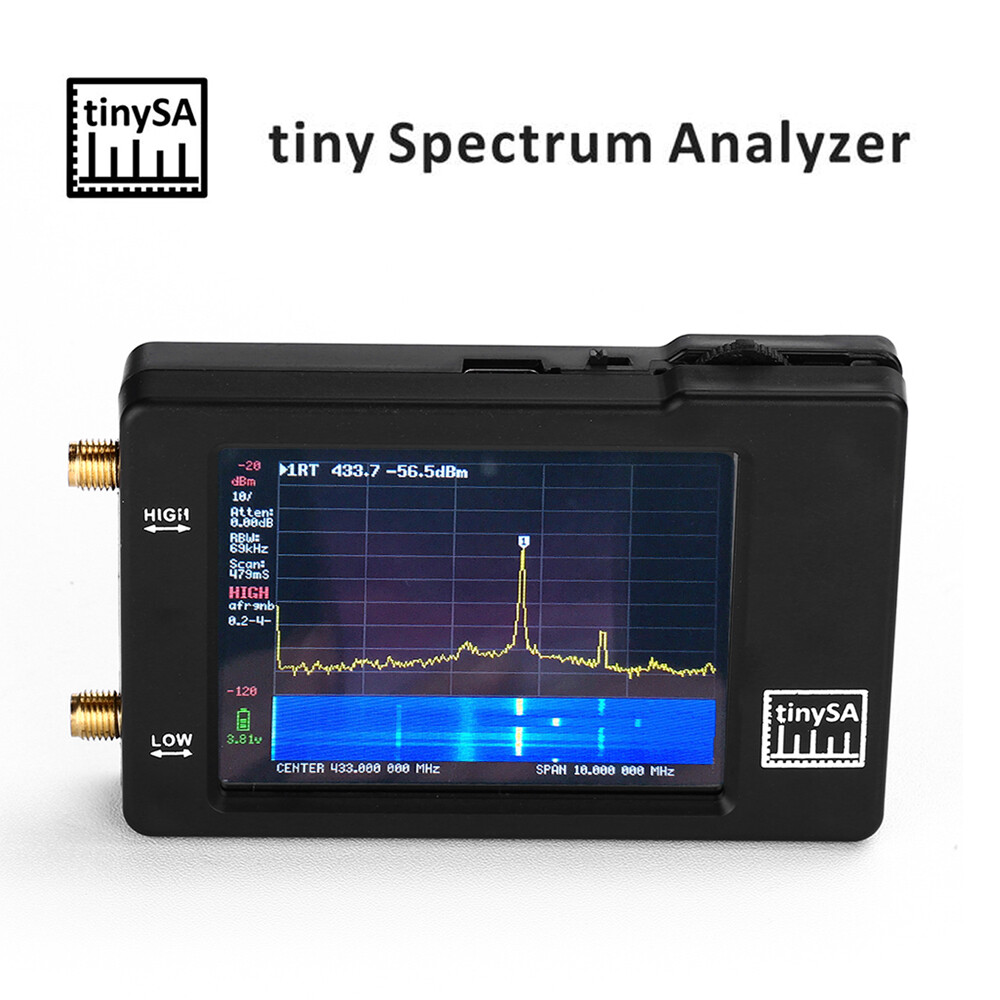

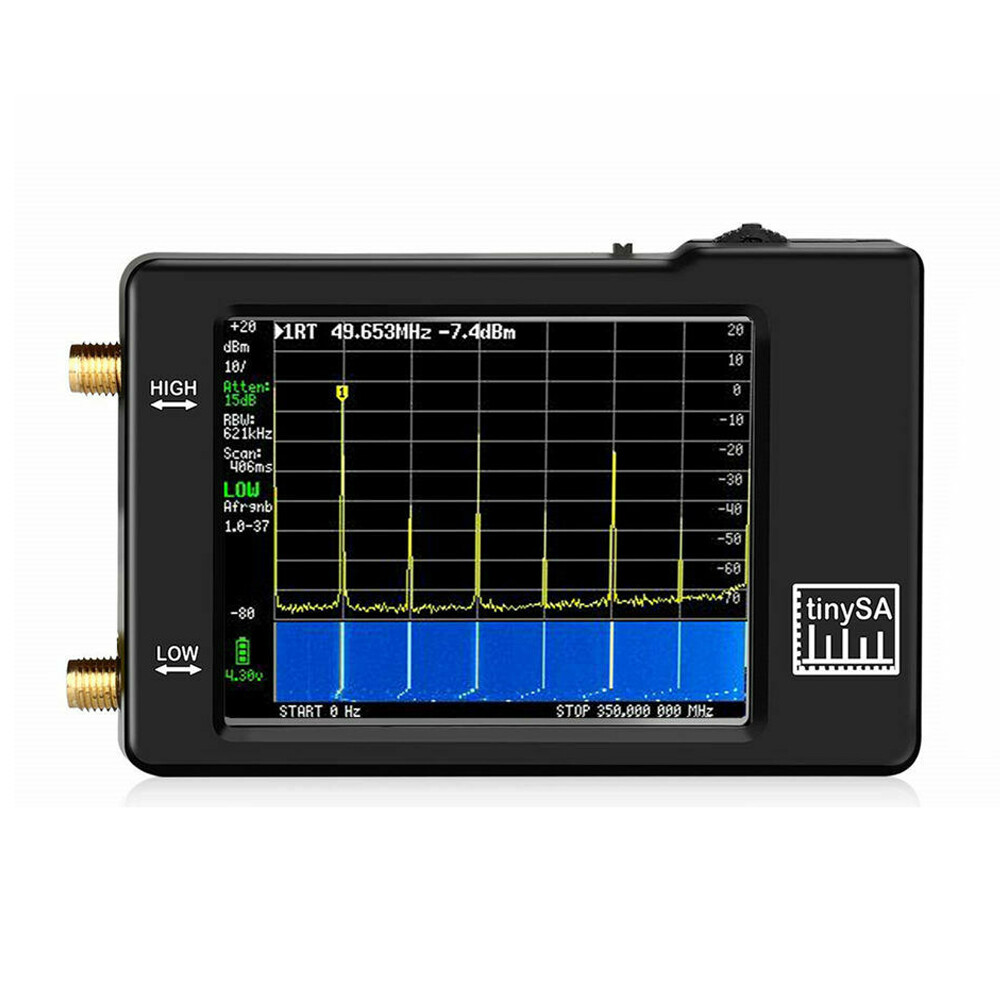

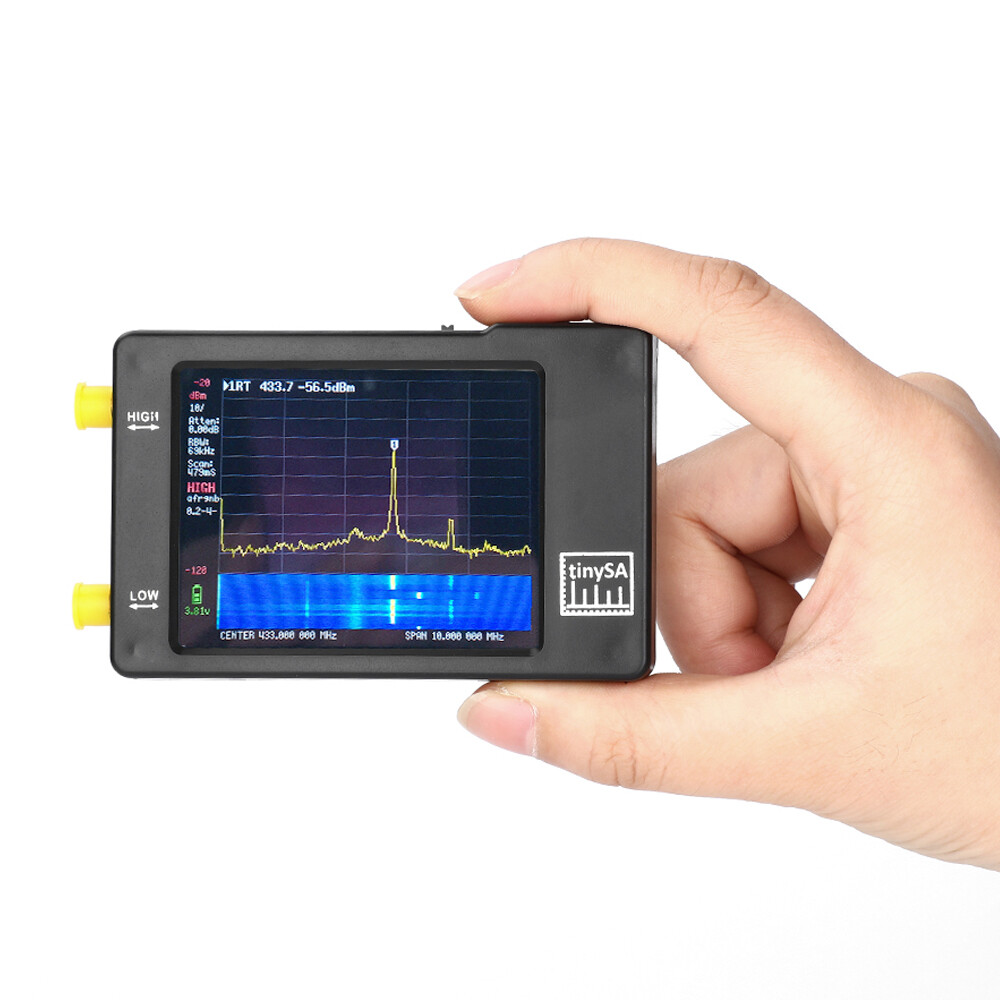

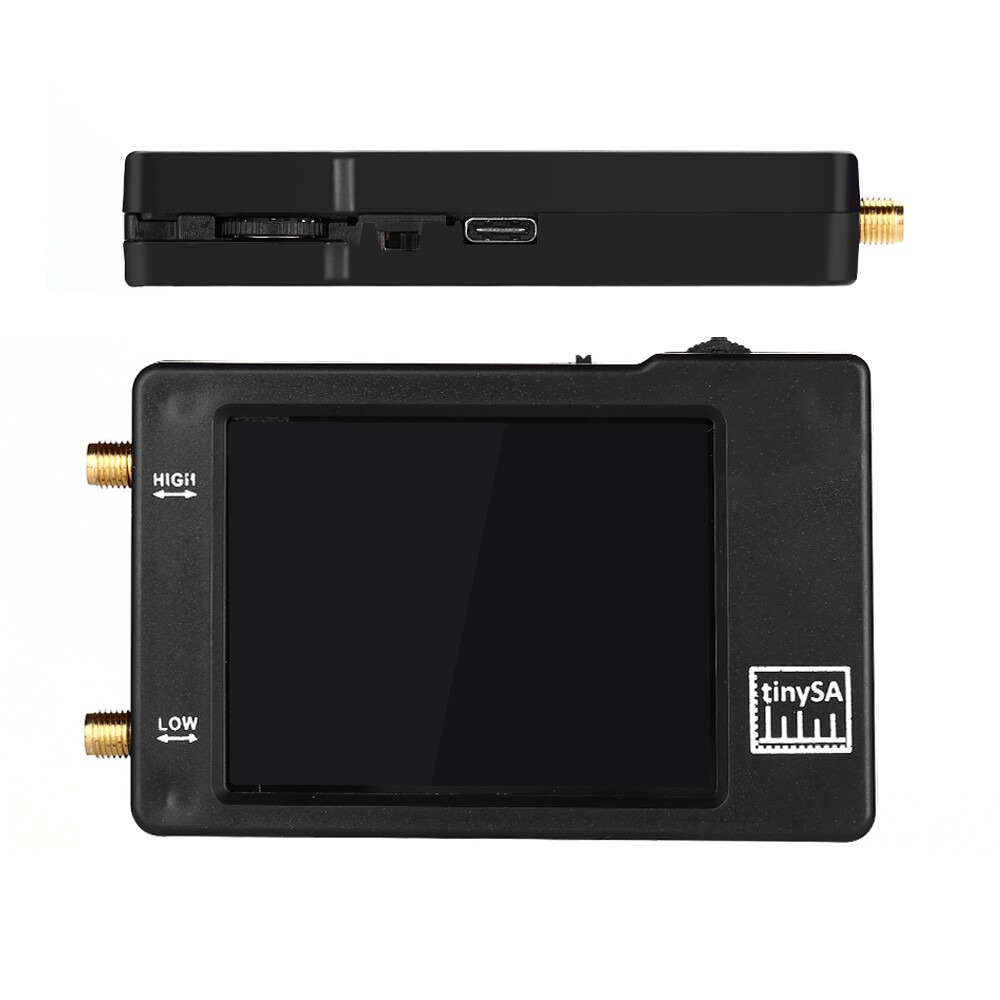

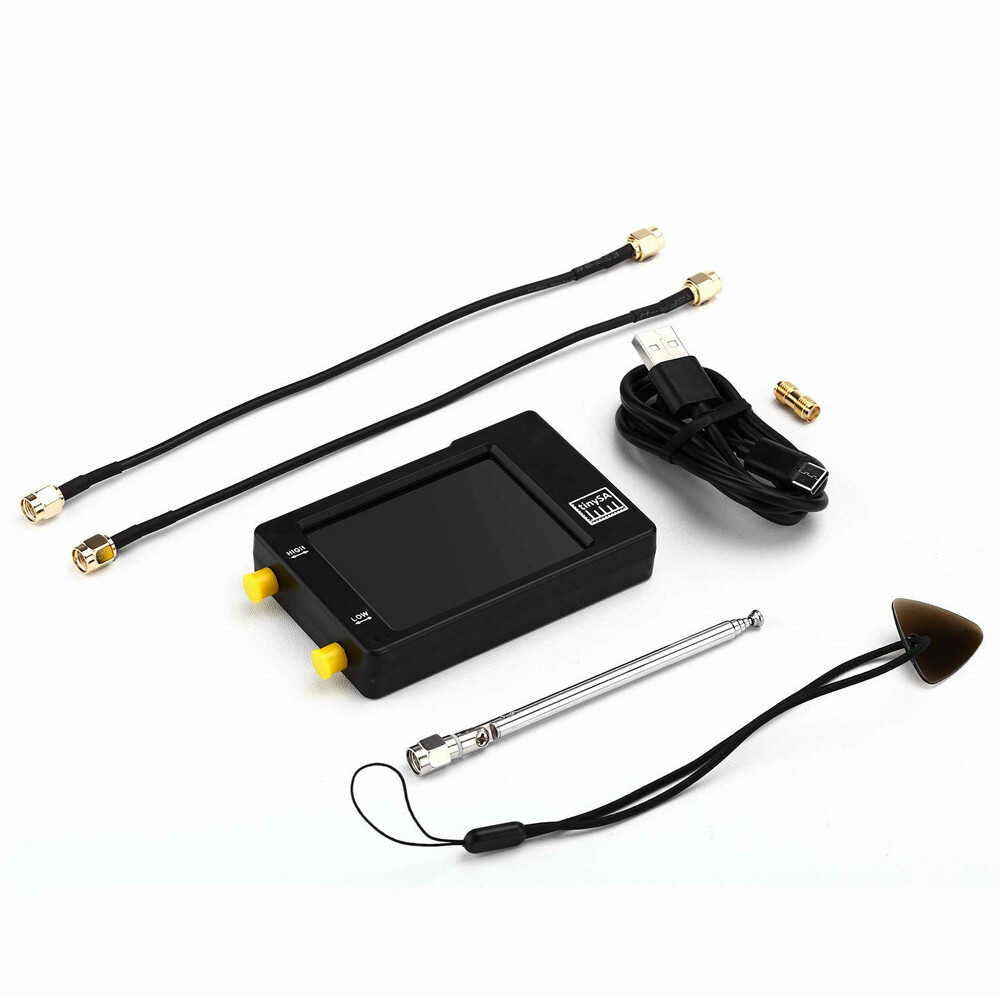

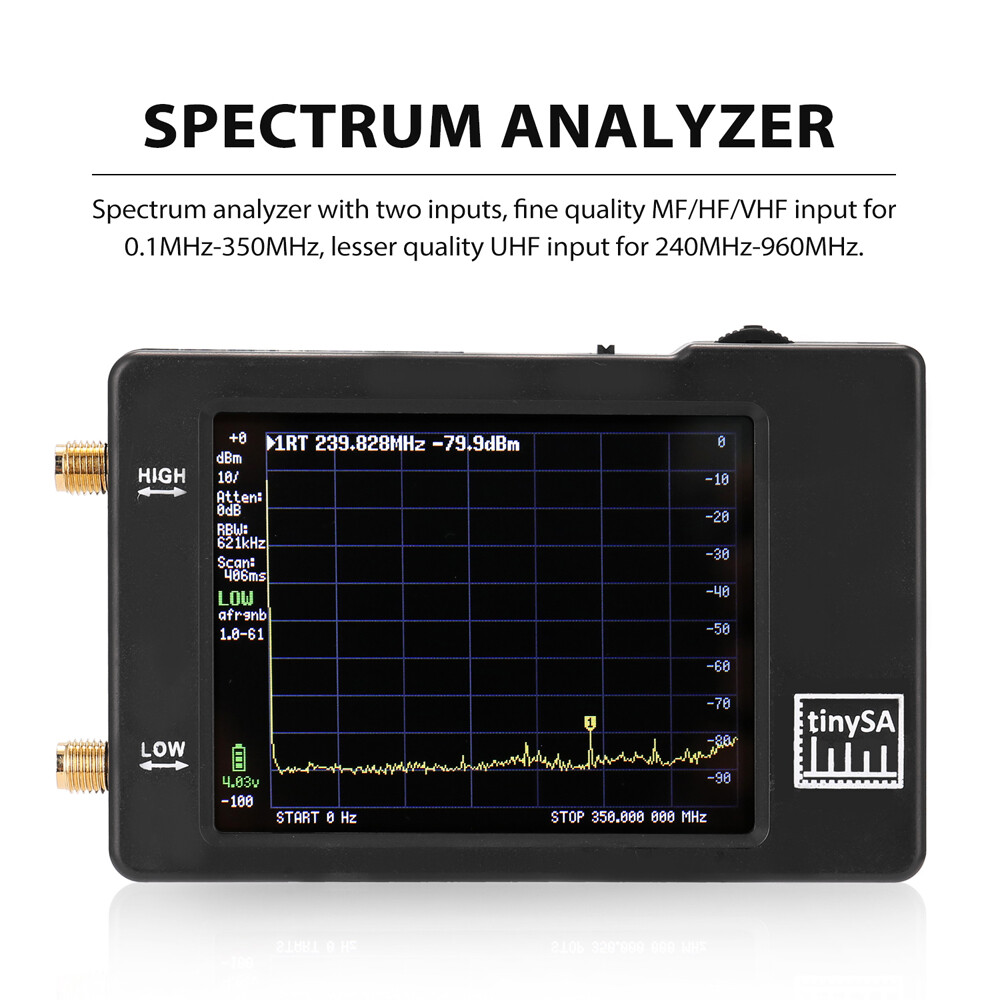

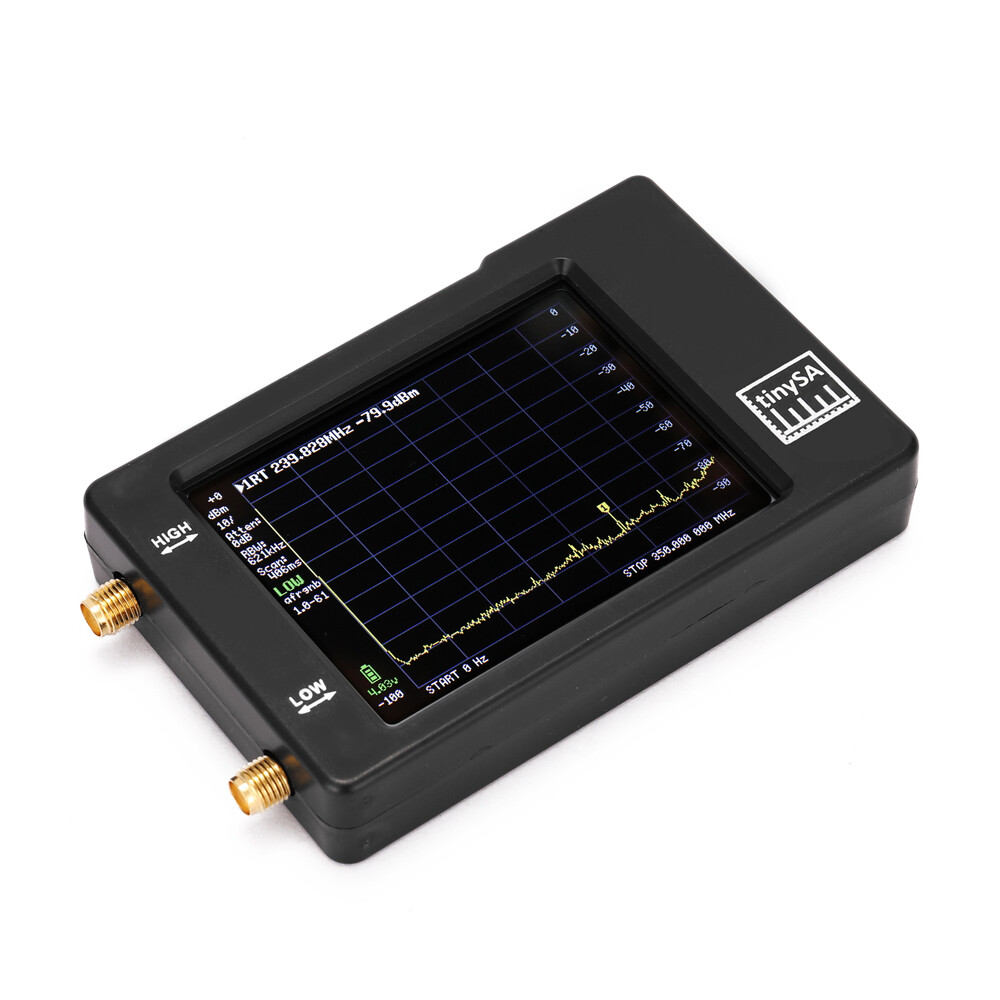

Check the listing for details. TinySA Handheld Tiny Spectrum Analyzer 2.8 Inch Touch Screen 100KHz to 960MHz. Condition: New. Listed at 62.69 USD. template TinySA Handheld Tiny Spectrum Analyzer 2.8 Inch Touch Screen 100KHz to 960MHz with Battery Features:1. Spectrum analyzer with two inputs, fine quality MF/HF/VHF input for 0.1MHz-350MHz, lesser quality UHF input for 240MHz-960MHz.Switchable resolution bandpass filters for both ranges between 2.6KHz and 640KHz.2. Color display showing 290 scan points covering up to the full low or high frequency range.3. Input step attenuator from 0dB to 31dB for the MF/HF/VHF input.4. When not used as spectrum analyzer it can be used as signal generator, MF/HF/VHF sinus output between 0.1MHz-350MHz, UHF square wave output between 240MHz-960MHz.5. A built-in calibration signal generator that is used for automatic self test and low input calibration.6. Connected to a PC via USB it becomes a PC controlled spectrum analyzer.7. Rechargeable battery allowing a minimum of at least 2 hours portable use. Specifications:Material: ABSColor: blackBattery: 1 * lithium battery, 650mAh (included)Package size: 200 * 120 * 30mm / 7.9 * 4.7 * 1.2inPackage weight: 250g / 8.8ounce User interface:Display resolution: 320*240 pixelsScreen size: 2.8"16 bits per RGB pixelsResistive touching controlJog switch controlUSB serial port controlOptional TTL USART port (SW not yet implemented) on the internal PCBLinear power supply to refrain switching noise The input/output specification of the tinySA is split over the 4 modesLow input mode spec:* Input frequency range from 100kHz to 350MHz* Input impedance 50 ohm when input attenuation set to 10dB or more.* Selectable manual and automatic input attenuation between 0dB and 31dB in 1 dB steps* Absolute maximum input level without attenuation of +10dBm* Absolute maximum input power with 30dB attenuation of +20dBm for short period* Input Intercept Point of third order modulation products (IIP3) with 0dB attenuation of +15dBm* 1dB compression point at +2dBm with 0dB attenuation* Power detector resolution of 0.5dB and linearity versus frequency of +/-1dB* Absolute power level accuracy after power level calibration of +/- 1dB* Lowest discernible signal using a resolution bandwidth of 30kHz of -102dBm* Frequency accuracy equal to the selected resolution bandwidth* Phase noise of -90dB/Hz at 100kHz offset and -115dB/Hz at 1MHz offset* Spur free dynamic range when using a 30kHz resolution bandwidth of 70dB* Manually selectable resolution filters of 3, 10, 30, 100, 300, 600kHz. Automatic selection of one of the 57 resolution filters.* On screen resolution of 145 or 290 measurement points.* Scanning speed of over 1000 points/second using largest resolution filters.* Automatic optimization of actual scanning points to ensure coverage of the whole scan range regardless of the chosen resolution bandwidth* Spur suppression option for assessing if certain signals are internally generated or actually present in the input signal High input mode spec:* Input frequency range from 240MHz to 960MHz* As there is no input bandfilter strong signals outside the 240MHz to 960MHz range can cause distortion of the in band signals* Absolute maximum input level without attenuation of +10dBm* Input Intercept Point of third order modulation products (IIP3) of -5dBm* 1dB compression point at -6dBm with 0dB attenuation* Power detector resolution of 0.5dB and linearity versus frequency of +/-1dB* Absolute power level accuracy after power level calibration of +/- 1dB* Lowest discernible signal using a resolution bandwidth of 30kHz of -115dBm* Frequency accuracy equal to the selected resolution bandwidth* Spur free dynamic range when using a 30kHz resolution bandwidth of 50dB* Selectable (automatic and manual) resolution filters of 3, 10, 30, 100, 300 and 600kHz* Optional 25dB to 40dB frequency dependent input attenuator. The power level error with this attenuator activated increases to +/- 15dB* On screen resolution of 145 or 290 measurement points.* Scanning speed of over 1000 points/second using largest resolution filters.* Automatic optimization of actual scanning points to ensure coverage of the whole scan range regardless of the chosen resolution bandwidth Low output mode spec:* Sinus output with harmonics below -40dB of fundamental* Output frequency range from 100kHz to 350MHz* Output level selectable in 1dB steps between -76dBm and -6dBm* Optional AM, narrow FM and wide FM modulation or slow sweep over selectable frequency span High output mode spec:* Square wave output* Output frequency range from 240MHz to 960MHz* Output level selectable in variable increments between -38dBm and +13dBm* Optional narrow FM and wide FM modulation or slow sweep over selectable frequency span Reference generator spec:* Optional square wave output with fundamental at -25dBm connected to high input/output* Frequency can be set to 1MHz, 2MHz, 4MHz, 10MHz, 15MHz or 30MHz. Battery spec:* Charging time max 1 hour on 500mA minimum USB port or USB charger* Operation on fully charged battery for at least 2 hours What's in Package:1 * Tiny Spectrum Analyzer2 * SMA to SMA Cable 1 * SMA telescopic antenna1* SMA female to female connector1 * USB Type-C Cable1* Hand rope 1.Your valid phone number is very necessary for the shipping, otherwise we can't guarantee that the package would safely arrives.2. Any Customs tax applied to this package should be covered by buyers.3.As has been stated on the eBay item description, Import duties, taxes and charges are not included in the item price and shipping charges. These charges be at the buyer responsibility. meanwhile the customs tax depend on the buyer local customs office. Contact Us: 1. We have always been trying to provide the best service and reliable products for every customer, however, accident may happen sometimes, please contact us to resolve any issue before leaving a negative feedback. 2. Please contact us by "Ask a question". Payment 1. Payment methods accepted : Paypal only. 2. Payment must be received within 7 business days of auction closing. Shipping 1. We ship your orders within 1-3 business days after the payment received. 2. Item shipped via Singapore Post or HongKong Post , It takes about 7-30 business days (USA,CA,AU,UK).others country 10-20 business days(Brzil,India,RU),Exact delivery time depends on postal process. 3. If you do not receive your item(s) by 30 business days,Please feel free to contact us via ebay mail system , we will try our very best to resolve any problems with you Return Policy 1. Return is accepted within 30 days after the buyer's receiving the item. 2. If this item is defective upon receipt, customer has up to 14 days from date of receipt for exchange of a new one. 3. Unused/unopened merchandise will be fully credited. Other Policies We are not responsible for any custom duty or import tax. If you need we write low price on shipping bill, pls leave message when you make payment . All emails will be answered within 24 hours. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible, Suggest send eBay message to us, That is easy to find .
