| All returns accepted | ReturnsNotAccepted |
|---|---|
| MPN | 4PDT-3P-MOM |
| Maximum Amperage | 30A |
| Suitable For | Interior |
| Application | Electronics |
| Current Rating | 30A |
| Current Type | AC/DC |
| Operation Method | On / Off / Momentary On |
| Brand | GAMA Electronics |
| Termination Type | Quick Disconnect |
| Switch Style | Toggle/Joystick |
| Type | Momentary Switch |

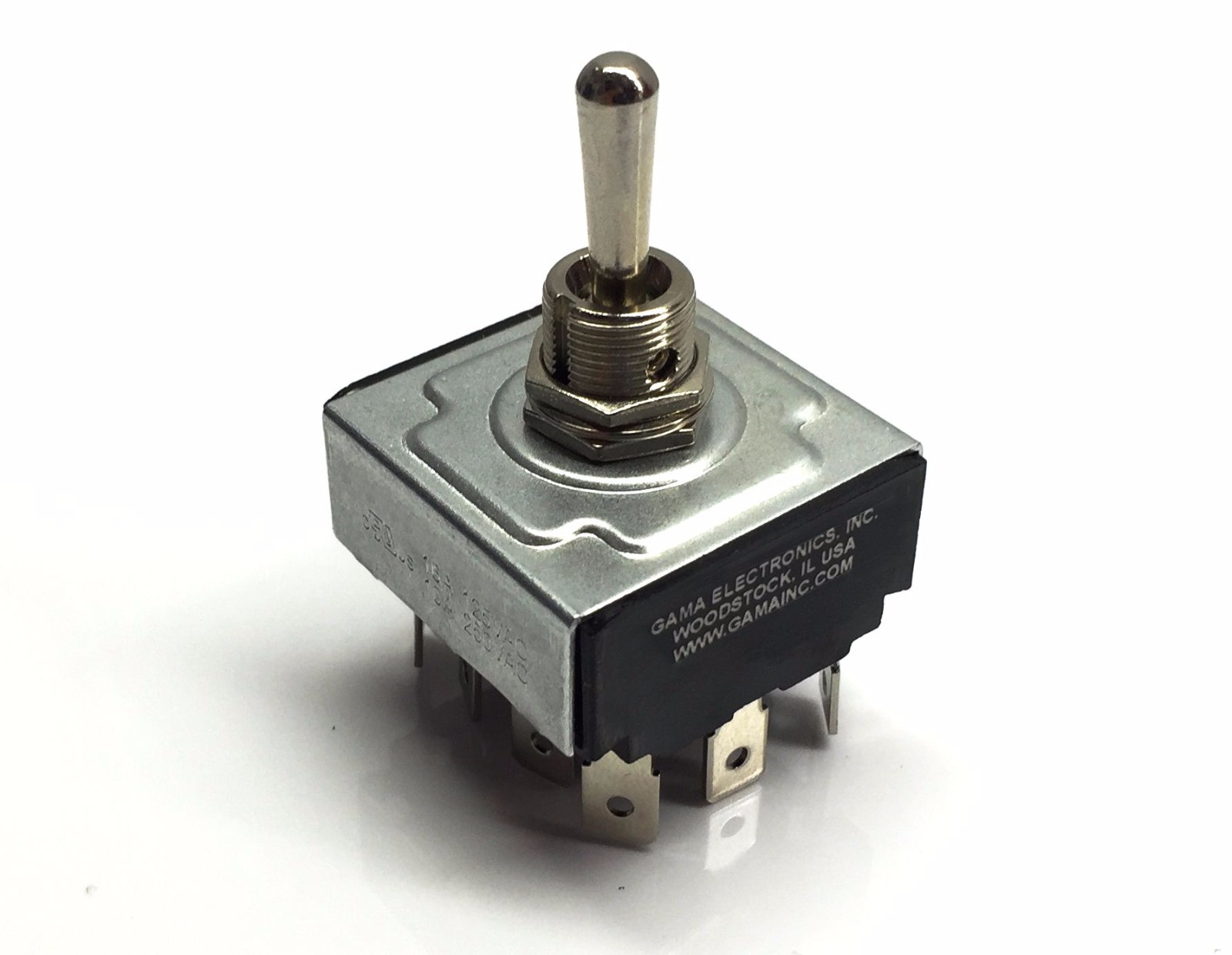

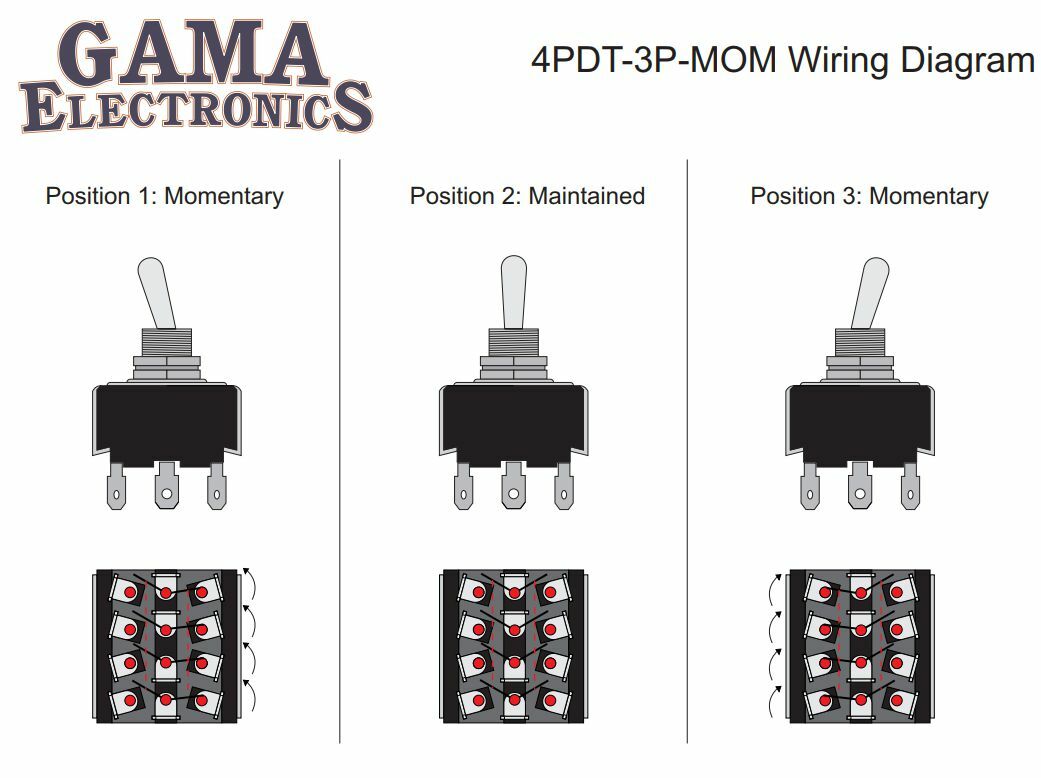

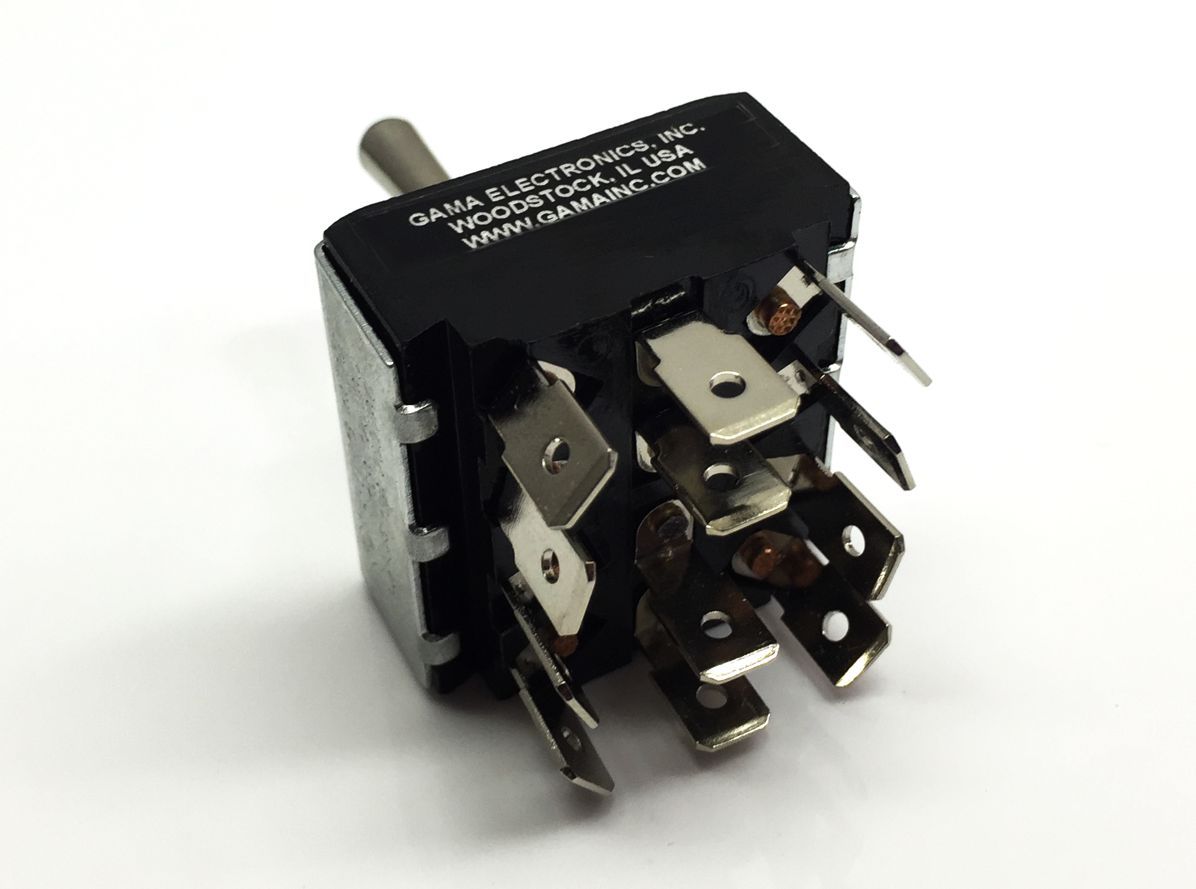

Check the listing for details. Toggle Switch 4 Pole, Double Throw Momentary On-Off-Momentary On Toggle Switch. Condition: New. Listed at 22.95 USD. This heavy duty, 4 pole double throw toggle switch has 3 positions, momentary both sides to center. It is rated 30A 12VDC, 16A 125VAC, 10A 250VAC. It has twelve 1/4" quick connect terminals and it mounts in a 7/16" diameter hole. The approximate body dimensions are 1 3/8" L x 1 3/8" W x 1" D.
You may also like
$125.99
Hubbell Wiring Device-Kellems Cpb20 Pendant Push Button Station, No/Nc, Yellow
$589.99
ALLEN BRADLEY 800P-S2YG1B YELLOW PUSHBUTTON PALM OPERATED *NEW IN BOX*
$26.66
FUJI ELECTRIC AH165-L5 YELLOW PUSH BUTTON, T1631
$165.74
6x6x4.3 - 18mm PCB Momentary Tactile Tact Push Button Switch 2 Pin DIP 2 SPST
$11.29

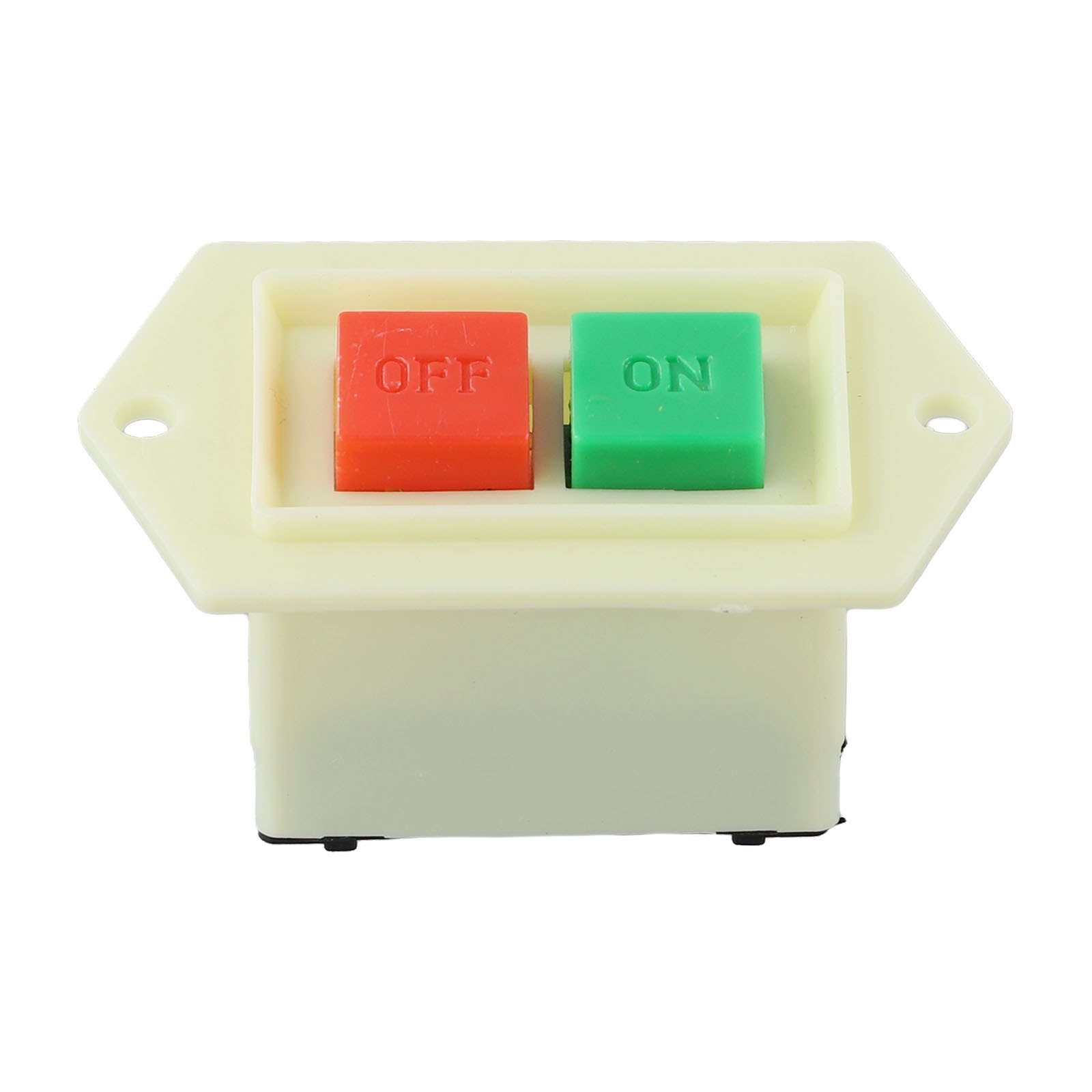

Button Switch Bench Grinder Switch Push Button Switch Stop Push Stop
$9.3
4Pcs 22mm Mounting Holes Transparent Button Protection Cover Push Button Switch
$75
SCHMERSRL 1PCS NEW Type ZS 236-02Z-M20 Travel Limit Safety Switch 230VAC 4A
$90.89
800H-JR91A Allen Bradley 800H 3-Pos Sel Sw White Rtn Both NEW USA
$110
Square D 9001BW93Y Pendant Stations - 9001 BW
$75.2
1PCS NEW Type T1R 236-02Z-M20 230VAC 4A SCHMERSRL Travel Safety Limit Switch
$16.94

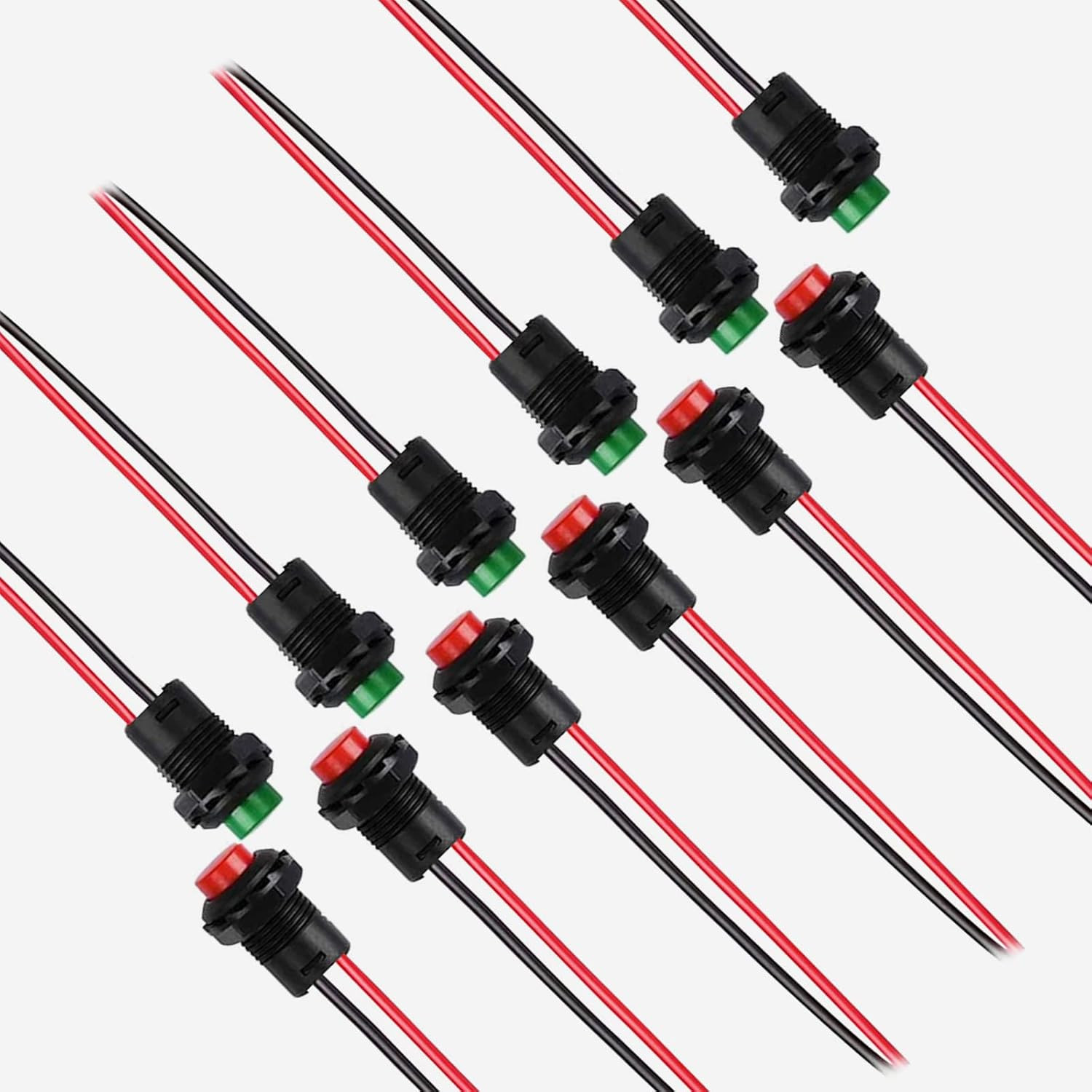

12Mm Mini Latching Push Button on off Switch Prewelded Wire,Self-Locking Micro r
