| Stroke | 200mm |
|---|---|
| Brand | YIDOFENG |
| Horizontally loadable | 30kg |
| Hole | Standard M6 mounting hole |
| Accuracy | Up to 0.003mm |
| Ballscrew Type | 1204 |
| Material | Aluminum Alloy |
| Stroke Length | 100mm/200mm/300mm/400mm |
| Country/Region of Manufacture | China |
| Width | 80mm |
| Vertical carrying | 15kg |

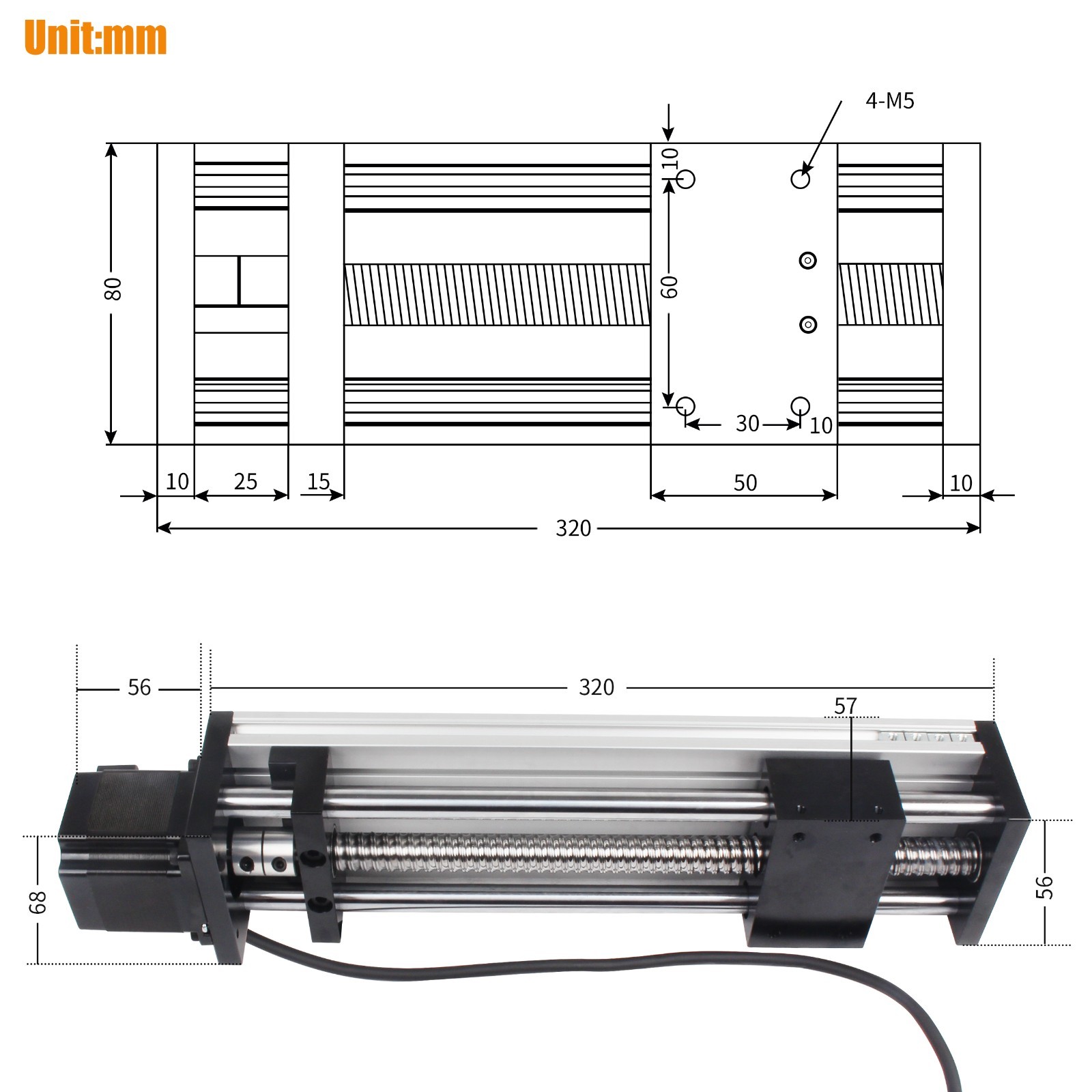

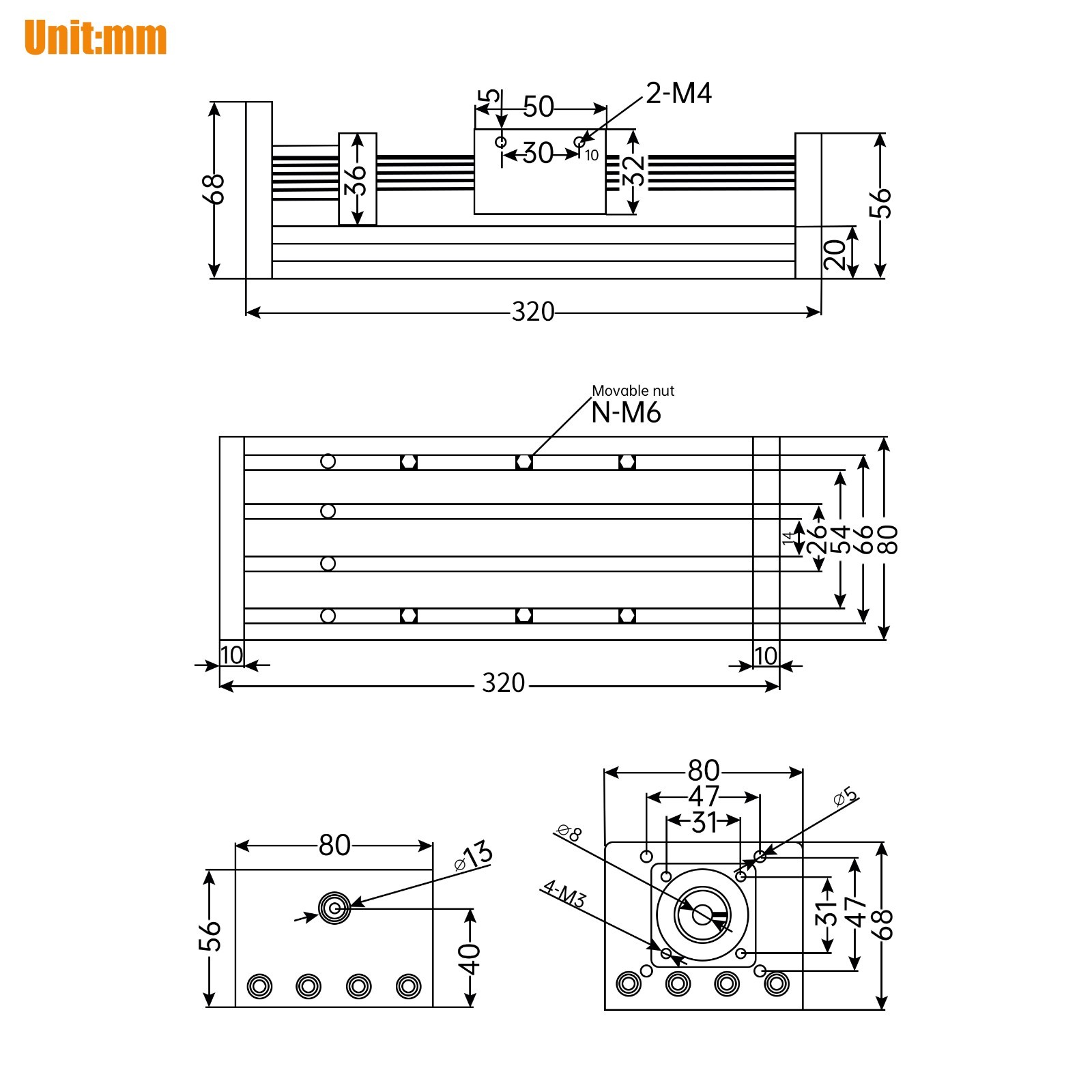

Check the listing for details. 【US】 CNC Linear Stage Actuator, Linear Slide Rail 1204 Ball Screw, 100-400mm. Width: 80mm, Condition: New. Listed at 85.50 USD. Screw Specifications 1204. Effective Stroke 100mm/200mm/300mm/400mm. 1204 ball screw, high transmission efficiency and precision. Sliding Table Structure Optical axis linear bearing. Linear Slide Rail Cross Sliding Table.
You may also like
$22.2
Roller Axle 16 Concentric SL0152S
$349.98
Parker Origa System Plus OSPP250000000220200000 Linear Actuator -Unused-
$149.6
Manual Slide Stage Table Linear Rail Guide& Handwheel Actuator Ball Screw Motion
$219.97
SBC Linear Genuine New SBS20SL-2-K1-320R discontinued replace LMG-I-2092=1M24
$104.49
X-axis Slide Table Linear Adjustable Displacement Platform Manual Translation
$53.05
ARO 95826-A Check Ball,TPV,For 6CCN2/6CCN3/6CCN8 42CH34
$350

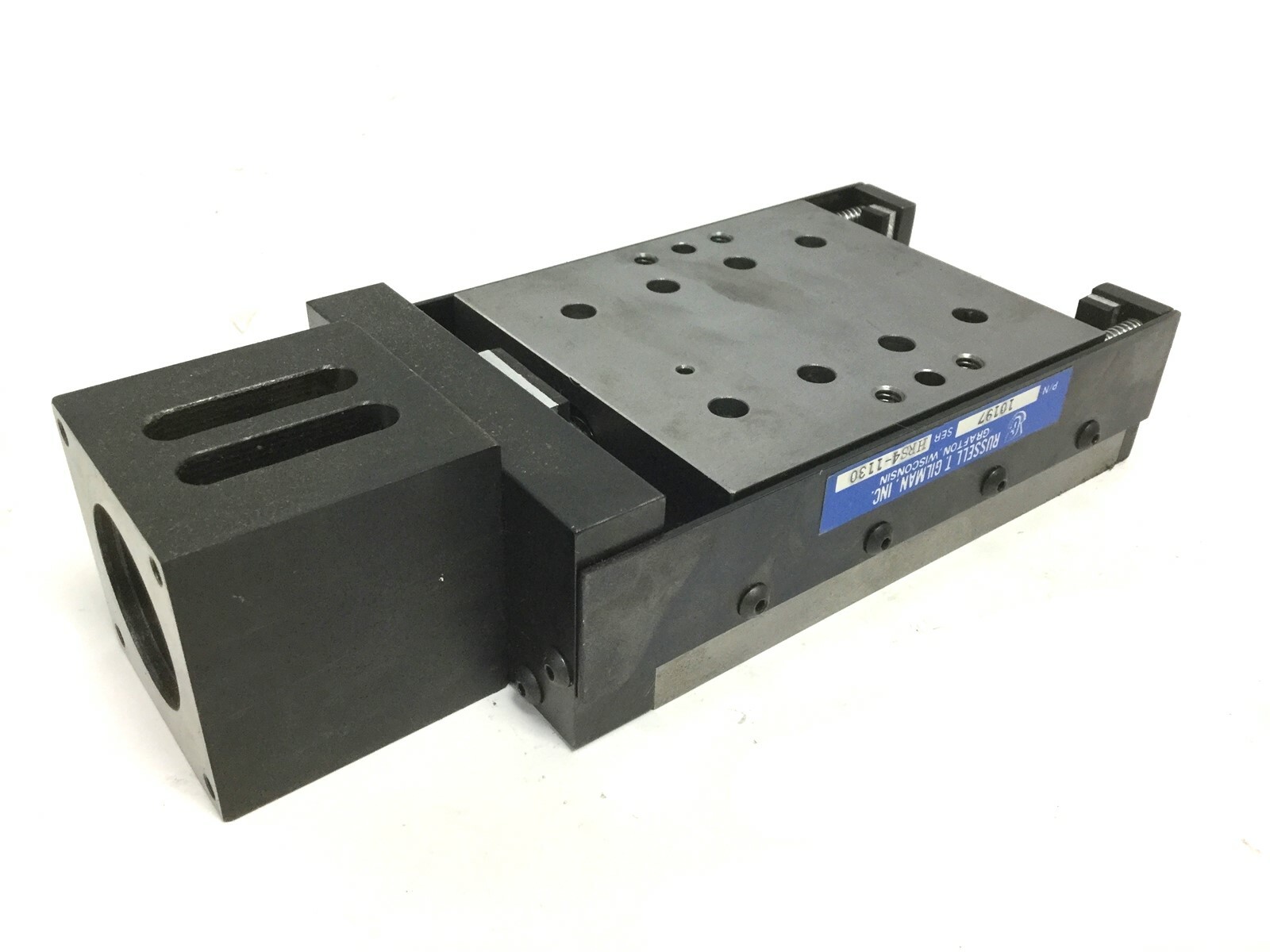

Gilman Linear Motion 10197 Precision Linear Stage, Travel: 25.25mm, 2.57mm/Turn
