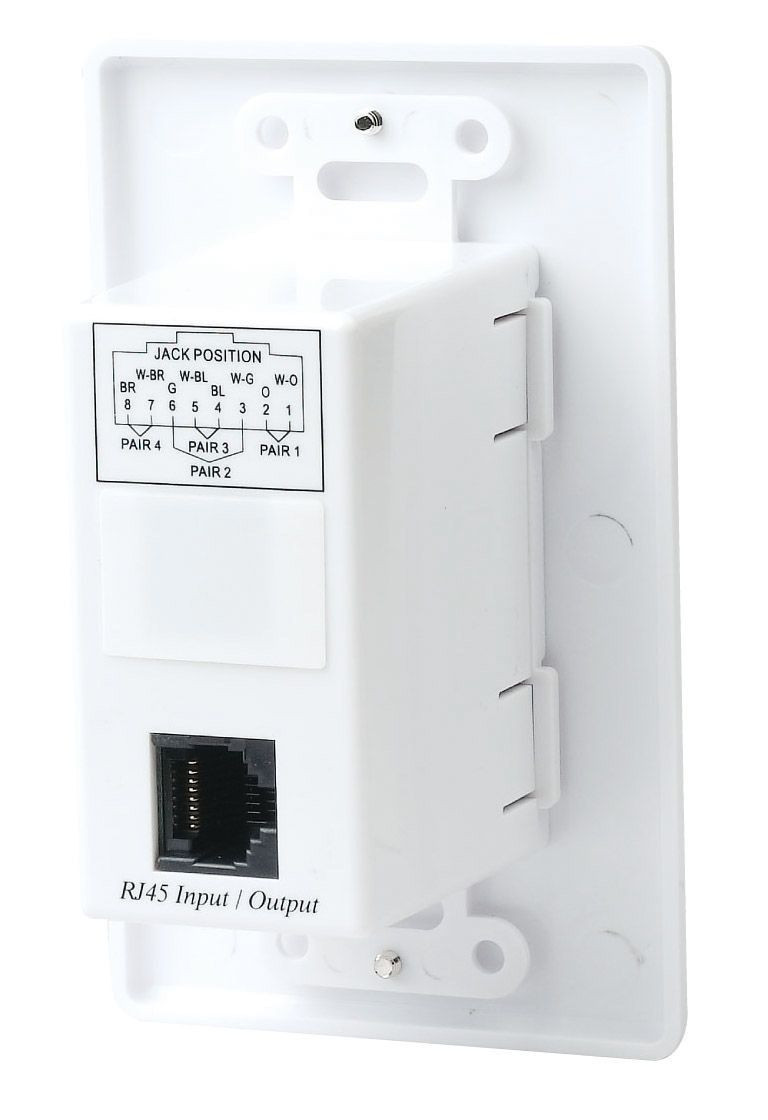

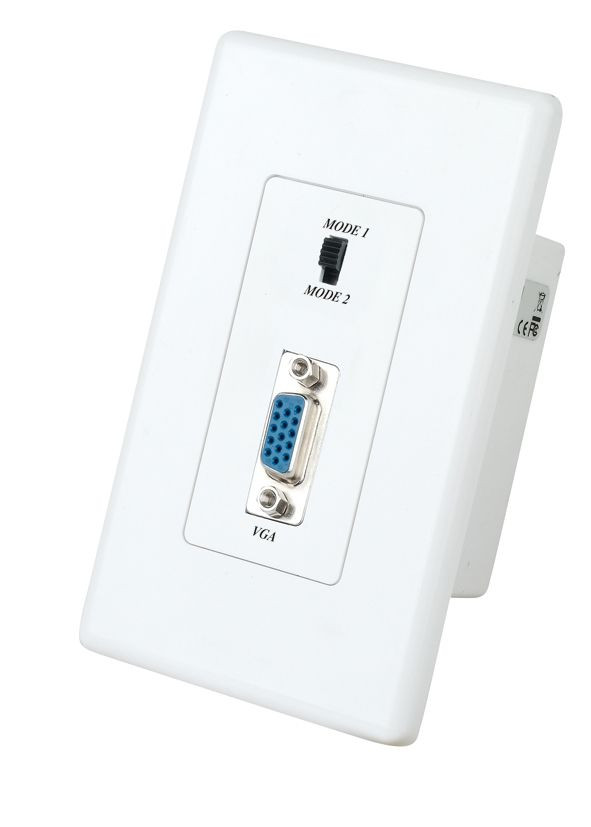

Check the listing for details. Wall Plate VGA Video Signal Extender Over One Cat5 Cable VW01. Condition: New. Listed at 85.00 USD. Wall Plate VGA Video Signal Extender Over One Cat5 CableModel: VW01It Comes with One Transmitter Unit (VW01R) and One Receiver Unit (VW01T) Product Overview: The VGA Extender allows VGA video signals to be transmitted up to 135 meters via 4-paris CAT5 STP or UTP cable. Used in pairs, the VGA Extender is used in home or commercial applications as a smart, fast and cost-effective, eliminates costly and bulky VGA cable, allowing VGA monitors to be connected extended distances from the PC via standard twisted pair cable. Ideal for classrooms video distribution, lecture halls, retail kiosks, video information displays, overhead projector systems, PC-training systems, and tradeshows PC demo systems. Wall mountable type could be using CAT5 structuring cable for easy installation to simplifies and beautifies any audiovisual environment. VW01 Wall Plate VGA CAT5 Extender Used in pairs via one CAT5 UTP cable to send VGA up to 100 meter. VGA connector to shielding RJ45 female. Wall plate outer dimension: 115 x 71 mm Passive device, no power required, not support VGA DDC protocol. Supports up to 1280x1024 pixels. Up to 135 meters via standard 4 pairs CAT5 STP or UTP cable instead of VGA cable. Transmitter built in virtual DDC to avoid improperly setting at resolution and frequency. Transmitter built in sync mode selection for signal stability. Receiver built in sync filter level adjustment for signal stability. Perfect for classrooms, lecture halls, tradeshows, video information displays…etc. Panel View: VW01T VW01R Installation View: Installation: Recommend Cable: 1. CAT5e UTP/STP or CAT6 UTP cable. 2. There are some certain models or brands of monitors with very high demand at sync-sensitive, recommend use STP (shielding twisted pair) cable to instead of UTP (unshielded twisted pair) cable. Specification: ITEM NO. VW01T VW01R Input Signals Video: 1 Vp-p Horizontal & Vertical SYNC : TTL standard. 300kHz max. bandwidth Insertion Loss Less than 3dB per pair over the frequency range Video Signal Return Loss -15dB max from DC to 60Mhz 75 ohms (DB15), 100 ohms (RJ45) Setting Switch 2 Stage Slide Switch 5 Stage Dip Switch Transmission Distance 60 -100 meters depend on image resolution Link Cable CAT5 / CAT5e / CAT6 / STP or UTP Cable Temperature Operation: 0 to 55 C, Storage: -20 TO 85 c, Humidity: up to 95% Dimensions mm 70.3 x 61 x 115 70.3 x 61 x 115 Weight g 97 95 Max. Distance via CAT5 Cable 800x600 pixels (30MHz) 100M 1024x768 pixels (60MHz) 75M 1280x1024 pixels (100MHz) 60M
