| Restocking Fee | No |
|---|---|
| Return shipping will be paid by | Seller |
| All returns accepted | Returns Accepted |
| Item must be returned within | 30 Days |
| Refund will be given as | Money Back |
| Model | 1377828 |
| Switch Style | Rotary |
| Type | Hexadecimal Rotary Switch |
| MPN | 1377828 |
| Operation Method | On/Off |
| Brand | Unbranded |
| Termination Type | Solder Lug |

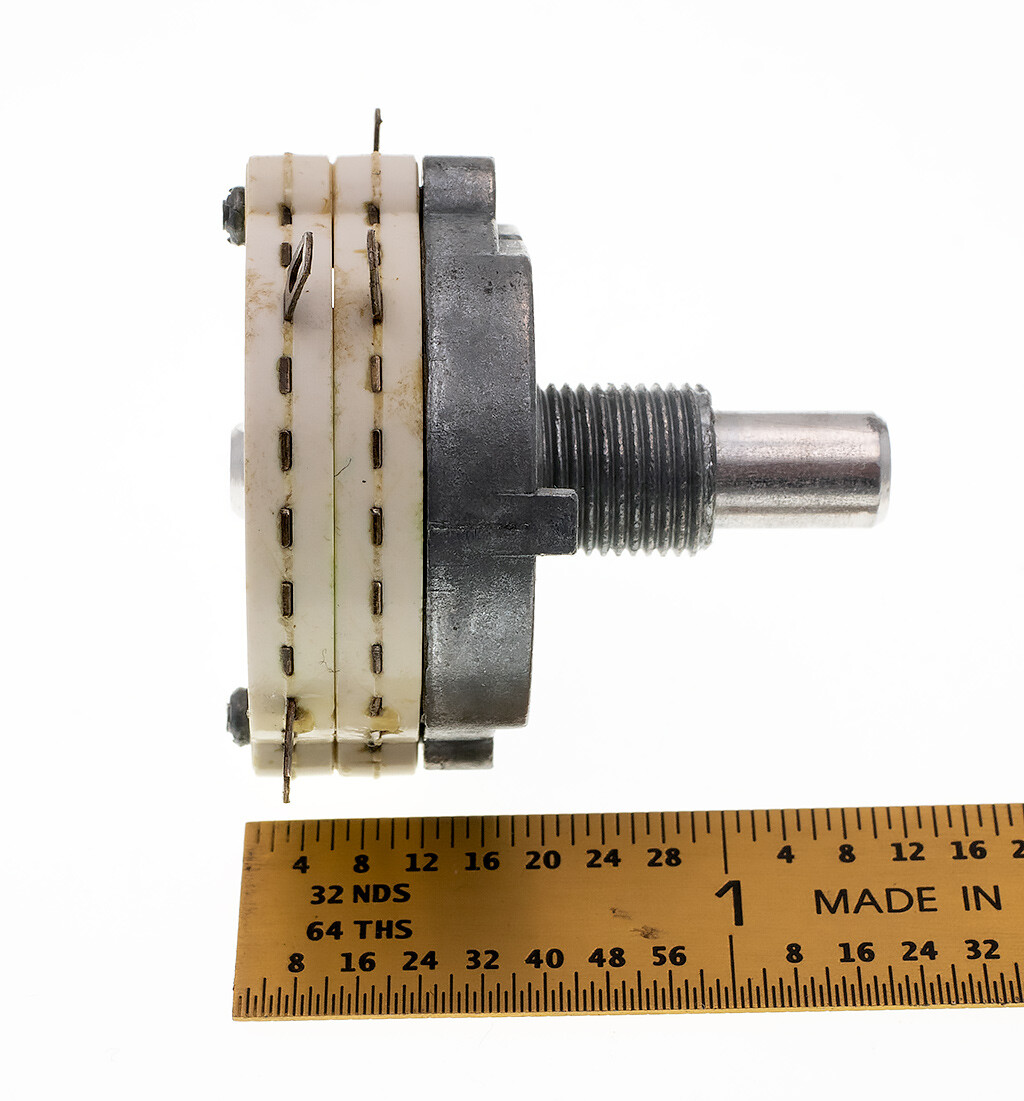

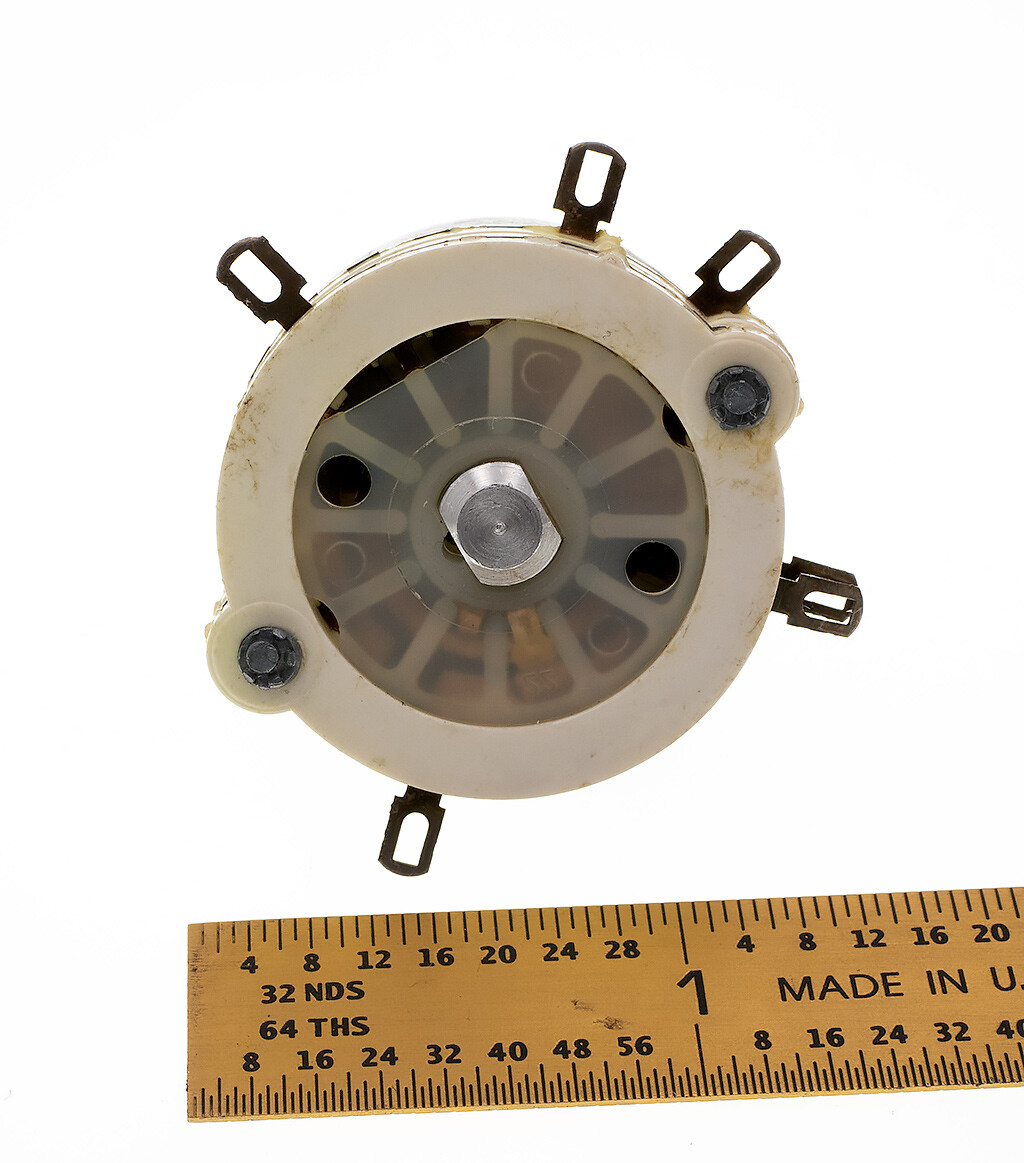

Check the listing for details. Rotary Switch , 2-Wafer 2-Pole 10-Position, Binary Coded 1377828 32036-2, NOS. Condition: New – Open box. Listed at 9.95 USD. Rotary Switch , 2-Wafer 2-Pole 10-Position, Binary Coded 1377828 32036-2, NOS Connections are as followsIf you are facing the front with the alignment tab facing up, at the 1 o'clock position there are pins on each wafer (the only two that are overlapped). They are the commons for each wafer. Position 1 is turned all the way counterclockwise. I am numbering the pins clockwise from pin 1. Position 1 - No ConnectionsPosition 2 - Top Wafer - Pin 2Position 3 - Top Wafer - Pin 3Position 4 - Top Wafer - Pin 2 & Pin 3Position 5 - Bottom Wafer - Pin 2Position 6 - Top Wafer - Pin 2 & Bottom Wafer - Pin 2Position 7 - Top Wafer - Pin 3 & Bottom Wafer - Pin 2Position 8 - Top Wafer - Pin 2 & Pin 3 & Bottom Wafer - Pin 2Position 9 - Bottom Wafer - Pin 3Position 10 - Top Wafer - Pin 2 & Bottom Wafer - Pin 3
